Yazaki 1.3 (050) Connector

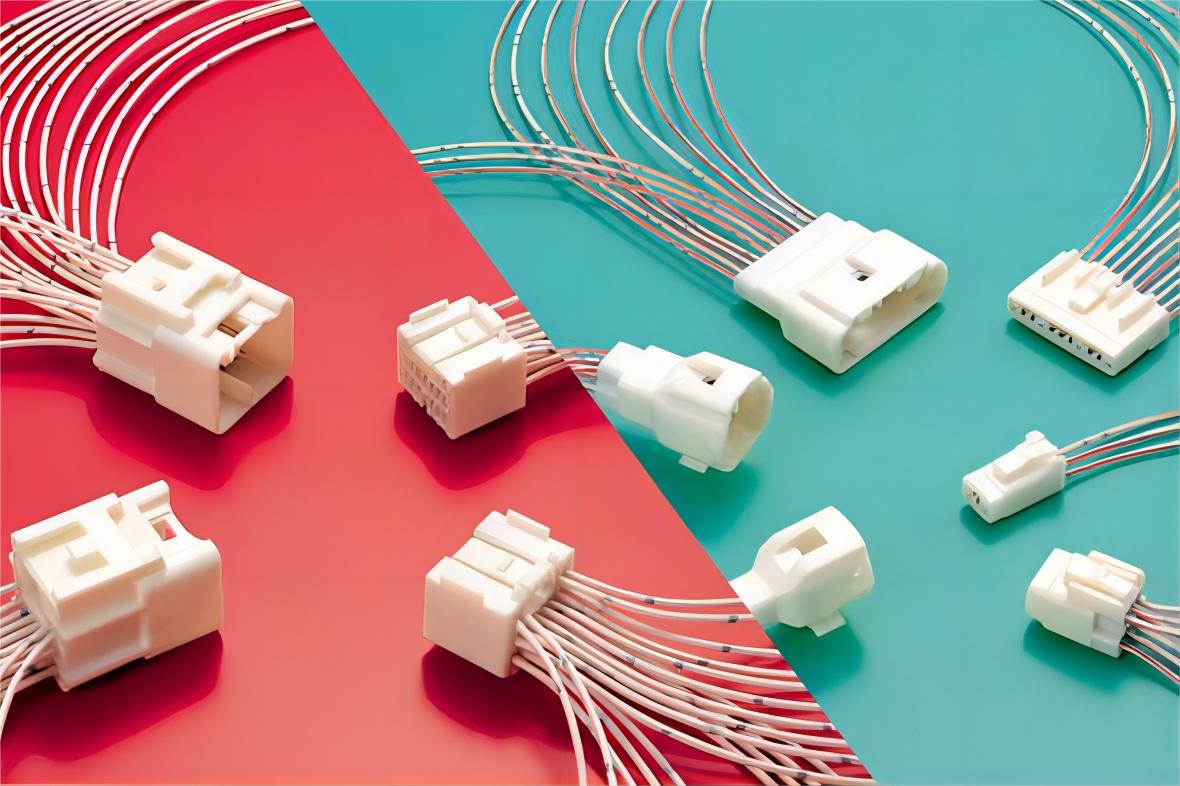

The Yazaki 050 series connector is a highly versatile and efficient solution for various electrical applications. Its compact size, with a tab width of 1.3mm (.050 inches), allows for easy installation in tight spaces without compromising performance.

One notable feature of this connector is its compatibility with wire sizes ranging from 0.3 to 0.5mm2, making it suitable for a wide range of wire gauges commonly used in electronic devices and automotive applications.

To ensure secure terminal positioning, the housing of the Yazaki 050 series connector incorporates internal lances and spacers. These design elements provide stability and prevent any unwanted movement or disconnection that could potentially disrupt electrical connections.

Furthermore, this connector offers multiple connection options to cater to different application requirements. Whether it's "wire-to-wire" connections within an electrical system, "wire-to-printed circuit board" connections for seamless integration into PCB designs, or "wire-to-devices" connections enabling reliable communication between various components – the Yazaki 050 series connector can accommodate them all.

With its robust construction and reliable performance, this connector has gained recognition in industries such as automotive manufacturing, consumer electronics, telecommunications, and more. It provides engineers and designers with a dependable solution that ensures efficient power transmission and signal integrity.

In conclusion, the Yazaki 050 series connector stands out as a compact yet powerful component offering versatility across various connection scenarios while maintaining optimal terminal position assurance through its innovative design features.

Connector P/N Lists and Specifications

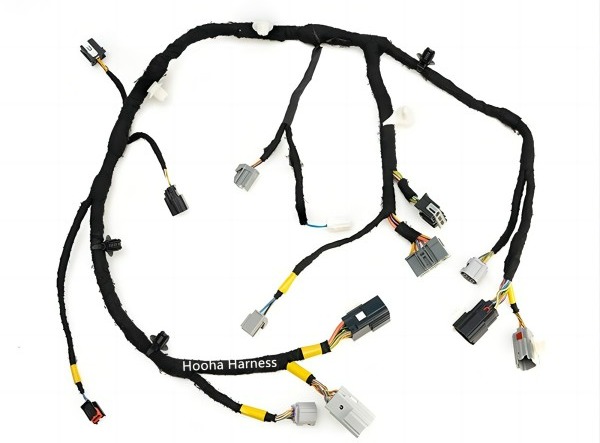

Support Custom Wire Harness Assembly

• Connectors: 2P to 16P.
• Wire Gauge:
  • depends on your needs
  • recommend by us
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 50 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
