Yazaki 2.3II (090II) Connectors

The Yazaki 2.3II (090II) series connector is a highly versatile and compact size connector that offers exceptional performance in various automotive applications. With a tab width of the male terminal measuring 2.3mm (.090 inches), it provides a secure and reliable connection for wire sizes ranging from 0.3 to 0.5 mm².

One notable feature of this connector is its housing, which incorporates internal lances and a front holder to ensure the precise positioning of terminals. This design element enhances the overall stability and durability of the connector, making it suitable for demanding automotive environments.

Furthermore, the Yazaki 2.3II (090II) series connector offers flexibility in terms of application options. It can be used for both "wire to wire" connections, where two wires are joined together, as well as "wire to devices" applications, allowing seamless integration with various automotive components.

This connector's compact size makes it particularly advantageous in situations where space is limited or when weight reduction is desired without compromising performance or reliability.

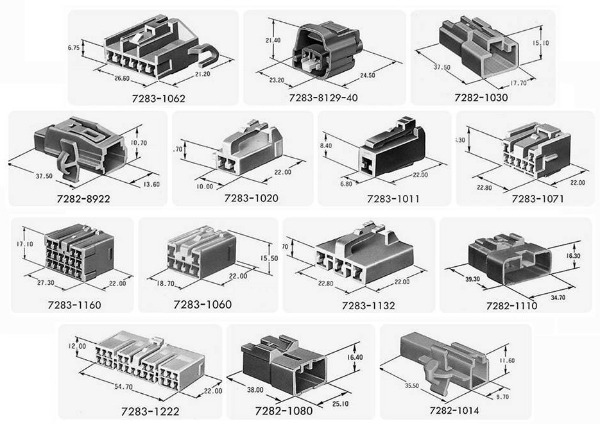

090II Sealed Connector Specs Chart

090II Unsealed Connector Specs Chart

Support Custom Wire Harness Assembly

• Connectors: 1P to 8P.
• Wire Gauge:
  • depends on your needs
  • recommend by us
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 50 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
