Yazaki 4.8(187) Connectors
This connector is designed compactly, making it suitable for various applications. The male terminal has a tab width of 4.8mm (.187 inches), allowing for easy and secure connections. It can accommodate wire sizes ranging from 0.3 to 3.0 mm², providing flexibility in wiring options.
One notable feature of this connector is its tangle-less concept, ensuring that the wires remain organized and free from entanglement. Additionally, each terminal has a clean body design, enhancing the overall aesthetics of the connector.
To ensure durability and protection against external factors, the terminals are box-shaped and have outer coverings that prevent deformation or damage during usage.
Furthermore, this connector offers versatility in connection options as it can be used for both "wire-to-wire" and "wire-to-devices" applications. This means it can be utilized in various electrical systems requiring reliable connections.
This connector combines functionality with practicality by offering a compact size, wide wire range compatibility, tangle-less concept, clean body design, and versatile connection options. Its features make it an ideal choice for professionals seeking efficient and reliable electrical connectors for their projects or applications.
Classification
- Sealed
- Unsealed

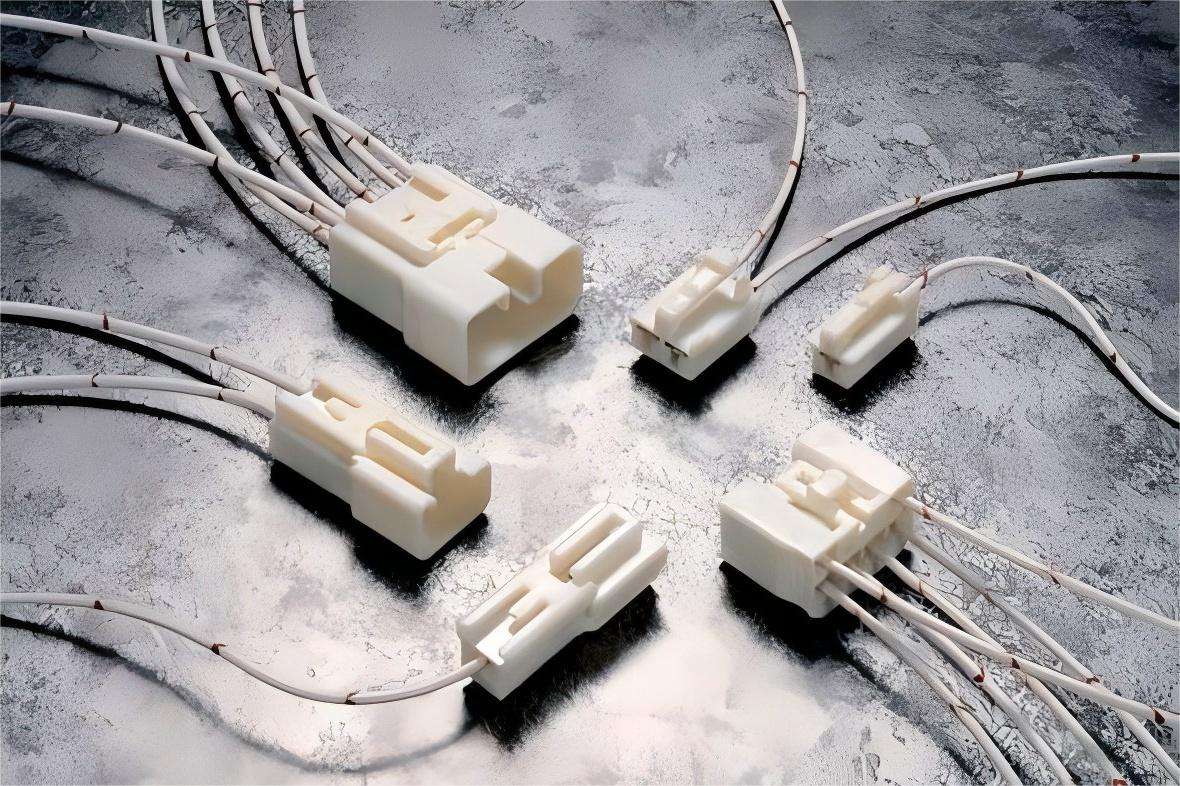

4.8mm (187) Unsealed Connectors series
| P/N | No. of Pole | Gender | Type | Color/Plating |
| 7282-1210 | 1 | Male | Housing | NATURAL |
| 7283-1210 | 1 | Female | Housing | NATURAL |
| 7282-1024 | 2 | Male | Housing | NATURAL |
| 7282-1025 | 2 | Male | Housing | NATURAL |
| 7283-1024 | 2 | Female | Housing | NATURAL |
| 7283-1025 | 2 | Female | Housing | NATURAL |
| 7282-1065 | 6 | Male | Housing | NATURAL |
| 7283-1065 | 6 | Female | Housing | NATURAL |
| 7283-1069 | 6 | Female | Housing | NATURAL |
| 7114-4030 | - | Male | Terminal | Tin Plating |
| 7114-4031 | - | Male | Terminal | Tin Plating |
| 7114-4032 | - | Male | Terminal | Tin Plating |
| 7116-4030 | - | Female | Terminal | Tin Plating |
| 7116-4031 | - | Female | Terminal | Tin Plating |
| 7116-4032 | - | Female | Terminal | Tin Plating |

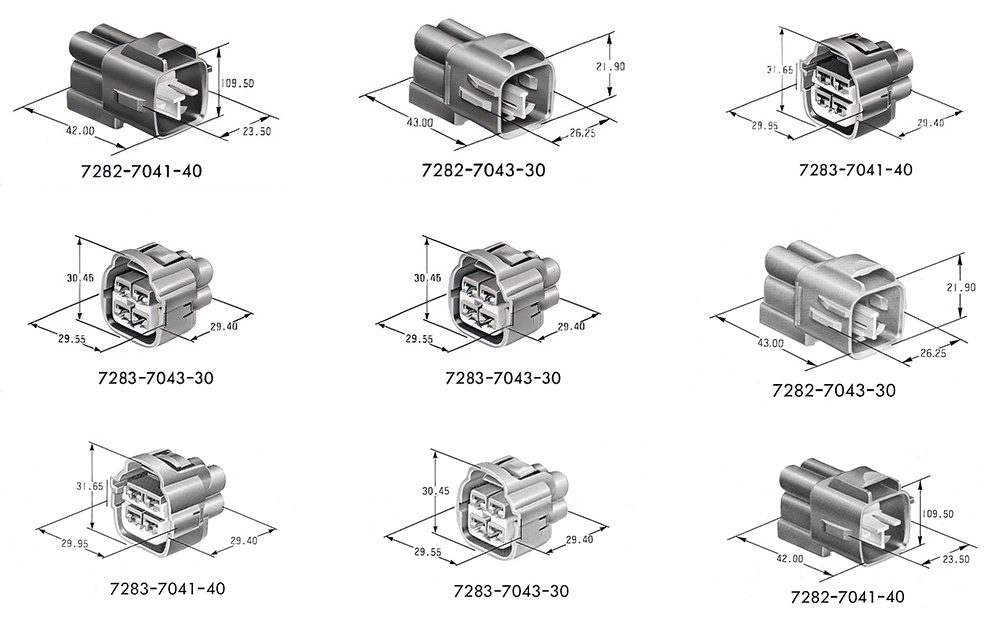

4.8mm (187) Sealed Connectors series
| P/N | No. of Pole | Gender | Type | Color/Plating |
| 7282-7041-40 | 4 | Male | Housing | LIGHT GRAY |
| 7282-7043-30 | 4 | Male | Housing | BLACK |
| 7283-7041-40 | 4 | Female | Housing | LIGHT GRAY |
| 7283-7043-30 | 4 | Female | Housing | BLACK |
| 7114-4035 | - | Male | Terminal | Tin Plating |
| 7114-4036 | - | Male | Terminal | Tin Plating |
| 7114-4037 | - | Male | Terminal | Tin Plating |
| 7116-4035 | - | Female | Terminal | Tin Plating |
| 7116-4036 | - | Female | Terminal | Tin Plating |
| 7116-4037 | - | Female | Terminal | Tin Plating |
| 7157-3850 | - | Shared | Wire seals | LIGHT GRAY |
| 7157-3852 | - | Shared | Wire seals | BLACK |
| 7157-8763 | - | Shared | Dummy plugs | DARK GRAY |
| 7158-3014-90 | - | Shared | Wire seals | BLUE |
| 7158-3015-10 | - | Shared | Wire seals | DARK GRAY |
| 7158-3016-80 | - | Shared | Wire seals | BROWN |
| 7158-3017 | - | Shared | Wire seals | BLACK |
Support Custom Wire Harness Assembly
- Connectors: 1P to 6P.
- Wire Gauge: 0.3 to 3.0 mm²
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 50 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
