Yazaki 8.0(312) Connectors, Custom Wire Harness Assembly Manufacturer

Yazaki 8.0(312) Connectors

The Yazaki 8.0 (312) connector is designed to provide a compact and efficient solution for various applications. With its tab width of 8.0mm (0.312 inches), it offers a secure connection for male terminals, ensuring reliable electrical conductivity.

One notable feature of this connector is its wide range of wire sizes that it can accommodate, ranging from 0.5 to 8.0 mm². This versatility allows for flexibility in different wiring configurations, making it suitable for a variety of projects and installations.

In terms of current carrying capacity, the Yazaki 8.0 (312) connector is capable of handling currents ranging from 10A to 40A. This makes it ideal for applications where higher power demands are required, such as automotive systems or industrial machinery.

Furthermore, this connector offers two connection ways: "wire to wire" and "wire to devices". The "wire to wire" option enables easy interconnection between wires, providing seamless integration within a system or circuitry setup. On the other hand, the "wire to devices" application allows for direct connections between wires and external devices or components.

Classification

• Sealed
• Unsealed

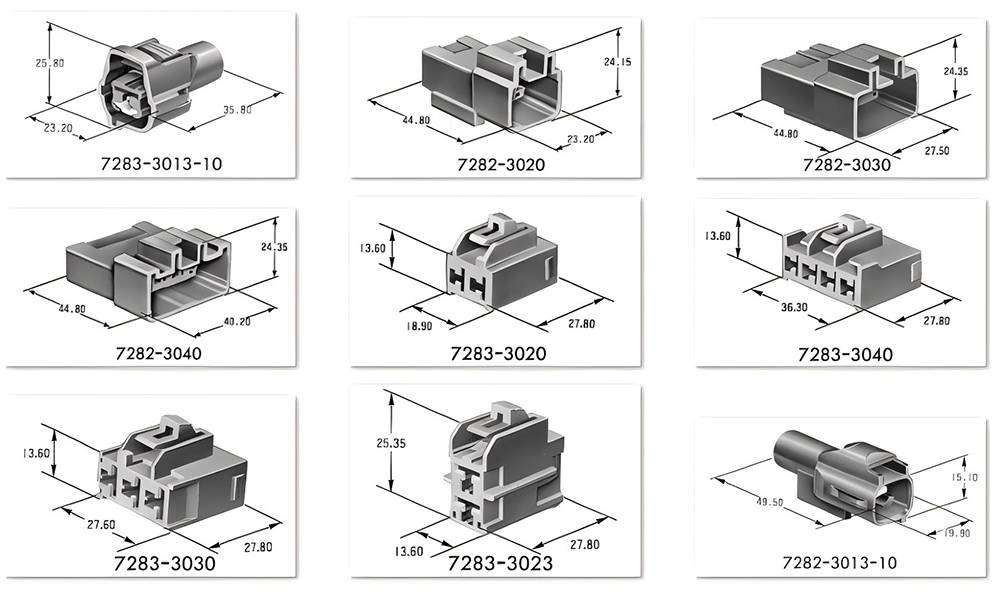

8.0(312) Sealed Connector series

8.0(312) Unsealed Connector series

Support Custom Wire Harness Assembly

• Connectors: 1P to 4P.
• Wire Gauge: 0.5～8.0mm² (For Unsealed Connector), 2.0～8.0mm² (For Sealed Connector)
  • depends on your needs
  • recommend by us
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 50 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
