Yazaki Sealed 9.5 (375) Connectors

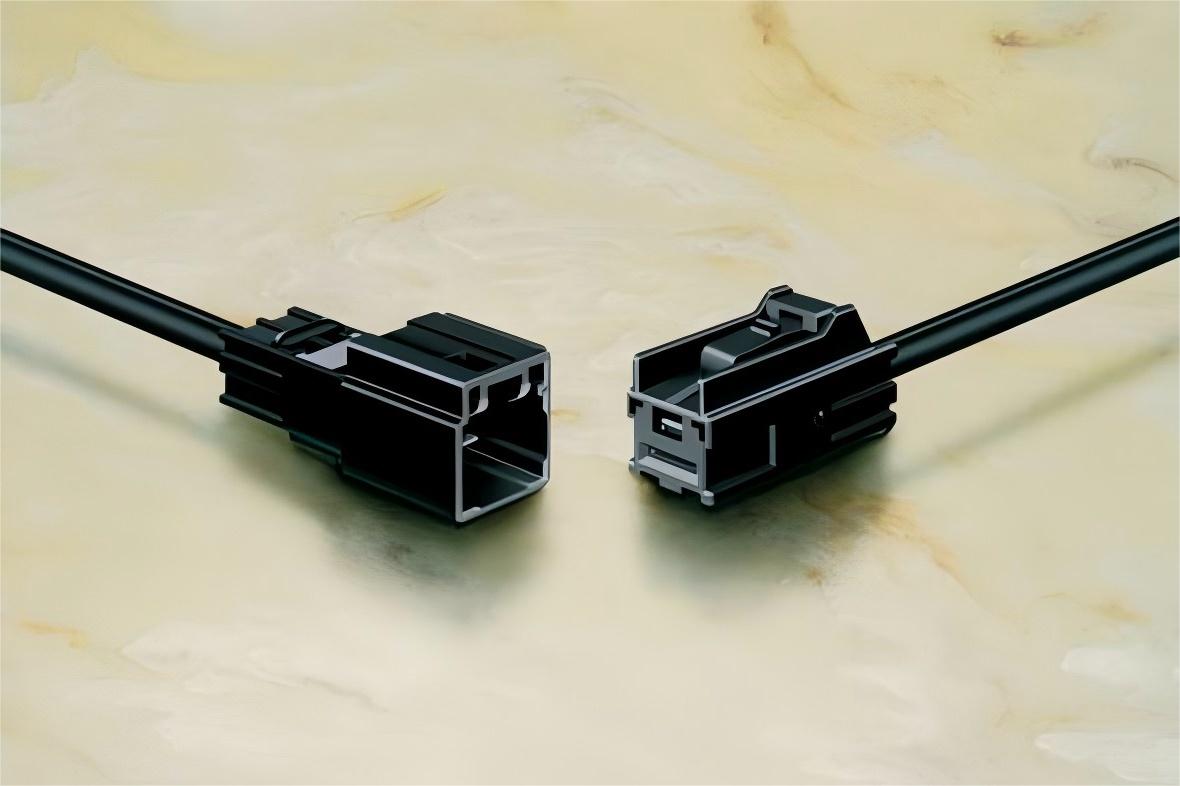

The Yazaki connector is a compact-sized connector with a male terminal tab width of 9.5 mm (0.375 inches), designed for high-current applications. It can be used for both "wire to wire" and "wire to devices" connections. Additionally, it comes in two versions: the "Standard type," available in sealed and non-sealed options, and the "WPC type," exclusively for sealed applications only. Each terminal features a tangle-free design with a clean body and tin plating. The female terminal's contact spring portion is protected by a box-shaped configuration to prevent deformation, while the housing includes internal lances and spacers to ensure proper terminal positioning.

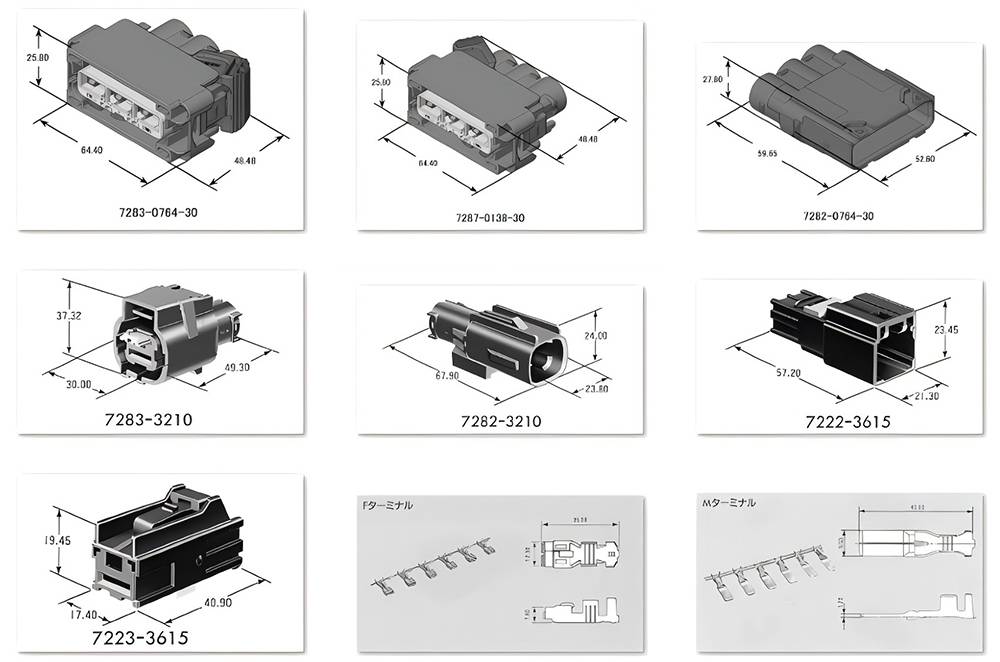

Connector Specification Chart
| P/N | No. of Pole | Gender | Type | Color/Plating |
| 7282-3210 | 1 | Male | Housing | NATURAL |
| 7283-3210 | 1 | Female | Housing | NATURAL |
| 7282-0764-30 | 3 | Male | Housing | BLACK |
| 7283-0764-30 | 3 | Female | Housing | BLACK |
| 7287-0138-30 | 3 | Female | Housing | BLACK |
| 7114-3095-02 | - | Male | Terminal | Tin Plating |
| 7114-5073-02 | - | Male | Terminal | Tin Plating |
| 7116-3095-02 | - | Female | Terminal | Tin Plating |
| 7116-5073-02 | - | Female | Terminal | Tin Plating |
| 7158-3180-80 | - | Shared | Wire seals | BROWN |
| 7158-3181-40 | - | Shared | Wire seals | LIGHT GRAY |
| 7158-3610-80 | - | Shared | Wire seals | BROWN |
| 7158-3611-60 | - | Shared | Wire seals | GREEN |
Support Custom Wire Harness Assembly
- Connectors: 1P to 3P.
- Wire Gauge: 3.0～15.0mm² (For Sealed Connector)
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 50 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
