Yazaki Sealed 58 Connectors
This connector is designed to meet the needs of various automotive applications, providing a reliable and efficient solution. With its compact size, it offers convenience in installation and space-saving benefits.
The tab width of the male terminal ranges from 1.2mm to 9.5mm (0.048 to 0.375 inches), catering to different requirements and ensuring compatibility with a wide range of devices or systems.
One notable feature of this connector is its availability in both sealed (waterproof) and non-sealed versions, offering flexibility for different environmental conditions. The sealed version provides added protection against moisture, dust, and other external elements that could potentially affect the performance or longevity of the connection.
In addition to its compact size and sealing capabilities, this connector also boasts reliable performance due to its unique design features. For instance, the X Type Connectors come with a crimping terminal and water seal rubber combined into one unit along with a rear holder for enhanced stability.
On the other hand, the Y Type Connectors offer similar compactness but have a larger tab width of 9.5mm (0.375 inches). These connectors ensure reliable performances through their separated stainless spring member on the female contact point as well as crimped water seal rubber for optimal conductivity and secure connections.
These connectors provide an efficient solution for automotive applications where space constraints are crucial while maintaining reliability even in challenging environments thanks to their sealing capabilities. Whether it's for electrical systems or data transmission purposes within vehicles or machinery, these connectors offer versatility without compromising performance quality.

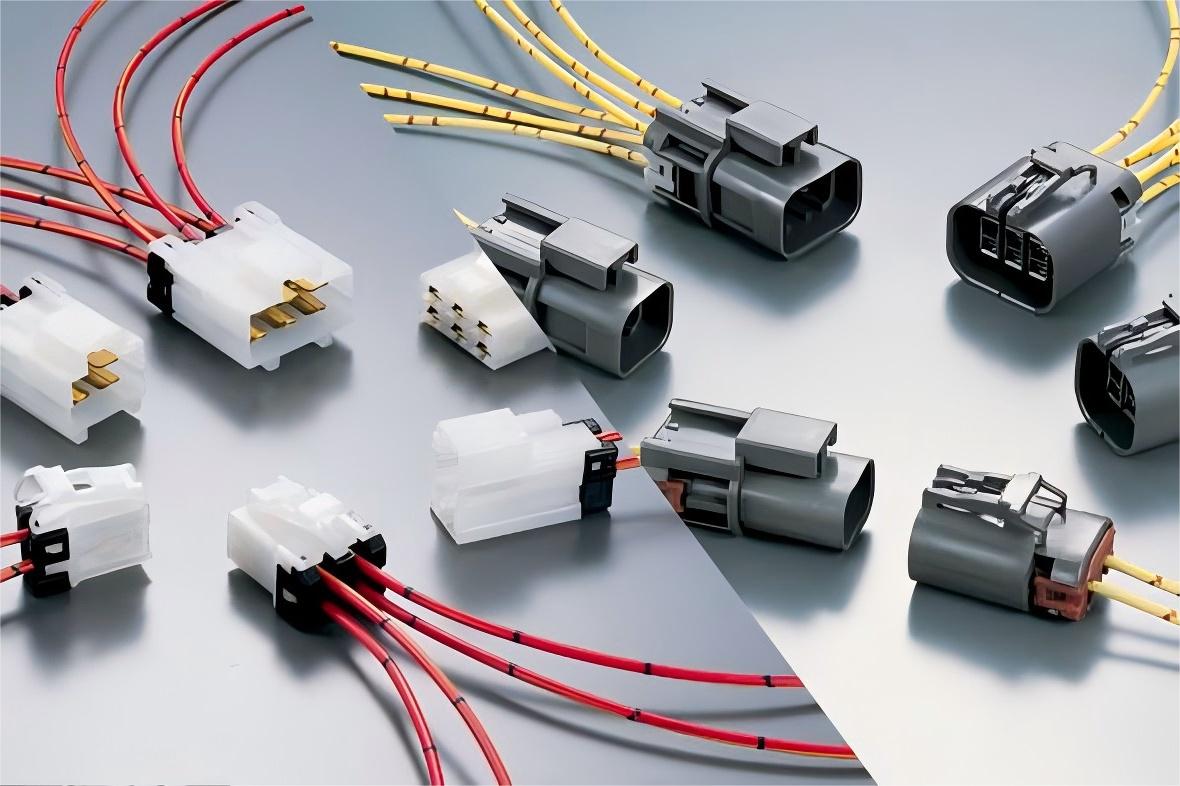

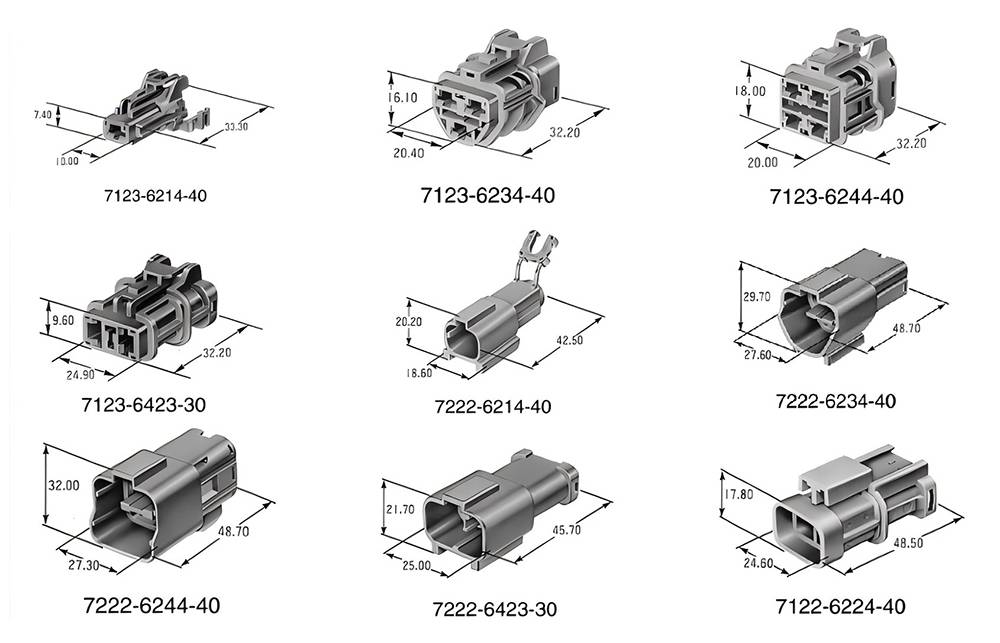

6.3mm (250) 58 Connector X Type Series
| P/N | No. of Pole | Gender | Type | Color/Plating |
| 7123-6214-40 | 1 | Female | Housing | LIGHT GRAY |
| 7222-6214-40 | 1 | Male | Housing | LIGHT GRAY |
| 7122-6224-40 | 2 | Male | Housing | LIGHT GRAY |
| 7123-6423-30 | 2 | Female | Housing | BLACK |
| 7157-6720 | 2 | Holder | NATURAL | |
| 7222-6423-30 | 2 | Male | Housing | BLACK |
| 7223-6224-40 | 2 | Female | Housing | DARK GRAY |
| 7223-6428-80 | 2 | Female | Housing | BROWN |
| 7123-6234-40 | 3 | Female | Housing | LIGHT GRAY |
| 7157-6730 | 3 | Holder | NATURAL | |
| 7222-6234-40 | 3 | Male | Housing | LIGHT GRAY |
| 7123-6244-40 | 4 | Female | Housing | LIGHT GRAY |
| 7157-6740-30 | 4 | Holder | BLACK | |
| 7222-6244-40 | 4 | Male | Housing | LIGHT GRAY |
| 7114-2873 | - | Male | Terminal | Without plating |
| 7114-2874 | - | Male | Terminal | Without plating |
| 7116-2873 | - | Female | Terminal | Without plating |
| 7116-2874 | - | Female | Terminal | Without plating |
| 7116-2878 | - | Female | Terminal | Tin Plating |
| 7116-2879 | - | Female | Terminal | Tin Plating |
| 7157-3572-80 | - | Shared | Dummy plugs | BROWN |
| 7157-6620 | - | Holder | NATURAL |
9.5mm (375) 58 Connector Y Type Series
| P/N | No. of Pole | Gender | Color/Plating | dat_list | Series | Sealed |
| 7123-4210-30 | 1 | Female | BLACK | Housing | 58 Connector Y Type | Sealed |
| 7123-4210-40 | 1 | Female | Tin Plating | Housing | 58 Connector Y Type | Sealed |
| 7222-4210-30 | 1 | Male | Tin Plating | Housing | 58 Connector Y Type | Sealed |
| 7222-4210-40 | 1 | Male | Tin Plating | Housing | 58 Connector Y Type | Sealed |
| 7123-4220-30 | 2 | Female | Tin Plating | Housing | 58 Connector Y Type | Sealed |
| 7123-4220-40 | 2 | Female | BLACK | Housing | 58 Connector Y Type | Sealed |
| 7157-6800-80 | 2 | LIGHT GRAY | Holder | 58 Connector Y Type | Sealed | |
| 7157-6801-30 | 2 | BLACK | Holder | 58 Connector Y Type | Sealed | |
| 7222-4220-30 | 2 | Male | LIGHT GRAY | Housing | 58 Connector Y Type | Sealed |
| 7222-4220-40 | 2 | Male | BLACK | Housing | 58 Connector Y Type | Sealed |
| 7289-9562-30 | 2 | Female | BROWN | Housing | 58 Connector Y Type | Sealed |
| 7114-3250 | - | Male | BLACK | Terminal | 58 Connector L/Y Type 91 Connector L-MC Type YES/YESC Kaizen Connector 9.5X1.2 |
Unsealed |
| 7114-3251 | - | Male | BLACK | Terminal | 58 Connector L/Y Type 91 Connector L-MC Type YES/YESC Kaizen Connector 9.5X1.2 |
Unsealed |
| 7116-3250 | - | Female | LIGHT GRAY | Terminal | 58 Connector L/Y Type 91 Connector L-MC Type YES/YESC Kaizen Connector 9.5X1.2 |
Unsealed |
| 7116-3251 | - | Female | BLACK | Terminal | 58 Connector L/Y Type 91 Connector L-MC Type YES/YESC Kaizen Connector 9.5X1.2 |
Unsealed |
| 7157-3583 | - | Shared | LIGHT GRAY | Dummy plugs | 58 Connector Y Type YES/YESC Kaizen Connector 9.5X1.2 |
Sealed |
Support Custom Wire Harness Assembly
- Connectors: 1P to 4P.
- Wire Gauge: 0.5～4.0mm² (X type), 3.0～15.0mm² (Y type)
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 50 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
