Yazaki Unsealed NEW250 Connectors, Custom Wire Harness Manufacturer
Yazaki NEW250 Connector Features
- Tab size：6.3mm(250)
- Current value (A)：20～30
- Wire diameter (sq)：0.3～4.0
- Unsealed/Seald: Unsealed
- Connection Type: Wire to Wire
- No. of Pole available: 1 ~ 6 way

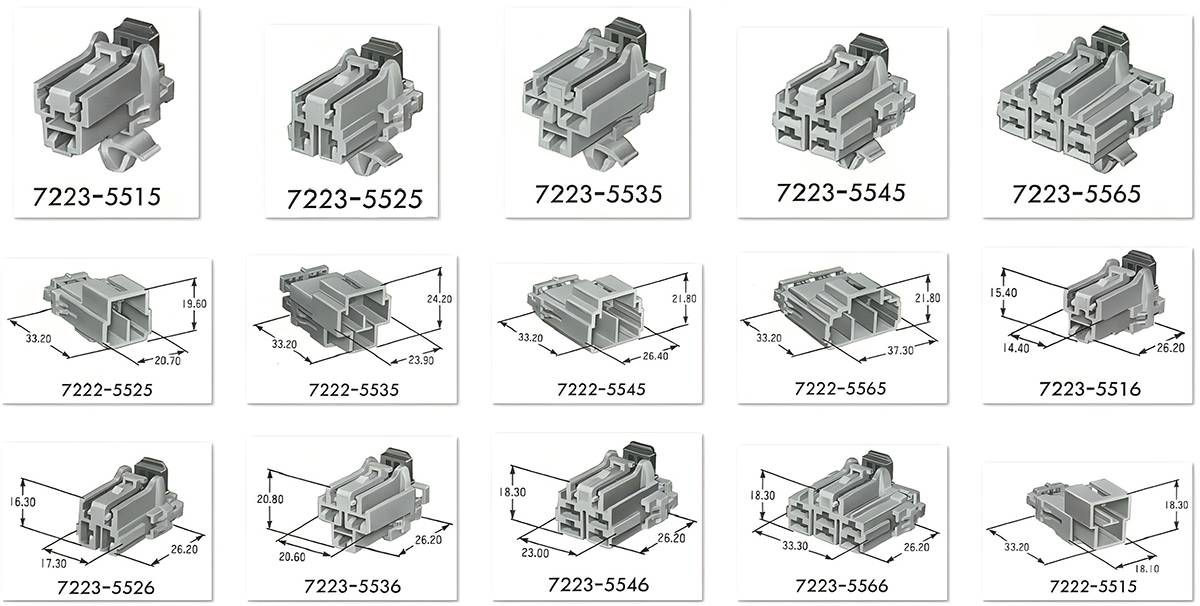

NEW250 Connector Specifications Chart
| P/N | No. of Pole | Gender | Type | Color/Plating |
| 7222-5515 | 1 | Male | Housing | Natural |
| 7223-5515 | 1 | Female | Housing | Natural |
| 7223-5516 | 1 | Female | Housing | Natural |
| 7222-5525 | 2 | Male | Housing | Natural |
| 7223-5525 | 2 | Female | Housing | Natural |
| 7223-5526 | 2 | Female | Housing | Natural |
| 7222-5535 | 3 | Male | Housing | Natural |
| 7223-5535 | 3 | Female | Housing | Natural |
| 7223-5536 | 3 | Female | Housing | Natural |
| 7222-5545 | 4 | Male | Housing | Natural |
| 7223-5545 | 4 | Female | Housing | Natural |
| 7223-5546 | 4 | Female | Housing | Natural |
| 7222-5565 | 6 | Male | Housing | Natural |
| 7223-5565 | 6 | Female | Housing | Natural |
| 7223-5566 | 6 | Female | Housing | Natural |
| 7114-2250 | - | Male | Terminal | Without plating |
| 7114-2250-02 | - | Male | Terminal | Tin Plating |
| 7114-2251 | - | Male | Terminal | Without plating |
| 7114-2251-02 | - | Male | Terminal | Tin Plating |
| 7114-2252 | - | Male | Terminal | Without plating |
| 7114-2252-02 | - | Male | Terminal | Tin Plating |
| 7116-2640 | - | Female | Terminal | Without plating |
| 7116-2640-02 | - | Female | Terminal | Tin Plating |
| 7116-2641 | - | Female | Terminal | Without plating |
| 7116-2641-02 | - | Female | Terminal | Tin Plating |
| 7116-2642 | - | Female | Terminal | Without plating |
| 7116-2642-02 | - | Female | Terminal | Tin Plating |

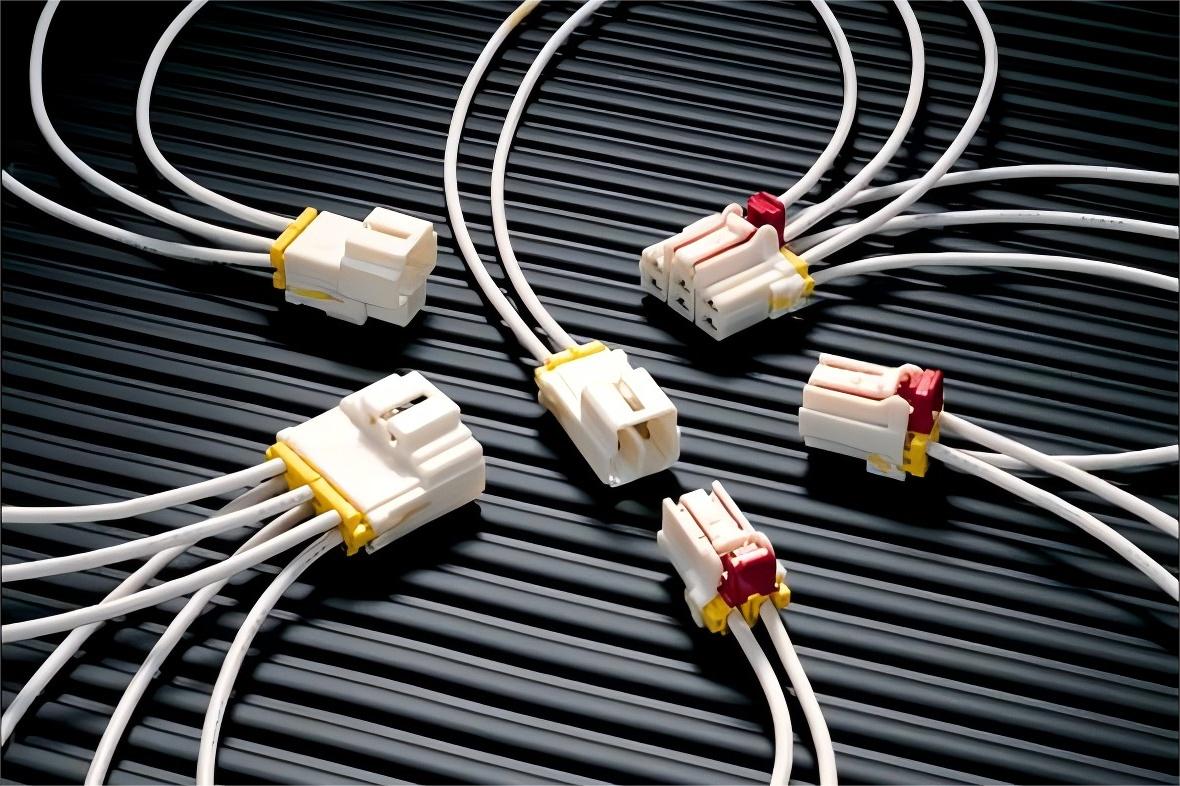

Support Custom Wire Harness Assembly
- Connectors: 1P to 6P.
- Wire Gauge: 0.3～4.0mm²
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 50 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
