Yazaki Sealed HS Connector, Custom Wire Harness

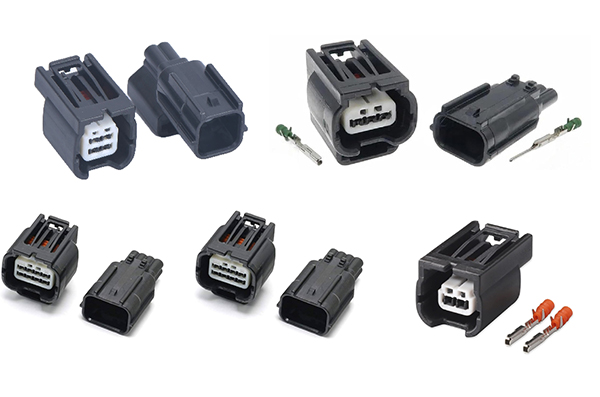

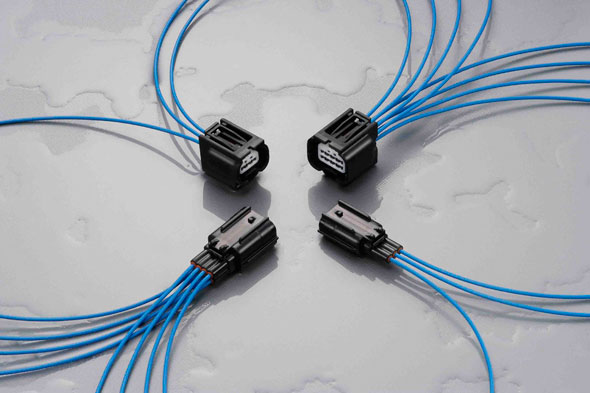

Yazaki Sealed HS Connector Introduction
The HS Connectors series is designed to meet the needs of various industries, providing a compact and sealed connector solution. With a tab width of 0.64mm (.025 inches) for male terminals and covering wire sizes ranging from 0.3 to 0.85mm², these connectors offer versatility in connecting different types of wires.
One notable feature of this connector is its housing design, which includes internal lances and front holders that ensure the precise positioning of terminals. This not only enhances the stability and reliability of connections but also simplifies installation processes.
Moreover, the terminal itself adopts a tangle-less concept with a clean body structure, making it easier to handle during assembly or maintenance tasks. Additionally, these connectors are compatible with RH connectors, further expanding their applicability across various devices and systems.
In terms of application options, the HS Connectors series offers both "wire-to-wire" and "wire-to-devices" connection methods. This flexibility allows users to choose the most suitable configuration based on their specific requirements.
Overall, the HS Connectors series provides an efficient and reliable solution for connecting wires in diverse applications such as automotive electronics, consumer electronics, industrial equipment, and more. Its compact size combined with waterproof capabilities makes it ideal for use in environments where space is limited or protection against moisture is necessary.
With its robust design and versatile features, the HS Connectors series ensures secure connections while maintaining excellent performance even under challenging conditions.
Connector Specification Chart
| Part Number | No. of Positions | Gender | Color | Type |
| 7282-2090-30 | 2 | Male | BLACK | Housing |
| 7283-2090-30 | 2 | Female | BLACK | Housing |
| 7282-2147-30 | 3 | Male | BLACK | Housing |
| 7283-2147-30 | 3 | Female | BLACK | Housing |
| 7282-2763-30 | 4 | Male | BLACK | Housing |
| 7283-2763-30 | 4 | Female | BLACK | Housing |
| 7282-2764-30 | 6 | Male | BLACK | Housing |
| 7283-2764-30 | 6 | Female | BLACK | Housing |
| 7288-9556-30 | 6 | Male | BLACK | Housing |
| 7289-9553-30 | 6 | Female | BLACK | Housing |
| 7282-2148-30 | 8 | Male | BLACK | Housing |
| 7283-2148-30 | 8 | Female | BLACK | Housing |
| 7282-4038-30 | 12 | Male | BLACK | Housing |
| 7283-4038-30 | 12 | Female | BLACK | Housing |
| 7114-4415-02 | - | Male | Tin Plating | Terminal |
| 7114-4416-02 | - | Male | Tin Plating | Terminal |
| 7114-4417-02 | - | Male | Tin Plating | Terminal |
| 7116-4415-02 | - | Female | Tin Plating | Terminal |
| 7116-4416-02 | - | Female | Tin Plating | Terminal |
| 7116-4417-02 | - | Female | Tin Plating | Terminal |
| 7158-3165-90 | - | Shared | BLUE | Wire seals |
| 7158-3166-60 | - | Shared | GREEN | Wire seals |
| 7158-3167-80 | - | Shared | BROWN | Wire seals |
| 7158-3168-80 | - | Shared | BROWN | Wire seals |
| 7158-3169-40 | - | Shared | LIGHT GRAY | Wire seals |
Support Custom Wire Harness Assembly
- Connectors: 2P to 12P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 50 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
