Yazaki Unsealed RI Connector, Custom Wire Harness Assembly
Yazaki Unsealed RI Connector, 0.64 and 1.5 Type
This 0.64 compact connector has a 0.64 mm (.025 inches) tab width of the male terminal, enabling crimping to the 0.13 to 0.5 mm2 wire.
This 1.5 compact connector has a 1.5 mm (.060 inches) tab width of the male terminal, enabling crimping to the 0.13 to 2.0 mm2 wire.
The housing is built into the lance, allowing incomplete terminal insertion to be detected with the checker fixture.
0.64 Type
This compact connector has a 0.64 mm (.025 inches) tab width of the male terminal, supporting the miniaturization of equipment.
This connector applies to wire-to-wire connections, board-to-wire connections, and wire-to-device connections when necessary.
1.5 Type
This compact connector has a 1.5 mm (.060 inches) tab width of the male terminal.
The housing is built into the lance, allowing incomplete terminal insertion to be detected with the checker fixture.
This connector applies to wire-to-wire connections, board-to-wire connections, and wire-to-device connections when necessary.

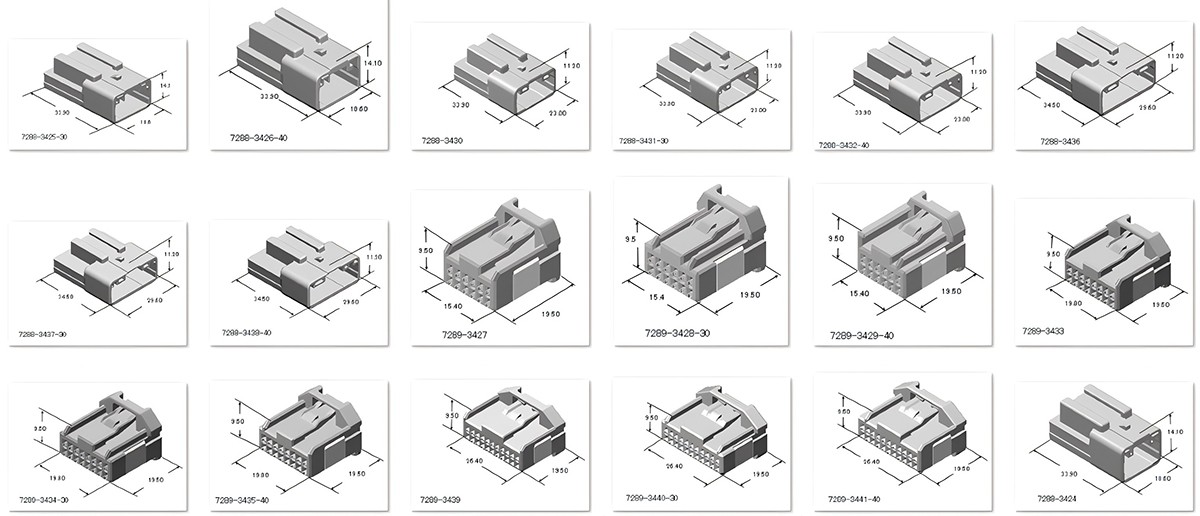

RI 0.64 Connector Specification Chart
| P/N | No. of Pole | Gender | Type | Color/Plating |
| 7288-3424 | 12 | Male | Housing | Natural |
| 7288-3425-30 | 12 | Male | Housing | Black |
| 7288-3426-40 | 12 | Male | Housing | Light Gray |
| 7289-3427 | 12 | Female | Housing | Natural |
| 7289-3428-30 | 12 | Female | Housing | Black |
| 7289-3429-40 | 12 | Female | Housing | Light Gray |
| 7288-3430 | 16 | Male | Housing | Natural |
| 7288-3431-30 | 16 | Male | Housing | Black |
| 7288-3432-40 | 16 | Male | Housing | Light Gray |
| 7289-3433 | 16 | Female | Housing | Natural |
| 7289-3434-30 | 16 | Female | Housing | Black |
| 7289-3435-40 | 16 | Female | Housing | Light Gray |
| 7288-3436 | 22 | Male | Housing | Natural |
| 7288-3437-30 | 22 | Male | Housing | Black |
| 7288-3438-40 | 22 | Male | Housing | Light Gray |
| 7289-3439 | 22 | Female | Housing | Natural |
| 7289-3440-30 | 22 | Female | Housing | Black |
| 7289-3441-40 | 22 | Female | Housing | Light Gray |
| 7195-0157-02 | - | Male | Terminal | Tin Plating |
| 7196-0158-02 | - | Female | Terminal | Tin Plating |
RI 1.5 Connector Specification Chart
| P/N | No. of Pole | Gender | Type | Color/Plating |
| 7189-7308 | 2 | Female | Housing | Natural |
| 7188-3418 | 12 | Male | Housing | Natural |
| 7188-3419-30 | 12 | Male | Housing | Black |
| 7188-3420-40 | 12 | Male | Housing | Light Gray |
| 7189-3421 | 12 | Female | Housing | Natural |
| 7189-3422-30 | 12 | Female | Housing | Black |
| 7189-3423-40 | 12 | Female | Housing | Light Gray |
| 7195-0159-02 | - | Male | Terminal | Tin Plating |
| 7195-0160-02 | - | Male | Terminal | Tin Plating |
| 7195-0161-02 | - | Male | Terminal | Tin Plating |
| 7196-0162-02 | - | Female | Terminal | Tin Plating |
| 7196-0163-02 | - | Female | Terminal | Tin Plating |
| 7196-0164-02 | - | Female | Terminal | Tin Plating |

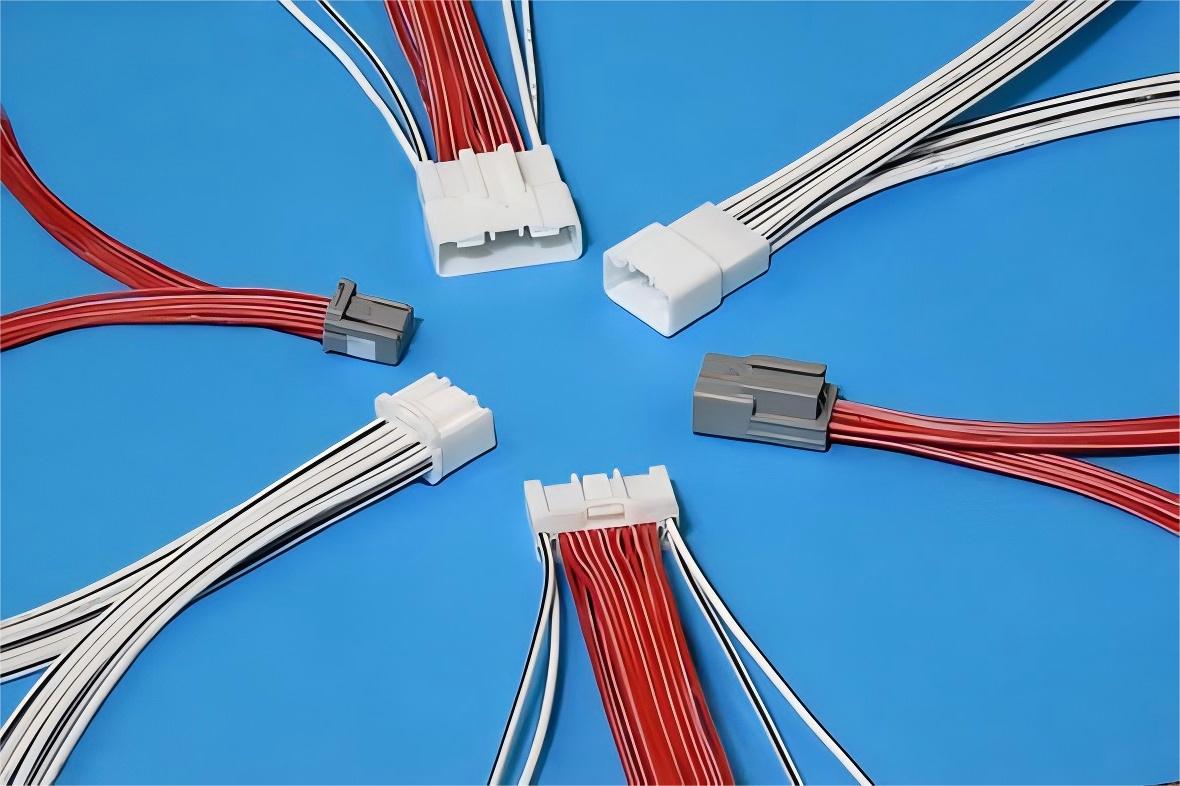

Support Custom Wire Harness Assembly
- Connectors: 2P to 22P.
- Wire Gauge: 0.3～0.75mm² (For 0.64 type), 0.3～2.0mm² (For 1.5 type)
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 50 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
