Halogen-free and Environmentally Friendly Heat Shrinkable Tube

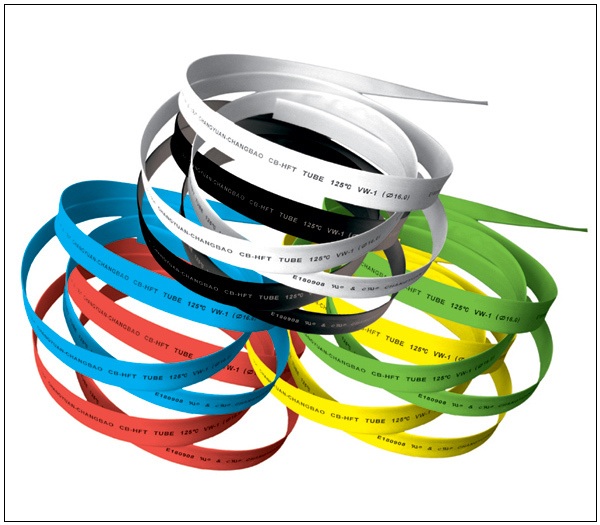

Halogen-free heat shrinkable tubing



  • Material: Radiation cross-linked modified polyolefin material
  • Shrinkage ratio: 2:1, 3:1, 4:1
  • Voltage: 300V and 600V



Features



  • Halogen-free, environmentally friendly, low smoke, and in compliance with the environmental standards of "RoHS", "REACH" and "SONY";
  • Soft and elastic;
  • Meets UL224 VW-1 flame retardant grade and F-mark flame retardant grade;
  • Passed UL125℃ (E180908) certification;
  • Excellent insulation, heat resistance and voltage resistance performance.





Specification



  • Temperature grade: 125℃
  • Applicable temperature range: -30~+125℃
  • Longitudinal change rate: -5%~+5%
  • Tensile strength: ≥10.4MPa
  • Elongation at break: ≥200%
  • Tensile strength: ≥7.3MPa
  • Elongation at break: ≥100%
  • Volume resistivity: ≥1.0×1012Ω.cm
  • Voltage grade: 300V/600V
  • Breakdown voltage: 2500V (60s) without breakdown
  • Thermal shock: 225℃/4h, no dripping, no cracks
  • Cold shock: -30℃/4h, no cracking
  • Concentricity: ≥70%



Below Size for 300V, Ratio 2:1



Size Pre-shrinkage dimensions(mm) Completely shrinked size (mm)
Inside diameter Wall-thickness Inside diameter Wall-thickness
Φ0.6cb 0.8+0.2/-0.1 0.15±0.05 ≤0.40 0.25±0.06
Φ0.7cb 0.9+0.2/-0.1 0.13±0.05 ≤ 0.45 0.25±0.06
Φ0.8cb 1.2+0.2/-0.1 0.13±0.05 ≤ 0.45 0.25±0.06
Φ1.0-Φ1.3cb 1.3+0.2/-0.1 0.13±0.05 ≤ 0.6 0.25±0.06
Φ1.0-Φ1.6cb 1.6+0.2/-0.1 0.13±0.05 ≤ 0.6 0.25±0.06
Φ1.5cb 2.0+0.2/-0.1 0.13±0.05 ≤ 0.8 0.25±0.06
Φ2.0cb 2.4+0.2/-0.1 0.13±0.05 ≤ 1.0 0.25±0.06
Φ2.5cb 3.0+0.2/-0.1 0.13±0.05 ≤ 1.25 0.28±0.06
Φ3.0cb 3.5+0.2/-0.1 0.13±0.05 ≤ 1.5 0.30±0.06
Φ3.5cb 4.0+0.2/-0.1 0.15±0.05 ≤ 1.75 0.30±0.06
Φ4.0cb 4.5+0.2/-0.1 0.15±0.05 ≤ 2.0 0.30±0.06
Φ4.5cb 5.0+0.2/-0.1 0.15±0.05 ≤ 2.25 0.30±0.06
Φ5.0cb 5.5+0.2/-0.1 0.15±0.05 ≤ 2.5 0.30±0.06
Φ5.5cb 6.0+0.2/-0.1 0.15±0.05 ≤ 2.75 0.30±0.06
Φ6.0cb 6.5+0.2/-0.1 0.15±0.05 ≤ 3.0 0.30±0.06
Φ6.5cb 7.0+0.3/-0.1 0.15±0.05 ≤ 3.25 0.30±0.06
Φ7.0cb 7.5+0.3/-0.1 0.15±0.05 ≤ 3.5 0.32±0.06
Φ8.0cb 8.5+0.3/-0.1 0.15±0.05 ≤ 4.0 0.32±0.06
Φ9.0cb 9.5+0.3/-0.1 0.16±0.05 ≤ 4.5 0.34±0.06
Φ10cb 10.5+0.3/-0.1 0.16±0.05 ≤ 5.0 0.34±0.06
Φ11cb 11.5+0.3/-0.1 0.16±0.05 ≤ 5.5 0.34±0.06
Φ12cb 12.5+0.3/-0.1 0.16±0.05 ≤ 6.0 0.34±0.06
Φ13cb 13.5+0.3/-0.1 0.16±0.05 ≤ 6.5 0.34±0.06
Φ14cb 14.5+0.3/-0.1 0.16±0.05 ≤ 7.0 0.34±0.06
Φ15cb 15.5+0.6/-0.1 0.16±0.05 ≤ 7.5 0.34±0.06
Φ16cb 16.5+0.6/-0.1 0.18±0.05 ≤ 8.0 0.38±0.08
Φ17cb 17.5+0.6/-0.1 0.18±0.05 ≤ 8.5 0.38±0.08
Φ18cb 18.7±0.4 0.18±0.05 ≤ 9.0 0.38±0.08
Φ20cb 21.0±0.5 0.20±0.05 ≤ 10.0 0.42±0.08
Φ22cb 23.0±0.5 0.20±0.05 ≤ 11.0 0.42±0.08
Φ25cb 26.0±0.5 0.20±0.05 ≤ 12.5 0.42±0.08
Φ30cb 31.0±0.5 0.25±0.08 ≤ 15.0 0.48±0.08
Φ35cb 36.0±1.0 0.25±0.08 ≤ 17.5 0.48±0.08





Below Size for 600V, Ratio 2:1



Size Pre-shrinkage dimensions(mm) Completely shrinked size (mm)
Inside diameter Wall-thickness Inside diameter Wall-thickness
Φ0.7 1.0+0.2/-0.1 0.18±0.05 ≤0.45 0.32±0.08
Φ0.8 1.2+0.2/-0.1 0.18±0.05 ≤0.45 0.34±0.08
Φ1.0 1.5+0.2/-0.1 0.18±0.05 ≤0.60 0.36±0.08
Φ1.5 2.1+0.2/-0.1 0.18±0.05 ≤0.80 0.36±0.08
Φ2.0 2.5+0.2/-0.1 0.20±0.05 ≤1.00 0.42±0.08
Φ2.5 3.0+0.2/-0.1 0.22±0.05 ≤1.25 0.46±0.08
Φ3.0 3.5+0.2/-0.1 0.22±0.05 ≤1.50 0.46±0.08
Φ3.5 4.0+0.2/-0.1 0.22±0.05 ≤1.75 0.46±0.08
Φ4.0 4.6+0.2/-0.1 0.22±0.05 ≤2.00 0.46±0.08
Φ4.5 5.0+0.2/-0.1 0.23±0.05 ≤2.25 0.46±0.08
Φ5.0 5.5+0.2/-0.1 0.25±0.05 ≤2.50 0.50±0.08
Φ5.5 6.0+0.2/-0.1 0.25±0.05 ≤2.75 0.50±0.08
Φ6.0 6.5+0.2/-0.1 0.25±0.05 ≤3.00 0.55±0.10
Φ6.5 6.9+0.2/-0.1 0.25±0.05 ≤3.25 0.55±0.10
Φ7.0 7.5+0.2/-0.1 0.25±0.05 ≤3.50 0.55±0.10
Φ8.0 8.5+0.2/-0.1 0.28±0.06 ≤4.00 0.58±0.10
Φ9.0 9.5+0.2/-0.1 0.28±0.06 ≤4.50 0.58±0.10
Φ10 10.5+0.3/-0.1 0.28±0.06 ≤5.00 0.58±0.10
Φ11 11.5+0.3/-0.1 0.28±0.06 ≤5.50 0.58±0.10
Φ12 12.5+0.3/-0.1 0.28±0.06 ≤6.00 0.58±0.10
Φ13 13.5+0.3/-0.1 0.28±0.06 ≤6.50 0.58±0.10
Φ14 14.5+0.3/-0.1 0.28±0.06 ≤7.00 0.58±0.10
Φ15 15.5+0.3/-0.1 0.28±0.06 ≤7.50 0.58±0.10
Φ16 16.5+0.3/-0.1 0.28±0.06 ≤8.00 0.58±0.10
Φ17 17.5+0.3/-0.1 0.28±0.06 ≤8.50 0.58±0.10
Φ18 18.5+0.3/-0.1 0.32±0.08 ≤9.00 0.68±0.10
Φ20 20.6+0.5/-0.2 0.32±0.08 ≤10.0 0.68±0.10
Φ22 22.6+0.7/-0.2 0.35±0.08 ≤11.0 0.72±0.12
Φ25 25.6+0.7/-0.2 0.40±0.10 ≤12.5 0.78±0.12
Φ28 28.6+0.7/-0.2 0.40±0.10 ≤14.0 0.78±0.12
Φ30 30.6+0.7/-0.2 0.40±0.10 ≤15.0 0.82±0.12
Φ35 35.6+0.7/-0.2 0.45±0.10 ≤17.5 0.92±0.12
Φ40 41.0±0.5 0.50±0.12 ≤20.0 1.00±0.15
Φ45 46.0±0.5 0.50±0.12 ≤22.5 1.00±0.15
Φ50 51.0±0.5 0.55±0.15 ≤25.0 1.10±0.15
Φ55 55.5±1.0 0.55±0.15 ≤27.5 1.10±0.15
Φ60 60.5±1.0 0.60±0.15 ≤30.0 1.25±0.20
Φ70 71.0±1.0 0.60±0.15 ≤35.0 1.25±0.20
Φ80 81.0±1.0 0.60±0.15 ≤40.0 1.25±0.20
Φ90 91.0±1.0 0.60±0.15 ≤45.0 1.25±0.20
Φ100 101.0±1.0 0.60±0.15 ≤50.0 1.25±0.20





Below Size for 600V, Ratio 3:1



Size Pre-shrinkage dimensions(mm) Completely shrinked size (mm)
Inside diameter Wall-thickness Inside diameter Wall-thickness
Φ1.5/0.5 2.0±0.8 0.18±0.10 ≤0.5 0.40±0.10
Φ3.0/1.0 3.5±0.8 0.20±0.10 ≤1.0 0.55±0.10
Φ4.5/1.5 5.0±0.8 0.20±0.10 ≤1.5 0.55±0.10
Φ6.0/2.0 6.5±0.8 0.22±0.15 ≤2.0 0.60±0.15
Φ8.0/2.7 8.5±0.8 0.22±0.15 ≤2.7 0.60±0.15
Φ9.0/3.0 9.5±0.8 0.25±0.15 ≤3.0 0.70±0.15
Φ10/3.3 10.5±0.8 0.25±0.15 ≤3.3 0.70±0.15
Φ12/4.0 12.5±0.8 0.25±0.15 ≤4.0 0.70±0.15
Φ13/4.3 13.5±0.8 0.25±0.15 ≤4.3 0.70±0.15
Φ15/5.0 15.5±0.8 0.25±0.15 ≤5.0 0.70±0.15
Φ16/5.3 16.5±0.8 0.25±0.15 ≤5.3 0.70±0.15
Φ18/6.0 18.5±0.8 0.30±0.18 ≤6.0 0.80±0.20
Φ20/6.7 20.5±0.8 0.30±0.18 ≤6.7 0.80±0.20
Φ24/8.0 24.5±0.8 0.36±0.20 ≤8.0 1.00±0.20
Φ25/8.3 25.5±0.8 0.36±0.20 ≤8.3 1.00±0.20
Φ28/9.3 28.5±0.8 0.36±0.20 ≤9.3 1.00±0.20
Φ30/10.0 30.5±0.8 0.36±0.20 ≤10.0 1.00±0.20
Φ33/11.0 33.5±0.8 0.36±0.20 ≤11.0 1.00±0.20
Φ39/13.0 39.5±0.8 0.45±0.20 ≤13.0 1.25±0.20
Φ50/16.7 51.0±1.2 0.50±0.20 ≤16.7 1.50±0.20





Below Size for 600V, Ratio 4:1



Size Pre-shrinkage dimensions(mm) Completely shrinked size (mm)
Inside diameter Wall-thickness Inside diameter Wall-thickness
φ8.0/2.0 8.5±0.8 0.35±0.20 ≤2.0 1.05±0.20
φ10.0/2.5 10.5±0.8 0.40±0.20 ≤2.7 1.30±0.20
φ12.0/3.0 12.5±0.8 0.40±0.20 ≤3.0 1.30±0.20
φ16.0/4.0 16.5±0.8 0.36±0.20 ≤4.0 1.30±0.20
φ18.0/4.5 18.5±0.8 0.36±0.20 ≤4.5 1.30±0.20
φ20.0/5.0 20.5±0.8 0.36±0.20 ≤5.0 1.30±0.20
φ25.0/6.25 25.5±0.8 0.40±0.20 ≤6.25 1.46±0.20
