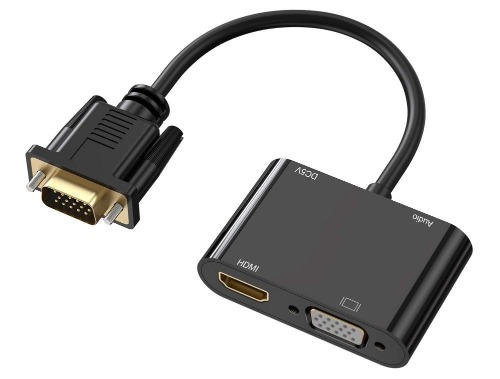

vga to vga and hdmi cable adapter

Introduction

The VGA to HDMI VGA Adapter is a versatile and practical device that allows you to connect your computer, desktop, laptop, PC, monitor, projector, and more to an HDMI display. With this adapter, you can easily enjoy a high-definition dual display with a resolution of up to 1080P.

This adapter not only supports video transmission but also provides audio output through the included 3.5mm audio cable. You can now immerse yourself in crystal-clear sound while watching movies or playing games on a larger screen.

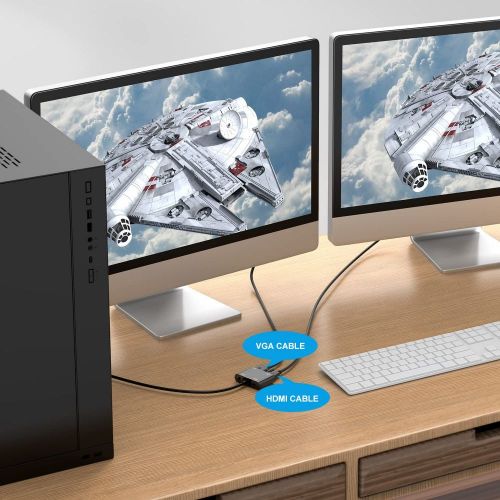

One of the great features of this adapter is its ability to split the VGA signal into two separate displays simultaneously. This means that you can extend your desktop across multiple monitors or projectors for enhanced productivity and multitasking capabilities.

In addition to its functionality, this adapter also comes with a charging cable which ensures that your devices stay powered up during use. No need to worry about running out of battery while working or presenting important documents.

The compact design of this adapter makes it easy to carry around and perfect for travel or business trips. Its plug-and-play feature allows for hassle-free installation without any additional software required.

Overall, the VGA to HDMI VGA Adapter offers convenience and flexibility in connecting various devices seamlessly. Whether you are giving presentations at work or enjoying multimedia entertainment at home, this adapter is a must-have accessory for anyone seeking enhanced connectivity options.

VGA to VGA and HDMI Cable Adapter Features

1. Signal Conversion

Converts analog VGA signal to a digital HDMI signal, enabling older devices (VGA output) to connect with modern HDMI displays (HDMI input).

2. Audio Support

Since VGA doesn't carry audio, many VGA to HDMI adapters have a 3.5mm audio input or USB audio support to transmit both video and audio to the HDMI output.

3. Resolution Support

Most adapters support resolutions up to 1080p (1920x1080) at 60Hz. Some premium models may support higher resolutions.

4. Plug-and-Play

Requires no additional software or drivers. The adapter is usually plug-and-play, making it easy to set up and use.

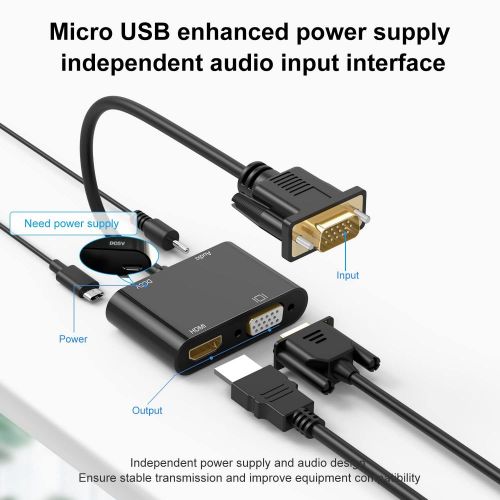

5. Power Supply

Many VGA to HDMI adapters need external power, usually supplied via a USB cable to power the internal conversion process.

6. Compatibility

Works with devices like older PCs, laptops, or projectors with VGA output, connecting them to modern displays, TVs, or monitors that only have HDMI inputs.

7. Portable Design

Most adapters are compact and lightweight, making them easy to carry and use for presentations or at-home setups.

VGA to HDMI and VGA Wiring Diagram

Note: this is a custom-made cable adapter, if you want to customize yours, pls send your wiring diagram to me for a quote price.

VGA to VGA and HDMI Cable Adapter Applications

1. Connecting PCs to Older Monitors or Projectors

• Application: Connects desktop computers or laptops with VGA outputs to monitors or projectors that have VGA inputs.
• Use Case: Suitable for office environments, schools, or situations where older display hardware is still in use.

2. Multi-Monitor Setups

• Application: VGA splitters or daisy-chaining cables allow multiple monitors to display the same content.
• Use Case: Common in business settings or for presentations, where identical video signals are required across multiple screens.

3. Legacy Equipment Integration

• Application: Useful for connecting legacy computers and servers that only have VGA outputs to existing VGA displays.
• Use Case: In IT departments, museums, or control rooms where older hardware needs to remain functional.

4. KVM Switches (Keyboard, Video, Mouse)

• Application: VGA is often used in KVM switches to connect multiple computers to a single monitor, keyboard, and mouse.
• Use Case: For server rooms or data centers where many systems are controlled through one interface.
