110 Series (0.11 inch tab) terminal connectors

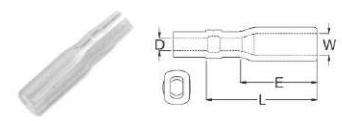

110 Terminal Series Housing
|
图片 Picture |
品名编写 | 材质 | 颜色 | 尺寸 Dimension (mm) | 数量 | 备注 | |||
| Part No. | Material | Color | E | L | D | W | Q'Ty (Reel) | Remarks | |
 |
DR11025 | Liquid PVC | Transparency | 11 | 17 | 2.5 | 4 | 2000 | |
| DR11030 | Liquid PVC | Transparency | 11 | 17 | 3 | 4 | 2000 | ||
| DR11035 | Liquid PVC | Transparency | 110 | 17 | 3.5 | 4 | 2000 | ||
|

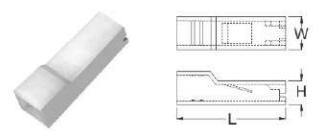

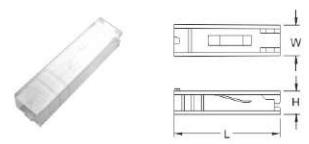

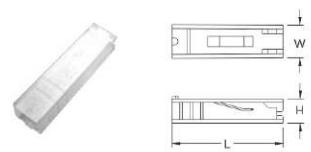

图片 Picture |
品名编写 | 材质 | 颜色 | 尺寸 Dimension (mm) |
数量 |
备注 | |||
| Part No. | Material | Color | W | H | L |
Q'Ty (Reel) |
Remarks | ||
 |
NL110HT-20 | Nylon | White | 5 | 4 | 20 | 2000 | ||
 |
NL110HT-C | Nylon | White | 5 | 4 | 25 | 2000 | ||
 |
QE1-110-1FNW | Nylon | White | 6.1 | 4.7 | 21.4 | 2000 | ||

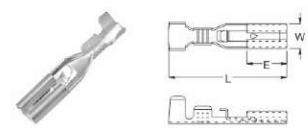

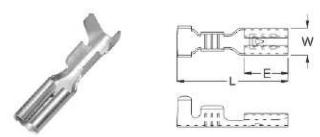

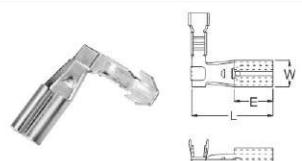

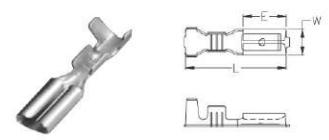

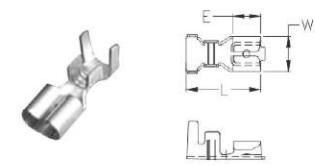

110 Type Series Receptacles
|

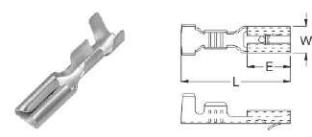

图片 Picture |
品名编写 | 材质 | 板厚 | 尺寸 Dimension (mm) | Applicable Wire Gauge | 数量 | 备注 | ||
| Part No. | Material | (mm) | W | E | L | Q'Ty (Reel) | Remarks | ||
 |
ST1100502-25C | Brass | 0.25 | 3.8 | 6.3 | 15.6 | 18-22 | 15000 | TAB=0.5 |
| ST1100802-25C | Brass | 0.25 | 3.8 | 6.3 | 15.6 | 18-22 | 15000 | TAB=0.8 | |
 |
SC1100502-25C | Brass | 0.25 | 3.8 | 6.1 | 14.5 | 16-20 | 10000 | TAB=0.5 |
| SC1100802-25C | Brass | 0.25 | 3.8 | 6.1 | 14.5 | 16-20 | 10000 | TAB=0.8 | |
| SD1100502-25C | Brass | 0.25 | 3.8 | 6.1 | 14.5 | 20-22 | 15000 | TAB=0.5 | |
| SD1100802.25C | Brass | 0.25 | 3.8 | 6.1 | 145 | 20-22 | 15000 | TAB=0.8 | |
| SL1100502-25C | Brass | 0.25 | 3.8 | 6.3 | 14.5 | 18-22 | 10000 | TAB=0.5 | |
| SL1100802-25C | Brass | 0.25 | 3.8 | 6.3 | 14.5 | 18-22 | 10000 | TAB=0.8 | |
 |
SD1100602-25C | Brass | 0.25 | 3.5 | 5 | 10 | 20-22 | 20000 | TAB=0.6 |
| SD1100512-25C | Brass | 0.25 | 3.5 | 5 | 10 | 20-22 | 20000 | TAB=0.5 | |
| SD1100812-25C | Brass | 0.25 | 3.5 | 5 | 10 | 20-22 | 20000 | TAB=0.8 | |
| SS1100612.25C | Brass | 0.25 | 3.5 | 3 | 8 | 22-24 | 40000 | TAB=0.6 | |
| SE1100612-25C | Brass | 0.25 | 3.5 | 3 | 8 | 20-22 | 40000 | TAB=0.6 | |
|

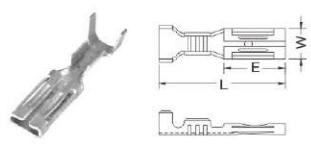

图片 Picture |
品名编写 | 材质 | 板厚 | 尺寸 Dimension (mm) | Applicable Wire Gauge | 数量 | 备注 | ||
| Part No. | Material | (mm) | W | E | L | Q'Ty (Reel) | Remarks | ||
 |
ST1107115-25C | Brass | 0.25 | 3.8 | 6.3 | 15.6 | 18-22 | 15000 | TAB=0.5 |
| ST110711825C | Brass | 0.25 | 3.8 | 6.3 | 15.6 | 18-22 | 15000 | TAB=0.8 | |
 |
ST1107015-25C | Brass | 0.25 | 3.8 | 6.2 | 15.6 | 18-20 | 15000 | TAB=0.5 |
| ST1107018-25C | Brass | 0.25 | 3.8 | 6.2 | 15.6 | 14-16 | 15000 | TAB=0.8 | |
|

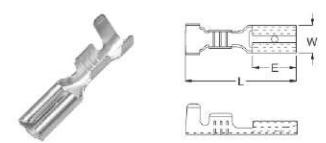

图片 Picture |
品名编写 | 材质 | 板厚 | 尺寸 Dimension (mm) | Applicable Wire Gauge | 数量 | 备注 | ||
| Part No. | Material | (mm) | W | E | L | Q'Ty (Reel) | Remarks | ||
 |
ST1000401-25C | 0.25 | 2.6 | 4.0 | 8.0 | 22-24 | 15000 | TAB=0.4 | |
| ST1000501-25C | 0.25 | 2.6 | 4.0 | 8.0 | 22-24 | 15000 | TAB=0.5 | ||
 |
SH1100002-25C | 0.25 | 4.1 | 6.9 | 15.8 | 20-22 | 5000 | TAB=0.3 | |
 |
ST1100562-25C | 0.25 | 3.7 | 7.5 | 15.1 | 18-20 | 15000 | TAB=0.5 | |
 |
FT1100302-300 | 0.3 | 3.8 | 5.7 | 12.1 | 18-20 | 7500 | TAB=0.3 | |
| FT1100502-30C | 0.3 | 3.8 | 5.7 | 12.1 | 18-20 | 7500 | TAB=0.5 | ||
| FT1100802-30C | 0.3 | 3.8 | 5.7 | 12.1 | 18-20 | 7500 | TAB=0.8 | ||
| FS1100502-30C | 0.3 | 3.8 | 5.7 | 12.1 | 22-24 | 10000 | TAB=0.5 | ||
| FS1100802-30C | 0.3 | 3.8 | 5.7 | 12.1 | 22-24 | 10000 | TAB=0.8 | ||
 |
FT1100592-300 | 0.3 | 5.5 | 5.8 | 142 | 16-18 | 5000 | TAB=0.5 | |

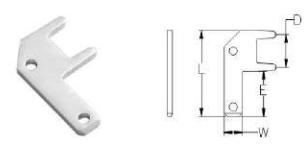

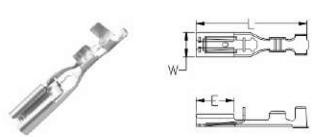

100 Series Lock Terminal
|
图片 Picture |
品名编写 | 材质 | 板厚 | 尺寸 Dimension (mm) | Applicable Wire Gauge | 数量 | 备注 | ||
| Part No. | Material | (mm) | W | E | L | Q'Ty (Reel) | Remarks | ||
 |
LT1100502-25C | 0.25 | 3.75 | 6.4 | 17.5 | 18-20 | 10000 | TAB=0.5 | |
| LT1100802-25C | 0.25 | 3.75 | 6.4 | 17.5 | 18-20 | 10000 | TAB=0.8 | ||
| LS1100502-250 | 0.25 | 3.75 | 6.4 | 175 | 22-24 | 15000 | TAB=0.5 | ||
| LS1100802-25C | 0.25 | 3.75 | 6.4 | 17.5 | 22-24 | 15000 | TAB=0.8 | ||
 |
FT1100822-25C | 0.25 | 3.75 | 6.2 | 17.5 | 18-20 | 10000 | TAB=0.5 | |
 |
S1100892-25C | 0.25 | 3.75 | 5.9 | 17.2 | 22-24 | 15000 | TAB=0.8 | |
| LS1100592-25C | 0.25 | 3.75 | 5.9 | 17.2 | 22-24 | 15000 | TAB=0.5 | ||

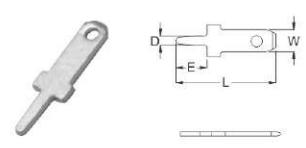

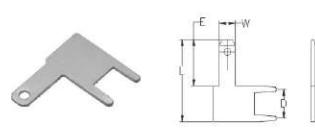

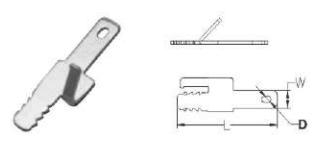

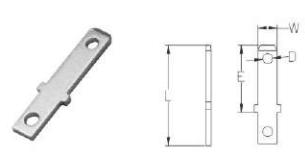

100 Types Series Tabs Terminal (Male)
|
图片 Picture |
品名编写 | 材质 | 板厚 | 尺寸 Dimension (mm) | Applicable Wire Gauge | 数量 | 备注 | ||
| Part No. | Material | (mm) | W | E | L | Q'Ty (Reel) | Remarks | ||
 |

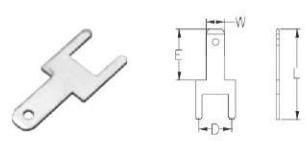

PG110502-30C | 0.3 | 4.3 | 6.5 | 15.3 | 18-22 | 3500 | TAB=0.5 | |
| PG110802-30C | 0.3 | 3.8 | 6.35 | 15.25 | 18-22 | 2000 | TAB=0.8 | ||
| 品名编写 | 板厚 | 尺寸 Dimension (mm) | Applicable Wire Gauge | 数量 | 备注 | ||||
| Part No. | (mm) | W | E | L | D | Q'Ty (Reel) | Remarks | ||
 |
CP1100842-80C | 0.8 | 2.8 | 7.2 | 19.7 | 1.2 | - | 10000 | |
 |
CP1100502-50C | 0.5 | 2.8 | 7.1 | 13.8 | 1.3 | - | 10000 | |
| CP1100802-80C | 0.8 | 2.8 | 7.1 | 13.8 | 1.3 | - | 10000 | ||
 |
CP1100512-50C | 0.5 | 28 | 9.7 | 14.8 | 1.4 | - | 10000 | |
| CP1100812-80C | 0.8 | 2.8 | 9.7 | 14.8 | 1.4 | - | 10000 | ||
 |
CP1100532-50C | 0.5 | 2.8 | - | 16.1 | 1.0 | - | 3000 | |
 |
CF1100502-50C | 0.5 | 2.75 | 7.1 | 13.4 | 5.1 | - | 5000 | |
| CF1100B02-80C | 0.8 | 2.75 | 7.1 | 13.4 | 5.1 | - | 5000 | ||
 |
CF1100812-80C | 0.8 | 2.8 | 7.1 | 13.4 | 6.3 | - | 10000 | |
 |
CP1100522-50C | 0.5 | 2.9 | 7.2 | 14.1 | 5.1 | - | 5000 | |
| CP1100822-80C | 0.8 | 2.9 | 7.2 | 14.1 | 5.1 | - | 5000 | ||
For more details, you can contact us to ask for a free E-catalog.

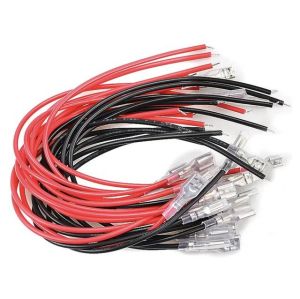

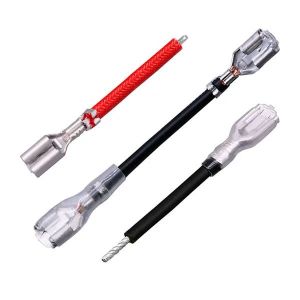

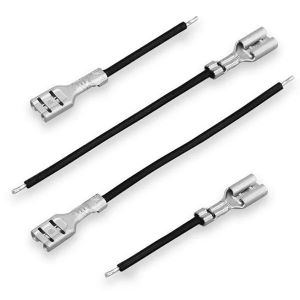

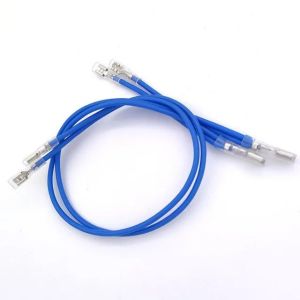

110 Terminal Wiring Cases

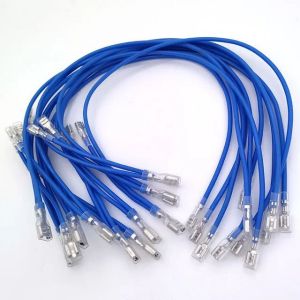

110 connector wire

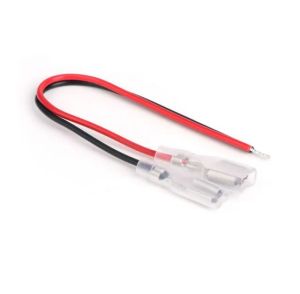

110 connector

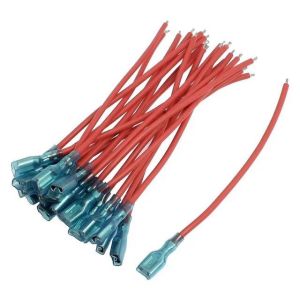

110 contact wire

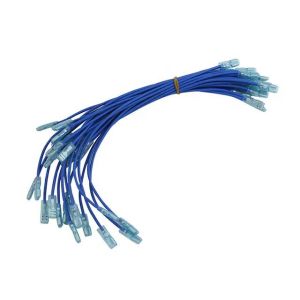

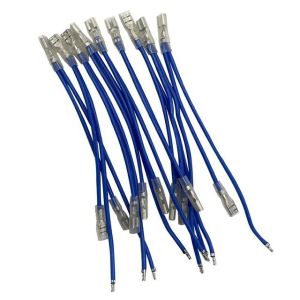

110 quick connect terminals wiring

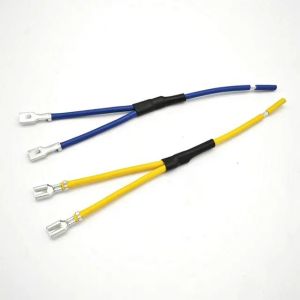

110 quick-connect terminals
110 quick connect wire

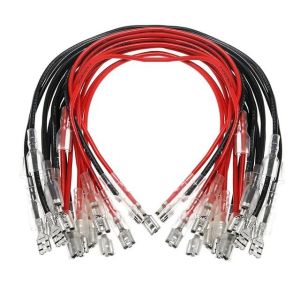

110 tab terminals wire

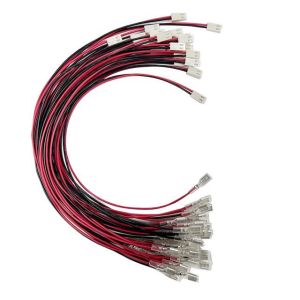

110 terminal to JST XH 2P wire
