3 Trends in Cable and Harness Assembly

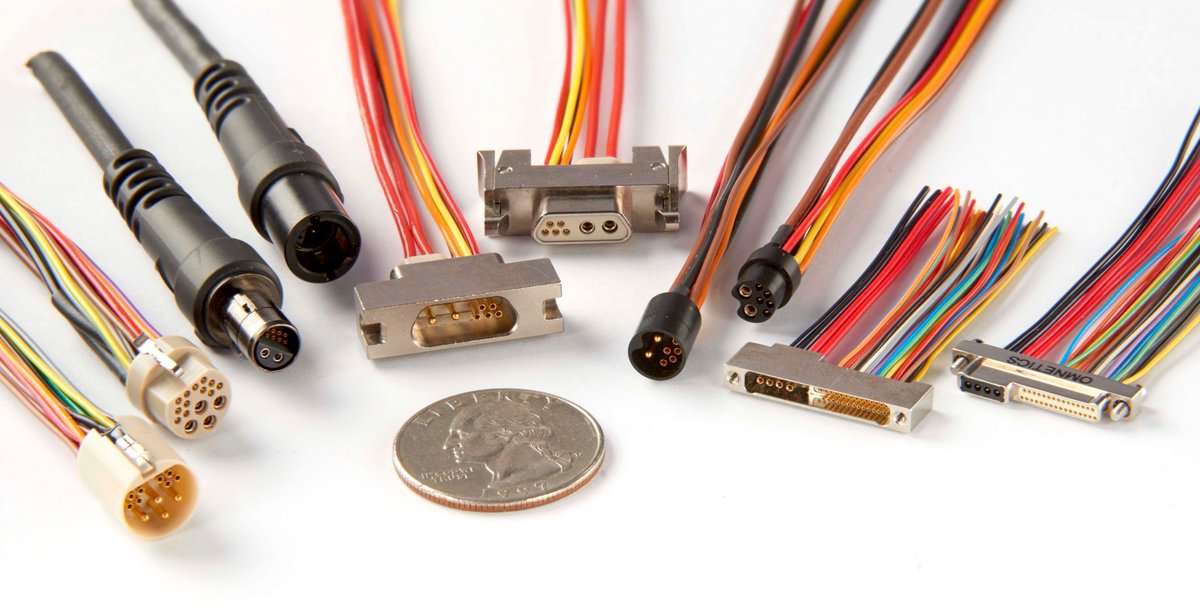

Automation is boosting efficiency by 30% using robotic cutting, while miniaturization demands micro-connectors to reduce weight by 50%. Integrated smart cables with sensors also enable predictive maintenance, cutting failures by 20%.
Automation in Wire Processing
Where manual stripping and terminating once dominated, automated machines now handle over 85% of these repetitive tasks in high-volume environments. This isn't just about replacing labor; it's about achieving unprecedented levels of precision and speed. A recent industry analysis showed that facilities integrating automated wire cutting and stripping machines saw a 35% increase in overall throughput and a reduction in material waste by approximately 12%. The initial investment, often ranging from 75,000 for a semi-automated bench-top system, is frequently recouped in under 18 months due to these efficiency gains.
A standard automated machine can process a wire every 2 to 3 seconds, a task that might take a skilled technician 45 seconds or more manually. This isn't just fast; it's consistent. Precision is the real payoff. Automated strippers adjust stripping depth to within ±0.1 mm, virtually eliminating nicks to the conductor strands that cause up to 30% of field failures in manually assembled harnesses.
A major automotive harness supplier reported a 60% drop in installation errors after switching to automated processing for their 0.35 mm² to 6.0 mm² wire series.
For example, a machine can log data on every wire processed, providing a complete digital traceability trail—a critical requirement for aerospace and medical applications. This data-driven approach optimizes inventory, as these systems can be programmed to minimize wire scrap by calculating the most efficient cutting patterns from large spools, further driving down the cost per harness by an estimated 7-10%.
Lightweight Materials Adoption
This isn't a minor adjustment; it's a critical redesign. In electric vehicles (EVs), for instance, every 1 kg (2.2 lbs) of weight reduced can extend range by approximately 2 to 3 kilometers (1.2 to 1.9 miles). With wiring harnesses historically ranking as the third-heaviest component in a vehicle, often weighing over 25 kg (55 lbs), the incentive to slim down is massive.
While pure aluminum has only about 60% of the conductivity of copper, modern alloys have closed the gap, achieving around 63% conductivity. The key advantage is weight: aluminum has a density of 2.7 g/cm³ compared to copper's 8.96 g/cm³. This means an aluminum wire can be designed to be up to 50% lighter than a copper equivalent with the same current-carrying capacity, albeit with a ~1.6x larger cross-sectional area. This trade-off is highly favorable in weight-sensitive applications. The cost savings on the raw material are also significant, with aluminum costing roughly 9,000 per metric ton, leading to potential harness cost reductions of 15-30%.
A leading EV manufacturer reported a net weight saving of 12 kg (26.5 lbs) on their mid-range sedan's wiring system by switching to aluminum-based harnesses, contributing to an estimated 4% increase in overall vehicle range.
These solutions can reduce wire mass by an additional 20-40% compared to standard lightweight alloys. However, this comes at a premium; specialized coaxial cables for aerospace can cost over $300 per meter, making them unsuitable for high-volume, cost-sensitive projects. The selection process is a precise calculation, balancing weight savings (in grams), thermal performance (up to 200°C), bend radius (as low as 4mm), and total project budget. The following table outlines the key trade-offs between common material choices:
|
Material |
Density (g/cm³) |
Relative Conductivity (%) |
Approx. Weight Saving vs. Copper |
Cost Factor (Copper = 1.0) |
Primary Applications |
|---|---|---|---|---|---|
|
Copper (Standard) |
8.96 |
100% |
Baseline |
1.0 |
Universal, high-reliability |
|
Aluminum Alloy |
2.7 |
~63% |
45% - 50% |
0.5 - 0.7 |
Automotive, Energy Storage |
|
Copper-Clad Aluminum |
3.6 |
~70% |
30% - 35% |
0.7 - 0.8 |
Consumer Electronics, Data Cables |
|
Advanced Composites |
1.5 - 2.2 |
Varies |
60% - 70% |
3.0 - 10.0+ |
Aerospace, Military, Racing |
The move to lighter materials is a complex engineering decision with tangible benefits. It's a strategic shift from viewing wiring as a passive component to treating it as an active system where every gram impacts the final product's performance and operating cost.
High-Speed Data Cables
We're not just talking about faster internet; this is about supporting the backbone of artificial intelligence clusters, 8K video streaming, and real-time sensor networks in autonomous vehicles. The global market for high-speed data cables is projected to grow at a compound annual growth rate (CAGR) of 10.5%, reaching $18.2 billion by 2028. This demand is driven by a need for staggering bandwidth; a single autonomous vehicle can generate over 4 terabytes of data per hour, requiring cables that can reliably transmit signals at speeds exceeding 25 Gbps with minimal latency. The traditional copper cable, once sufficient for 100 Mbps Ethernet, is now being re-engineered from the molecule up to handle frequencies soaring into the multi-gigahertz (GHz) range, where signal integrity becomes the paramount challenge.
For a cable to handle a 25 Gbps data rate, it must effectively support a signal frequency of roughly 12.5 GHz. At these frequencies, the skin effect causes electrons to travel mostly on the conductor's surface, making the quality of the plating critical. Most high-speed cables use a bare copper core with a 0.0005 mm to 0.001 mm thick silver or tin plating to reduce surface resistance. The precise impedance—targeting 100 Ohms for differential pairs in Ethernet applications—is maintained through meticulous control of the conductor spacing, the foamed polyethylene insulation with a dielectric constant (Dk) of around 1.5, and the overall geometry. A deviation of even ±5% in impedance can cause signal reflections that degrade performance, leading to a bit error rate (BER) worse than 10^-12, which is unacceptable for data centers. This is why cables are tested with time-domain reflectometry (TDR) to ensure impedance consistency along their entire length, with tolerances held within a tight 2-3% margin.
Shielding is no longer an afterthought; it's a primary design feature. A single unshielded cable can act as an antenna, both emitting and receiving electromagnetic interference (EMI). For Category 8 (Cat 8) data center cables, individual pair shielding with a 100% braided overall shield is common, achieving crosstalk attenuation of better than -45 dB at 2 GHz. This multi-layer approach is essential when cables are bundled together in a 144-port top-of-rack switch, where minimizing alien crosstalk between adjacent cables is critical to maintaining channel performance.
The trade-off is flexibility and cost: a high-performance 28 AWG SFP+ Direct Attach Copper (DAC) cable capable of 28 Gbps can cost 120, which is roughly 3x the cost of a standard Cat 6 patch cable. However, this investment prevents data corruption and retransmissions, which directly translates to higher system throughput and lower computational overhead. The future is moving towards even denser protocols like PCIe 6.0 and USB4 v2, which will require cables to handle 64 Gbps per lane, pushing the limits of copper and accelerating the adoption of hybrid solutions that integrate optical fibers for distances beyond 3 meters.
This summary outlines key advancements in cable and harness assembly, highlighting that automation in wire processing boosts efficiency by up to 30% through automated cutting and crimping. The adoption of lightweight materials like aluminum alloys reduces harness weight by 30%, crucial for aerospace. Furthermore, demand for high-speed data cables supporting 10+ Gbps is surging for use in autonomous vehicles and medical systems.
