5 Industries That Rely on Wire Harness Assembly
Wire harness assemblies are critical in aerospace for avionics (withstanding -55°C to 125°C), in automotive for engine control units (sealed against moisture), in medical for imaging equipment (meeting strict FDA/IEC 60601 standards), in industrial robotics for high-flex applications (5M+ bend cycles), and in telecommunications for data center infrastructure (supporting 25+ Gbps speeds).
Automotive: Connecting Vehicle Systems
The average mid-range car now contains over 1,500 individual wires, which, if laid end-to-end, would stretch roughly 3.2 kilometers (2 miles). This complex network is responsible for transmitting both power, typically 12 volts, and data, at speeds up to 100 megabits per second, to every critical system. The harness assembly process itself is highly precise, with over 95% of connections now crimped automatically by machines to ensure consistent quality and long-term reliability, targeting a 15-to-20-year operational lifespan to match the vehicle's life.
|
System |
Function |
Typical Wire Gauge & Quantity |
Data/Power Specs |
|---|---|---|---|
|
Powertrain (EV) |
Links battery to motor/inverter |
50+ wires (4-8 AWG for high current) |
800V architecture, 300+ kW power transfer |
|
Infotainment |
Connects screens, speakers, sensors |
100+ wires (mostly 20-24 AWG) |
High-speed data (1-5 Gbps for video) |
|
ADAS |
Powers sensors & cameras |
60+ wires (shielded 22-26 AWG) |
Low-latency data for real-time processing |
|
Body Electronics |
Controls lights, windows, seats |
200+ wires (various gauges) |
Lower-speed CAN/LIN bus networks |
An EV's high-voltage battery system requires specialized wiring that can handle up to 800 volts and currents exceeding 300 amps, a massive jump from the 12V/150A systems in traditional cars. These wires have a thicker diameter (often 4-8 AWG) and require enhanced insulation to manage increased thermal loads and ensure safety. The weight of these harnesses is also a major focus; manufacturers are adopting aluminum wiring and lighter insulation materials to save over 5 kg (11 lbs) per vehicle, which directly improves range.
A single front-facing radar module can generate over 1 gigabyte of data per minute, requiring shielded twisted-pair cables to prevent electromagnetic interference. This is critical because a data error with a latency of more than 50 milliseconds could compromise system safety. The manufacturing budget for these sophisticated harnesses can account for approximately 5-7% of the total vehicle's electronics cost, representing a significant investment in reliability and performance.

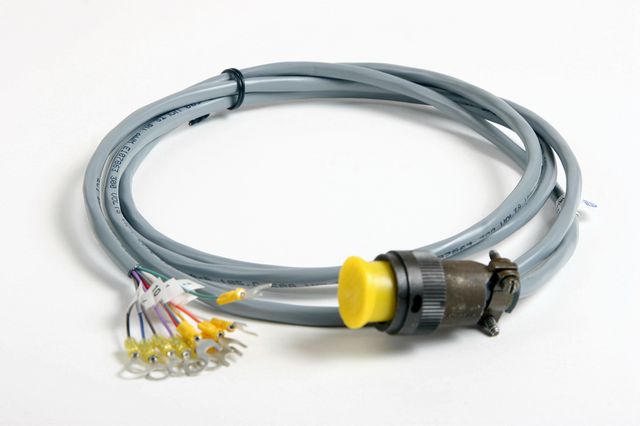

Aerospace: Ensuring Flight Reliability
A single commercial airliner, like a Boeing 787 or Airbus A350, contains over 160 kilometers (100 miles) of wiring, weighing approximately 2,200 kilograms (4,850 pounds). This network is responsible for carrying everything from 115-volt, 400-hertz AC power for flight controls to minute millivolt signals from thousands of sensors. The failure rate for these systems is engineered to be astronomically low, with a target of less than one failure per 1 billion flight hours for essential systems.
|
System |
Function |
Key Specifications & Requirements |
|---|---|---|
|
Flight Controls (Fly-by-Wire) |
Transmit pilot commands to actuators |
Triple-redundant channels, < 100ms latency, MIL-DTL-38999 connectors |
|
Engine Monitoring |
Data from sensors (temp, pressure, vibration) |
Arinc 429/629 data buses, PTFE insulation, 200°C+ continuous rating |
|
In-Flight Entertainment (IFE) |
Power & data to seats & screens |
Thousands of connections, lightweight 26-28 AWG wire, often copper-clad aluminum |
|
Cabin Lighting & Environment |
Control LEDs, air conditioning, signs |
Lower voltage bundles, flame-retardant insulation, high cycle count durability |
At cruising altitude of 12,000 meters (40,000 feet), harnesses must perform flawlessly in -55°C temperatures and near-vacuum pressure outside, while withstanding up to 150°C near engines and in avionics bays. To prevent catastrophic arc-tracking, insulation materials like Teflon (PTFE) or Kapton are mandatory, capable of resisting flames for at least 15 minutes. Every single connection is a potential point of failure. This is why the industry relies on crimped and potted connections that are mechanically superior to solder, which can crack under vibration loads exceeding 15 Gs. The verification process for a single harness can involve over 500 individual electrical checks, including megger tests for insulation resistance exceeding 100 megohms.
-
Weight is Money: Every 1 kilogram (2.2 lbs) of weight reduction in wiring can save an airline approximately $15,000 per year in fuel costs. This drives innovation in materials like lighter insulation and fiber optic data links, which replace heavy copper bundles for high-speed data.
-
Maintenance & Inspection: Harnesses are subject to rigorous scheduled inspections every 500 to 1000 flight cycles. A single chafed wire found during a C-check maintenance visit can ground a plane for over 24 hours, costing an airline $150,000 or more in lost revenue and repair labor.
-
Certification Costs: The development and testing process to certify an aerospace-grade wire harness to AS9100 and FAA/EASA standards can add 20-30% to the unit cost compared to an industrial equivalent, but this is the baseline price of admission for ensuring absolute reliability.
Medical: Supporting Patient Care Devices
A single patient monitor might process data from over 10 sensors simultaneously, transmitting 200-300 readings per second with an error rate of less than 0.001%. These systems operate 24/7, often for 10-15 years, and must withstand thousands of disinfection cycles with harsh chemicals without degrading. The budget for wiring and connectivity in a complex imaging system like an MRI or CT scanner can account for 8-12% of the total unit cost, reflecting the immense value placed on flawless signal integrity and electrical safety.
-
Patient Safety Standards: Every harness must comply with stringent IEC 60601-1 standards, which mandate double or reinforced insulation and leakage currents of less than 10 microamps to protect vulnerable patients from any electrical risk.
-
Signal Integrity: An ECG monitor must accurately measure cardiac signals as small as 1 millivolt with a high signal-to-noise ratio, requiring shielded cables with a 95% noise reduction capability to prevent interference from other hospital equipment.
-
Durability & Cleaning: Cables for bedside monitors are flex-tested to endure over 25,000 bends and twists at a 180-degree angle without wire breakage. Connectors are sealed to an IP54 rating or higher to resist ingress from fluids and cleaning agents like isopropyl alcohol used 3-5 times daily.
A portable ultrasound machine requires incredibly flexible, fine-gauge wiring (often 28-32 AWG) to connect the transducer probe, capable of handling high-frequency signals up to 18 MHz to produce detailed images. These cables are designed for a minimum lifecycle of 5,000 flex cycles without any degradation in image quality.
It contains a mix of fiber optics for high-speed data transfer (up to 10 Gbps) and heavier gauge wires (16-20 AWG) to deliver 500 watts to 1 kilowatt of power to robotic arms and tools with sub-millimeter precision. The assembly process for these systems is largely manual due to their complexity and low production volume, with a single harness taking a technician 20-30 hours to meticulously assemble and test.
Consumer Electronics: Enabling Daily Devices
The goal isn't just to connect components; it's to pack immense functionality into a space that's often less than 7 mm thick, while surviving being dropped, bent, and charged thousands of times. The internal flex cable connecting a smartphone's main logic board to its display contains over 40 individual micro-fine traces within a width of just 2-3 mm, carrying power, touch data, and video signals for a 4K resolution screen at 120 Hz. The entire bill of materials (BOM) cost for all internal cabling in a premium phone is ruthlessly optimized, often accounting for just 18 of the total unit cost, but its failure would render a $1,200 device useless.
A single USB-C charging cable is a marvel of engineering density. The compliant, consumer-grade version on your desk contains 24 individual wires within a 3.2 mm diameter jacket. It must simultaneously manage 20 volt / 5 amp power delivery (100W), USB 3.2 data transfer at 10 Gbps, and DisplayPort Alt Mode signals, all while being rated for a 10,000-bend cycle life before conductor fatigue becomes a statistical probability.
The relentless drive for thinner devices has led to the widespread adoption of flexible printed circuits (FPCs). These are not traditional wires but photographic-etched copper traces on a polyimide film, often just 0.1 mm thick. The FPC that connects a laptop's motherboard to the lid assembly might be 200 mm long and contain 6 laminated layers to accommodate 60+ circuits for cameras, microphones, and the display. The manufacturing yield for these components is critical; a 1% defect rate in FPC production can scrap tens of thousands of dollars worth of assemblies in a single shift. These assemblies are tested to withstand 5,000 open/close cycles on a laptop hinge, simulating 5 years of use.
A headphone cable is subjected to a 5 Newton pull test on its connector jack for 1,000 cycles and a 90-degree flex test at 2 Hz for 15,000 cycles to ensure it outlives its 2-year warranty period. Similarly, the wireless charging coil in a phone, which is a specific type of harness, must efficiently transfer 5-15 watts of power through 3 mm of glass and metal with an efficiency of 70-80%, all while generating minimal heat to keep the battery below 40°C. The entire design and assembly process is a high-volume game; a factory can produce over 500,000 smartphone harness assemblies per month, with each one undergoing 100% automated electrical testing that checks for shorts, opens, and resistance in under 15 seconds per unit. This scale is what makes the modern consumer electronics ecosystem possible, enabling devices that are replaced every 2-3 years but are expected to perform flawlessly throughout their entire short, intense lifespan.
Industrial: Powering Heavy Machinery
A single CNC machining center might have a harness containing over 500 wires with a total length exceeding 150 meters, supplying everything from 480-volt, 3-phase AC power at 100 amps to spindle motors, down to 24-volt DC control signals for sensors with a precision of ±0.1 volts. Downtime is the ultimate enemy here. A production line halted by an electrical failure can cost a facility over $10,000 per hour in lost output, making harness reliability a direct bottom-line issue.
-
Extreme Conditions: Harnesses inside a die-casting machine are routinely exposed to ambient temperatures of 45-50°C, 95% humidity, and constant exposure to abrasive dust and cutting fluid mist. Conduit and jacketing are often oil-resistant PVC or PUR with a minimum IP67 rating to keep contaminants out.
-
Vibration Resistance: A hydraulic press or rock crusher generates intense, constant vibration. Wires are secured with high-density loom clamps every 150-200 mm and connections are often double-crimped and potted to prevent fatigue failure. They are tested to withstand vibration frequencies from 10 Hz to 2,000 Hz for millions of cycles.
-
Power Delivery: Motors for industrial pumps and compressors require massive power delivery. This means wires as thick as 4/0 AWG (over 12 mm in diameter) to carry currents exceeding 300 amps continuously, with insulation rated for 90°C or higher.
Unlike aerospace or medical, the focus is less on minimal weight and more on maximum mean time between failures (MTBF), which is targeted for over 50,000 operating hours for a major harness. This is achieved through over-engineering: using tin-plated copper conductors for better corrosion resistance, 105°C rated cross-linked polyethylene (XLPE) insulation, and metal-shell connectors with screw-down terminals instead of plastic clips. The cost of a harness for a large industrial robot can range from 8,000, but this is justified by its role in moving a 250 kg arm with a positional repeatability of ±0.05 mm thousands of times per day.
In summary, wire harness assemblies are critical components across five major industries. In the automotive sector, they integrate complex systems like infotainment and engine controls within a single vehicle. The aerospace industry relies on them for mission-critical avionics, where failure is not an option. They are vital in medical devices for patient monitoring and life-support systems, ensuring reliable operation. These harnesses also power and control heavy industrial machinery, while enabling the functionality of everyday consumer electronics like smartphones and laptops.
