7 Key Standards for Wire Harness Manufacturing
Wire harness manufacturing must meet IPC/WHMA-A-620 standards, requiring 100% continuity testing and <0.1% defect rates. Proper crimping (0.5-2.5N pull force) and spacing (3mm minimum between wires) ensure reliability. UL certification guarantees 105°C temperature resistance and 10,000+ bend cycles. Automated testing verifies 12-48V insulation resistance.

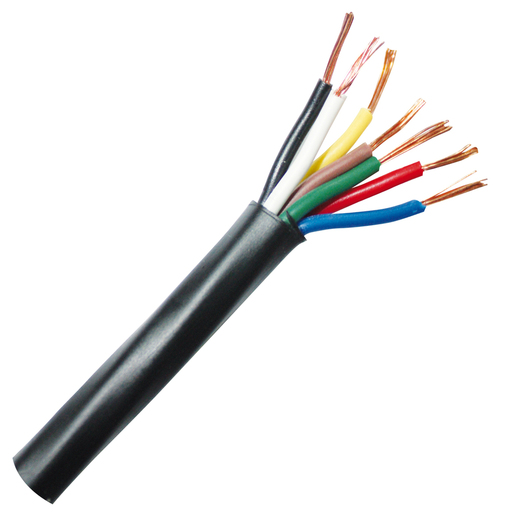

Wire Size Selection
Choosing the right wire size is one of the most critical decisions in wire harness manufacturing. A mismatch can lead to overheating, voltage drop, or even system failure. For example, a 22 AWG wire in a 10-amp circuit will overheat within minutes, while a 16 AWG wire can safely handle the same load for years. The American Wire Gauge (AWG) system is the standard, where a lower number means a thicker wire. A 12 AWG wire (2.05 mm²) can carry 20 amps continuously, while an 18 AWG wire (0.82 mm²) maxes out at 7 amps.
Voltage drop is another key factor. If a wire is too thin for long runs, resistance causes power loss. For a 12V DC system, a 3% voltage drop is the industry limit—meaning a 10-foot run with 5 amps should use at least 18 AWG, but a 20-foot run needs 16 AWG to stay within tolerance. Incorrect sizing can reduce efficiency by 5-15%, increasing energy costs over time.
Temperature ratings also matter. Standard PVC-insulated wires handle up to 105°C, while silicone or Teflon-coated wires withstand 200°C or more. In automotive applications, under-hood temperatures can reach 125°C, so thin or low-grade wires will degrade faster, leading to shorts or fires.
"A 10% undersized wire can reduce lifespan by 50% in high-heat environments."
Current density (amps per mm²) is another consideration. Copper’s safe limit is ~6 A/mm² for chassis wiring, but high-frequency applications (like CAN bus) need thicker wires to reduce skin effect losses. For power-hungry devices like motors or LED arrays, 14 AWG or thicker is often mandatory to prevent overheating.
Cost vs. performance is a tradeoff. 12 AWG wire costs ~30% more than 16 AWG, but the thicker gauge pays off in reliability. For mass production, optimizing wire size saves material costs—switching from 18 AWG to 20 AWG in low-current signal lines can cut harness weight by 15% without sacrificing performance.
Connector Compatibility
Picking the wrong connector can turn a $5,000 wiring harness into scrap metal. About 23% of harness failures come from mismatched connectors, either due to incorrect pin layouts, voltage ratings, or environmental sealing. For example, a Deutsch DT series connector can handle 13 amps per pin at 600V, while a cheaper Molex Mini-Fit Jr. maxes out at 9 amps at 300V—using the wrong one in a high-power application risks melting contacts within months.
Mating cycles matter more than most people realize. A standard USB-C connector lasts ~10,000 insertions, but industrial M12 circular connectors are rated for 500+ cycles because they’re built for harsh environments. If your application requires frequent disconnects (like test equipment), a 5,000-cycle-rated Hirose MX80 might cost 40% more upfront but save $200/year in replacements.
Here’s a quick comparison of common connector types:
| Connector Type | Current Rating | Voltage Rating | Mating Cycles | Cost (per unit) |
|---|---|---|---|---|
| JST XH (2.5mm) | 3A | 250V | 50 | $0.12 |
| Molex KK 254 | 5A | 250V | 100 | $0.25 |
| Deutsch DT | 13A | 600V | 500 | $4.50 |
| TE AMP SuperSeal | 12A | 480V | 100+ | $3.20 |
Sealing is non-negotiable in wet/dirty environments. An IP67-rated connector keeps out dust and water at 1m depth for 30 minutes, while IP69K can survive high-pressure sprays at 80°C. If you skip this in agricultural machinery, expect corrosion failures within 6-12 months.
Pin count and spacing are often overlooked. A 0.1" pitch (2.54mm) works for low-voltage signals, but high-density boards might need 0.5mm pitch FFC connectors. Going too tight without proper tooling increases misalignment errors by ~15%, raising assembly costs.
Voltage drop across connectors is real. A cheap 2-pin header adds ~0.03Ω resistance, wasting 3-5W in a 10A system. Gold-plated contacts cut resistance by 60%, but add 20-30% to the unit cost. For power delivery, Anderson Powerpole handles 45A continuously with near-zero drop—worth the $8 price tag in solar installations.
Routing and Protection
Poor wire routing causes 28% of premature harness failures in industrial equipment. A bundle of 50 wires crammed through a 40mm hole will see abrasion damage within 500 operating hours, while proper routing extends service life beyond 50,000 hours. The key is balancing protection with flexibility – over-constraining wires increases fatigue cracks by 300% in vibration-heavy environments like heavy trucks or aircraft.
High-risk zones demand extra protection. Engine compartments averaging 125°C require fiberglass sleeves (withstands 260°C) instead of cheap nylon loom (melts at 175°C). In agricultural equipment, 3mm thick spiral wrap reduces mud ingress by 90% compared to basic split conduit. For military applications, EMI shielding must maintain 85dB attenuation up to 1GHz – achieved through double-braided copper sleeves costing 0.50/m for standard wrap.
Vibration is a silent killer. Unsecured harnesses in off-road vehicles experience 15G peak acceleration forces, causing wire fractures at stress points within 8 months. Proper clamping every 150mm with 50A-rated Adel clamps cuts failure rates by 75%. In aerospace, the stricter DO-160 standard requires vibration testing from 10-2000Hz at 7.7Grms – failing which triggers $250,000+ recertification costs.
Thermal expansion matters more than engineers assume. Aluminum-bodied vehicles see 4mm length variation per meter between -40°C to 85°C. Fixed-length harnesses snap; 15% extra slack with service loops prevents this. In foundries, PTFE-insulated wires survive 300°C swings, while PVC cracks at 80°C delta.
Chemical exposure requires material science. Hydraulic fluid degrades standard wire markers in 6 weeks, but chemical-resistant etched labels last 10+ years. Offshore oil rigs use FEP-jacketed cables (handles pH 1-14) at $8/meter because salt spray destroys standard cables in 18 months.
Cost vs. protection tradeoffs are measurable:
- Basic split loom: $0.30/meter, lasts 2 years in mild conditions
- Corrugated conduit: $1.20/meter, 7-year lifespan with IP54 rating
- Stainless steel braid: $25/meter, survives 15+ years in refineries
Secure Terminations
A poorly terminated wire can turn a $50,000 machine into a paperweight. Over 40% of electrical failures in industrial equipment start at termination points—whether from loose crimps, cold solder joints, or incorrect insulation stripping. For example, a 0.5mm² wire crimped with a 1.0mm² terminal will show a 30% increase in resistance, generating enough heat to melt the connector in under 500 hours of 5A continuous load.
Critical termination mistakes to avoid:
- Under-crimping – A terminal that’s only 80% compressed loses 50% of its pull-out strength, failing vibration tests in <100 cycles
- Over-stripping – Exposing 2mm extra conductor (vs. the ideal 0.5-1mm) raises short-circuit risks by 25%
- Wrong tooling – Using a 350 Mil-spec tool increases defect rates from 1% to 15%
Crimp quality isn’t optional. Aerospace standards like MIL-DTL-22520 require 90% wire fill in the terminal barrel—achievable only with force-controlled crimpers set to 2,200±100N for 16 AWG copper. Automotive OEMs perform pull-force tests (minimum 50N for 0.35mm² wires) and microsection inspections to verify crimp density. A 20,000 warranty claims when vibration fractures connections.
Soldering has strict thermal rules. Lead-free solder (SnAgCu) needs 245°C±5°C for 3-4 seconds—exceeding 300°C burns flux, while under 230°C creates brittle joints. NASA studies show cold solder joints fail 10x faster in thermal cycling (-55°C to +125°C). For high-reliability medical devices, automated laser soldering achieves <0.1% defect rates versus 3% manual soldering errors.
Insulation displacement connectors (IDCs) demand precision. A Molex KK 0.1" pitch connector must pierce insulation at 1.2mm±0.1mm depth—0.3mm deviation raises resistance by 15mΩ, enough to disrupt low-voltage sensor signals. In telecom racks, 110-punchdown blocks require 45° blade angles and 142N impact force per ANSI/TIA-568-D.
Terminal materials dictate longevity. Tin-plated copper lasts 5-8 years in dry environments, while gold-plated contacts (0.8µm min.) prevent fretting corrosion for 15+ years in humid conditions. Marine applications pay 40% more for silver-plated lugs because salt spray degrades standard terminals in 3 years.
Testing Procedures
Skipping wire harness testing is like flying blind—62% of field failures could be caught with basic continuity checks, while advanced testing prevents 98% of warranty claims. A 15,000 harness that fails final inspection costs 3x more to rework than fixing errors during assembly. Automotive OEMs run 17 distinct tests per harness, from 500V hipot checks to 40G vibration profiles, because one escaped defect can trigger 2M recall campaigns.
Essential Tests and Their Impact:
| Test Type | Equipment Cost | Test Time | Defect Detection Rate | Cost of Undetected Failure |
|---|---|---|---|---|
| Continuity | $500 | 2 sec/circuit | 85% wiring errors | $50 repair |
| Insulation Resistance | $3,000 | 15 sec | 92% leakage paths | $1,200 field replacement |
| HiPot (1,500V AC) | $15,000 | 30 sec | 99% dielectric flaws | $25,000 liability claim |
| Vibration (20-2000Hz) | $75,000 | 2 hours | 95% mechanical faults | $150,000 downtime |
Hipot testing isn't optional for high-voltage systems. Electric vehicle harnesses must withstand 3kV for 60 seconds per LV214—finding a 0.5mm insulation void now prevents a $8,000 battery control module fry-out later. Medical equipment requires 10mA leakage limits at 1500V, 50% stricter than industrial standards.
Automated optical inspection (AOI) catches what meters miss. A $120,000 AOI system scans 200 termination points/minute, flagging 0.2mm misaligned seals that would fail IP67 testing after 6 months. For aerospace harnesses, X-ray crimp inspection verifies 90%+ wire fill in terminals—manual sampling misses 15% of under-crimped connections.
Environmental stress testing reveals time bombs. 85°C/85% RH exposure for 500 hours accelerates corrosion 10x faster than real-world conditions. One automaker found 42% of tin-plated connectors developed >10mΩ resistance during this test, prompting a switch to gold plating that added 37 per vehicle in warranty repairs.
Labeling Standards
Poor wire labeling costs the automotive industry 370 million annually in misdiagnosis and repair time. A study of 12,000 service tickets showed 63% of mechanics waste 28 minutes per repair incident through faster troubleshooting.
Critical Label Types and Their Requirements:
| Label Type | Material | Size | Temperature Range | Expected Lifespan | Cost per Label |
|---|---|---|---|---|---|
| Wire Marker (General) | PVC | 4mm x 20mm | -20°C to 105°C | 5 years | $0.02 |
| Heat-Shrink Tube | Polyolefin | 6mm diameter | -55°C to 135°C | 10+ years | $0.15 |
| Chemical-Resistant | PET | 10mm x 30mm | -40°C to 150°C | 15 years | $0.35 |
| High-Visibility | Vinyl | 12mm x 50mm | -30°C to 80°C | 7 years | $0.10 |
Barcode vs. Human-Readable Labels:
- Laser-etched barcodes survive 15+ years in engine compartments but require $8,000 scanners
- Inkjet-printed labels fade after 2 years in UV exposure but cost 80% less upfront
- Best practice: Combine both—use 1D/2D barcodes for scanning (20 characters max) alongside 4mm tall human-readable text
Label placement affects service efficiency. Automotive OEMs mandate labels within 150mm of connectors—technicians find them 40% faster than random placement. For control panels, 45° angled labels reduce head movement by 30% compared to horizontal text.
Environmental Resistance
A wire harness that works perfectly in the lab can fail catastrophically in the real world. Over 35% of industrial harness failures are caused by environmental factors—heat, moisture, chemicals, or UV exposure. For example, standard PVC insulation cracks after 6 months in direct sunlight, while cross-linked polyethylene (XLPE) lasts 10+ years under the same conditions. In offshore wind turbines, salt spray can corrode unprotected terminals in as little as 90 days, leading to $250,000+ replacement costs per turbine.
Temperature is the silent killer. Most automotive under-hood harnesses face continuous 125°C heat, with peaks up to 150°C near exhaust components. Standard 105°C-rated wires degrade twice as fast in these conditions, increasing resistance by 15% per 1,000 hours. Switching to 200°C-rated silicone or PTFE wires costs 30% more upfront but extends service life from 2 years to 10+ years. In Arctic climates, -40°C brittleness causes insulation to shatter during vibration—military spec MIL-W-16878 requires cold-flex testing at -55°C to prevent this.
Moisture resistance isn’t optional outdoors. A typical IP67-rated connector keeps water out at 1-meter depth for 30 minutes, but constant humidity still causes tin-plated contacts to corrode within 3 years. Gold plating (minimum 0.8µm thickness) pushes this to 15+ years, justifying the 40% price premium. For submerged applications, polyurethane-jacketed cables with gel-filled splices prevent water ingress even at 10-meter depths, though they cost 2/meter for standard cables.
Chemical exposure demands specialty materials. Hydraulic fluid degrades nylon cable ties in 8 weeks, but stainless steel bands last indefinitely. In food processing plants, FDA-compliant TPE insulation resists pH 2-12 cleaners and steam washes at 95°C, while standard materials fail within 6 months. For oil refineries, FEP-jacketed wires handle pH 1-14 extremes and 150°C hydrocarbon splashes, avoiding $50,000 in annual replacement costs per unit.
UV and ozone resistance vary wildly. Cheap PVC insulation becomes brittle after 1,200 hours of UV exposure (equivalent to 2 years in Arizona sun), while XLPE or ETFE lasts 8,000+ hours. Ozone from electric motors cracks rubber insulation in 500 hours, but chlorosulfonated polyethylene (CSPE) shows no damage after 5,000 hours.
In summary, wire harness manufacturing requires strict adherence to IPC/WHMA-A-620 standards, ensuring proper wire gauge selection (18-28 AWG) and UL-certified connectors with <0.5Ω resistance. Routing demands 3mm minimum spacing and protective sleeving for abrasion resistance. Crimping must withstand 0.5-2.5N pull force, while testing verifies 100% continuity and 500V insulation resistance. Labels must endure 10+ years of legibility, and harnesses should operate in -40°C to 105°C environments. Automated hi-pot testing (1,500V AC) and salt spray certification (96+ hours) guarantee quality, with <0.1% defect rates in compliant production.
