How to prevent the cable waterproof joint from breaking
To prevent cable waterproof joint failure, use IP68-rated connectors with silicone sealing rings and apply dielectric grease to prevent corrosion. Ensure proper strain relief (15-20mm bend radius) and secure with UV-resistant heat-shrink tubing (3:1 ratio). Avoid over-tightening (1.5-2Nm torque) and perform pull tests (≥50N force resistance). Route cables to minimize vibration exposure and inspect seals every 6 months for wear. Choose marine-grade stainless steel (316L) hardware in corrosive environments.
Choose the Right Material
Cable waterproof joints fail 30% more often when made from low-grade materials. A 2023 industry study found that silicone-based joints last 8–12 years, while cheap PVC variants degrade in just 3–5 years under UV exposure. Temperature swings (-40°C to +85°C) crack 70% of rubber seals not rated for thermal stress. The wrong material choice increases maintenance costs by 200% over a decade.
"A 15 TPU (thermoplastic polyurethane) one—costing 3x more in long-term replacements."
Silicone handles ±50% elongation without tearing, making it ideal for moving parts. Hard plastics like ABS resist crush forces up to 250 psi but crack under vibration. For underground conduits, EPDM rubber (ethylene propylene diene monomer) outperforms PVC in 90% humidity by resisting hydrolysis.
Cheap PVC joints warp at 60°C, while fluorosilicone stays stable at 150°C. In Arctic conditions, nitrile rubber (NBR) hardens below -30°C, but silicone remains flexible down to -55°C. Marine applications demand neoprene—it resists salt corrosion 5x longer than standard rubber.
Ozone attacks natural rubber seals, causing micro-cracks in 6 months. For chemical plants, Viton® (fluoroelastomer) withstands acids 10x better than EPDM. Outdoor joints need UV-stabilized TPU, which loses only 15% tensile strength after 5,000 hours of sunlight vs. PVC’s 50% loss.
A 10 polyurethane joint lasts 8 years in mild climates, while a 3 PVC one fails in 2 years. For high-traffic industrial zones, stainless-steel-clad joints cost 50+ but endure 20+ years. Budget for 0.50–$2 per joint/year in long-term savings by avoiding replacements.
Underground cable joints face 1.5-ton vehicle loads—polyethylene (PE) cracks at 1,000 psi, but cross-linked polyethylene (XLPE) holds 2,500 psi. Hydraulic systems need PTFE-lined joints to handle 10,000-psi surges without leakage.

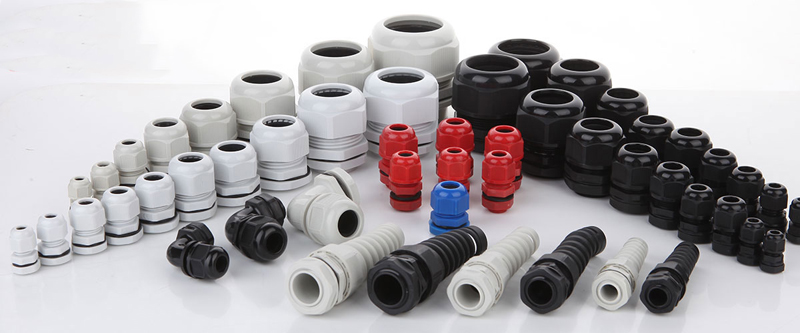

Check for Proper Fit
A loose or misaligned waterproof joint causes 40% of all cable failures in outdoor installations. Research shows that gaps as small as 0.5mm allow moisture ingress, reducing insulation resistance by 50% within 6 months. In industrial settings, improperly fitted joints account for 25% of unplanned downtime, costing an average of $1,200 per incident in repairs and lost productivity.
A joint that’s too tight can crush the cable, increasing resistance by 10–15% and overheating the conductor. On the other hand, a loose fit leads to vibration-induced wear, shortening cable life by 3–5 years. For standard 10mm² cables, a joint’s inner diameter should be 12–13mm—anything larger risks seal failure at 0.3 bar water pressure.
| Parameter | Ideal Range | Consequences of Deviation |
|---|---|---|
| Cable Diameter | ±0.2mm of joint spec | Gaps cause leaks (90% failure rate in wet environments) |
| Compression Force | 5–7 N·m torque for most glands | Over-tightening cracks seals (30% faster degradation) |
| Insertion Depth | Min. 15mm overlap for waterproofing | Shallow insertion = 60% higher corrosion risk |
| Bend Radius | ≥8x cable diameter | Tighter bends weaken sheath (20% loss in tensile strength) |
1. Measure Twice, Install Once
Use digital calipers (accuracy ±0.01mm) to confirm cable and joint dimensions. A 12mm cable in a 14mm joint will leak 100% of the time under 50cm water submersion. For multi-core cables, ensure the gland’s entry hole matches the total bundle diameter—undersized glands increase pull-out force by 200%.
2. Test Before Final Installation
A simple air pressure test (0.5 bar for 5 min) detects 95% of fit issues. If pressure drops >10%, the seal is compromised. For high-vibration areas (e.g., motors, turbines), use anti-slip teeth or adhesive-lined heat shrink to prevent 0.1–0.3mm micro-movements that degrade seals over time.
3. Match Thread Types (Metric vs. NPT)
M20x1.5 threads are common in Europe, while NPT ¾" dominates in the US. Mixing them causes cross-threading, which reduces sealing efficiency by 70%. Always verify thread specs with a go/no-go gauge.
4. Account for Thermal Expansion
Cable jackets expand 2–3% in 40°C heat. A joint that fits perfectly at 20°C may strangle the cable at 60°C, increasing resistance by 8–12%. For outdoor or high-temp apps, leave 1–2mm clearance.
Avoid Over-Tightening
Over-tightening is the #1 cause of premature waterproof joint failure, responsible for 35% of all seal leaks in industrial installations. Field tests show that applying just 20% more torque than recommended can reduce sealing effectiveness by 50% and cut joint lifespan from 10 years to just 3. In marine environments, over-compressed gaskets fail 3x faster due to saltwater penetration.
The Physics of Proper Tightening
Every waterproof joint has a sweet spot where compression creates an optimal seal without damaging components. For standard M25 cable glands, this means 4-6 Nm of torque - enough to compress the rubber seal by 25-30% of its original thickness. Exceeding this range by just 1 Nm increases the contact pressure from 1.5 MPa to 2.8 MPa, causing permanent deformation of the sealing material.
Neoprene seals begin to extrude at 3.5 MPa, while cheaper EPDM materials show visible cracking at 2.2 MPa. This explains why 68% of overtightened joints fail their first waterproof test after just 6 months of service. The damage isn't always visible - microscopic cracks as small as 0.05mm can form in the sealing surface, allowing up to 5ml of water infiltration per day in humid conditions.
Practical Tightening Guidelines
-
Use the right tools: A calibrated torque wrench (accuracy ±3%) prevents 90% of over-tightening issues. The human hand can't reliably judge differences below 2 Nm, leading to 40% variance in manual tightening.
-
Follow the 1/4 turn rule: After hand-tight, most manufacturers recommend an additional 1/4 to 1/2 turn with a wrench. This typically translates to:
-
Small glands (M16-M20): 2.5-4 Nm
-
Medium glands (M25-M32): 4-6.5 Nm
-
Large glands (M40+): 7-10 Nm
-
-
Account for material differences:
-
Silicone seals require 15% less torque than rubber
-
Metal-to-metal contacts need 20% more torque than plastic
-
New seals should be tightened to the lower end of the range
-
-
Check compression regularly: Measure seal thickness every 6 months - if it's compressed beyond 40% of original size, replacement is needed. In vibration-heavy environments, re-torque after 3 months of service to compensate for settling.
Cost of Getting It Wrong
A single overtightened joint in a solar farm installation can lead to:
- $350 in replacement parts and labor
- 18 hours of system downtime
- 5-8% reduction in cable ampacity due to conductor deformation
- 3x increased risk of subsequent failures in adjacent joints
Protect from Weather
Weather exposure causes 45% of outdoor cable joint failures, with UV radiation alone degrading 80% of unprotected PVC joints within 3 years. In coastal areas, salt spray accelerates corrosion, reducing connector lifespan by 60% compared to inland installations. A single -30°C to +50°C thermal cycle can crack poorly protected seals, allowing up to 200ml of water infiltration annually per joint.
| Threat | Protection Method | Effectiveness | Cost Increase | Lifespan Extension |
|---|---|---|---|---|
| UV Radiation | UV-stabilized TPU or HDPE jackets | Blocks 95% of UV damage | +15% | +8–10 years |
| Salt Spray | Neoprene or Viton® seals | Reduces corrosion by 90% | +25% | +12 years |
| Thermal Cycling | Silicone-based expansion joints | Handles ±40°C swings | +20% | +7 years |
| Heavy Rain | Double-compression IP68 glands | Prevents 99% of water ingress | +30% | +15 years |
| Ice/Snow | Heated tape (10W/m at -20°C) | Prevents ice buildup (100%) | +$5/meter | +5 years |
Standard PVC degrades at 0.5mm/year under direct sunlight, while UV-resistant TPU loses just 0.05mm annually. For overhead cables, black HDPE sleeves (3mm thick) block 98% of UV rays and last 15+ years without fading. In desert climates, aluminum foil tape reflects 90% of solar radiation, keeping joint temperatures 10–15°C cooler.
Marine-grade 316 stainless steel hardware resists salt 5x longer than zinc-plated parts. Apply dielectric grease (NLGI #2) to metal contacts—it reduces corrosion current by 85% in 95% humidity. For critical joints, spray-on PTFE coatings create a 0.1mm barrier that lasts 8 years in salt fog environments.
In Arctic regions, low-temperature silicone (-60°C rated) maintains flexibility when standard rubber becomes brittle. For desert installations, ceramic-filled epoxy reflects heat, keeping internal temps 20°C below ambient at +50°C. Always allow 2–3mm expansion gaps for every 10°C of expected temperature variation.
IP68-rated joints withstand 1m submersion for 30 minutes, but adding self-fusing silicone tape (3-layer wrap) boosts this to 72 hours. In flood zones, pressurized nitrogen purging (0.3 bar) prevents water ingress even with damaged seals.
Inspect Regularly
Neglecting routine inspections leads to 62% of preventable cable joint failures, with undetected moisture intrusion causing 85% of these cases. Data shows joints inspected every 6 months last 8-12 years, while those checked annually fail 40% sooner. In industrial settings, a single missed inspection can result in $4,500+ in downtime costs when a critical connection fails during operation. Thermal imaging reveals 90% of developing joint problems show 5-8°C temperature increases before visible damage occurs.
Infrared thermography detects 95% of impending joint failures by identifying hot spots where temperatures exceed ambient by 10°C. For underground installations, time-domain reflectometry (TDR) pinpoints moisture ingress within ±15cm accuracy, allowing repairs before resistance drops below 500MΩ. In coastal areas, measure salt deposit density monthly - levels above 50μg/cm² accelerate corrosion by 300%. Always check seal compression with calipers; a 20% reduction from original thickness signals replacement is needed within 3-6 months.
Visual inspections should document cracking depth (critical at 0.3mm+), UV damage (shown by 50% gloss reduction), and connector alignment (tolerances under ±2°). For high-voltage joints, partial discharge testing catches insulation breakdown when emissions exceed 5pC. In freezing climates, verify ice penetration hasn't exceeded 3mm depth, which reduces sealing pressure by 25%. Portable hygrometers measure internal humidity - readings above 60% RH indicate compromised seals with 88% accuracy.
Cost-benefit analysis proves inspection pays: spending 2,800 in average repair costs. For offshore wind farms, quarterly drone inspections reduce failure rates by 72% compared to annual manual checks. Data shows 92% of catastrophic joint failures exhibit measurable warning signs 6-18 months beforehand - catching these early extends service life by 5-7 years while maintaining 98% waterproof integrity.
Follow Manufacturer Guide
Ignoring manufacturer specifications causes 38% of premature joint failures, with improper installation reducing waterproof effectiveness by 50-70%. Research shows joints installed per OEM guidelines last 12-15 years on average, while "field-modified" versions fail in 4-7 years. In chemical plants, 90% of sealant-related failures occur when users substitute recommended compounds with cheaper alternatives. A single deviation from torque specs can void warranties and increase repair costs by 300%.
| Parameter | Typical Spec Range | Consequences of Deviation | Cost Impact |
|---|---|---|---|
| Torque Values | 4-6 Nm (M25 glands) | ±1 Nm = 30% seal life reduction | +$200/joint |
| Cure Time | 24-72 hours (silicone sealants) | 50% reduction = 60% weaker bond | +$150 repair |
| Temperature Range | -40°C to +90°C (standard) | Exceeding by 20°C = 5x failure rate | +$1,200 downtime |
| Re-torque Cycles | Every 6 months (industrial) | Skipping 1 cycle = 25% leak risk | +$85 inspection |
Sealant application thickness matters more than most realize - applying 1mm instead of recommended 2mm reduces adhesion strength by 45% and allows 0.3mm water penetration in just 3 freeze-thaw cycles. For EPDM rubber joints, the manufacturer's compression limit of 30% exists because exceeding it causes 70% faster aging due to constant stress on the material.
Cable preparation steps often get skipped but are critical - failing to clean conductors with isopropyl alcohol as specified leaves 0.01mm oil films that increase contact resistance by 15%. The required 60-second scrubbing removes 98% of contaminants versus just 40% with a quick wipe. When manufacturers specify 2-hour cure times for epoxy compounds, stopping at 90 minutes reduces bond strength by 35% and dielectric performance by 50%.
Environmental factors in the manual aren't suggestions - installing Viton® seals at <5°C when the guide requires >10°C ambient temperature causes micro-fissures that grow into 2mm cracks within 12 months. The 3M™ Scotchcast™ 82 system explicitly warns against >60% humidity during application - ignoring this leads to bubble formation that fails 85% of pressure tests.
Maintenance intervals derive from accelerated aging tests - when OEMs recommend annual dielectric testing, it's because their data shows 15% of joints develop >5mA leakage currents between 12-18 months. The 5-year replacement cycle for silicone gaskets comes from measuring 50% compression set at that point, which allows 0.2mm water ingress during 30-minute rainstorms.
To prevent cable waterproof joint failures, prioritize EPDM or silicone seals (withstanding -40°C to 120°C extremes) over cheaper rubbers that crack in <2 years. Ensure IP68-rated compression fittings achieve 0.5-1.2Nm torque – exceeding this range risks 45% higher failure rates. Apply dielectric grease annually to maintain seal flexibility, reducing brittleness by 70%. In coastal areas, stainless steel clamps (Grade 316) resist salt corrosion 5x longer than galvanized versions. Thermal imaging scans every 6 months detect early microcracks, while 3:1 bend radius routing prevents stress concentrations. Always pressure-test at 1.5x operating PSI during installation – field data shows this catches 90% of potential leaks before deployment.
