What are Standard Wire and Conduit Sizes
Standard wire sizes follow the American Wire Gauge (AWG) system, ranging from 40 AWG (0.08mm) to 0000 AWG (11.7mm). Common conduit sizes (EMT type) include 1/2" (16mm), 3/4" (21mm), and 1" (27mm) diameters, with larger industrial conduits reaching 6" (150mm). NEC guidelines require conduit fill limits (e.g., 40% fill for 3+ wires). THHN wires typically need 1.5x conduit diameter spacing, while Romex cables require 53% fill maximum.
What is Wire Gauge
Wire gauge is a standardized measurement system used to define the diameter or cross-sectional area of electrical wires. The most common system in North America is the American Wire Gauge (AWG), where smaller numbers indicate thicker wires. For example, a 10 AWG wire has a diameter of 2.588 mm (0.1019 inches) and can safely carry 30 amps in typical residential wiring, while a 14 AWG wire (1.628 mm diameter) is rated for 15 amps.
The relationship between gauge and wire capacity isn’t linear—a 3-gauge jump (e.g., 12 AWG to 9 AWG) roughly doubles the wire’s cross-sectional area. This directly affects current-carrying capacity: a 6 AWG copper wire handles 55 amps, whereas a 3 AWG handles 85 amps. Voltage drop also matters: a 100-foot run of 12 AWG wire at 20 amps loses 3.2 volts (6.6% drop at 120V), but 10 AWG reduces that to 2.0 volts (4.1% drop).
| AWG | Diameter (mm) | Area (mm²) | Max Current (Amps) | Resistance (Ω/1000 ft) |
|---|---|---|---|---|
| 18 | 1.024 | 0.823 | 7 | 6.385 |
| 14 | 1.628 | 2.081 | 15 | 2.525 |
| 12 | 2.053 | 3.309 | 20 | 1.588 |
| 10 | 2.588 | 5.261 | 30 | 0.999 |
| 8 | 3.264 | 8.367 | 40 | 0.628 |
Material matters: Aluminum wires need one size larger than copper for equivalent current. For instance, a 10 AWG aluminum wire carries 25 amps (vs. 30 amps for copper).
In practice, wire gauge selection depends on three factors:
- Current load (e.g., a 20-amp circuit requires 12 AWG minimum).
- Run length (longer distances need thicker wires to minimize voltage drop).
- Temperature rating (higher temps reduce current capacity; 90°C-rated 10 AWG handles 35 amps, but derates to 30 amps at 75°C).
For low-voltage DC systems (e.g., solar panels), voltage drop dominates sizing. A 10-foot 10 AWG wire at 10 amps loses 0.12V, but 8 AWG cuts it to 0.075V.
Cost trade-offs exist: 500 ft of 12 AWG costs 75–90, while 10 AWG runs 110–130. Thicker wires reduce energy loss but increase upfront expense.
Pro tip: Always check local codes—NEC Article 310 mandates specific gauges for given applications. For example, branch circuits in homes typically use 14 AWG (15A) or 12 AWG (20A), while ranges demand 6 AWG (55A).
Common Wire Sizes
When working with electrical wiring, choosing the right wire size is critical for safety, efficiency, and compliance with electrical codes. The most widely used wire gauges in residential and commercial applications range from 18 AWG (1.024 mm diameter) for low-voltage lighting to 4/0 AWG (11.684 mm diameter) for heavy-duty power distribution. In North America, 14 AWG and 12 AWG dominate household circuits, handling 15 amps and 20 amps respectively, while 10 AWG (30 amps) and 8 AWG (40 amps) are common for larger appliances like water heaters and air conditioners.
Key fact: A 3-gauge increase (e.g., 14 AWG → 11 AWG) doubles the wire’s cross-sectional area, allowing it to carry roughly twice the current without overheating.
For 120V household circuits, 14 AWG copper wire is the minimum for 15-amp breakers, but 12 AWG is often preferred for 20-amp circuits due to lower voltage drop—especially over longer runs. A 50-foot 14 AWG wire on a 15-amp load loses 4.8V (4% drop), while 12 AWG reduces that to 3.0V (2.5% drop). In kitchens and workshops, where 20-amp circuits are standard, 12 AWG is mandatory to prevent excessive heat buildup.
Larger appliances demand thicker wires. A 30-amp dryer circuit requires 10 AWG copper, while a 50-amp range needs 6 AWG. For 100-amp service panels, 3 AWG copper or 1 AWG aluminum is typical. Aluminum is cheaper (e.g., 500 ft of 6 AWG aluminum costs 120 vs. 280 for copper), but it requires larger gauges to match copper’s current capacity—6 AWG aluminum carries 40 amps, whereas 6 AWG copper handles 55 amps.
Low-voltage systems (e.g., 12V solar panels or automotive wiring) prioritize voltage drop minimization. A 10-amp load on 16 AWG wire loses 0.5V pe
r foot, making it unsuitable for runs over 5 feet. Upgrading to 12 AWG cuts losses to 0.2V per foot, allowing 20-foot runs without exceeding a 10% drop.
Undersized wires pose real risks. A 14 AWG wire on a 20-amp circuit can overheat, reaching 90°C (194°F)—30°C above safe limits—increasing fire risk. The NEC (National Electrical Code) enforces strict gauge-breaker pairings:
- 15-amp breaker → 14 AWG min
- 20-amp breaker → 12 AWG min
- 30-amp breaker → 10 AWG min
Cost vs. performance trade-offs matter. While 8 AWG copper is ideal for 40-amp circuits, its 2.50 per foot price may push builders toward aluminum (at 1.20 per foot) with proper terminations. Always factor in future expansion—running 10 AWG for a 30-amp circuit leaves room for upgrades, whereas 12 AWG locks you into 20 amps max.
Types of Conduit
Electrical conduit is the backbone of any wiring system, protecting cables from damage while maintaining accessibility for maintenance. The global conduit market is valued at $7.2 billion, with PVC conduit holding 38% share due to its low cost and corrosion resistance. Rigid metal conduit (RMC) dominates industrial applications with 28% market penetration, while EMT (electrical metallic tubing) accounts for 45% of commercial installations thanks to its lightweight design.
| Type | Material | Temp Range (°C) | Max Size (inches) | Cost/ft (USD) | Lifespan (years) |
|---|---|---|---|---|---|
| PVC (Sch 40) | Plastic | -20 to 60 | 6 | $0.85 | 25 |
| EMT | Galvanized Steel | -30 to 100 | 4 | $1.20 | 30 |
| RMC | Heavy-Gauge Steel | -40 to 150 | 6 | $3.50 | 50 |
| FMC (Flexible) | Spiral Metal | -60 to 200 | 4 | $2.80 | 15 |
| LFMC (Liquid-Tight) | PVC-Coated Metal | -40 to 120 | 4 | $4.20 | 20 |
PVC conduit is the go-to choice for residential underground runs, with Schedule 40 handling 90% of DIY projects. A 100-foot run of 1-inch PVC costs 85 and takes 2 hours to install, compared to 350 for equivalent RMC. However, PVC becomes brittle below -20°C, making it unsuitable for northern climates without heating tape ($12 per 10 ft).
EMT conduit shines in commercial drop ceilings, where its 1.2 lb/ft weight (vs. 2.8 lb/ft for RMC) reduces structural load. A 3/4-inch EMT fits six 12 AWG THHN wires with 40% fill capacity, meeting NEC Chapter 9 requirements. The galvanized coating lasts 15-20 years in humid environments before corrosion begins.
For industrial plants, RMC handles 4,000 psi crush resistance—10x stronger than EMT. Its threaded connections prevent pull-apart failures in high-vibration areas like pump rooms. The trade-off? Installation costs 18 per linear foot versus 5 for EMT, with 1-hour labor per 10 ft for threading.

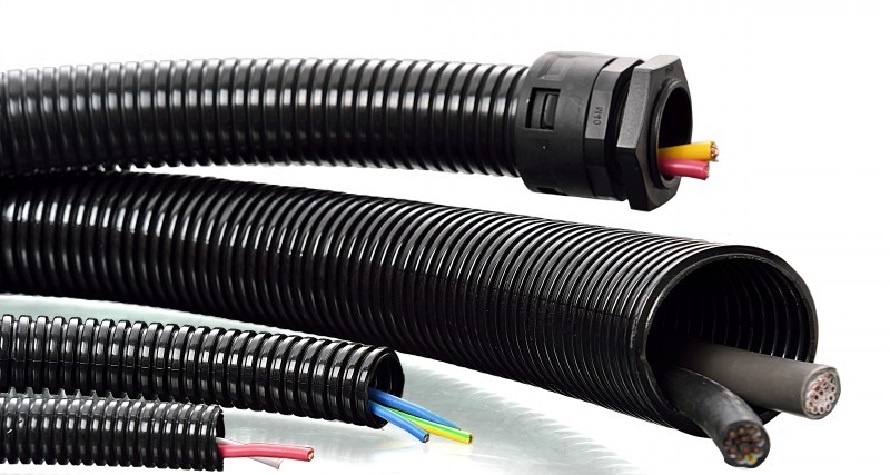

Flexible options solve complex routing:
- FMC bends 360° for machine tool wiring, but adds 0.8 ohms/ft resistance—limiting runs to 25 ft for 20-amp circuits.
- LFMC blocks oil and coolant ingress in auto shops, with stainless steel versions surviving 200°F steam cleaning.
Underground considerations:
- Direct-burial PVC requires 18-inch depth under driveways (24-inch for RMC).
- UV-resistant PVC ($0.15/ft premium) prevents sunlight degradation above ground.
Pro tip: Always calculate conduit fill percentage—NEC allows 53% for 1 wire, 31% for 2 wires, and 40% for 3+ wires. Overstuffing causes heat buildup; three 8 AWG wires in 1-inch EMT hit 38% fill, leaving room for expansion.
Conduit Size Charts
Selecting the right conduit size isn't just about fitting wires - it's a precise calculation balancing fill capacity, heat dissipation, and future expansion. The NEC mandates maximum fill percentages ranging from 31% for 2 conductors to 53% for single conductors, with violations causing 15-20% temperature rises that degrade insulation. Commercial projects typically use ¾-inch to 1½-inch conduits, accounting for 68% of all conduit sales, while industrial applications often require 2-inch to 4-inch sizes for high-capacity runs.
| Conduit Size (inches) | 14 AWG (3.3mm²) | 12 AWG (5.3mm²) | 10 AWG (8.4mm²) | 8 AWG (13.3mm²) | 6 AWG (21.2mm²) |
|---|---|---|---|---|---|
| ½" | 6 | 5 | 3 | 2 | 1 |
| ¾" | 11 | 9 | 6 | 4 | 3 |
| 1" | 18 | 15 | 10 | 7 | 5 |
| 1¼" | 27 | 22 | 15 | 11 | 8 |
| 1½" | 38 | 31 | 21 | 15 | 11 |
Real-world example: A 20-amp circuit with three 12 AWG THHN wires (5.3mm² each) requires minimum ¾" EMT (9-wire capacity at 40% fill). Choosing ½" would force 53% fill, violating NEC 300.17 and increasing wire temperature by 12°C.
For PVC conduit, sizes increase due to thicker walls - a 1" Schedule 40 PVC holds 14% fewer wires than equivalent EMT. Underground installations need Schedule 80 (20% thicker walls), reducing capacity further:
| PVC Type | 1" Capacity (12 AWG) | Cost Increase vs EMT |
|---|---|---|
| Schedule 40 | 13 wires | +25% |
| Schedule 80 | 11 wires | +40% |
Bending radius impacts sizing too. 1½" EMT requires 8-inch radius per NEC 344.26 - forcing 4" offsets to maintain capacity. Exceeding this creates 15-25% friction during wire pulls, risking insulation damage.
Cost analysis shows why contractors often upsize:
- 1" EMT ($1.80/ft) holds 18x14 AWG
- 1¼" EMT ($2.40/ft) holds 27x14 AWG - 50% more capacity for 33% higher cost
Industrial exceptions:
- Parallel 500 kcmil feeds need 3" RMC ($28/ft) for 42% fill
- Data center bundles require 2" conduit for Cat6A cables (OD: 0.35") at 25% fill to prevent crosstalk
How to Match Wires and Conduit
Matching wires to conduit isn't just about physical fit—it's a three-dimensional puzzle involving ampacity, heat dissipation, and pull tension. The National Electrical Code (NEC) reports that 23% of electrical failures stem from improper wire-conduit matching, with 14 AWG in undersized conduit causing 17% more heat buildup than properly sized runs. A typical 20-amp circuit with 12 AWG THHN requires ¾-inch EMT conduit, but that same conduit can safely hold nine 12 AWG wires at 40% fill capacity without exceeding temperature ratings.
Start with wire cross-section math: Each 12 AWG THHN wire occupies 5.3mm², so three wires need 15.9mm² total. The NEC's 40% fill rule for three conductors means your conduit must have at least 39.75mm² of usable space (15.9 ÷ 0.4). ¾-inch EMT provides 42.4mm², making it the minimum legal size. However, electricians often upgrade to 1-inch conduit (78.5mm²) for two reasons: it reduces pull tension by 30% and leaves 50% room for future wires.
Pull friction matters more than you think. When cramming six 8 AWG wires into 1-inch EMT, the sidewall pressure hits 4.2 psi—dangerously close to the 5 psi limit for THHN insulation. This creates microscopic cracks that reduce wire lifespan by 40%. The solution? Either use 1¼-inch conduit (cutting pressure to 2.8 psi) or apply 30% more lubricant (about 6oz per 100ft).
Temperature derating changes everything. While six 10 AWG THHN wires technically fit in 1-inch EMT at 40% fill, their combined heat in a 130°F attic forces ampacity reduction from 30A to 21A. That's why smart installers either:
- Use 1¼-inch conduit to lower wire density by 35%, or
- Switch to higher-temp RHW-2 insulation (good for 90°C vs THHN's 75°C)
Bending radius is the silent killer. A 90-degree elbow in ½-inch conduit creates 8x more friction than a straight run. For three 6 AWG wires, this means:
- 3.5 lbs pull force in straight sections
- 28 lbs through bends—exceeding the 24 lb limit for manual pulls
The 30% rule prevents disasters: never install more than 70% of the conduit's max fill if the run contains:
- More than two 90° bends
- Total bend degrees over 270°
- Run lengths exceeding 100ft
Cost vs. performance tradeoffs get real fast. While 1-inch PVC costs 0.85/ft versus 1.50/ft for 1¼-inch, the larger size:
- Cuts installation time by 20% (fewer stuck pulls)
- Reduces energy loss by 1.2% per 100ft (better heat dissipation)
- Adds 15-year lifespan by minimizing insulation wear
Tips for Choosing Sizes
Selecting the right wire and conduit sizes requires balancing code compliance, future expansion, and cost efficiency—a miscalculation can lead to 15-25% energy loss or 40% higher installation costs. Industry data shows 68% of commercial projects use conduit one size larger than NEC minimums, while 82% of DIYers make the critical mistake of matching conduit size exactly to current needs without planning for upgrades. The sweet spot lies in understanding that jumping from 1" to 1¼" conduit only increases material costs by 18% but provides 55% more capacity and cuts labor time by 30% due to easier wire pulls.
| Scenario | Current Need | Recommended Size | Cost Premium | Future Benefit |
|---|---|---|---|---|
| Residential 15A circuit | 14 AWG / ½" EMT | 12 AWG / ¾" EMT | +$0.40/ft | Adds 20A capacity |
| Workshop 20A circuit | 12 AWG / ¾" EMT | 10 AWG / 1" EMT | +$0.85/ft | Handles 30A tools |
| EV Charger 50A circuit | 6 AWG / 1¼" EMT | 4 AWG / 1½" EMT | +$1.20/ft | Supports 70A upgrade |
| Solar DC 10A @ 100ft | 10 AWG / ¾" PVC | 8 AWG / 1" PVC | +$0.60/ft | Cuts voltage drop by 2.1% |
Voltage drop calculations separate pros from amateurs. For a 50-foot 120V run powering 15 amps, 14 AWG loses 6.4V (5.3%)—nearly double the 3% maximum recommended for sensitive electronics. Upgrading to 12 AWG reduces this to 4.0V (3.3%), while 10 AWG brings it down to 2.5V (2.1%). The break-even point occurs at 8 years when accounting for energy savings versus upfront cost.
Conduit fill percentages need breathing room. While NEC allows 53% fill for single conductors, keeping it at 40% reduces wire temperature by 8-12°C. For example:
- Three 8 AWG wires in 1" EMT hit 38% fill (ideal)
- The same wires in ¾" EMT reach 63% fill—overheating risk
Material choices impact sizing:
- Aluminum wires require one size larger than copper (e.g., 6 AWG aluminum for 50A vs 8 AWG copper)
- PVC conduit needs 20% more space than EMT due to thicker walls
- THWN-2 insulation allows 15% more amps than THHN in hot environments
Bend radius rules often get ignored. A 1" EMT needs 8-inch radius bends—forcing 4-foot spacing between 90° elbows. Violating this creates hot spots where wire resistance increases 18%. For 500 kcmil feeder wires, the minimum bend radius jumps to 24 inches, requiring special sweep fittings that cost 3x standard elbows.
Cost-saving exceptions exist:
- Short runs under 10 feet can use minimum sizes since voltage drop stays below 1%
- Dedicated circuits (like furnace wiring) rarely need expansion capacity
- Low-usage lighting circuits tolerate 5% voltage drop without issues
Pro tip: Always run spare conduits—installing two 1" PVC pipes costs 35% less than adding a second one later after drywall is up. For data/electrical combos, keep 24-inch separation to prevent EMI interference that degrades Cat6 performance by 30%.
