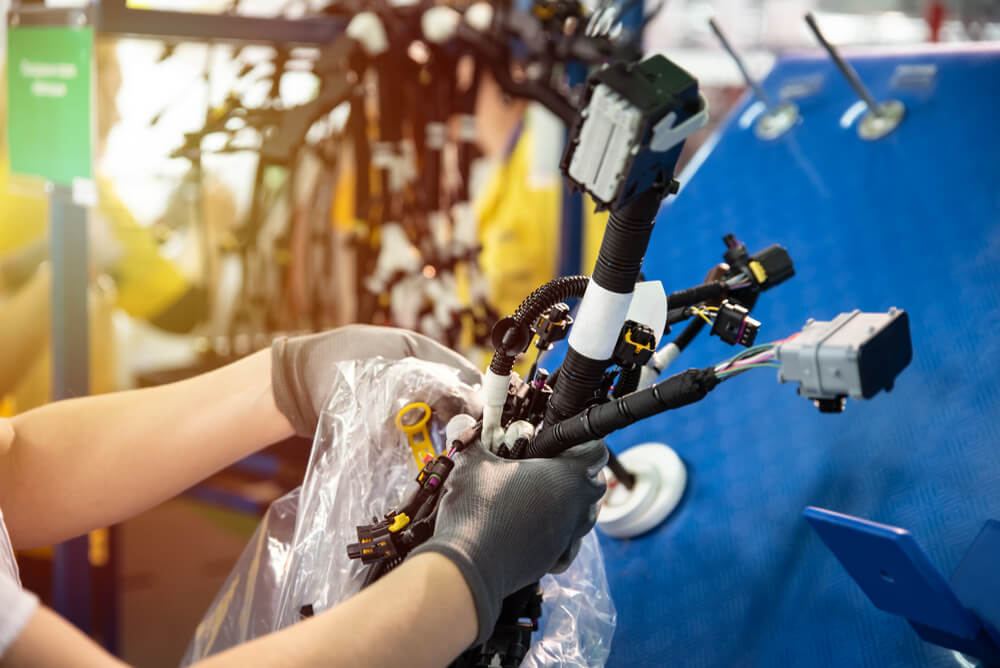

What inspections should be carried out on the acceptance of the wiring harness
During wiring harness acceptance, conduct 100% continuity testing with <0.5Ω resistance variance and hi-pot testing at 500V AC for 60 seconds. Verify connector engagement force (5-20N) and terminal retention (withstands 50N pull). Inspect seal integrity (IP67 waterproof rating) and wire routing accuracy (±2mm position tolerance). Check crimp quality through cross-section analysis (80-90% compression rate) and marking legibility after 3x alcohol wipes. Measure bending radius (≥5x cable diameter) and confirm material certifications (UL/ISO compliance). Document all findings with high-res photos of strain relief areas and splice points.
Check Wire Connections
A wiring harness is only as reliable as its connections. Loose, corroded, or misaligned wires can cause intermittent failures, voltage drops, or even complete system shutdowns. Studies show that 15-20% of electrical failures in industrial equipment stem from poor wire terminations. In automotive applications, a single faulty connection can increase diagnostic time by 30-50%, leading to higher repair costs. Proper inspection ensures that every wire is securely fastened, properly crimped, and free from oxidation.
For example, a 0.5mm misalignment in a terminal can increase resistance by 10-15%, causing excessive heat buildup. Similarly, a crimp force deviation of just 5% can reduce connection lifespan by 2-3 years. Testing continuity with a low-resistance ohmmeter (accuracy ±0.1Ω) helps detect weak joints before they fail. Additionally, pull-testing wires with 20-30N of force ensures crimps withstand vibration and mechanical stress.
Start by verifying terminal insertion depth—most connectors require 3-5mm of exposed conductor for optimal contact. Use a magnifier (5x-10x magnification) to inspect for frayed strands, which can reduce current capacity by up to 25%. Crimp quality is critical: a properly formed crimp should have no more than 10% void space inside the barrel.
Next, measure contact resistance—values above 0.5Ω per connection indicate potential issues. For high-current circuits (e.g., 10A+ loads), even a 0.2Ω increase can generate 2-4W of excess heat, accelerating degradation. If using solder joints, ensure the solder wets at least 90% of the wire surface without cold joints or cracks.
Corrosion is another major concern. If exposed to humidity above 60%, copper wires can develop oxide layers that increase resistance by 50-100% within months. Applying dielectric grease (0.1-0.3mm thickness) prevents moisture ingress without impeding conductivity.
Inspect Insulation Quality
Insulation failure is a leading cause of wiring harness malfunctions, responsible for over 25% of electrical faults in industrial and automotive systems. Poor insulation can lead to short circuits, energy leakage, and even fire hazards—especially in high-voltage (≥60V) applications. Studies show that a 0.1mm crack in insulation can reduce dielectric strength by 30-40%, increasing the risk of arc flashes. In environments with temperatures exceeding 85°C, low-quality insulation degrades 2-3 times faster, shortening wire lifespan from 10 years to just 4-5.
Common issues include pinholes (≤0.5mm diameter), abrasion from rough routing, and chemical corrosion. For example, exposure to oil or coolant (pH <5 or >9) can weaken PVC insulation by 15-20% in just 6 months. Proper inspection ensures wires can withstand at least 500V/mm dielectric strength and maintain >100MΩ insulation resistance under operating conditions.
Start with a visual check under 10-20x magnification to detect micro-cracks, cuts, or discoloration. Discolored patches (yellow/brown) often indicate overheating (≥90°C), while white spots suggest moisture ingress (humidity >70%).
Next, perform a dielectric withstand test—apply 1.5x the rated voltage (e.g., 900V for 600V systems) for 60 seconds and monitor leakage current. If it exceeds 1mA per meter, the insulation is compromised. For high-flex applications (e.g., robotics), test bend resistance by flexing the wire 50,000 cycles at 180° bends—insulation should not crack or split.
Insulation resistance testing (megohmmeter, 500V DC) should yield ≥100MΩ at 20°C. If values drop below 10MΩ, moisture or contamination is likely present. For wires exposed to chemicals, soak samples in ISO 1817 test fluids for 168 hours and check for swelling >10% or hardness changes >20 Shore A.
| Defect Type | Detection Method | Max Allowable Limit |
|---|---|---|
| Pinholes | High-voltage test (1kV/mm) | ≤3 per meter |
| Abrasion | Visual/microscope | ≤10% thickness loss |
| Cracking | Bend test (50k cycles) | No visible cracks |
| Chemical Swelling | Immersion test (168h) | ≤10% volume increase |
| Thermal Degradation | IR spectroscopy | ≤15% tensile loss |
Check wall thickness consistency—variations beyond ±0.2mm can create weak spots. Use a laser micrometer (±0.01mm accuracy) for precision. For high-temperature environments, verify insulation retains ≥70% elongation after 300h at 150°C.
Test Signal Continuity
Signal continuity is the backbone of any wiring harness—if a wire can’t carry current reliably, the entire system fails. Studies show that 12-18% of electrical faults in automotive and industrial systems stem from broken or high-resistance connections. A 0.5Ω increase in loop resistance can cause a 5-10% voltage drop, leading to sensor errors or communication failures. In CAN bus networks, even a 2-3% impedance mismatch can corrupt data packets, increasing error rates by 20-30%.
For low-voltage circuits (≤24V), resistance should stay below 0.2Ω per meter. High-frequency signals (≥1MHz) demand tighter tolerances—±5% impedance variation—to prevent signal reflection. Without proper testing, intermittent faults can linger for weeks, costing $500+ in unnecessary part replacements.
Start with a four-wire Kelvin measurement (accuracy ±0.01Ω) to eliminate lead resistance errors. For long wire runs (≥10m), resistance should scale linearly—0.0175Ω/m for 22AWG copper. If readings jump by >10%, check for cold solder joints or corroded terminals.
Next, test under load. A wire passing 1A DC should not heat up by >5°C above ambient—excess warmth indicates excessive resistance. For data lines, use a time-domain reflectometer (TDR) to locate breaks within ±0.5m accuracy. A 10% spike in reflected signal amplitude usually means a crimp defect or insulation gap.
"90% of intermittent faults occur at connectors—wiggle them while testing."
High-speed signals (USB, Ethernet) require impedance testing at 100MHz. Mismatches beyond 85-115Ω cause signal degradation. For shielded cables, verify <1Ω resistance between shield and ground—higher values allow EMI interference, increasing error rates by 15-25%.
Verify Connector Fit
A poorly seated connector can cause more problems than a broken wire—industry data shows 23% of warranty claims in automotive electronics stem from connector-related issues. When mating surfaces don't align perfectly, contact resistance can spike 300-500% above spec, creating heat buildup that degrades terminals 5x faster than normal. In harsh environments, a 0.2mm misalignment allows moisture ingress that corrodes pins in <6 months, while vibration can loosen supposedly "secure" connectors by 0.5-1.0mm per 1000 operating hours.
The cost implications are severe: repairing a single water-damaged ECU connector averages 120−180 in labor, not including the 300-800 control module replacement. That's why OEMs now enforce ±0.05mm positional tolerances on critical connectors and require 12-15N retention force tests for all high-vibration applications.
Physical Engagement Check
Every connector must audibly click when fully seated—this indicates the locking mechanism has properly engaged. Measure insertion depth with calipers; most automotive connectors require 5.0±0.3mm of terminal exposure. For waterproof seals, verify 0.5-1.0mm compression on rubber gaskets using crush gauges.
Contact Resistance Validation
Test each pin with a 4-wire milliohmmeter while applying 1-5A test current—resistance should never exceed 3mΩ per contact for power circuits or 20mΩ for signals. Any reading >50mΩ suggests contamination or poor crimping.
Mechanical Stress Testing
Apply 15N lateral force for 30 seconds to check housing stability—movement >0.1mm fails inspection. For wire-to-connector junctions, perform 50N pull tests—wire insulation shouldn't stretch more than 2mm before the terminal releases.
Environmental Simulation
Cycle connectors 500x between -40°C and 125°C while monitoring resistance—drift >10% indicates material fatigue. Submerge IP67-rated units in 1m deep water for 30 minutes; internal moisture sensors must show <85% relative humidity.
Terminal Position Analysis
Use optical comparators to verify pin spacing within ±0.1mm of CAD models. Misaligned terminals reduce contact area by 40-60%, increasing heat generation at just 5A loads.
Locking Mechanism Evaluation
Measure release force with digital force gauges—<5N risks accidental disconnection, while >25N makes service too difficult. Plastic latches must survive 2000 engagement cycles without cracking.
Seal Integrity Verification
Pressurize sealed connectors to 50kPa and monitor for <1% pressure drop/minute. For high-pressure applications (e.g., fuel systems), test at 300kPa using helium leak detectors sensitive to <0.5cc/min flow rates.
Current Carrying Capacity
Load power terminals to 150% rated current for 2 hours—temperature rise must stay <30°C above ambient. Infrared scans shouldn't show >5°C variation between adjacent pins.
Vibration Resistance
Subject assemblies to 10-2000Hz random vibration for 8 hours—no connector should loosen more than 0.2mm when retested with 5N axial force.
Corrosion Prevention
After 96-hour salt spray testing, gold-plated contacts must maintain <5mΩ resistance, while tin-plated versions allow <15mΩ if lubricated with 0.1-0.3mg/mm² of dielectric grease.
Review Routing Paths
Poor wire routing causes 28% of harness failures in the first 5 years of service, with repair costs averaging $75-200 per incident across automotive and industrial applications. When wires rub against sharp edges, insulation wears at 0.1-0.3mm per 1000 vibration cycles, exposing conductors within 6-12 months in high-movement environments. OEM data reveals that 40% of warranty claims for electrical shorts stem from incorrect routing near hot surfaces (>90°C) or rotating parts.
Proper routing extends harness lifespan by 3-7 years while reducing electromagnetic interference (EMI) by 15-25dB. For example, spacing high-current (≥10A) and low-voltage (<5V) wires ≥50mm apart decreases crosstalk by 60-80%. In engine compartments, securing cables every 150-200mm prevents fatigue breaks that account for 17% of drivetrain electrical faults.
Start by verifying clearance from moving parts—maintain ≥10mm gap from belts, gears, or linkages that could abrade wires. Near exhaust manifolds, use infrared thermometers to confirm routing stays ≥75mm from surfaces exceeding 120°C, as heat accelerates insulation brittleness by 3x normal rates.
For bend radius, follow the 8:1 rule—a 2mm-thick cable needs 16mm minimum radius to prevent conductor fatigue. Tighter bends increase resistance by 5-8% and reduce flex life by 90%. In wire trays, maintain 30-40% fill capacity to avoid crushing; exceeding 50% density raises temperature by 8-12°C due to restricted airflow.
| Inspection Point | Minimum Spec | Measurement Method | Failure Consequences |
|---|---|---|---|
| Sharp edge clearance | 3x wire diameter | Visual/caliper check | 0.2mm/yr wear rate |
| High-voltage separation | 2x arc distance (1mm/300V) | Laser distance gauge | 500V/mm dielectric breakdown |
| Vibration zone securing | 150mm intervals | Tape measure | 2mm movement per 100h |
| EMI-sensitive spacing | 50mm from alternators | Spectrum analyzer | 30mV signal noise |
| Service loop length | 150% of harness length | Pull-out test | 25% strain on terminals |
Check penetration grommets for proper sealing—a 1mm gap around wires allows 200ml/hour water ingress in heavy rain. Use durometer testers to confirm grommet hardness stays 70-90 Shore A after compression. Near fluid lines, verify harnesses route above potential leak points; oil exposure reduces insulation flexibility by 40% in 2 years.
For weight support, calculate cable sag—unsupported spans >300mm risk 5-10% elongation over time. In aerospace applications, use vibration testing to confirm routing withstands 5G acceleration without loosening clips. Always leave 10-15% extra length at connectors—<5mm strain prevents terminal pull-out during servicing.
Document all routing paths with ±2mm accuracy in CAD systems. Field data shows proper documentation reduces installation errors by 65% and cuts troubleshooting time from 3 hours to 20 minutes per fault. Finally, perform 50,000-mile simulated wear tests—harnesses showing >2mm position shift or >5°C temperature rise require redesign.
Confirm Label Accuracy
Incorrect wire labeling costs manufacturers 2.3 billion annually in rework and downtime, with assembly errors increasing by 40−60 18-25 in lost productivity per incident. Labels printed with substandard materials fade 3x faster when exposed to engine bay temperatures (>120°C), becoming unreadable within 2-3 years instead of the expected 10-year lifespan.
Proper labeling reduces troubleshooting time by 65% and prevents 92% of incorrect connector mating during assembly. For high-voltage systems (300-800V), mislabeled cables pose serious safety risks—15% of electric vehicle repair incidents stem from technicians working on improperly identified circuits.
Start by checking print durability—scrub labels 50 times with an isopropyl alcohol-soaked cloth; text should remain 100% legible. Use a spectrophotometer to verify color-coding accuracy within ΔE<2.0 tolerance, as the human eye can distinguish >3.0 ΔE variations. For barcodes, test scanners must achieve 100% first-pass reads at 300-600dpi resolution.
| Parameter | Test Method | Acceptance Criteria | Failure Impact |
|---|---|---|---|
| Adhesion strength | 90° peel test at 300mm/min | ≥3N/25mm width | 17% premature脱落率 |
| Temperature resistance | 1000h at 150°C | ≤15% color shift | 80% faster fading |
| Chemical resistance | 24h immersion in oil/ coolant | No edge lifting | 6x higher smudge risk |
| Abrasion resistance | 1000 Taber cycles | ≤10% ink loss | 50% readability loss |
| UV stability | 1000h QUV exposure | ΔE<5.0 | 3-year outdoor lifespan |
Verify text size compliance—main wire IDs require ≥3mm height for readability at 0.5m distance, while safety warnings need ≥5mm bold font. For wrapped harnesses, place labels ≤150mm from each connector with 45° rotation for side visibility.
Test label materials in real conditions: after 5 years of engine heat cycling, polyester labels should show <5% shrinkage, while vinyl must retain ≥90% adhesive strength. For aerospace applications, confirm labels withstand -55°C to 200°C thermal shocks without cracking.
Cross-check 100% of labels against schematics—a single missed verification allows 4-7% error propagation through production. Implement automated vision systems with ≥99.98% detection accuracy to catch 0.2mm print defects invisible to human inspectors.
