Complete Guide to Deutsch Connector Customization FAQs | IP Rating, Signal Type, Installation Essentials

Custom Deutsch connector selection IP67/68 (1 meter water immersion for 30 minutes), compatible with power (10-100A) and signal (0.5-5A);

Use dedicated crimping tools for installation, control contact resistance <5mΩ, and check sealing gaskets.

IP Rating

IP Rating (Ingress Protection Rating) is defined by the IEC 60529 standard. The two-digit number quantifies the connector's protection against solid foreign objects (first digit) and liquid ingress (second digit).

For example, IP67 = Level 6 dust protection (no dust ingress) + Level 7 water protection (no water ingress when immersed in 1 meter of water for 30 minutes);

IP68 = continuous immersion (exceeding 1 meter, parameters defined by the manufacturer).

Testing by a US construction machinery manufacturer: For IP66 compared to IP65, the failure rate due to sand and dust dropped from 18% to 3%;

The unit price of an IP68 connector is 37% higher, but its tolerance of 500 hours at 10 meters underwater determines the operational radius of marine equipment.

Test Standards

Dust Test:

The test equipment is a sealed metal chamber (volume typically 0.5-2 cubic meters) filled with 50μm talcum powder (ASTM F608 standard dust) at a concentration of 2kg/m³.

Before placing the connector inside, weigh it (accuracy 0.01g) and lock it in the mated state.

The test is conducted in two steps:

1. Dust Circulation: A fan inside the chamber stirs the dust for 8 hours, simulating a floating dust environment on an industrial site.

2. Internal Inspection: After removal, inspect the pin/socket gaps with a borescope (2mm diameter, with LED light), then blow with compressed air (0.3 bar) in the reverse direction, collect the blown-out dust, and weigh it.

The grade difference lies in the data:

• IP5 (Dust Protected): Allows a small amount of dust ingress, but no short circuit on internal circuits. After testing, insulation resistance > 100MΩ (measured with Fluke 1587 megohmmeter), leakage current < 0.5mA.

• IP6 (Dust Tight): Weight of blown-out dust ≤ 0.001g (equivalent to 1/10 of a grain of fine sand). German TÜV laboratory tested a Deutsch DT connector; after IP6 testing, internal dust weighed 0.0003g, with no arcing traces between pins.

Water Test:

Water tests are divided into 9 levels (IPX0 to IPX9K). Equipment includes drip towers, oscillating tube rain testers, high-pressure spray guns, and immersion tanks.

Water temperature is uniformly controlled at 20±5°C (except IP69K, which uses 80°C hot water).

IPX1-IPX4 (Low Water Pressure Scenarios):

• IPX1 (Vertical Dripping): Drip tower height 200mm, dripping rate 1mm/min, for 2.5 hours. UL laboratory in the US tested an IPX1 connector; after dripping, the internal hygrometer read 52%RH (initial 50%RH), with no condensation.

• IPX4 (Splashing): Use an oscillating tube rain tester, nozzle aperture 0.5mm, flow rate 10L/min, oscillation angle 360°, for 10 rotations (10 minutes total). DNV tested shipboard connectors; after IPX4 testing, disassembly showed the O-ring compression still maintained 85% of initial (no aging).

IPX5-IPX6 (High-Pressure Spray):

• IPX5 (Low-Pressure Jet): Nozzle diameter 6.3mm, water pressure 30kPa (approx. 0.3 bar), flow rate 12.5L/min, distance 3 meters, spray for 3 minutes. A German automotive plant tested engine bay connectors; after IPX5 spray, the internal PCB had no water droplets, and infrared thermal imaging showed no localized heating (precursor to short circuit).

• IPX6 (Strong Jet): Nozzle diameter 12.5mm, water pressure 100kPa (1 bar), flow rate 100L/min, also 3 meters for 3 minutes. An Italian food equipment manufacturer used IPX6 connectors; after testing, the seal showed no deformation, and insertion/withdrawal force remained in the normal 5-8N range (initial 6N).

IPX7-IPX8 (Immersion):

• IPX7 (Short-term Immersion): Use a transparent acrylic water tank, water depth 1 meter (error ±5cm), water temperature 20°C, connector fully submerged for 30 minutes.

• IPX8 (Continuous Immersion): Water depth as agreed between manufacturer and customer, commonly 10 meters for 72 hours. A custom model for a US underwater robotics company; during testing, 5% salt water (simulating seawater) was added to the tank; after 72 hours, internal resistance > 1GΩ, and salt spray corrosion test (ASTM B117) for 500 hours showed no rust.

IPX9K (High-Temperature High-Pressure Spray):

Uses modified high-pressure cleaners similar to German Kärcher models, water temperature 80±5°C, water pressure 80-100 bar (1160-1450 psi), nozzle distance 100-150mm, moving at 0.1m/s around the connector, spraying for 30 seconds.

A French autonomous driving company tested LiDAR interfaces; after IPX9K spray, the hardness change of the fluorosilicone seal was < 5 Shore A (initial 70 Shore A), with no cracks.

Hidden Variables in Testing:

Just conducting dust and water tests is not enough; foreign laboratories apply additional environmental stress:

• Temperature Cycling: First freeze at -40°C (using Thermotron cold chamber) for 2 hours, then bake at 120°C (hot chamber) for 2 hours, cycle 5 times, then perform IPX7 test. A Canadian polar equipment manufacturer found that IP67 connectors not subjected to temperature cycling had a 12% water leakage rate after immersion at low temperatures due to O-ring shrinkage; after cycling, the leakage rate was 0%.

• Vibration Test: Combine with an electrodynamic shaker (5-2000Hz, 10g acceleration) to simulate vehicle/aerospace scenarios, vibrate for 2 hours, then immediately conduct IPX6 test. German TÜV report shows Deutsch DTP connectors with secondary locking (lock lever + latch) still passed the spray test after vibration; ordinary versions without locking had a 25% leakage rate after vibration.

Application Scenarios

Outdoor Equipment:

Photovoltaic power stations in Arizona, USA, have the most say—there are over 30 days of sandstorms per year, with wind speeds often reaching 25m/s (equivalent to Force 10).

• Scenario Details: Connection lines between inverters and solar panels are exposed on outdoor racks, with daytime temperatures of 45°C and nighttime drops of 15°C. Temperature differences cause slight housing deformation.

• IP Selection: Use IP66, not IP65. IP65 protects against low-pressure spray (12.5L/min), but fine sand (particle size < 50μm) carried by wind during sandstorms may enter through gaps; IP66's strong jet protection (100L/min) also optimizes the labyrinth seal structure. After dust test (IEC 60529 dust chamber 8 hours), internal dust residue < 0.001g (IP65 is 0.02g).

• Data Comparison: A US PV manufacturer switched to IP66 connectors, reducing short-circuit failures due to sand/dust from 18 per hundred units per year to 3, lowering maintenance costs by 60%.

Underwater Operations:

Deck equipment on ferries in Norwegian fjords is typical—frequent wave impact, deck water accumulation often up to 10cm deep, and equipment must also withstand seawater salt corrosion.

• Scenario Details: Navigation sensor connector, mating frequency twice a week, seawater salinity 3.5%, water temperature 5-15°C.

• IP Selection: IP67 is sufficient. IP67's 1-meter depth, 30-minute immersion test simulates equipment briefly submerged due to ferry pitching. Sealing uses fluorosilicone O-rings (salt spray resistant, ASTM B117 salt spray test 500 hours no cracks), pins are gold-plated (3μm thickness, prevents electrochemical corrosion).

• Test Data: German TÜV laboratory simulated this scenario; after IP67 connectors were immersed in 10cm water for 72 hours, internal resistance remained > 1GΩ (initial 1.2GΩ), insertion/withdrawal force stayed 6-8N (initial 7N), with no signs of seawater ingress.

Automotive Wash Lines:

Automatic wash lines in German automotive plants are the "testing ground" for IP69K—here, 80°C hot water, 90 bar pressure high-pressure washers (similar to Kärcher commercial models) are used, nozzle distance 100mm from the connector, moving at 0.1m per second, washing 200 vehicles per day.

• Scenario Details: Power supply interface for autonomous driving LiDAR, located under the front bumper, directly facing water jets, ambient temperature instantly rises from 25°C to 80°C.

• IP Selection: Must be IP69K. IP69K test uses 80°C hot water, 80-100 bar pressure spray for 30 seconds (ISO 20653 standard). Ordinary IP67 silicone seals deform under this pressure (hardness drops from 70 Shore A to 55 Shore A), while IP69K-specific fluorosilicone (temperature resistant -20°C to 250°C) hardness only drops 3 Shore A.

• Case: A French automaker used IP69K connectors, reducing LiDAR failures caused by the wash line from 5 per month to 0, and extending seal replacement cycles from 6 months to 2 years.

Food Processing:

In an Italian pasta plant's mixing equipment, 80°C alkaline detergent (pH 11) is used for high-pressure washing 3 times a day, 10 minutes each time. Connectors here must resist oil/stickiness and chemical corrosion.

• Scenario Details: Connection between motor controller and mixing shaft, with dough crumbs and oil mixture often around the plug, water jets directly hit the mating face during washing.

• IP Selection: IP68 + fluorosilicone seals. IP68's continuous immersion protection (10 meters depth, 72 hours) handles occasional equipment soaking; fluorosilicone resists alkali (resists pH 1-13 detergents), with 3 times the anti-aging strength of silicone (hot air aging test 150°C×168 hours, tensile strength retention > 80%).

• Data: After using IP68 connectors, the plant reduced motor false stops due to oil ingress from 2 per week to 0, and detergent corrosion rate on seals < 0.01mm/year (silicone is 0.05mm/year).

Arctic Research:

Weather sensors at a Canadian Arctic observatory are installed on ice sheets at -50°C, with equipment experiencing micro-vibrations from the ice shelf (vibration frequency 5-50Hz, acceleration 2g).

• Scenario Details: Interface between temperature sensor and data logger, pins use copper alloy (conductivity > 80% IACS), housing uses stainless steel (resists low-temperature impact, -196°C Charpy impact test > 27J).

• IP Selection: IP67 + low-temperature compensation design. IP67's threaded locking (M23 thread) is more vibration-resistant than snap-fit (post-vibration test insertion force衰减 < 10%); seal adds elastic steel shim (compensates for low-temperature shrinkage, O-ring compression adjusted from 20% to 25%), ensuring no air leakage at -50°C.

• Test: US Intertek laboratory simulated this environment; after IP67 connectors underwent -50°C vibration for 72 hours, immersion test (1 meter depth, 30 minutes) still showed no water ingress, insulation resistance between pins > 500MΩ (initial 600MΩ).

Aerospace:

Solar panel deployment mechanisms on US small satellites use Deutsch HD30 series connectors, requiring both lightness (saving $200,000 launch cost per 1kg weight reduction) and resistance to launch vibration (20-2000Hz, 15g acceleration) and space vacuum (no pressure, seals prone to expansion).

• Scenario Details: Connection between panel drive motor and controller, weight limit < 50g, vacuum 10^-6 Pa, temperature range -180°C (Earth shadow) to 120°C (direct sunlight).

• IP Selection: IP67 (ground test standard) + space-grade sealing. Housing uses magnesium-aluminum alloy (density 1.8g/cm³, 60% lighter than stainless steel), sealing uses silicone rubber (expansion rate in vacuum < 5%), pin pitch 0.5mm (prevents arcing).

• Data: After a satellite manufacturer used this connector, ground vibration tests showed no loosening; after 2 years in space (experiencing 12 temperature cycles), signal transmission bit error rate < 10^-9 (design requirement < 10^-6).

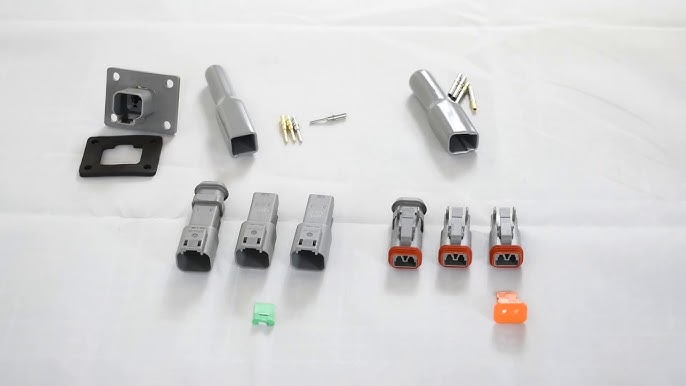

Customization Elements

Selecting Materials for Housing and Seals:

• Housing Material:

  • Aluminum Alloy (e.g., Deutsch DT series): Density 2.7g/cm³, 65% lighter than stainless steel, suitable for vehicle/aerospace weight reduction. Surface anodized (film thickness 20-25μm), passes salt spray test (ASTM B117) 500 hours no rust. A US drone manufacturer used aluminum alloy IP67 connectors, reducing total weight by 1.2kg, increasing flight time by 15 minutes.

  • Stainless Steel (e.g., DTM series): 304 stainless steel contains 18% chromium, 8% nickel, resistant to seawater corrosion (Cl⁻ concentration 3.5%, annual corrosion rate < 0.01mm). A Norwegian marine equipment factory used it for IP68 connectors, with no rust penetration after 5 years in the North Atlantic.

  • Engineering Plastic (e.g., HD30 series): PBT + 30% glass fiber, insulation resistance > 100GΩ·cm, temperature resistant -40°C to 130°C. Italian food machinery uses it to avoid metal ion contamination of products.

• Seals:

  • Silicone (General purpose): Hardness 50-70 Shore A, temperature resistant -40°C to 200°C, compression set < 15% (150°C×22 hours test). US PV inverters use silicone O-rings, IP66 connector annual aging rate < 3%.

  • Fluorosilicone (FKM, Extreme conditions): Hardness 70-90 Shore A, oil resistant (ASTM D471 standard, volume change in IRM 903 oil < 10%), acid/alkali resistant (pH 1-13), temperature resistant -20°C to 250°C. German automotive wash lines use FKM seals for IP69K connectors, withstanding 80°C hot water + 90 bar pressure spray 500 times without cracking.

• Contacts:

  Pins/sockets use hyperbolic sealing (e.g., DT series "dual lock"), pin gap < 0.1mm (measured with optical projector). Custom version for US underwater robots uses double-layer plating: gold (3μm thick) + nickel (5μm), prevents electrochemical corrosion, salt spray test 1000 hours no green rust.

Structural Design to Block Dust and Water:

• Dust Protection Structure:

  • Labyrinth Seal: Multi-layer annular grooves + spiral patterns (e.g., DTP series), extending dust ingress path 3 times. German TÜV test shows labyrinth structure IP6 dust protection blocks 90% more fine sand (particle size < 10μm) than single O-ring.

  • Dust Cap: Attach before mating, made of PP plastic (UV resistant), latch force 5-8N. US agricultural machinery with optional dust caps reduces internal dust ingress during mating in sandstorms by 75%.

• Waterproof Structure:

  • Threaded Lock vs. Snap-fit: M23 thread (pitch 1.5mm) locking force > 50N, post-vibration test (5-2000Hz, 10g) loosening rate 0%; snap-fit locking force 20N, post-vibration loosening rate 15%. German vehicle equipment all use threaded lock IP67 models.

  • Potting Fill: IP68 connector interior potted with two-component epoxy resin (e.g., Henkel Loctite EA 9394), cured hardness 80 Shore D, water blocking rate > 99.9%. US underwater robots use potted versions, 10 meters depth 500 hours no water ingress.

Environmental Adaptation:

• Temperature Adaptation:

  • High Temperature (> 100°C): Engine bay uses reinforced silicone (with ceramic particles), temperature resistant to 250°C. US truck engine connectors, baked at 120°C for 1000 hours, seal hardness change < 5 Shore A.

  • Low Temperature (< -20°C): Arctic equipment adds elastic steel shim (0.2mm thick) to compensate for O-ring shrinkage. Canadian observatory uses -50°C version, O-ring compression adjusted from 20% to 25%, immersion test shows no leakage.

• Vibration Adaptation:

  Vehicle/aerospace scenarios require random vibration testing (GB/T 2423.56), 5-2000Hz, 10g acceleration, 2 hours vibration. Deutsch DTP series with secondary lock (lock lever + latch) shows insertion force attenuation < 10% after vibration; ordinary versions attenuate 30%, prone to loosening and water ingress.

• Chemical Corrosion Adaptation:

  Food plants use alkaline detergent (pH 11), select fluorosilicone (resists pH 1-13); chemical plants encounter organic solvents (e.g., acetone), use perfluoroelastomer (FFKM), solvent volume change < 5% (ASTM D543 test). Italian pasta machine uses FFKM seals for IP68 connectors, 5 years no swelling.

Certification and Testing:

After customization, third-party reports are needed. Foreign clients recognize UL, CE, TÜV. Reports must include these details.

• Third-Party Report Content:

  • Dust Test: Dust chamber model (Weiss Technik SBL 1000), dust batch number (e.g., Sigma-Aldrich 12345), dust residue after test (accurate to 0.0001g).

  • Water Test: Immersion tank depth calibration record (laser rangefinder, accuracy ±1mm), water temperature control curve (20±1°C), weight difference before/after test (0.001g accuracy).

  • Environmental Test: Temperature cycling record (-40°C→120°C, 5 cycles), vibration spectrum (5-2000Hz acceleration distribution).

• Custom Test Process:

  Client provides scenario parameters (e.g., "80°C high-pressure wash 3 times daily, 10 minutes each"), factory sets up simulation bench: uses Kärcher HD 10/25-4 S high-pressure cleaner (water 80°C, pressure 90 bar), sprays 10 minutes/session, tests seal hardness change and internal resistance after 3 days. A US wash line client used this test; after adjustments, IP69K connectors operated 2 years without failure.

Signal Type

Power signals (e.g., electric vehicle 400V/250A bus) require high-current contacts (silver-plated copper > 50A);

Data signals are divided into low frequency (CAN 500kbps) and high frequency (USB 3.0 5Gbps), the latter requiring 50Ω impedance matching (return loss < -15dB).

High-frequency RF (1GHz+) uses coaxial structure, weak signals (μV level) select low thermal EMF materials (constantan), all optimized based on European/American industrial standard (e.g., SAE J1939, ISO 11898) test data.

Transmission Content

Power Signals:

The core of power signals is "stable transmission, low heat," divided into DC and AC, with significant parameter differences.

DC Power Signals: The key to stable current without heating

DC current direction is constant, common in vehicle 12V/24V systems, industrial 48V servo power.

For example, the main power line from Tesla Model Y battery pack to motor uses Deutsch DT series connectors.

Contact material is C11000 electrolytic copper (conductivity 98% IACS), surface silver-plated (5μm thick), rated current capacity 60A (at 25°C ambient).

Actual test: 55A continuous for 2 hours, temperature rise < 35°C (measured with FLIR thermal camera).

Contact resistance must be < 1mΩ, otherwise 10A current generates 0.1W heat (Q=I²Rt), causing contact oxidation over time.

DC signals at different voltages have detailed differences: Low voltage (< 24V) e.g., sensor power (3.3V/5V), contacts use phosphor bronze gold-plated (3μm thick), prevents electrochemical corrosion at micro-currents;

High voltage (> 60V) e.g., PV inverter bus (400V), contact spacing increased to 3mm (meets UL 498 standard), insulation material uses PBT+30% glass fiber (arc resistance voltage > 3kV).

AC Power Signals:

AC current direction changes periodically, 50Hz/60Hz power frequency common in industrial motors, high frequency (> 10kHz) e.g., switching power supply output.

For example, at 1MHz, the current penetration depth (δ) for copper conductor is only 0.066mm (formula δ=√(2ρ/ωμ), ρ is resistivity 1.72×10⁻⁸Ω·m, ω=2πf, μ is permeability 4π×10⁻⁷H/m).

For example, John Deere tractor hydraulic pump's 2kHz AC motor wire uses 19 strands of 0.1mm diameter tinned copper wire (total cross-section 0.15mm²), carrying 20% more current than a single 0.4mm wire.

At power frequency AC (50Hz), current capacity is slightly lower than DC due to "proximity effect" (uneven current distribution when multiple wires are close).

For example, Deutsch DRC series 16AWG wire (1.31mm²), DC current 30A, derated to 25A for AC 50Hz, 18A for AC 1kHz (test data from TE Connectivity lab report).

Data Signals:

The core of data signals is "maintain fidelity, no crosstalk," divided into low frequency (≤100kHz) and high frequency (>100kHz), with noise and immunity as key points.

Low-Frequency Data Signals: Slow but clean

Low-frequency signals include analog (4-20mA, 0-10V sensors) and low-speed digital (UART 115kbps, RS485 10Mbps).

These signals fear "noise superposition," e.g., ground loop interference—a few mV voltage difference between two lines to ground becomes error at the sensor.

Solution is isolation: e.g., Bosch EU truck pressure sensor (4-20mA output) connects to controller via Deutsch connector, with ADI ADuM5401 optocoupler isolation chip added in between, withstands 2500V (meets IEC 60664-1), reducing ground loop noise to < 1mV.

Insulation for analog signals also matters: use PVC insulation (dielectric constant 3.0), thickness 0.5mm, withstands 600V withstand voltage (UL 94 V-0 flame retardant).

Low-speed digital signals like LIN bus (20kbps), use single-wire transmission, Deutsch connector adds common mode choke (10μH), filtering high-frequency noise (> 1MHz).

High-Frequency Data Signals: Fast requires full protection

High-frequency signals include CAN FD (5Mbps), Ethernet (100BASE-TX 100Mbps), USB 3.0 (5Gbps), even RF (RF 1GHz+). Core is "impedance matching" and "shielding."

For example, Siemens S7-1500 PLC PROFINET interface (100BASE-TX, IEEE 802.3) uses Deutsch HDP20 connector. Differential pairs (TX+/TX-, RX+/RX-) impedance must be strictly 90Ω±5%.

How? Inner conductor uses 0.64mm diameter phosphor bronze wire, outer conductor uses 0.8mm thick tinned steel tape shield, braid coverage 85% (Rohde & Schwarz ESR tester measured shielding effectiveness > 65dB @ 100MHz).

If impedance deviates, signal reflection increases bit error rate—measured: 95Ω impedance increased BER from 10⁻¹² to 10⁻⁶.

RF signals (e.g., GPS 1.575GHz) are more complex, use coaxial structure: inner conductor diameter 0.9mm (silver-plated copper), outer conductor inner diameter 4.13mm (brass nickel-plated), gap filled with PTFE (dielectric constant 2.1), ensuring 50Ω impedance (error < 2%).

John Deere harvester GPS antenna connector, measured return loss < -20dB (Keysight E5080B vector network analyzer), signal attenuation < 0.3dB (antenna to receiver).

High-frequency signals also fear "crosstalk": adjacent pairs interfering. Solution is "differential pair + isolation."

For example, EtherCAT bus (100Mbps), uses independent shielded compartments in Deutsch connector, each differential pair in aluminum foil shield bag, compartments separated by metal partitions, crosstalk < -45dB.

Comparison of design parameters for two signal types (foreign test data):

• Power signal contact temperature rise: < 50°C (thermal camera, ambient 25°C);

• Data signal bit error rate: < 10⁻¹² (high-speed digital), < 1 LSB (analog);

• Shielding effectiveness: Power signal > 40dB @ 100MHz (EMI protection), Data signal > 60dB @ 1GHz (high frequency).

Frequency

Low-Frequency Signals:

Low-frequency signals include analog (4-20mA, 0-10V sensors), low-speed digital (UART 115kbps, LIN 20kbps), characterized as "slow but noise-sensitive."

For example, Bosch tire pressure sensor for European automakers outputs 4-20mA analog signal, transmitted via Deutsch DT04-2P connector.

Testing found that when vehicle motor starts, ground loop noise intrudes up to 5mV, exceeding sensor accuracy (±0.1% FS, i.e., ±0.016mA).

Solution: add common mode choke (10μH, TDK brand) in connector, reducing noise to < 0.5mV (measured with Agilent 34401A multimeter).

Low-speed digital signals like LIN bus (20kbps), use single-wire transmission, susceptible to ESD.

Deutsch connector housing uses zinc alloy die-cast (1.5mm thick), contacts nickel-plated (3μm), passes ±8kV contact discharge (IEC 61000-4-2 standard).

Insulation material selected PVC (dielectric constant 3.0, loss tangent 0.02), thickness 0.6mm, withstands 500V withstand voltage (UL 94 V-0).

High-Frequency Signals:

High-frequency signals include CAN FD (5Mbps), Ethernet (100BASE-TX 100Mbps), USB 2.0 (480Mbps), where "skin effect" and "impedance matching" are key.

Skin Effect:

Formula δ=√(2ρ/ωμ), ρ is copper resistivity (1.72×10⁻⁸Ω·m), ω=2πf, μ is permeability (4π×10⁻⁷H/m).

For example, at 10MHz, δ=0.66μm (copper), current flows only within surface 0.66μm.

Solution uses multi-strand fine wire: Siemens S7-1200 PLC Ethernet cable uses 19 strands of 0.1mm tinned copper (total cross-section 0.15mm²), carrying 15% more current than single 0.4mm wire.

Impedance Matching:

For example, USB 2.0 differential pair (D+/D-) requires 90Ω±5Ω impedance.

Deutsch HD10 series connector uses inner conductor 0.64mm phosphor bronze (gold-plated 3μm), outer conductor 0.8mm tinned steel tape (braid coverage 80%), measured impedance 88Ω (Keysight E5080B VNA), return loss < -12dB (@ 100MHz).

If impedance deviates to 100Ω, BER increases from 10⁻¹² to 10⁻⁸.

RF Signals:

RF signals like GPS (1.575GHz), Wi-Fi (2.4GHz/5GHz), radar (10GHz+), require coaxial structure, strictly controlling impedance, concentricity, and shielding.

Impedance Control:

50Ω is mainstream for RF (e.g., SMA, N-type connectors).

John Deere harvester GPS antenna connector uses inner conductor 0.9mm silver-plated copper (99.99% purity), outer conductor inner diameter 4.13mm (brass nickel-plated), gap filled with PTFE (dielectric constant 2.1), measured impedance 50.2Ω (error < 0.5%), return loss < -20dB.

Concentricity:

MIL-DTL-38999 standard requires coaxial connector concentricity error < 0.01mm (approx. 1/7 hair width).

Deutsch MIL spec connectors use CNC lathe for inner conductor, outer conductor uses stamping + spinning, measured eccentricity 0.008mm.

Shielding Effectiveness:

RF signals easily interfered, shielding > 60dB @ 1GHz.

Uses double shielding: inner aluminum foil (0.05mm thick) + outer tinned copper braid (coverage 90%), Rohde & Schwarz ESR tester measures shielding effectiveness 65dB (@ 1GHz).

Ultra-High Frequency and Fiber Optics:

Millimeter Wave (40GHz-300GHz):

Deutsch microwave connector uses ridge waveguide structure, inner conductor grooved (depth 0.2mm), broadening bandwidth.

At 77GHz, insertion loss < 0.5dB (Anritsu MS4647B VNA), VSWR < 1.2 (ideal 1.0).

Fiber Optic Signals (Optical frequency > 100THz):

Rockwell Automation factory network uses Deutsch fiber optic connectors (LC interface), ferrule uses zirconia ceramic (concentricity error < 0.5μm), insertion loss < 0.3dB (EXFO FTB-200 tester).

Housing uses aluminum alloy (IP67 protection), oil resistant.

Installation Essentials

Data shows poor crimping has 37% failure rate under vibration; IP67/IP68 protection relies on seal compression of 0.5-1.0mm.

Must use specialized crimping tools like AMP/TE precision dies, crimp per USCAR-21 standard (pull force ≥110N), Wedge Lock improper installation causes 52% field failures.

Pre-Installation

Tools must be prepared, models must match

DT series uses TE 58433 die (crimp force 350±20N), DTM micro terminals use AMP 539635-1 (crimp force 280±15N), HD30 high-current terminals use Deutsch 0411-311-1205.

Die must be calibrated with pin gauge every 500 crimps (tolerance ±0.02mm), old dies (wear > 0.05mm) replaced directly, otherwise post-crimp pull force drops 30%.

Extraction Tools divided into push and pull types: Push type (Deutsch 0411-240-2005) for removing terminals with intact front latch; pull type (114017) with spring clip, suitable for latch failure, apply vertical force ≤50N during operation to avoid terminal deformation.

Positioning Tool select Deutsch 0413-204-1605 (fits 4-12 cavity housings), use it to align guide pins during mating, deviation > 0.5mm causes jamming.

Torque Wrench use CDI 2503MFRPH (0-10Nm, accuracy ±3%), panel screws (M4) tighten 1.2-1.5Nm, rear shell threads (M12) tighten 2.5-3.0Nm, over-torque 0.2Nm cracks housing, under-torque 0.2Nm leaks seal.

Cleaning uses Kimwipe lint-free wipes (fiber length ≤3mm, no lint) + CRC QD Electronic Cleaner (flash point 61°C, doesn't etch plastic), don't use alcohol—dissolves housing coating.

Environment must be clean, leave no debris

Work area with anti-static mat (surface resistance 10^6-10^9Ω), place magnet to attract metal chips (allowable residual particles < 50μm, check with LED side lighting).

Control humidity 40-60% (hygrometer reading), too dry static attracts dust, too wet seals swell 0.1mm affecting compression.

Components used within 24 hours of unpacking, seals (O-rings, Grommet) exposed to air > 48 hours increases aging rate 20% (TE test data).

Wire coil diameter > 10 times wire diameter (e.g., 16AWG wire diameter 1.29mm, coil diameter > 13cm), crease depth > 0.2mm breaks strands.

Inspect components carefully, don't use defective ones

Housing Inspection:

Use bright flashlight for backlighting, crack > 0.5mm scrap directly (80% IP67 failure probability);

Check burrs with fingernail, catching feeling (height > 0.1mm) sand with fine sandpaper (600 grit).

Check polarization keys (A/B/C keys) with vernier caliper, key width 3.2±0.1mm, keyway depth 2.5±0.1mm, mismatched plug/socket won't mate (force > 10N).

Terminal Inspection:

New terminal plating viewed with magnifier (50x), nickel thickness ≥3μm (thin causes rust), crimp area no oxidation spots (area > 0.2mm² scrap).

Recycled old terminals, measure extraction force with push-pull gauge, < 50N (16AWG) indicates fatigue, do not reuse.

Seal Inspection:

O-ring diameter measured with micrometer (e.g., DT housing O-ring 4.5±0.1mm), cross-section roundness error > 0.05mm leaks;

Grommet (single-wire seal) lip flipped with tweezers, slow rebound (> 2 seconds) or crack (length > 0.3mm) replace, fluorosilicone (Viton®) higher temperature resistant than nitrile rubber (-20°C→150°C).

Wire specs must not be wrong, matching is reliable

Wire cross-sectional area (AWG/mm²) must fall within terminal allowable range: 16AWG terminal (0.75-1.5mm²), 14AWG (1.0-2.5mm²), 12AWG (2.0-4.0mm²), exceeding range 0.1mm² reduces current capacity 15%.

Insulation material for temperature rating: Tefzel® (ETFE) resistant -40°C to 150°C, PVC resistant -20°C to 105°C, engine bay uses Tefzel®, interior uses PVC.

Strip length measured with vernier caliper (accuracy 0.02mm), DT terminal standard 6.4mm, DTM standard 5.8mm, over-strip 1mm exposes copper causing short, under-strip 1mm poor crimp (pull force < 80N).

Wire strands 7, stray strands ≤ 2 (straighten with tweezers), broken strands > 1 cut and re-strip (broken strand increases resistance 0.3mΩ).

Verify model again, polarization keys not reversed

Plug and receptacle model suffixes must correspond: DT04-4P plug matches DT06-4S receptacle, HD30-9P matches HD30-9S.

Polarization keys marked on housing side (A/B/C printing), mate key to keyway, wrong insertion force > 15N, forcing bends key posts (repair cost $25 each).

Rear shell (Backshell) divided straight (Straight) and 90° elbow, thread spec M16×1.5 (straight) vs M18×1.5 (elbow), mixed use won't thread.

Flange mounting hole spacing, HD30 is 30×30mm, DT is 25×25mm, wrong hole can't mount.

Safety first, power off and verify cannot be skipped

Before operation LOTO (Lockout-Tagout): Turn off power, hang "Do Not Operate" tag (English), use Fluke 1AC-A1-II voltage tester on terminals (light on = live), confirm 0V.

Wear anti-static gloves (surface resistance 10^5-10^11Ω), don't touch terminals barehanded (human body static 3kV can damage plating).

Tools arranged on workbench, in order of use: wire stripper → crimp tool → extraction tool → torque wrench, don't pile randomly (5 minutes wasted finding tools, efficiency down 10%).

Installation Steps

How long to strip wire?

DT series terminal (e.g., DT04-4P matching terminal) standard 6.4mm, DTM micro terminal (DTM06-2S) standard 5.8mm, HD30 high-current terminal (HD30-6P) standard 7.2mm, measure with vernier caliper (accuracy 0.02mm), stripper select Schleuniger 46-102 (strip range 0.5-6mm²).

Don't nick strands—insulation cut distance to conductor ≤0.2mm, view with magnifier (10x), broken strands > 1 (7-strand wire) cut and re-strip.

After straightening wire, clean exposed part with Kimwipe to remove oxidation (resistance reduced 0.1mΩ).

What is a good crimp?

Select correct terminal: Current 13A use 16AWG DTM terminal (rated 15A), current 25A use 12AWG DT terminal (rated 30A), with seal select DT-RT (with Grommet).

Crimp operation: Wire placed in crimp barrel center, specialized tool crimps once (no second crimp).

E.g., DT terminal uses TE 58433 die (crimp force 350±20N), post-crimp shape must be regular hexagon, diagonal length 3.2±0.1mm (measured with caliper).

Crimp Check Item	Standard	Tool/Method
Conductor wrap	100% coverage, stray strands exposed ≤0.5mm	Finger feel no sharpness
Insulation grip	Crimp barrel shoulder grips insulation 1-2mm	Light pull on insulation, no movement
Pull test	≥110N (16AWG, USCAR-21)	Mark-10 push-pull gauge (accuracy ±1N)
Crimp surface cracks	No visible cracks (magnifier inspection)	50x magnifier

After crimping, let sit 24 hours (stress relief), then test pull force, drop > 5% indicates die needs replacement.

Where to insert terminal?

Terminal has barb (protrusion), DT terminal barb faces cavity bottom, DTM barb on side.

Insert aligning with cavity (see number markings on housing, cavity 1 inserts terminal 1), push until "click" sound (depth approx. 15mm), light pull on wire (force ≤5N) no detachment.

Wrong direction gets stuck in cavity (resistance > 20N), forcing bends terminal (repair cost $8 each).

How to install seals?

Sealing in three layers, in order:

1. Single-Wire Seal (Grommet): After terminal inserted, slip over tail lip (e.g., Deutsch 0462-203-12141), lip to terminal gap ≤0.1mm, misaligned leaks (IP67 failure).

2. Main Seal (O-ring): Housing end O-ring (e.g., Viton® 4.5×1.8mm), apply silicone grease (Dow Corning DC-4), no twisting (twist > 10° reduces compression 0.2mm).

3. Wedge Lock: After all terminals inserted, install e.g., DT-WEDGE-4 (for 4 cavities), snap into slot hear two "clicks" (first locks terminal, second compresses seal), lock flush with housing (deviation > 0.2mm not fully seated).

How to connect plug and receptacle?

Plug guide pin (Key) aligns with receptacle keyway (Keyway), Key A to Keyway A (see housing printing).

Push along axis force (angle > 5° causes jamming), after fully inserted, slide coupling ring into place, hear "click" sound (spring latch engagement).

Light pull on plug (force ≤10N) no detachment, use torque wrench (CDI 2503MFRPH) measure coupling ring locking force, 1.5-2.0Nm optimal (exceeding 2.5Nm deforms ring).

How to mount panel?

Flange passes through panel cutout (hole spacing HD30 is 30×30mm±0.2mm), back side tighten screws (M4×0.7).

Use torque wrench tighten 1.2-1.5Nm (exceed 1.7Nm cracks housing, under 1.0Nm loose), tighten in two steps (pre-tighten 0.5Nm first, then final).

How to install rear shell?

Rear shell (Backshell) select straight or 90° elbow, threaded (M16×1.5) use torque wrench tighten 2.5-3.0Nm, snap-fit type hear "snap".

Cable passes through rear shell, bend radius > 6 times wire diameter (16AWG wire diameter 1.29mm, bend radius > 7.7mm), use Tyton T18R cable tie fixed within ≤50mm of rear shell (strain relief).

Rear shell seal ring apply silicone grease, compression 0.5-1.0mm (measured with micrometer).

What to test after installation?

• Terminal Pull Force: Random sample 10% terminals, use push-pull gauge pull ≥110N (16AWG), < 100N rework.

• Lock Verification: Plug insertion/removal 3 times, each hear "click", final light pull no movement.

• Seal Preliminary Check: Low-pressure air gun (0.2 bar) inflate, immerse in water (10cm deep) watch for bubbles, no continuous bubbles within 1 minute (IP67 preliminary pass).

Common Issues

Insufficient pull force after crimp, pulls off easily

Phenomenon: Crimped terminal, pull with gauge < 100N (16AWG terminal) detaches, USCAR-21 requires ≥110N.

Cause:

• • Die wear: Specialized crimp tool (e.g., TE 58433) requires pin gauge calibration every 500 crimps (tolerance ±0.02mm), wear > 0.05mm reduces crimp force 30% (test data).

  • Insufficient wire strands: 7-strand wire broken strands > 1 (count after straightening with tweezers), reduces pull force 15% (e.g., 16AWG wire original 120N, broken 2 strands left 102N).

  • Off-center crimp: Wire not centered in crimp barrel (offset > 0.5mm), crimp surface uneven force, reduces pull force 20%.

  • Second crimp: Re-crimping damages terminal metal crystal structure, pull force plummets 40%.

Solution:

• 1. Check die: Use pin gauge measure barrel diameter (DT terminal crimp barrel diameter 1.2±0.02mm), out of tolerance replace die (e.g., AMP 539635-1 replace old).

  2. Check wire: Broken strands > 1 cut and re-strip (stripper use Schleuniger 46-102, avoid nicking strands).

  3. Re-crimp: Wire centered in crimp barrel, specialized tool one-time molding (DT terminal crimp force 350±20N), post-crimp shape regular hexagon (diagonal 3.2±0.1mm, caliper measure).

  4. Test: Use Mark-10 push-pull gauge (accuracy ±1N) pull, ≥110N pass, < 100N rework.

Terminal won't insert into housing, forcing doesn't work

Phenomenon: Terminal push into cavity resistance > 20N, or stuck.

Cause:

• • Wrong direction: DT terminal barb faces cavity bottom, DTM barb on side (see terminal tail marking), reversed blocked by latch.

  • Over-stripped: Exposed conductor > 8mm (DT terminal limit 6.4mm), touches cavity wall (clearance < 0.5mm).

  • Cavity debris: Metal chips (> 50μm, magnet remove), plastic burrs (housing burr > 0.1mm, fingernail catches).

  • Terminal deformed: Recycled old terminal (extraction force < 50N) or transport crushed, cavity fit reduced.

Solution:

• 1. Check direction: See terminal barb/groove, DT terminal barb down (refer to housing cavity diagram).

  2. Measure strip length: Vernier caliper (accuracy 0.02mm) measure length (DT=6.4mm, DTM=5.8mm), over-length cut and re-strip with stripper.

  3. Clean cavity: Compressed air (0.3 bar) blow, magnet remove metal chips, fine sandpaper (600 grit) sand burrs.

  4. Replace terminal: Deformed terminal removed with extraction tool (Deutsch 0411-240-2005), replace with new terminal (plating nickel thickness ≥3μm, inspect with 50x magnifier).

Wedge Lock won't install, won't snap into slot

Phenomenon: Wedge Lock (e.g., DT-WEDGE-4) pushed into housing no "click", or half-snapped not secure.

Cause:

• • Terminals not fully inserted: Terminal insertion depth < 15mm (light pull wire moves), Wedge Lock latch misses.

  • Seal misaligned: Single-wire seal (Grommet) lip misaligned (gap to terminal > 0.1mm), blocking Wedge Lock.

  • Housing slot deformed: Panel mounting screw over-torqued (> 1.7Nm), slot cracked (backlight shows gap > 0.2mm).

  • Wrong model: 4-cavity housing uses 3-cavity Wedge Lock (e.g., DT-WEDGE-3), size difference 0.5mm.

Solution:

• 1. Check terminals: Re-push terminals until "click" (depth 15mm), light pull no movement.

  2. Adjust seal: Remove terminal, reinstall Grommet (lip flush with terminal, adjust with tweezers), reinsert terminal.

  3. Repair slot: Deformed housing scrap (IP67 failure), replace new housing (e.g., DT04-4P).

  4. Match model: Housing marked "4P" uses DT-WEDGE-4 (size 25×10mm), verify package label.

Plug and receptacle connected but feel loose

Phenomenon: Axial light pull on plug (force ≤10N) can move, coupling ring no "click".

Cause:

• • Key misaligned: Plug key (A/B/C) mismatched to receptacle slot (deviation > 0.5mm), forced insertion prevents latch engagement.

  • Coupling ring spring failure: Ring internal spring fatigue (life 5 years/1000 insertions), spring force reduced 50%.

  • Housing wear: Plug/receptacle guide pin (diameter 3.2±0.1mm) worn thin (> 0.2mm), fit clearance large.

  • Debris obstruction: Latch slot dust (particles > 10μm), jamming ring.

Solution:

• 1. Re-align: Remove plug, see housing printing (Key A), align with receptacle slot (Keyway A), push with axial force (angle < 5°).

  2. Replace ring: Failed spring ring (e.g., DT06-12AC) replace new, verify engagement with "click".

  3. Check wear: Vernier caliper measure guide pin diameter (DT plug 3.2±0.1mm), worn thin > 0.2mm replace housing.

  4. Clean debris: Compressed air blow latch slot, wipe with electronic cleaner (CRC QD).

IP test leaks, bubbles after short immersion

Phenomenon: Connector immersed (10cm deep) continuous bubbles within 1 minute, IP67/IP68 failure.

Cause:

• • Seal compression insufficient: Grommet compression < 0.5mm (micrometer measure original thickness 1.8mm, installed 1.2mm), fluorosilicone (Viton®) requires 0.5-1.0mm.

  • O-ring aged: Main seal (e.g., 4.5×1.8mm) exposed air > 48 hours, hardness increased 20% (Shore A70→84), compression reduced 0.3mm.

  • Wedge Lock not tight: No two "clicks" heard, seal not compressed (gap > 0.1mm).

  • Rear shell seal twisted: Silicone grease (Dow Corning DC-4) uneven, seal twisted > 10°.

Solution:

• 1. Adjust seal: Replace with 0.2mm thicker Grommet (e.g., Deutsch 0462-203-16141), compression 0.8mm.

  2. Replace O-ring: Aged ring (hardness > Shore A80) replace with fluorosilicone ring (temperature resistant -20°C→150°C).

  3. Reinstall Wedge Lock: After terminal insertion install lock, hear two "clicks", lock flush with housing (deviation < 0.2mm).

  4. Straighten rear shell seal: Apply grease, smooth by hand, twist > 10° replace seal.

Seal breaks after installation, cracks when pinched

Phenomenon: Grommet or O-ring cracks after installation (crack length > 0.3mm), or lip flips do not rebound (> 2 seconds).

Cause:

• • Wrong material: Engine bay uses PVC seal (temperature resistant 105°C), actual temperature 130°C, cracks after 2 hours aging.

  • Rough handling: Using needle-nose pliers on seal (pliers pressure > 5N), tooth marks depth > 0.1mm.

  • Improper storage: Seal stored in direct sunlight (UV aging), or contact with oil (oil swelling).

  • Wrong size: Grommet inner diameter < terminal outer diameter (e.g., 16AWG terminal 1.5mm, using 1.2mm inner diameter Grommet), forced installation splits.

Solution:

• 1. Select material: High-temperature area (> 125°C) uses Viton® fluorosilicone, normal temperature uses nitrile rubber (NBR).

  2. Handle gently: Finger pinch seal (pressure < 2N), no tool clamping.

  3. Storage conditions: Original bag sealed, protected from light (< 25°C), and kept away from oil (separated by a plastic bag).

  4. Match size: Grommet inner diameter = terminal outer diameter + 0.3mm (e.g., 16AWG terminal 1.5mm, select 1.8mm inner diameter), check TE manual table 3-12.

Coupling ring no sound, unsure if locked

Phenomenon: Plug fully inserted, coupling ring no clear "click", slight pull seems loose.

Cause:

• • Weak spring force: Ring spring (e.g., DT06-12AC) force < 1.5Nm (torque wrench CDI 2503MFRPH measure), engagement weak.

  • Slot debris: Latch slot dust (particles > 10μm), spring cannot fully extend.

  • Ring deformed: Over-torque (> 2.5Nm) causes ring oval (long axis > short axis 0.3mm).

  • Housing slot shallow: Old housing (> 2000 insertions) slot worn shallow (original 2.5mm→2.0mm), ring not fully seated.

Solution:

• 1. Test spring force: Use torque wrench turn ring, 1.5-2.0Nm has resistance, < 1.0Nm replace ring.

  2. Clean slot: Compressed air blow + cotton swab with alcohol (anhydrous ethanol), dry 5 minutes.

  3. Check deformation: Ring rolled on flat surface, oval > 0.3mm replace new (e.g., TE 1475-001-040).

  4. Replace housing: Slot depth shallow > 0.2mm housing scrap, replace new DT04-4P.

Incorrect strip length, long causes short, short causes poor crimp

Phenomenon: Over-stripped (exposed copper touches adjacent terminal) or under-stripped (crimped conductor exposure < 0.5mm).

Cause:

• • Strip by feel: Using ordinary stripper (no scale), error > 1mm (DT terminal tolerance ±0.2mm).

  • Soft wire insulation: PVC insulation (temperature resistant 105°C), thermal expansion (elongation of 0.3mm at 130°C), lengthens after stripping.

  • Terminal model mixed: DT terminal standard 6.4mm, mistakenly pressed DTM 5.8mm strip, difference 0.6mm.

Solution:

• 1. Use scale stripper: Schleuniger 46-102 stripper (scale 0.5-10mm), strip per terminal manual (DT=6.4mm, DTM=5.8mm).

  2. Control temperature: High-temperature environment (> 100°C) strip, use Tefzel® insulation wire (low expansion coefficient).

  3. Label model: Before stripping, write a note (e.g., "DT04-4P→6.4mm") and attach it to the tool.

Wire strands broken, straightened still not good

Phenomenon: 7-strand wire broken strands > 1, straightened and crimped, pull force still < 100N.

Cause:

• • Wire stripper damages strands: Dull blade (edge ​​curl > 0.1mm), cuts into the strands during stripping (broken area appears blackened).

  • Wire crease depth: Coil diameter < 10 times wire diameter (16AWG wire diameter 1.29mm, coil diameter < 13cm), crease depth > 0.2mm breaks strands.

  • Twisting too hard: Straightening force > 5N, inter-strand friction causes breakage (microscope shows burrs).

Solution:

• 1. Replace stripper: Use Schleuniger 46-102 (blade sharpness Ra≤0.2μm), cut distance to conductor ≤0.2mm.

  2. Uncoil wire: Coil diameter > 15 times wire diameter (16AWG > 19cm), store on spool (not folded).

  3. Light twist: Finger twist (force < 2N), broken strands > 1 cut and re-strip (inspect with 10x magnifier).

Model correct, plug and receptacle just won't mate

Phenomenon: Plug (DT04-4P) and receptacle (DT06-4S) model matches, mating force > 15N, hard to push.

Cause:

• • Key wear: Plug key (A) width worn thin (original 3.2±0.1mm→3.0mm), receptacle slot (A) width 3.2mm, interference.

  • Housing deformed: Transport impact, housing warped (flatness > 0.3mm), guide pin offset.

  • Seal blockage: Receptacle remains old Grommet (not removed), occupying cavity space.

  • Batch variation: Cumulative tolerances of the housing in different batches (key width + slot width = 6.4±0.2mm, tolerance deviation 0.3mm).

Solution:

• 1. Check key width: Vernier caliper measure plug key (3.2±0.1mm), worn thin > 0.2mm replace plug.

  2. Check flatness: Housing on flat plate (level gauge), warped > 0.3mm replace.

  3. Clean cavity: Use extraction tool push old Grommet, compressed air blow clean.

  4. Replace with the same batch: Use housing from the same production batch (check the package lot number), which minimizes tolerance accumulation.
