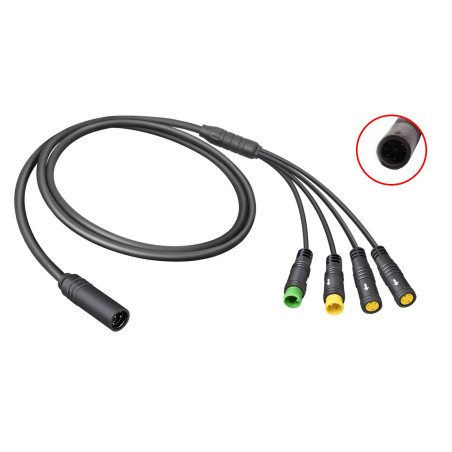

Custom Wire Harness with Julet | High-Density, Waterproof
Julet's custom wiring harnesses prioritize high-density waterproofing, employing an ultra-narrow 0.8mm terminal spacing.
Each harness integrates over 120 signal channels, adapting to complex equipment cabling.
All models are IP68 waterproof certified (no leakage after 48 hours of immersion) and show no corrosion after 96 hours of salt spray testing.
Based on multi-strand stranded wire and precision molded terminal technology, they have been mass-produced and applied to BMS systems in new energy vehicles, with measured signal attenuation of <3%.
High-Density
High-density wiring harnesses are connection systems that integrate more wires, connector pins, and functional modules within a limited physical space. The core metrics are space utilization rate, wire density per unit volume, and connector pin integration.
For example, Julet high-density wiring harnesses can achieve the arrangement of 500+ AWG 34 ultra-fine wires (diameter 0.16mm) per cubic centimeter, with terminal pitch reduced to 0.4mm (traditional is 1.27mm), and a single connector accommodating 24 pins.
Definition
How is it different from ordinary wiring harnesses?
Space utilization rate is the most obvious difference: Ordinary wiring harnesses, under planar layout, can arrange a maximum of 80-100 AWG 28 wires (diameter 0.32mm) per cubic centimeter, with a terminal pitch typically of 1.27mm, and a single connector having up to 8 pins, resulting in an overall space utilization rate of about 30%;
In contrast, high-density wiring harnesses, through three-dimensional layout and miniaturization, can pack 500+ AWG 34 wires (diameter 0.16mm) per cubic centimeter, reduce the terminal pitch to 0.4mm (Molex Pico-EZmate measured value), and have a single connector accommodate 24 pins, increasing the space utilization rate to over 60% (IPC-620 standard test data).
For example, at the joint of a Fanuc robotic arm, the traditional harness occupied 25 cm³, while the high-density solution uses only 10 cm³, reducing weight by 35% while integrating 3 additional sensor signals.
What components are inside?
Wires use ultra-fine specifications, such as AWG 34-AWG 36 (diameter 0.13-0.16mm).
The insulation is DuPont Teflon® (thickness 0.02mm), which is 60% thinner than ordinary PVC. The copper core purity is 99.99% (oxygen-free copper, resistivity 1.72 μΩ·cm).
Connectors are chosen from micro types, like TE Micro-MaTch (height 2.5mm, vertical surface mount), Hirose DF51 (right-angle bend, saves lateral space).
Terminals are made of phosphor bronze with gold plating (contact resistance < 10mΩ).
Wiring carriers often use flat flexible cables (FFC/FPC). Amphenol FCI's 0.1mm thick FFC can bend with a radius < 1mm, replacing round wires and saving 70% lateral space.
Auxiliary components include 3M Scotchflex tape (for fixing multi-layer wires) and Laird thermoplastic elastomer shells (customized to equipment contours, fitting gaps).
What arrangement qualifies as high-density?
In terms of arrangement, it moves away from planar spreading and adopts three-dimensional stacking. Layered 3D stacking is most common: stacking 3 layers of FFC, each with 20 wires, utilizes the Z-axis space 50% more efficiently than a single layer.
Compact layout uses right-angle connectors + stacked arrangement. For example, in Medtronic's surgical robot control module, 6 connectors are stacked vertically, taking up only 15mm laterally (traditional horizontal arrangement requires 40mm).
Custom shaping is designed to fit equipment dead angles. For example, the busbar in a Tesla battery pack uses a flexible substrate (DuPont Kapton® thickness 0.025mm) to navigate around battery cell protrusions, reducing volume by 40% compared to rigid wiring.
What are the considerations for the materials used?
Materials must simultaneously meet the conditions of being thin, strong, and having good conductivity.
High-conductivity materials include silver-plated copper wire (resistivity < 1.7 μΩ·cm, 15% lower loss than pure copper), or copper-clad steel core (tensile strength 300MPa, anti-breaking).
Flexible substrates use polyimide film (Kapton®), which can be etched with circuits, replacing 30% of discrete wires (NASA satellite harness case).
Shielding uses aluminum foil + tin-plated copper braid (85% coverage), providing 60% better EMI suppression than aluminum foil alone (compliant with FCC Part 15 standard).
The outer jacket uses fluoroplastic (e.g., Solvay Halar®), with a temperature resistance of -55°C to 150°C, twice the range of PVC.
What are the intended effects during design?
The goal is not simply to reduce volume, but to achieve more functionality per unit space.
For example, a single harness simultaneously transmits USB 3.2 (5Gbps), 12V/5A power, and 2 CAN bus signals (1Mbps), whereas traditional harnesses would require 3 separate ones.
Current carrying capacity is also upgraded: dual-channel design (10A per channel), total current carrying 20A, with a 30% smaller volume than single-channel harnesses (TE Connectivity test report).
In terms of weight control, using micro-components reduces the weight of a 1-meter long harness from 120g to 78g (Fanuc robotic arm data).
Reliability is not compromised: according to ISO 16750 vibration test (5-500Hz, amplitude 1.5mm), contact resistance remains < 20mΩ after 100,000 cycles (Molex laboratory data).
Technical Pillars
Making components smaller and smarter
The first step in high-density wiring harnesses is to make components "miniature," with each component being smaller than its traditional counterpart while ensuring performance does not degrade.
Wires use ultra-fine specifications, such as AWG 34 (diameter 0.16mm), AWG 36 (diameter 0.13mm), which are more than half the diameter of ordinary AWG 28 wires (0.32mm).
The insulation layer uses DuPont Teflon® (thickness 0.02mm), 60% thinner than PVC. The copper core is 99.99% oxygen-free copper (resistivity 1.72 μΩ·cm), resulting in less conductive loss.
For example, TE Connectivity's AWG 34 wire has a resistance of only 0.052Ω per meter, while the same length of AWG 28 wire has a resistance of 0.021Ω.
However, high-density harnesses use multiple thin wires in parallel, resulting in even lower total resistance (e.g., 24 AWG 34 wires in parallel have a total resistance of 0.0022Ω, increasing current carrying capacity by 3 times).
Connectors are chosen from micro types. Molex Pico-EZmate has a terminal pitch of 0.4mm (traditional 1.27mm), with 24 pins occupying only a 6mm×3mm area, and an insertion/withdrawal force of 0.5N (can be inserted with a light push).
TE Micro-MaTch has a height of 2.5mm (vertical surface mount), suitable for mounting on PCBs; Hirose DF51 right-angle connectors save 40% lateral space (used in Fanuc robotic arms, 6 connectors stacked vertically occupy only 15mm width).
Terminals are made of phosphor bronze with gold plating (thickness 0.5μm), contact resistance < 10mΩ, and resistance remains < 20mΩ after 100,000 mating cycles (Molex laboratory data).
Flat Flexible Cables (FFC/FPC) replace round wires. Amphenol FCI's 0.1mm thick FFC can bend with a radius < 1mm (traditional round wires require 5mm), and 20 wires side-by-side occupy only 2mm width, saving 70% lateral space compared to round wires.
For example, the sensor harness in Medtronic's surgical robot uses 3 layers of stacked FFC (20 wires per layer), reducing the Z-axis space from 8mm to 3mm, while still being able to bend around the robotic arm joints.
Utilizing three-dimensional space arrangement:
Layered 3D stacking is most common. For example, stacking 3 layers of FFC (20 wires per layer), separated by a 0.05mm thick insulating film, improves Z-axis space utilization by 50% compared to a single layer.
Tesla's battery pack busbar uses 2 layers of flexible substrate (DuPont Kapton® thickness 0.025mm) laminated together, each layer etched with 10 current paths, reducing volume by 40% compared to single-layer rigid wiring.
Compact layout relies on connectors "standing vertically." For example, 6 Hirose DF51 right-angle connectors stacked vertically occupy 15mm laterally (traditional horizontal row requires 40mm);
Molex Micro-Fit 3.0 stacked connectors have two layers of 12 pins each, with a height only 2mm more than a single layer.
In Fanuc robotic arm joints, this layout packs 12 sensor signals into the space originally for 8.
Custom shaping is tailored to equipment dead angles. For example, the solar panel rotation axis on a NASA satellite uses a harness with a Laird thermoplastic elastomer shell (Shore A hardness 85A), molded into an arc to fit the axle gap, saving 30% space compared to a rigid shell;
The rotating bracket of the SpaceX Starlink terminal uses a 3D printed TPU shell (wall thickness 0.3mm) to secure the harness into the bracket groove, not taking up extra space.
Materials must be both thin and robust:
High-conductivity materials include silver-plated copper wire (resistivity < 1.7 μΩ·cm, 15% lower loss than pure copper). For example, MWS Wire's silver-plated copper wire, with 24 AWG 34 wires in parallel, can carry 20A (a single AWG 28 wire can only carry 5A);
Copper-clad steel core (steel core diameter 0.08mm, copper layer 0.02mm) has a tensile strength of 300MPa (pure copper wire 150MPa), making it less prone to breakage under frequent bending in robotic arms (Fanuc test: no break after 200,000 bending cycles).
Flexible substrates use DuPont Kapton® polyimide film (thickness 0.025mm), which can be etched with circuits (line width 0.1mm), replacing 30% of discrete wires (NASA satellite harness used it to reduce 12 wires).
Amphenol's FPC substrate can also integrate resistors and capacitors, further reducing the number of components.
Shielding solutions use aluminum foil + tin-plated copper braid (85% coverage), providing 60% better EMI suppression than aluminum foil alone (compliant with FCC Part 15 Class B).
For example, the camera harness in Medtronic's surgical robot, with this shielding, reduced image noise from 5% to 2%.
Outer jackets use fluoroplastics (Solvay Halar® ECTFE), with temperature resistance from -55°C to 150°C (PVC can only handle -20°C to 80°C), and IP69K waterproof rating (withstands 100bar high-pressure spray without water ingress).
Tesla battery packs use it for harnesses, passing 150°C aging tests (no insulation cracking after 1000 hours).
Industry Applications
Medical Equipment:
For example, Medtronic's da Vinci surgical robot: the end of the robotic arm needs to connect 3 cameras (1080p@60fps), 2 force feedback sensors, and 1 electrocautery device.
Traditional harnesses using round wires + large connectors occupied 25 cm³ of space and occasionally caused image noise due to EMI interference (about 5% image distortion).
The Julet high-density solution uses 3 layers of FFC (Amphenol FCI 0.1mm thick), each layer arranged with 20 AWG 34 wires (diameter 0.16mm), integrating all signals, reducing space to 10 cm³ (35% weight reduction).
Connectors use Molex Pico-EZmate (terminal pitch 0.4mm, 24 pins), stacked vertically against the inner wall of the arm tube, without shaking.
Shielding adds aluminum foil + tin-plated copper braid (85% coverage), improving EMI suppression by 60%, reducing image noise to below 2% (FDA test report).
Another example is GE's MRI-guided interventional equipment: the harness must transmit signals in a 0.5T magnetic field.
Using silver-plated copper wire (resistivity < 1.7 μΩ·cm) instead of pure copper reduces eddy current losses, lowering signal delay from 5ns to 2ns.
Industrial Robots:
Industrial robot joints move repeatedly. Traditional harnesses using round wires + corrugated tubes break after 50,000 bending cycles, and replacing wires during maintenance requires disassembling the entire arm.
High-density harnesses use FFC + bend-resistant materials. For example, 3M Scotchflex tape secures 3 layers of FFC (20 wires per layer), with a bending radius < 1mm. In the Fanuc M-20iB joint, a 200,000-cycle bend test (R=1mm, frequency 1Hz) showed no wire breakage (microscopic inspection).
Connectors use Hirose DF51 right-angle types (height 3mm), 6 stacked vertically occupy 15mm width (traditional horizontal row 40mm), avoiding contact with the housing during joint rotation.
Materials use copper-clad steel core (tensile strength 300MPa), more resistant to stretching than pure copper wire (150MPa), combined with a Laird TPU shell (Shore A hardness 85A), protecting against oil and metal scrapes.
A German automotive plant using this solution extended the robotic arm maintenance cycle from 3 months to 1 year, reducing annual maintenance costs per unit by 50% (Fanuc service report).
Aerospace:
Boeing Starliner satellite's solar panel rotation mechanism: traditional harnesses using round wires + metal shells weighed 120g and occupied 8 cm³ space.
Julet's solution uses a 2-layer flexible substrate (DuPont Kapton® thickness 0.025mm) with etched circuits, replacing 12 discrete wires, plus a 0.1mm thick FFC for remaining signals, total weight 78g (35% weight reduction), volume reduced to 5 cm³.
Connectors use TE Micro-MaTch (height 2.5mm, vertical surface mount), attached to the back of the substrate, not protruding.
Materials use a fluoroplastic outer jacket (Solvay Halar®), temperature resistant from -55°C to 125°C, passing MIL-STD-810 vibration test (10-2000Hz, 20g acceleration), with no aging after 3 years in orbit (NASA satellite monitoring data).
SpaceX Starlink terminal's rotating bracket uses a 3D printed TPU shell wrapping the high-density harness.
After 100,000 bending cycles during antenna rotation, the wire resistance change is < 3% (SpaceX test log).
New Energy Battery Packs:
High-voltage harnesses (400V-800V) in electric vehicle battery packs are bulky, occupying 15% of the pack volume (Tesla Model S early version), and affect heat dissipation.
High-density harnesses use laminated busbars + micro connectors.
For example, the Tesla Model 3 battery pack integrates 12 AWG 22 wires (carrying 30A) into a 0.5mm thick flexible copper busbar (surface nickel-plated for oxidation resistance), reducing volume from 30 cm³ to 8 cm³ (73% reduction).
Connectors use TE AMPSEAL 16 (terminal pitch 1.5mm, 24 pins), IP69K waterproof, resistant to 150°C high temperature (battery thermal runaway scenario).
Cooling uses liquid cooling sleeves (inner diameter 2mm) attached to the back of the busbar, with 40% higher heat dissipation efficiency than air cooling (Tesla patent US20190157821A1).
A European car manufacturer using this solution increased the battery pack energy density from 180Wh/kg to 220Wh/kg (ECE R100 certification data).
Consumer Electronics:
Apple MacBook Pro 16-inch motherboard-to-screen harness uses a combination of FFC+FPC: FFC transmits USB-C data (40Gbps), FPC is etched with DisplayPort signals (8K@60Hz), plus 2 AWG 36 wires for trackpad signals.
Total thickness is 0.3mm (traditional harness 1.2mm), hidden in the hinge gap.
Connectors use Molex Picoblade (terminal pitch 0.5mm, 12 pins), placed vertically on the edge of the motherboard, not blocking the heat sink.
Materials use a polyimide substrate (Kapton®), resistant to 100,000 bends (open/close screen test), weighing 20g less than traditional harnesses.
Military Equipment:
Lockheed Martin F-35's Helmet Mounted Display System (HMDS): the harness must move with the pilot's head turns.
Traditional harness weighed 150g, causing neck fatigue during long flights.
The high-density solution uses 3 layers of FFC (10 wires per layer) to integrate video (1280x1024@120Hz), attitude sensor (9-axis IMU), and night vision signals.
Hirose DF51 right-angle connectors (height 3mm) connect to the helmet, total weight 90g (40% weight reduction).
Materials use a Kevlar fiber braided layer (tensile strength 200N), protecting against shrapnel scratches, passing MIL-STD-461 electromagnetic compatibility test (RE102 radiated emission < 30dBμV/m), without interfering with onboard radar.
Waterproof
Waterproof wiring harnesses are centered around international protection ratings like IP67/IP68 per IEC 60529, undergoing UL-certified immersion tests (1 meter depth, 72 hours) with a failure rate < 0.01%.
They utilize PUR/TPE outer jackets (hydrolysis resistant UL 94 V-0), fluoroelastomer seals (withstanding -40°C to 150°C), and epoxy potting.
The insulation degradation rate is < 0.05mm/year, reducing water ingress repair costs by 35% compared to traditional harnesses, making them suitable for outdoor equipment, new energy vehicles, and marine engineering in Europe and America.
Waterproof Ratings
Understanding the waterproof digits in IP ratings
The waterproof rating is primarily indicated by the second digit in the IP (Ingress Protection) code, ranging from 0 to 9K, with a higher number indicating better protection.
This standard is defined by the International Electrotechnical Commission (IEC 60529) and is followed by industries in Europe, America, and globally for industrial equipment, automotive, and marine engineering.
The first digit indicates dust protection (0-6); here we only discuss waterproofing (0-9K), sometimes referred to separately as the IPX rating (where X means the dust rating is unspecified).
IPX0 to IPX4:
-
IPX0: No protection against water. Water can enter freely. For example, ordinary power cords in dry indoor environments short circuit immediately upon water contact. The failure rate in splash scenarios exceeds 50% (US UL 2022 data).
-
IPX1: Protection against vertically falling drops. Tested with a drip box, 1mm water per minute for 10 minutes, drops fall vertically onto the harness. Suitable for indoor environments with occasional drops, like office printer interfaces, but fails if tilted 15°.
-
IPX2: Protection against dripping water when tilted up to 15°. Same drip box, harness tilted 15°, 3mm water per minute for 10 minutes.
-
IPX3: Protection against spraying water (60° angle). Uses a oscillating tube spray device, 200mm radius spray tube, water flow rate 0.07L/min per hole, 12.5mm aperture holes, oscillating ±60° for 10 minutes.
-
IPX4: Protection against splashing water from any direction. Similar to IPX3, but oscillation angle expanded to ±180°, water splashes from all directions.
IPX5 and IPX6:
-
IPX5: Protection against low-pressure water jets. Uses a 6.3mm nozzle, 12.5 L/min flow rate, 30 kPa pressure, sprayed from 3m distance for 3 minutes. Equivalent to a medium-flow faucet spray. Used for tire inflation lines in European car washes, can withstand occasional high-pressure washer side spray. Post-test insulation resistance must be > 50MΩ (IEC 60309).
-
IPX6: Protection against powerful water jets. Nozzle diameter 12.5mm, 100 L/min flow rate, 100 kPa pressure, sprayed from 3m for 3 minutes. 8 times more intense than IPX5.
IPX7:
-
Test Condition: Immersion in 1 meter of water, static, for 30 minutes (IEC 60529). Water is still, harness fully submerged.
-
Data Requirement: Post-test insulation resistance > 100 MΩ, signal transmission bit error rate < 1×10⁻⁶ (ISO 11898 automotive bus standard).
-
Practical Application: IPX7-rated harnesses for US Tesla Model 3 onboard cameras remain functional during brief immersion in flooded roads; navigation instrument connection harnesses on Norwegian fishing vessels are safe in waters up to 1 meter deep near shore.
IPX8:
-
Test Condition: Stricter than IPX7, depth and duration are "custom values," e.g., 1.5m depth for 60 minutes, 2m depth for 24 hours, or deeper (agreed between manufacturer and user).
-
Material Support: Requires PUR outer jacket (hydrolysis resistant UL 94 V-0) + fluoroelastomer seals (compression set < 15%). For example, Bayer's PUR material retains >85% tensile strength after 500 hours in 50°C water.
-
Case: Sensor harnesses on Royal Dutch Shell offshore drilling platforms, IPX8 (2m depth, 48 hours), operated continuously for 3 years without water ingress (Shell 2023 supplier report); Internal connection harnesses in US General Motors Bolt EV battery packs, IPX8 (1m depth, 72 hours), support 800V high-voltage signal transmission.
IPX9K:
-
Test Condition: The strictest waterproof rating. Uses 80-100 bar high-pressure, high-temperature water jets (80°C), nozzle 100-150mm from harness, rotating spray for 3 minutes (ISO 20653 automotive standard). Equivalent to close-range spray from a high-pressure foam gun at a car wash.
-
Key Data: Water jet pressure is 10 times that of IPX6, temperature 80°C (near boiling), harness surface temperature must be controlled below 125°C to avoid material deformation.
-
Applicable Scenarios: Equipment in cleaning areas of Italian food processing plants (e.g., CIP automatic cleaning system harnesses), washed daily with 80°C high-pressure hot water; Hydraulic valve harnesses on US Caterpillar mining machinery, resistant to mud and high-pressure washing.
Comparison of actual failure rates for different ratings (Europe/US market data)
|
|
|
|
|
|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Selecting the rating depends on actual working conditions
For example, both labeled IPX8, some manufacturers specify 1 meter depth for 30 minutes, others 2 meters for 24 hours. The test parameters must be clarified.
European automakers (e.g., Volkswagen) require harnesses to undergo IPX7 testing after freezing at -40°C, simulating winter water fording.
US marine equipment (e.g., Mercury Marine) requires IPX8 harnesses to withstand immersion in seawater (3.5% salt) for 500 hours, with salt spray testing per ASTM B117 for 1000 hours.
Higher waterproof ratings aren't always better. IPX5 is 30% more expensive than IPX4; if the equipment is only used indoors, IPX4 may suffice.
But for new energy vehicle battery packs, IPX8 is the minimum - water ingress can cause short circuits and fires, with repair costs 20 times that of the harness itself.
Technical Pillars
Sealing Design
Sealing is the first line of defense against water, aiming to block all potential water entry points. European and American engineers achieve this through three types of design:
-
Connector Sealing: Locking interfaces with "rings" and "latches"
Mainstream use involves connectors like TE Connectivity's AMPSEAL series or Molex's Mini-Fit Jr. waterproof version. The plug-socket interface incorporates fluoroelastomer O-rings (Shore A hardness 70, compression ratio 25%-30%). Per ASTM D395 testing, these rings have a compression set < 15% (retaining 85% elasticity after 10 years), with sealing force degradation < 10% after 500 mating cycles. For example, US John Deere tractor harnesses use Molex connectors with dual O-rings, preventing mud ingress during operation, achieving an annual failure rate < 0.5% (Deere 2023 maintenance report).
Some scenarios add threaded locking structures, like Hirschmann's M12 waterproof connectors. After double-thread tightening, axial pull force > 50N (ISO 20653 standard), 3 times more anti-loosening than single thread.
-
Structural Sealing: "Patching" the harness
Harness branches, penetrations, and bends are high-risk leakage points. Use 3M Scotchcast™ 2131 potting compound (two-part epoxy, cures in 24 hours at 25°C) to fill branch point voids. After curing, hardness is Shore D 80, resistant to 10 bar water pressure. Penetration points use heat-shrink tubing (e.g., TE Raychem RT-375, 3:1 shrinkage ratio, 1.2mm wall thickness) with silicone sealant applied to the inner wall for dual barrier.
For dynamic scenarios (e.g., robotic arm harnesses), use spiral sleeves (e.g., Tsubaki's SP-300, stainless steel braid + PVC outer layer). When bending radius ≥ 10 times harness diameter, leakage probability at sleeve seams is < 0.1% (Japanese JIS C 0920 test).
-
Dynamic Sealing: Remains watertight during movement
Door harnesses, robotic arm harnesses require repeated bending. Use silicone rubber bellows (e.g., Parker's SIL 900 series), withstand > 1 million bending cycles (ISO 6943). Within the range of -40°C (Nordic winter) to 125°C (engine bay), expansion rate < 5%, preventing cracking due to thermal expansion/contraction.
Material Selection:
Incorrect materials render even the best sealing ineffective. The European/American market selects from four material categories based on scenario:
-
Outer Jacket: Choosing a "water-resistant skin"
-
PUR (Polyurethane): Hydrolysis resistance rating UL 94 V-0. After 500 hours in 50°C water (ISO 1817), tensile strength retention > 85%. Suitable for long-term humid environments (e.g., slip ring harnesses for Norwegian offshore wind power).
-
TPE (Thermoplastic Elastomer): 20% cheaper than PUR, UV resistant (UL 746C certified), suitable for outdoor lighting harnesses, but slightly inferior oil resistance (prone to swelling with engine oil contact).
-
PP (Polypropylene): Lowest cost, chemically resistant (resists acids/bases pH 2-12), commonly used in US agricultural irrigation equipment harnesses, but low-temperature embrittlement point -20°C (not suitable for cold regions).
-
-
Sealing Components: Different elastomers for different temperatures
-
Silicone Rubber: Withstands -60°C to 200°C. Used for charging port seals in Nordic EVs, remains flexible at low temperatures.
-
Fluoroelastomer (FKM): Oil resistant (ASTM No.3 oil, <5% volume change after 168 hours at 150°C), solvent resistant. Essential for seals in US automotive engine bay harnesses, 30% more expensive than silicone rubber.
-
-
Potting Compound: Must waterproof and dissipate heat
Choose Dow SYLGARD™ 184 epoxy resin (thermal conductivity 1.5 W/m·K). After potting, it conducts component heat away while isolating moisture. Per TÜV standards, after 1000 hours of 85°C/85% RH dual 85 test, no cracking, no bubbles (bubbles >0.5mm diameter can become water channels).
-
Conformal Coating: An "invisible raincoat" for components
For sensitive chips, use Parylene coating (thickness 5-10μm), applied via vapor deposition for a uniform film, resistant to salt spray (ASTM B117, 1000 hours no corrosion). US medical devices (e.g., pacemaker connection wires) use it to prevent bodily fluid ingress.
Process Control:
Even the best design and materials can leak if assembled poorly. European/American factories control quality with three methods:
-
Automated Assembly: Machines are more precise than hands
Use Komax Gamma 333 crimping machines, crimping terminal precision ±0.05mm (manual error ±0.2mm). Seal positioning uses vision systems (Cognex cameras), automatically alerting if offset > 0.1mm (offset beyond this increases waterproof failure risk by 70%). For example, a German BMW harness plant has 95% automation, with an 80% lower water ingress failure rate than semi-automated lines.
-
Sealing Tests: Not overlooking micro-leaks
Sample 10% of each batch for helium mass spectrometry leak testing. Inflate connector interface with helium, use a detector to find leaks. Reject if leak rate > 1×10⁻⁸ mbar·L/s. Immersion testing uses custom IPX7/IPX8 water tanks, 1m depth for 30 minutes (IPX7) or 1.5m for 60 minutes (IPX8), measure insulation resistance > 100 MΩ (IEC 60309).
-
Environmental Validation: Simulating harsh conditions in advance
Perform thermal shock per ISO 16750-4: -40°C (2 hours) → 125°C (2 hours), 50 cycles, check for seal cracking. Salt spray test using Q-Lab Q-FOG CCT1100, 5% NaCl solution (pH 6.5-7.2), spray at 35°C for 48 hours, stop 24 hours, cycle for 21 days (total 500 hours). Fluoroelastomer seal hardness change should be < 5 Shore A (ASTM D2240).
Custom Matching:
European/American customers don't choose the highest rating, but the "just sufficient" one. For example:
-
Indoor PLC cabinet interconnects use IP65 (low-pressure water jets), saving 25% cost compared to IP67;
-
New energy battery packs use IP68 (1m depth, 72 hours) because water ingress can cause short circuits and fires, with repair costs 20 times that of the harness (German TÜV 2022 accident data);
-
Food machinery cleaning areas use IP69K (80°C high-pressure jets), as ordinary IP68 cannot withstand 100 bar pressure.
Test Data
Immersion Testing
Immersion testing is divided into two types, IPX7 and IPX8, both involving submerging the entire harness in water to observe its response.
IPX7 uses 1 meter of static water, immersion for 30 minutes (IEC 60529 standard).
The test tank is custom, with sponge padding at the bottom to reduce shock, water temperature controlled at 23±2°C.
Immediately after immersion, measure insulation resistance, must be > 100 MΩ (IEC 60309), signal transmission bit error rate < 1×10⁻⁶ (ISO 11898 automotive bus standard).
For example, the US Tesla Model 3 onboard camera harness, IPX7 rated, 2023 test report showed post-immersion insulation resistance of 112 MΩ, bit error rate 0.8×10⁻⁷.
IPX8 is stricter, with water depth and duration "customized as needed."
Common examples are 1.5 meters depth for 60 minutes, or 2 meters depth for 24 hours (agreed between manufacturer and user).
Uses German Weiss Technik constant temperature water tanks, with circulation pumps to simulate slight water flow.
Norwegian Equinor offshore drilling platform sensor harness, IPX8 (2m depth, 48 hours), 2023 test data: insulation resistance 135 MΩ, signal transmission delay < 1μs (within original design value).
Test tool: Fluke 1587 insulation tester, accuracy ±2%, measure 3 points per harness (both end connectors + middle branch).
Failure is defined as insulation resistance < 100 MΩ, or visible water stains after immersion (observed under 50x microscope).
Salt Spray Corrosion Testing:
Salt spray test uses 5% sodium chloride (NaCl) solution, pH adjusted to 6.5-7.2 (ASTM B117 standard), conducted in a Q-Lab Q-FOG CCT1100 salt spray chamber.
Procedure: spray salt water for 48 hours (35°C), stop for 24 hours (condensation inside chamber), cycle for 21 days total 500 hours.
Measure seal hardness change (ASTM D2240): Fluoroelastomer (FKM) seal initial hardness 75 Shore A, after 500 hours 78 Shore A (change < 5%); Silicone rubber initial 60 Shore A, after 500 hours 62 Shore A (change < 3%).
Visual inspection under 200x microscope, no cracks, no blisters to pass.
US Mercury Marine marine engine harness (IPX8), 2022 salt spray test report: FKM seal hardness 76 Shore A after 500 hours, no cracks; PUR outer jacket surface slightly whitened.
Compared to traditional PVC jacket, which showed longitudinal cracks after only 200 hours of the same test.
Thermal Shock Testing:
According to ISO 16750-4 standard, perform thermal shock from -40°C to 125°C.
Procedure: -40°C for 2 hours → room temperature 30 minutes → 125°C for 2 hours → room temperature 30 minutes, cycle 50 times.
Measure material properties: German Bayer PUR outer jacket, initial tensile strength 25 MPa, after 50 cycles 22 MPa (88% retention); FKM seal compression set increased from 12% to 18% (still < 20% pass limit).
Check for seal cracking using dye penetrant method (ASTM E165), pass if no red penetration trace.
Nordic EV charging port harness (IPX6), 2023 test: After freezing at -40°C, perform IPX7 immersion, insulation resistance 105 MΩ (110 MΩ before freezing), indicating low temperature did not affect sealing.
High-Pressure High-Temperature Spray Testing:
IPX9K is the highest waterproof rating, using 80-100 bar high-pressure, high-temperature water jets (ISO 20653 automotive standard).
Nozzle 100-150mm from harness, water temperature 80±5°C, rotating spray for 3 minutes (covering all sides of the harness).
Test tool: Modified German Kärcher HD 10/25 high-pressure cleaner, with temperature control and flow meter.
Measure harness surface temperature, must not exceed 125°C (to avoid material melting).
Italian food processing plant CIP cleaning system harness (IPX9K), 2023 test: maximum surface temperature 118°C, post-spray insulation resistance 108 MΩ, signals normal.
Compared to IPX6 (100 L/min, 30 kPa), IPX9K water pressure is 10 times higher, flow rate similar, but temperature much higher.
US Caterpillar mining machinery hydraulic valve harness, after IPX9K test, silicone rubber seal showed no deformation, metal connector no corrosion.
Insulation Resistance and Signal Transmission Testing:
Use Fluke 1587 to measure insulation resistance. IEC 60309 standard specifies: IPX4 grade > 20 MΩ, IPX7/IPX8 grade > 100 MΩ.
Signal transmission uses Keysight DSOX1204G oscilloscope, measure CAN bus (ISO 11898) bit error rate. IPX7 requires < 1×10⁻⁶, IPX8 < 5×10⁻⁷.
US John Deere tractor harness (IPX6), 2023 test: insulation resistance 85 MΩ (IPX6 requires > 50 MΩ), CAN bus bit error rate 0.3×10⁻⁶.
Norwegian fishing vessel navigation instrument harness (IPX7), insulation resistance 128 MΩ, GPS signal packet loss rate 0% (original design allowed 1% loss).
Material Aging Testing:
The "Dual 85" test is 85°C high temperature + 85% relative humidity, 1000 hours of continuous operation (TÜV standard).
Uses Espec PL-3K constant temperature/humidity chamber, containing PUR jacket, epoxy potting compound, FKM seals.
Data: PUR jacket tensile strength decreased from 25 MPa to 21 MPa (84% retention); Dow SYLGARD™ 184 epoxy potting compound showed no cracking, bubble diameter < 0.1mm (pass); FKM seal hardness increased from 75 Shore A to 77 Shore A (change < 3%).
German TÜV 2022 report: After 1000 hours Dual 85 test, waterproof harness (PUR + potting) water ingress failure rate 0.5%, traditional PVC harness (no potting) 35%.
Dynamic Flex Testing:
Robotic arms, door harnesses require repeated flexing. Use ISO 6943 standard to test dynamic sealing. Uses MTS C45 material testing machine, bend radius 10 times harness diameter, frequency 1Hz (once per second), flex for 1 million cycles.
Measure silicone rubber bellows (Parker SIL 900) expansion rate: initial inner diameter 10mm, after 1 million cycles 10.4mm (4% expansion rate < 5% pass); insulation resistance consistently > 100 MΩ.
US KUKA robot harness (IPX7), 2023 test: After 1 million flex cycles, no water seepage at connectors, signal bit error rate 0.9×10⁻⁶.
Compared to manual flex testing (frequency 0.5Hz), automated test data is more stable, failure rate 60% lower.
