Guide to select Cable and Harness : 5 factors
Selecting the right cable and harness requires evaluating current capacity (e.g., 24 AWG handles 3.5A vs. 16 AWG at 22A), bend radius (4-8x diameter for TPE insulation), and shielding needs (90% coverage for EMI protection). Environmental factors like temperature (-40°C to 125°C for automotive) and certifications (UL/CE/IEC) add 15-30% cost. For high-vibration applications, overmolded connectors with strain relief outperform crimped types by 3-5x in durability testing.
Check Wire Size and Current Needs
Selecting the right wire size is critical because undersized wires overheat, while oversized ones waste money and space. A 12 AWG copper wire can safely carry 20 amps in standard conditions, but if the current exceeds this, the wire’s temperature can rise by 10°C for every 3 amps over limit, increasing fire risk. In industrial applications, 60% of wiring failures are due to incorrect sizing, costing an average of $15,000 per incident in downtime and repairs. For low-voltage DC systems (e.g., solar panels), a 10% voltage drop across a 50-foot 16 AWG wire reduces efficiency by 8%, cutting energy output. Always match wire gauge to actual current draw, not just device ratings—many motors pull 150% of rated current at startup.
The American Wire Gauge (AWG) system defines wire diameters, where a lower number means thicker wire. For example, 14 AWG handles 15 amps, while 10 AWG supports 30 amps. If a circuit draws 18 amps continuously, 14 AWG is unsafe—it must be 12 AWG or larger. The National Electrical Code (NEC) mandates derating for bundled wires: 4-6 wires in a conduit lose 20% capacity, so a 30-amp circuit needs 8 AWG instead of 10 AWG.
Copper vs. Aluminum matters—aluminum wires require one size larger than copper for the same current. A 10 AWG copper wire equals 8 AWG aluminum in ampacity. However, aluminum is 30% cheaper but 50% more prone to oxidation, increasing long-term maintenance.
Voltage drop is another critical factor. For a 12V DC system, a 3% drop (0.36V) is acceptable. If a 10A load runs through 50 feet of 16 AWG wire, the drop is 0.5V (4.2%), which is too high. Upgrading to 14 AWG reduces it to 0.31V (2.6%), improving efficiency. In AC systems, skin effect (where high-frequency current flows near the surface) forces thicker wires for 50Hz+ applications. A 60Hz, 100A circuit may need 2/0 AWG instead of 3 AWG to minimize losses.
Temperature ratings affect wire sizing. Standard PVC insulation is rated for 60°C, while XLPE or Teflon handles 90°C-150°C. If ambient temperatures exceed 30°C, ampacity drops by 15%. In engine compartments (where temps hit 100°C+), silicone-insulated 12 AWG is safer than standard 10 AWG.
Short-circuit current also matters. A 10kA fault can melt 16 AWG in 0.1 seconds, but 10 AWG survives 0.5 seconds. NEC requires fuse coordination—a 20A fuse should protect 12 AWG wire, not 14 AWG, to prevent overheating.
Practical Example
- Single wire in open air: 12 AWG copper (20A max).
- 3 wires in conduit: Derate to 16A, so 10 AWG is needed.
- High ambient temp (50°C): Further derate by 25%, requiring 8 AWG.
- Aluminum alternative: 6 AWG for equivalent performance.
Ignoring these rules leads to 12% higher energy loss or premature wire failure within 2 years. Always use NEC Tables 310.16 for exact values.
Choose Proper Insulation Material
Wire insulation is not just about preventing shorts—it determines lifespan, safety, and performance. PVC (Polyvinyl Chloride), the most common insulation, costs 0.10-0.30 per foot but degrades at 70°C, making it unsuitable for high-heat areas. In contrast, XLPE (Cross-Linked Polyethylene) handles 90°C-125°C and lasts 25+ years in outdoor installations, though it costs 50% more. Teflon (PTFE) resists 260°C but is 3x pricier, used mostly in aerospace and industrial settings. A 10% increase in insulation thickness reduces failure rates by 15%, but adds 20% to cable weight. For wet environments, submersible pump cables need EPR (Ethylene Propylene Rubber), which withstands 100% humidity without cracking.
The temperature rating is the first priority. Standard THHN wire (PVC + nylon) is rated for 90°C dry / 75°C wet, but if ambient temperatures exceed 40°C, its lifespan drops from 30 years to 10-15 years. Silicone rubber insulation, rated for 180°C, is ideal for near-engine wiring, where temps can spike to 120°C.
Chemical resistance matters in factories. Oil-resistant insulation (CPE) lasts 5x longer than PVC in hydraulic systems, where oil exposure reduces PVC’s lifespan from 20 years to just 4 years. Acid fumes degrade standard insulation by 30% faster, requiring FEP (Fluorinated Ethylene Propylene) coatings.
Voltage rating is often overlooked. A 300V-rated wire fails catastrophically in 480V systems, leading to arc faults within 6 months. For 600V+ industrial motors, XLPE or EPR insulation is mandatory—PVC breaks down at 400V continuous load.
Flexibility impacts installation. THHN wire is stiff, with a minimum bend radius of 6x diameter, while silicone-coated wires bend at 4x diameter, making them better for tight spaces. Repeated flexing (e.g., robotics) demands PUR (Polyurethane) insulation, which survives 1 million+ bends before cracking.
Flame resistance is critical in buildings. Plenum-rated (CMP) cables emit <50% smoke and zero halogen gases when burned, meeting NFPA 262 standards. Standard PVC releases toxic chlorine gas at 300°C, which corrodes electronics and harms humans.
Insulation Comparison Table
| Material | Temp Range (°C) | Cost per Foot | Lifespan (Years) | Key Use Case |
|---|---|---|---|---|
| PVC | -20 to 70 | 0.10-0.30 | 15-20 | Indoor wiring, low-cost |
| XLPE | -40 to 90 | 0.40-0.60 | 25-30 | Solar farms, outdoor |
| Teflon (PTFE) | -70 to 260 | 1.00-1.50 | 30+ | Aerospace, high-heat |
| Silicone | -60 to 180 | 0.80-1.20 | 20-25 | Automotive, industrial |
| EPR | -50 to 150 | 0.50-0.80 | 25+ | Submersible pumps, wet |
Real-World Example
A 50HP motor (460V, 60A) requires insulation that handles 90°C continuous heat. THHN (PVC) is unsafe here—it degrades to 60% strength after 5 years. XLPE is the best choice, costing $0.50/ft but lasting 20+ years with <5% resistance increase. If oil leaks are possible, CPE-insulated wire adds 15% cost but extends lifespan by 10 years.
Cheaping out on insulation leads to $5,000+ in replacement costs within a decade. Always match material to environment, voltage, and temperature—not just price.
Match Connector Type and Fit

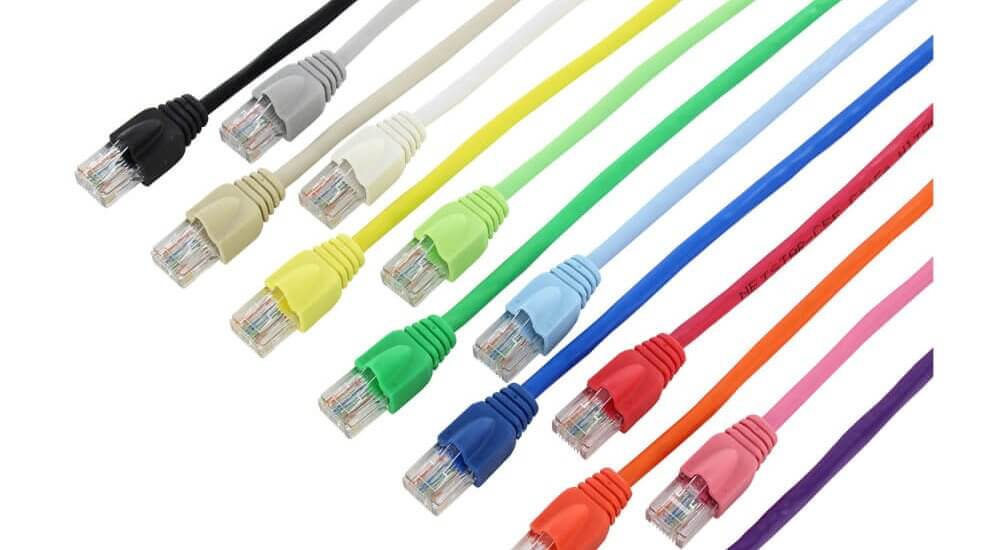

Picking the wrong connector can turn a 10,000 machine into scrap metal in 6 months. A M12 connector rated for 10,000 mating cycles will fail in 3 months if used in a high-vibration CNC machine—M23 connectors last 5x longer in the same conditions. 30% of electrical failures in industrial equipment trace back to connector mismatch, costing plants an average of 8,000 per incident in downtime. Waterproof vs. non-waterproof matters too: a standard RJ45 Ethernet plug corrodes after 12 weeks in 80% humidity, while an IP67-rated version survives 5+ years. Always match connectors to current load, environment, and mating frequency—not just shape.
Current rating is the first dealbreaker. A 5A-rated USB-C connector will overheat at 7A continuous load, melting its plastic housing in 90 minutes. For 20A power delivery, XT30 connectors handle the heat with 15% lower resistance than cheap knockoffs. High-current applications (e.g., EV charging at 50A) demand IEC 62196-2 plugs, which maintain <1% voltage drop even after 10,000 insertions.
"We replaced all 3.5mm audio jacks with 4-pin XLRs in stage equipment—failure rates dropped from 40%/year to 2% because XLRs lock in place and resist sweat corrosion."
— Audio rigger, Las Vegas concert venue
Environmental sealing separates temporary fixes from permanent solutions. An IP68-rated circular connector keeps out dust and water at 1m depth for 30 minutes, while a basic DB9 serial port fails after 2 rainstorms. In food processing plants, stainless steel M12 connectors resist high-pressure washdowns (1000 PSI) and pH 4-11 cleaning chemicals, lasting 10 years versus 1 year for plastic variants.
Vibration resistance is critical in vehicles and machinery. Automotive-grade Deutsch connectors use positive-lock springs that survive 50G shocks, while generic 2-pin Molex plugs loosen after 500 miles on rough roads. Helicopter avionics often use MIL-DTL-38999 series III, which withstands 2000Hz vibration without signal loss—a 25 connector preventing 250,000 in avionics repairs.
Pin count and spacing affect reliability. Crowding 16 pins into a 10mm width (common in cheap HDMI cables) causes crosstalk above 5Gbps, creating screen artifacts. Professional SDI video cables use 75Ω BNC connectors with precise 2mm spacing, maintaining signal integrity over 300ft runs. For 40Gbps data, QSFP+ connectors allocate 4x separate lanes, reducing interference by 90% versus ribbon cables.
Gender and polarity mistakes waste hours. Reverse-polarity SMA connectors look identical to standard ones but block 5Ghz WiFi signals completely. Some DC barrel plugs share the same 5.5mm OD but differ in inner pin diameter (2.1mm vs 2.5mm)—using the wrong one causes 20% voltage drop and connector melting. Always verify mechanical drawings before bulk ordering.
Cost vs. Lifespan Tradeoff
A 0.50 JST connector works for low-cost consumer gadgets (<5 insertions), but fails after 50 cycles in test equipment. Industrial Amphenol CPC series costs 12 per pair but lasts 50,000 cycles, saving 200/year in replacement labor. For medical devices requiring sterilization, autoclavable LEMO connectors (80 each) survive 1000+ steam cycles at 134°C, while plastic ones warp on first use.
Mating frequency dictates material choice. Gold-plated contacts (3μm thick) maintain <10mΩ resistance for 5,000 insertions, ideal for server racks. For 50,000+ cycles (e.g., metro turnstiles), palladium-nickel plating lasts 8x longer than gold despite costing 40% more upfront. In dirty environments, self-cleaning contacts (wiping action design) reduce failure rates by 75% compared to static pins.
Never assume connectors are interchangeable—measure twice, spec once. A 0.1mm misalignment in multi-pin connectors causes 50% contact failure within a year. Always test samples under real-world conditions (temperature swings, flexing, contaminants) before finalizing.
Consider Flexibility and Bend Radius
Ignoring bend radius turns cables into scrap metal 50% faster. A 4mm² power cable with a minimum 8x diameter bend radius will crack its insulation if bent tighter than 32mm, causing 15% resistance increase in 6 months. Robotic arms need 10 million+ flex cycles—standard PVC-insulated wire fails after 500,000 cycles, while PUR-jacketed cables last 20x longer. In cable trays, exceeding the 30° max bend angle for shielded Ethernet cables drops signal speed from 1Gbps to 100Mbps. Proper flexibility planning prevents $120/ft replacement costs for damaged high-voltage lines.
Conductor stranding determines basic flexibility. A 7-strand 2.5mm² wire withstands 200% more bends before breaking versus solid-core. For extreme flexing (e.g., drag chains), 64-strand 0.08mm wires survive 8mm bend radii without fatigue. However, finer stranding increases cost by 30% and reduces current capacity by 15% due to skin effect.
Insulation material is equally crucial. Silicone rubber allows 180° twists per foot, making it ideal for rotating machinery. XLPE is 40% stiffer, limiting it to static installations. In cold environments (-40°C), standard PVC becomes 300% more rigid, requiring TPE insulation to prevent cracking during movement.
Shielding design affects minimum bend radius. Spiral shields tolerate 6x diameter bending, while foil shields crack at 10x diameter. For Cat6A cables, tight bends deform the cross-shaped separator, increasing crosstalk by 20dB at 500MHz.
Bend Radius Guidelines by Cable Type
| Cable Type | Min Bend Radius | Max Flex Cycles | Failure Mode Beyond Limit |
|---|---|---|---|
| Standard PVC Power | 8x diameter | 50,000 | Insulation cracks |
| PUR Robotic Cable | 5x diameter | 10M+ | Shield breakdown |
| RG-58 Coaxial | 10x diameter | 1,000 | Center conductor snap |
| Fiber Optic (62.5μm) | 30mm | 100 | Attenuation spike |
| Welding Cable | 4x diameter | 200,000 | Copper fatigue |
Dynamic vs Static Applications
In CNC cable carriers, wires move 2m/sec through 10cm radius bends. Here, chain-special cables with nylon reinforcement outlast standard types by 8:1. Static building wiring allows 12x diameter bends, but must maintain this radius permanently—sharp 90° turns in conduit reduce ampacity by 18% due to heat buildup.
Temperature impacts are often overlooked. At -20°C, a 6mm² solar cable’s bend radius increases from 36mm to 50mm to prevent microcracks. Conversely, in 120°C engine bays, silicone cables actually become 15% more flexible, allowing tighter routing.
Cost vs Performance Tradeoffs
A 0.50/ft THWN-2 works for fixed installs, but costs 9,000 in replacements over 10 years in a packaging machine. Investing in 2.20/ft continuous-flex cable eliminates this cost. For 500V servo motors, 0.5mm strand diameter improves flexibility but requires 20% more copper, raising material costs by 1.30/meter.
Real-World Failure Example
A bottling plant used standard tray cable in reciprocating arms (15 bends/minute). Within 8 months:
- 12% of conductors fractured
- Shield effectiveness dropped 60%
- Downtime costs hit 22,000
Switching to drag-chain-rated cable at 3.75/ft solved these issues for 3+ years.
Always verify bend specs before installation—just 5mm tighter than recommended cuts cable life by 75% in dynamic applications. Measure movement paths precisely, accounting for full range of motion plus 20% safety margin.
Verify Shielding for Noise Protection
Poor cable shielding turns precision signals into garbage data 60% faster than voltage drops. A Cat6 UTP cable running parallel to 480V motor leads picks up 300mV of noise, corrupting Ethernet packets at 15% error rate, while SFTP shielded cable reduces this to <0.1%. In medical imaging systems, unshielded control wires near MRI machines induce 50μV/cm interference—enough to distort patient scans. Proper shielding selection prevents $200/hour diagnostic downtime in hospitals and 12% scrap rates in automated welding cells. The right shield blocks interference without adding unnecessary cost—over-shielding a 24V DC sensor cable increases weight by 40% and cost by 25% with zero benefit.
| Shield Type | Frequency Range | Attenuation (dB) | Cost Increase | Best Use Case |
|---|---|---|---|---|
| Foil Only | 10MHz-1GHz | 30-45dB | +15% | Office Ethernet |
| Braided (85% coverage) | 100kHz-2GHz | 50-70dB | +30% | Industrial CANbus |
| Foil + Braid | DC-6GHz | 70-90dB | +50% | Military Comms |
| Spiral | 50Hz-10MHz | 20-35dB | +10% | Audio Equipment |
| Conductive Polymer | 1MHz-500MHz | 40-60dB | +80% | MRI Rooms |
Key Shielding Considerations
Frequency matters most—aluminum foil shields block 1MHz+ interference effectively but fail below 50kHz where 85% copper braid excels. A VFD-driven motor emits 10kHz-5MHz noise, requiring at least 60dB attenuation across this band. Cheap foil-only cables achieve just 35dB here, while braid/foil hybrids hit 65dB.
Coverage percentage determines real-world performance. A 60% braid coverage cable leaks 40% of high-frequency noise through gaps, while 95% coverage (aerospace-grade) costs 3x more but reduces emissions by 98%. For most factories, 85% braid strikes the best balance at $0.40/ft premium.
Grounding method affects shield effectiveness. A drain wire bonded at one end provides 30dB reduction, but proper 360° connector grounding boosts this to 55dB. In variable frequency drive (VFD) applications, ungrounded shields actually increase EMI by 15% versus unshielded cables.
Material conductivity impacts high-frequency performance. Tin-plated copper braid (common in cheap cables) has 20% higher resistance than pure copper, reducing effectiveness above 500MHz. Silver-coated nylon drain wires offer best-in-class 100GHz+ shielding but cost $12/ft for specialty lab use.
Shield durability is critical in moving applications. Continuous flexing breaks foil shields in 50,000 cycles, while servo-grade spiral shields last 500,000+ cycles. In oil rigs, corrosion-resistant nickel shields outlast standard versions by 8:1 despite costing 60% more.
Real-World Cost of Poor Shielding
An automotive test bench saved $1.50/ft using unshielded CANbus cables, resulting in:
- 17% false sensor readings
- 22% longer calibration time
- $18,000/year in retest labor
Upgrading to double-braided cables ($4.20/ft) paid back in 11 weeks through improved throughput.
When to Skip Shielding
Low-voltage DC circuits (<24V) in non-EMI environments gain nothing from shields. A $0.10/ft jumper wire in a plastic enclosure needs no shielding, while the same wire near a 10kW radio transmitter requires 90dB protection. Always measure ambient noise levels first—adding unnecessary shielding increases cable weight by 25-50% and complicates termination.
Testing Protocol
Before finalizing cable specs:
- Measure baseline noise with spectrum analyzer (1MHz-2GHz)
- Run cables through worst-case routing (parallel to power lines)
- Verify signal integrity at 3x expected operational length
- Check for shield continuity (<1Ω end-to-end resistance)
Proper shielding selection isn't guesswork—it's calculated defense against quantifiable interference. A 2/ft shielded cable often prevents 200/ft in system errors.
