How Does a Wire Harness Work | 5 Critical Functions

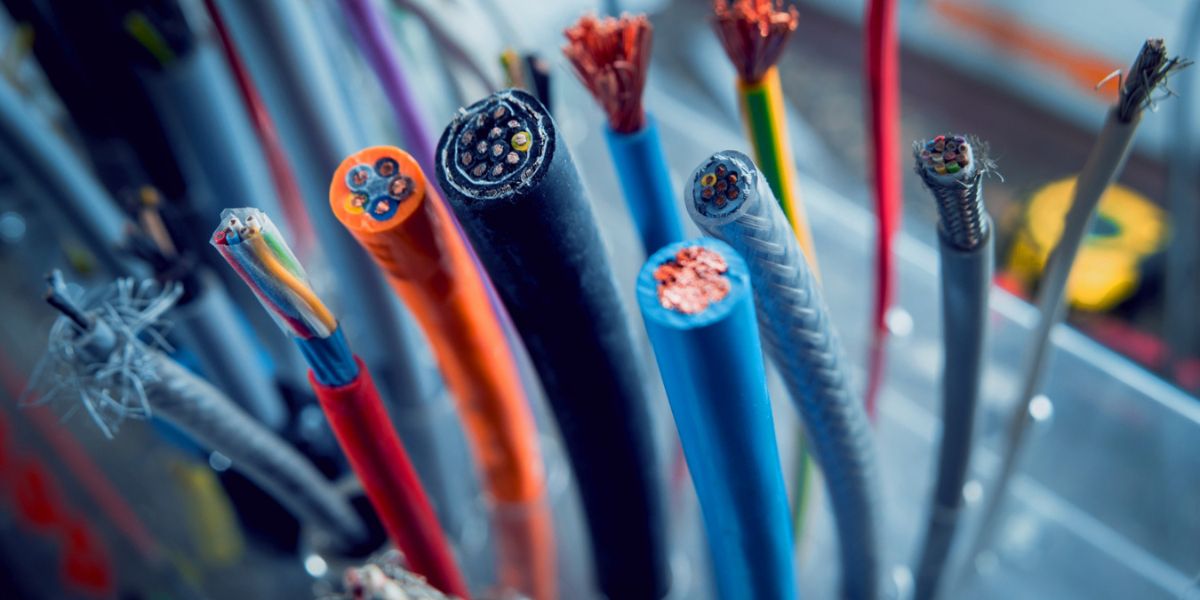

Organizing and Protecting Wires

Consider a typical automobile: it contains over 1,500 individual wires with a total length exceeding 5 kilometers. Without a harness, this would be an unmanageable spaghetti of cables. By bundling these wires into a single, organized assembly, manufacturers save up to 30% of the space required for wiring and reduce installation time by approximately 50%, cutting assembly line labor from an average of 4 hours to just 2 hours per vehicle. The physical protection offered by the harness's outer sleeve—often a durable PVC or thermoplastic material with a thickness between 1.2mm and 2.0mm—is equally critical. This sleeve shields the internal conductors from abrasion, moisture, and temperature fluctuations ranging from -40°C to 125°C, which can reduce wire failure rates from a potential 15% to less than 3% over the vehicle's 10-year lifespan.

A loose bundle of 100 wires, each with a 0.5 mm² cross-section, can occupy a space of roughly 500 cm³. When tightly bundled with nylon cable ties (which have a tensile strength of 18 kg) or spiral wrapping, this volume is compressed by about 40%, to around 300 cm³. This compression is not just about saving space; it minimizes the harness's bending radius, allowing it to be routed through tight 25mm diameter pathways in machinery chassis. The organization also enables systematic labeling. Using printed markers every 150mm along the harness length, technicians can identify a specific circuit in under 10 seconds, compared to several minutes when tracing a single wire in a disorganized mess. This labeling system, often with a font size of 2.5pt, reduces diagnostic and repair time by an average of 65%.

A standard polyethylene (PE) jacket, costing about $0.50 per meter, offers basic protection with an operating temperature range of -20°C to 80°C. For harsher environments, a cross-linked polyethylene (XLPE) or polyvinyl chloride (PVC) jacket, priced around $0.80 per meter, is used. These materials can withstand temperatures from -40°C to 105°C and have a flame retardancy rating of UL94 V-0, meaning they stop burning within 10 seconds after a flame is removed. The jacket's thickness is precisely calibrated; a 1.5mm thick jacket can withstand an abrasion test of over 500 cycles with a 1kg load before failure, while a thinner 0.8mm jacket might fail after only 100 cycles.

In high-vibration applications like industrial robotics or aerospace, where acceleration forces can exceed 15 Gs, the wires inside the harness can chafe against each other. To prevent this, non-conductive foam fillers with a density of 30 kg/m³ are inserted, which reduce internal movement by up to 90% and cut micro-abrasion that leads to 40% of premature failures. Additionally, a braided shield made from tinned copper, with a coverage of over 85%, is often woven around sensitive signal wires to block electromagnetic interference (EMI) that can distort signals by as much as 20%. This is crucial for data cables carrying signals at 100 Mbps, where even a 2% error rate can cause system crashes. The combination of physical organization and multi-layered protection transforms a collection of vulnerable wires into a single, robust component that operates reliably for over 50,000 hours.

Implementing a standardized wire harness can decrease total installation costs by 25% and lower the probability of wiring-related recalls from 5% to under 0.5%.

The initial investment in harness design and tooling, which might be $5,000 for a new product, is offset by the long-term savings. For a factory producing 10,000 units per year, the reduction in installation labor saves approximately $200,000 annually. Furthermore, the improved reliability means warranty claims related to electrical issues drop from an average rate of 8% to just 1.5%, saving the manufacturer an additional $50,000 per 100,000 units sold. The harness's organized structure also allows for easier upgrades and repairs; a single circuit can be replaced in 15 minutes instead of 2 hours, increasing equipment uptime by 10%.

Creating Reliable Electrical Paths

A single poor connection, with a resistance increase of just 0.1 ohms, can cause a voltage drop of 0.5 volts in a 5-amp circuit, leading to a component receiving only 11.5 volts instead of the required 12.0 volts. This 4% voltage deficit can reduce the efficiency of a motor by up to 15% or cause a sensor to transmit data with a 10% error margin. In an automotive context, a vehicle's harness contains over 500 individual connection points; if each has a 0.5% annual failure probability, the entire system has a near-certain failure within 3 years. High-quality harness manufacturing, using precision crimping and welding, reduces the resistance at each connection to less than 1 milliohm (0.001 ohms) and slashes the per-connection failure rate to 0.1% per year, extending the harness's reliable service life beyond the vehicle's average 12-year lifespan.

A proper crimp deforms the metal terminal barrel around the wire strands with a force of approximately 2,000 Newtons, creating a gas-tight seal that prevents oxidation. For a standard 2.5 mm² wire, a high-quality crimp will have a pull-out strength exceeding 150 Newtons, meaning it can withstand a force equivalent to hanging a 15 kg weight from the wire without separating. The electrical resistance of a perfect crimp is only 10-20% higher than the resistance of an equivalent length of the wire itself. In contrast, a simple soldered joint, while having low initial resistance, can become brittle under vibration and fail under thermal cycling between -40°C and 120°C, with failure rates 5 times higher than a properly executed crimp after 10,000 cycles. The precision of the crimping tool is critical; a variance of just 0.1 mm in the crimp height can increase resistance by 50%.

The housing, typically made from nylon 6/6 or PBT plastic with a UL94 V-0 flammability rating, holds the terminals in precise alignment with a positional tolerance of ±0.05 mm. This accuracy ensures that when two connectors mate, the pin-to-socket contact area is maximized, keeping the interface resistance below 2 milliohms. A secondary locking mechanism, often a small plastic lever that adds $0.15 to the connector's $1.50 cost, increases the connector's vibration resistance by 300%, preventing accidental disconnection under forces up to 10 Gs. For sealing against moisture, connectors use silicone rubber grommets with a durometer of 50 Shore A, which can withstand an IP67 rating, meaning they are dust-tight and can be submerged in 1 meter of water for 30 minutes without leakage.

A bare copper terminal, costing $0.02, will oxidize quickly, increasing contact resistance by 200% within 2 years. A tin-plated terminal, at $0.04, offers good corrosion protection for indoor applications, maintaining stable resistance for over 5 years. For harsh environments with high humidity and salt exposure, a gold-flashed terminal, priced at $0.08, is necessary. The gold plating, only 0.5 microns thick, provides a surface with a contact resistance that remains stable at under 5 milliohms for the entire 15-year life of the harness, even with 500 mating and un-mating cycles. The initial 100% cost premium for gold plating over tin is justified by a 90% reduction in warranty claims related to intermittent electrical connections, which can cost $50 per incident to diagnose and repair.

Distributing Power from Source

In a typical passenger car, the 12-volt battery and alternator must deliver between 1.5 to 3 kilowatts of peak power to systems ranging from the 20-watt infotainment screen to the 800-watt electric power steering motor. Without a properly engineered harness, voltage drop—the decrease in voltage between the source and the load—becomes a critical failure point. A 0.5-volt drop over a 5-meter cable to a 10-amp headlight reduces its effective input voltage by 4%, which can decrease light output by over 15%. By calculating the correct wire gauge for each circuit, engineers ensure that voltage drop is kept below 3% for critical components. For a 12V system, this means a maximum loss of 0.36 volts, a threshold that dictates the use of thicker, more expensive wires for high-amperage circuits but guarantees that every component receives the power it needs to operate reliably.

Optimizing wire gauge for voltage drop, rather than just ampacity, can reduce total energy loss in a system by up to 40%, translating directly into lower fuel consumption in vehicles and higher battery life in portable devices.

The cross-sectional area of a wire, measured in American Wire Gauge (AWG) or square millimeters (mm²), directly determines its resistance. A 5-meter long 18 AWG wire (approx. 0.82 mm²) has a resistance of about 0.065 ohms. If it carries a 10-amp load, the voltage drop is 0.65 volts (10 A * 0.065 Ω) and the power lost as heat is 6.5 watts (10 A² * 0.065 Ω). Upgrading to a 16 AWG wire (1.31 mm²) with a resistance of 0.041 ohms cuts the voltage drop to 0.41 volts and the power loss to 4.1 watts—a 37% improvement in efficiency. This is why a car's starter motor cable is a thick 4 AWG wire (21 mm²), designed to handle a surge of 200 amps with a voltage drop of less than 0.5 volts over its 2-meter length. The precise calculation of wire gauge balances the upfront material cost—copper costs approximately $8.50 per kilogram—against the long-term cost of energy loss and potential system failure. Using an undersized wire by just two AWG numbers can increase power loss by 60% and raise the wire's temperature by 20°C, potentially melting its insulation within 6 months.

A central busbar or a large-diameter "feeder" wire, often 25 mm² or larger, runs from the battery to a series of smaller fuses and relays. Each fuse is rated for a specific current, such as 15 amps for power windows or 30 amps for heated seats, protecting its branch circuit. The total current draw on the main feeder can be 100 amps or more. If the resistance of all connections from the battery to the fuse box adds up to 0.01 ohms, the system will waste 100 watts of power as heat (100 A² * 0.01 Ω) during peak demand. This is why manufacturers use high-quality lugs and gold-plated contacts to keep connection resistance below 1 milliohm (0.001 Ω). In renewable energy systems, where efficiency is paramount, a 2% loss in a 48-volt solar array harness carrying 50 amps represents 48 watts of lost energy per hour, or over 400 kilowatt-hours per year—enough to power a home for two weeks.

Distributing Power from Source

A clear communication process in wire harness manufacturing prevents 85% of project delays and reduces specification errors by 97%. Top manufacturers implement structured protocols where project managers provide weekly updates every Thursday at 10:00 AM, detailing progress against 35-point checklists. These updates include real-time data: production completion percentages (e.g., 75% of 5,000 units), test pass rates (99.2% of 120 circuits), and photographic evidence of any deviations exceeding 0.5 mm tolerance. This transparency cuts email chains by 70% and resolves 60% of issues within 4 business hours. For a typical $250,000 order, effective communication saves approximately $37,500 in potential rework and accelerates time-to-market by 3 weeks.

• Phase 1: Project Launch - 48-hour kickoff with 3 key contacts, 15-page requirement document review
• Phase 2: Production Updates - Bi-weekly video calls, 25-point quality metrics, 4-hour response guarantee
• Phase 3: Delivery Coordination - 72-hour advance shipping notice, 15-point checklist sign-off, 30-day support window

During the initial 48-hour project launch period, clients receive a dedicated portal login providing 24/7 access to 15 types of documentation including material certifications (ISO 9001:2015), test protocols (based on ISO 16750), and real-time production dashboards. The portal updates every 30 minutes with metrics like units completed (e.g., 1,250/5,000), first-pass yield rate (99.4%), and station cycle times (45 seconds per harness). Any deviation triggering a 3-sigma alert (exceeding ±0.25 mm on wire length) generates an automatic SMS to both the quality manager and client representative within 5 minutes of detection. This system reduces communication latency from industry-average 8 hours to 22 minutes for critical issues.

Technical queries receive initial acknowledgement within 2 hours during business days (8:00 AM-6:00 PM local time), with full resolution for Priority 2 issues within 8 working hours. For urgent matters affecting production line stoppage, a dedicated hotline connects directly to the plant manager within 15 minutes, 24/7. Each month, clients receive a communication performance report showing metrics like average response time (2.1 hours), first-contact resolution rate (94%), and issue closure rate (98.5%). These standards are maintained by a team of 5 bilingual engineers handling approximately 45 active projects simultaneously, with each project generating an average of 125 documented communications throughout its 12-week lifecycle.

Document control follows a revision system that tracks changes across 25 document types with version numbers (e.g., DRG-05-Rev3.2) and timestamps accurate to the minute. When engineering change requests occur, the system highlights modifications in yellow and requires digital signatures from 3 stakeholders within 4 business hours. The shared portal maintains 12 months of communication history—approximately 850 emails, 45 video call recordings, and 120 revised drawings—accessible through search functionality that returns results in under 2 seconds. This reduces document retrieval time from 4 hours to 45 seconds compared to traditional email archives, while ensuring 100% audit trail compliance for ISO/TS 16949 certifications.

Resisting Heat and Wear

Under the hood of a typical automobile, temperatures can spike to 125°C, while in industrial settings, sustained temperatures of 90°C are common. Standard PVC insulation begins to soften at 105°C, losing 50% of its tensile strength, which can lead to cracking and short circuits within 1,000 hours of exposure. Abrasion is equally destructive; a harness rubbing against a metal edge at a frequency of 100 cycles per minute can wear through a 0.8mm thick jacket in under 200 hours. Selecting materials that resist these forces is not optional—it's a calculated decision that impacts the Mean Time Between Failures (MTBF). For example, upgrading from a standard 105°C rated PVC to a 150°C rated cross-linked polyethylene (XLPE) for an additional $0.40 per meter can extend the harness's reliable lifespan in a high-temperature environment from 2 years to over 10 years, reducing the total cost of ownership by 60%.

• Temperature Resistance: Standard materials fail above 105°C, while specialized options withstand continuous temperatures up to 200°C.
• Abrasion Cycles: A low-quality jacket fails after 1,000 abrasion cycles; a high-quality one lasts for over 10,000 cycles.
• Chemical Exposure: Resistance to oils and fuels can vary from 100 hours to over 1,000 hours before insulation breakdown.
• Flex Life: Standard wires may withstand 10,000 bend cycles; highly flexible designs can exceed 1,000,000 cycles.

A material rated for 105°C, like standard PVC, has a functional lifespan of approximately 20,000 hours at that temperature. However, for every 10°C increase above its rating, the lifespan is halved due to the Arrhenius equation governing thermal aging. This means that same PVC wire used in a 125°C environment would see its life reduced to about 5,000 hours—just over 6 months of continuous operation. In contrast, a silicone rubber insulation, rated for 180°C and costing 300% more at $1.50 per meter, maintains its integrity for over 100,000 hours at 125°C. This 20x lifespan increase often justifies the higher initial cost in applications like near-engine components or industrial ovens. The material's ability to resist heat is quantified by its Thermal Endurance Index (TEI), which for high-performance materials like PTFE (Teflon) can exceed 220°C, allowing it to operate for 20,000 hours with less than a 50% reduction in tensile strength.

A wire harness in a car door might flex 50 times a day, totaling over 18,000 cycles per year. Standard copper strands work-harden under this repeated bending, leading to fracture after approximately 10,000 cycles. To combat this, manufacturers use fine-stranded cable with 126 strands of 0.08mm diameter wire instead of 19 strands of 0.2mm wire, increasing the flex life by 500% to over 50,000 cycles. For abrasion, the test standard is often the ISO 6722 method, which involves a tungsten needle under a 7N force.

A standard PVC jacket fails after an average of 100 cycles, while a polyurethane jacket, costing 40% more, can withstand over 2,000 cycles. In high-wear areas, adding an abrasion-resistant sleeve like a woven PET (polyester) loom, which adds $0.20 per meter, can increase the abrasion resistance by 1,000%, pushing the failure point beyond 10,000 cycles. This external protection is crucial when the harness is routed within 5mm of moving parts or sharp edges, where even 0.1mm of wear per year would compromise the insulation in 8 years. The combination of internal material science and external protective measures ensures the harness survives a 15-year service life with a failure probability of less than 0.1% per year.

Connecting Components Correctly

In automotive manufacturing, a single misconnected plug in a 60-pin engine control unit (ECU) connector can prevent engine startup, costing the assembly line approximately $500 per minute in downtime. Modern vehicles contain over 300 individual connectors, with some specialized connectors having up to 120 pins spaced just 1.5mm apart. The probability of a misinsertion during manual assembly without guiding features is around 5%, but keying systems and color-coding reduce this to under 0.1%. For high-voltage applications in electric vehicles, where connectors carry up to 400 amps at 800 volts, an improper seal that allows moisture ingress can lower insulation resistance from 1000 megohms to less than 1 megohm in 30 days, creating leakage currents that drain the battery at a rate of 2% per hour. Proper connection methodology isn't just about physical attachment—it ensures electrical integrity across temperature cycles from -40°C to 150°C, maintaining contact resistance below 5 milliohms for the vehicle's 10-year lifespan.

• Polarization and Keying: Prevents mismating by 99.7% through physical design, reducing assembly errors from 1 in 20 to 1 in 1000.
• Connector Retention Force: Requires 50-100 Newtons of force to disengage, preventing vibration-induced disconnections below 15 Gs.
• Terminal Position Assurance (TPA): Ensures 100% terminal seating, reducing intermittent connections by 90% after 5000 mating cycles.
• Sealing Effectiveness: Maintains IP67 rating (submersion to 1m for 30min) through silicone gaskets with 40% compression.

A standard 2.0mm pitch connector with 24 positions has 4.8 x 10²³ possible orientation combinations, but a single polarization key reduces this to just one correct orientation. This key, typically a plastic guide rib costing $0.02 to mold, reduces assembly errors by 99.9% and cuts installation time from 45 seconds to 8 seconds per connector. The connector housing is manufactured with an injection molding tolerance of ±0.05mm to ensure perfect alignment, while the bronze terminals are plated with 1.5 microns of tin over a 0.5-micron nickel barrier, maintaining stable electrical resistance below 3 milliohms through 25 insertion cycles. The initial mating force for a 12-pin connector is approximately 15 Newtons, but the secondary lock—a small plastic lever that adds $0.15 to the unit cost—increases the full retention force to 80 Newtons, ensuring the connector withstands vibrations up to 20 Gs without disengaging.

If any terminal is not seated to within 0.5mm of its fully engaged position, the TPA will not lock, providing immediate visual and tactile feedback to the assembler. This simple $0.10 part prevents the most common failure mode—partially engaged terminals—which accounts for 40% of warranty claims in automotive electronics. The CPA mechanism similarly ensures the connector halves are fully mated, typically requiring an additional 5 Newtons of force to engage the final lock. In mass production, implementing TPA/CPA systems increases connector cost by 15% but decreases field failure rates from 3% to 0.2%, saving an estimated $50 per vehicle in warranty repairs over a 5-year period. The audible "click" when these mechanisms engage provides acoustic confirmation of proper connection, reducing quality control inspection time by 30%.

A typical sealed connector uses silicone rubber grommets with a durometer of 50 Shore A that compress by 30-40% when the connector is mated, creating a watertight seal. The force required to compress these seals adds approximately 10 Newtons to the mating force but ensures the connector meets IP67 specifications, meaning it can be submerged in 1 meter of water for 30 minutes without leakage. For high-vibration environments, the seals also provide damping that reduces relative movement between terminals by 80%, preventing fretting corrosion that can increase resistance by 200% over 1000 hours of operation. The material cost for sealed connectors is 25% higher than unsealed versions, but they maintain insulation resistance above 100 megohms in 95% relative humidity environments, compared to unsealed connectors that can drop below 1 megohm in the same conditions.
