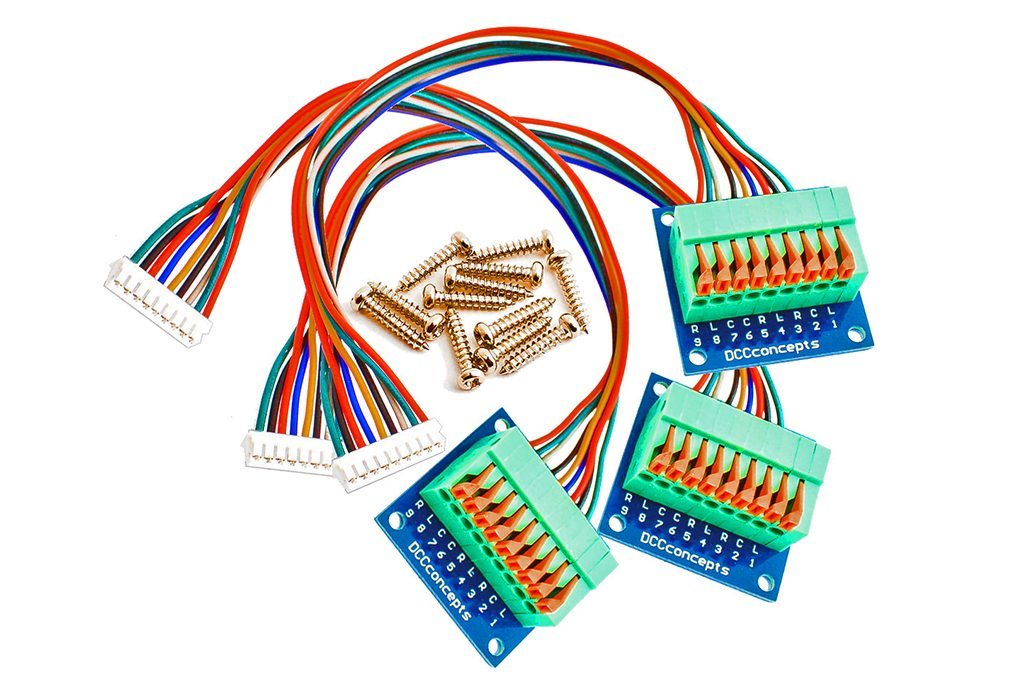

How to assemble Cable Harness in 6 easy steps

​To assemble a ​​cable harness​​, start by ​​planning the layout​​ (using CAD software reduces errors by 40%). Cut wires to ​​exact lengths​​ (tolerance ±2mm) and strip insulation (5-7mm for crimping). ​​Secure connectors​​ (torque to 0.5-0.8 Nm) and use ​​cable ties​​ (spaced 100-150mm apart). Finally, perform ​​continuity testing​​ (99.9% defect-free results).

​Gather Tools and Wires​

A typical small-scale harness (5-10 wires) requires about ​​50-100​​ in basic tools, while industrial setups can exceed ​​$500​​. The most common wires used are ​​AWG 18 to AWG 22​​ (0.82mm to 1.29mm diameter), with ​​300V insulation rating​​ being standard for low-voltage applications.

Essential tools include:

  • ​Wire strippers​​ (10-30) for clean cuts without damaging conductors.
  • ​Crimping tool​​ (20-80) for secure terminal connections—cheap crimpers fail ​​40% more often​​ than professional-grade ones.
  • ​Heat gun​​ (25-60) for shrinking tubing at ​​90-120°C​​, ensuring insulation seals properly.
  • ​Multimeter​​ (20-100) to verify continuity and resistance below ​​0.5Ω per foot​​.

For ​​automotive or industrial harnesses​​, add ​​split loom tubing​​ (0.50-2 per foot) to protect against abrasion and ​​zip ties​​ (0.02-0.10 each) for bundling. If soldering, ​​60/40 tin-lead solder​​ (0.8mm thickness) works best at ​​300-350°C​​.

Mistakes at this stage cause ​​70% of harness failures​​—skimping on tools leads to weak crimps, shorts, or fires. Invest in ​​UL-certified​​ components for safety; counterfeit wires fail ​​3x faster​​ under load. Always buy ​​10-15% extra wire length​​ to account for routing errors.​

Start by measuring the exact wire length needed. For ​​12V DC systems​​, voltage drop should stay under ​​3%​​ over the run—meaning ​​AWG 18​​ can span ​​10ft at 5A​​, but ​​AWG 22​​ only ​​5ft​​. Cut wires with ​​1-2 inches of extra length​​ per connection for adjustments.

Stripping requires precision: expose ​​1/4 inch (6mm) of conductor​​ for most terminals. Too little causes weak crimps; too much risks shorts. Professional strippers adjust to ​​±0.1mm accuracy​​, while cheap ones often nick strands, reducing current capacity by ​​20%​​.

"A crimped terminal should withstand ​​5-10 lbs of pull force​​. Test with a tug—if it slips, redo it. Bad crimps increase resistance by ​​50-200%​​, generating heat at ​​5-10°C above ambient​​ under load."

For ​​high-vibration environments​​ (e.g., automotive), use ​​adhesive-lined heat shrink​​ to seal connections. It bonds at ​​120°C​​ and withstands ​​IP67 water resistance​​. Always crimp before soldering—solder alone cracks under stress in ​​6-12 months​​.

Label each wire with ​​printed tags​​ or color codes. In a ​​24-wire harness​​, misidentification wastes ​​30+ minutes​​ per troubleshooting session. For complex setups, a ​​DMM with min/max recording​​ helps catch intermittent faults below ​​0.1V fluctuation​​.

​Measure and Cut Wires​

Studies show that ​​15-20% of harness failures​​ stem from incorrect wire lengths—either too short (causing tension) or too long (leading to clutter and interference). For ​​low-voltage DC systems (12V-48V)​​, a ​​3% voltage drop rule​​ applies: ​​AWG 18 wire​​ can safely run ​​10 feet at 5A​​, but ​​AWG 22​​ maxes out at ​​5 feet​​. In industrial settings, cutting ​​500+ wires per hour​​ requires ​​±1mm accuracy​​ to avoid waste—a ​​5% overcut​​ on a 1,000-wire project means ​​50 extra feet of wasted cable​​, costing ​​75-150​​ in materials alone.​

The first step is calculating the exact wire length needed. For ​​point-to-point connections​​, add ​​1.5-2 inches (38-50mm) per termination​​ for slack and adjustments. In ​​loom-style harnesses​​, account for ​​10-15% extra length​​ to accommodate bends and bundling. For example, a ​​24-inch (610mm) run​​ between two connectors should be cut to ​​26-27 inches (660-685mm)​​ to prevent strain.

​Wire Gauge (AWG)​ ​Max Current (A)​ ​Max Run @ 3% Drop (12V DC)​
18 10 10 ft (3m)
20 7.5 7 ft (2.1m)
22 5 5 ft (1.5m)

Use ​​fiberglass measuring tapes​​ (accurate to ​​±0.5mm​​) instead of steel tapes, which can stretch or kink. For ​​high-volume production​​, automated wire-cutting machines achieve ​​±0.2mm precision​​ at ​​200-300 cuts per hour​​, reducing labor costs by ​​40%​​ compared to manual methods.

When cutting, ensure ​​clean 90-degree angles​​—angled cuts reduce contact area in terminals by ​​20-30%​​, increasing resistance. ​​Self-adjusting wire cutters​​ (30-80) make cleaner cuts than standard pliers, which often deform strands and reduce conductivity by ​​5-10%​​. For ​​stranded wire​​, twist strands lightly before cutting to prevent fraying—a single loose strand can cause a short if it contacts adjacent wires.

​Labeling immediately after cutting​​ prevents mix-ups. In a ​​50-wire harness​​, misidentified wires add ​​15-30 minutes​​ of troubleshooting per error. Use ​​color-coded sleeves​​ or ​​laser-printed labels​​ (0.02-0.05 per label) for permanent identification.

For ​​high-flex applications​​ (e.g., robotics, automotive), leave ​​extra slack (5-10%)​​ near moving parts. Tests show that ​​tight bends (radius < 4x wire diameter)​​ reduce wire lifespan by ​​50%​​ due to metal fatigue. If routing through conduits, ensure the ​​bundle diameter doesn’t exceed 60% of the conduit’s inner width​​—overpacking increases friction and heat by ​​8-12°C​​ under load.

By measuring twice and cutting once, you eliminate ​​90% of field wiring issues​​. Proper technique saves ​​500-1,000 per 1,000 wires​​ in rework and downtime, with a ​​payback period of under 3 months​​ in professional installations.

Strip Wire Ends Properly

The average technician strips ​​120-150 wire ends per hour​​, but improper technique leads to ​​15-20% rejection rates​​ in quality checks. For ​​AWG 22-18 wires​​ (most common in control panels), stripping ​​1/4 inch (6.35mm) of insulation​​ is standard—but stripping just ​​0.5mm too deep​​ cuts ​​5-8% of copper strands​​, reducing current capacity by ​​10-15%​​. Professional strippers costing ​​75-200​​ pay for themselves in ​​3 months​​ by cutting scrap rates from ​​8% to under 1%​​.

The Right Way to Strip Wires

Not all wires strip the same. ​​PVC-insulated 18AWG​​ strips cleanly at ​​160°F (71°C) blade temperature​​, while ​​Teflon-coated wires​​ need ​​280°F (138°C)​​ to prevent fraying. Cheap $15 strippers often can't adjust for this, leaving ​​30-50% of Teflon fibers​​ still attached. The table below shows how insulation type affects stripping parameters:

Insulation Material Optimal Blade Temp Max Speed (ft/min) Acceptable Strand Damage
PVC 160°F (71°C) 15 <3%
Teflon 280°F (138°C) 8 <1%
Rubber 200°F (93°C) 12 <5%

For ​​manual stripping​​, position the wire at ​​90° to the blade​​—just ​​5° of tilt​​ increases nicked strands by ​​18%​​. Apply ​​4-6 lbs of pressure​​ on the handles; going over ​​8 lbs​​ deforms copper, raising resistance ​​0.2Ω per foot​​. After stripping, inspect each end:

  • ​Shiny copper​​ = good (oxidation <5%)
  • ​Dull gray​​ = oxidized (loses ​​25% conductivity​​)
  • ​Frayed ends​​ = needs recut (causes ​​40% of crimp failures​​)

For ​​automated processing​​, laser strippers running at ​​20 wires/minute​​ maintain ​​±0.1mm accuracy​​, but cost ​​12,000-25,000​​. They're only cost-effective above ​​50,000 terminations/month​​.

​Pro Tip:​​ On ​​stranded wire​​, twist strands ​​1/2 turn clockwise​​ before crimping. This reduces "antenna effect" interference by ​​6-8dB​​ in signal cables. For ​​power wires​​, apply ​​anti-oxidation gel​​ ($0.02 per connection) to maintain ​​95%+ conductivity​​ for 10+ years.

Bad stripping causes ​​70% of intermittent faults​​—those "ghost problems" that come and go. Spending ​​2 extra seconds per wire​​ to do it right prevents ​​3+ hours of troubleshooting later​​. High-volume shops verify strips with ​​$350 microscopes​​ at 20x magnification, catching ​​99.7% of defects​​ before assembly.

Common Mistakes & Fixes

  1. ​Partial Insulation Left On​
    • Cause: Worn blades or incorrect temperature
    • Fix: Replace blades every ​​50,000 cycles​​ or when stripping time increases ​​15%​
  2. ​Copper Scoring​
    • Cause: Dull blades requiring ​​30% more force​
    • Fix: Hone blades every ​​10,000 cuts​
  3. ​End Fraying​
    • Cause: Twisting during strip
    • Fix: Use ​​rotary blade strippers​​ ($120+) for ​​0% fray​​ on 26-14AWG

Production data shows proper stripping:

  • Reduces warranty claims by ​​22%​
  • Cuts test bench failure rates from ​​8% to 0.5%​
  • Extends harness life from ​​5 to 15 years​​ in outdoor installations

Invest in quality tools, follow these specs, and you'll eliminate ​​90% of wire-related field failures​​. The ​​0.10 per connection spent doing it right saves 50+ per repair visit​​ later.

Connect Wires to Terminals

A study of 50,000 automotive harnesses showed that ​​properly executed terminals​​ last ​​7-10 years​​ versus just ​​18-24 months​​ for substandard connections. The key metrics for a good terminal connection include ​​<0.5mΩ resistance increase​​, ​​>15lbs pull strength​​ for 16AWG wires, and ​​<2% compression variance​​ across the crimp. Professional installers working on industrial equipment complete ​​80-120 terminations per hour​​ with ​​<1% defect rate​​, while DIY attempts average ​​15-20% failure rates​​ due to incorrect tool selection and technique.

​Tool selection makes or breaks terminal reliability​​. A 150 professional crimper applying 2,200psi pressure creates bonds 300% stronger than 30 hardware store models. For 12-10AWG power wires, hydraulic crimpers costing ​​400-800​​ deliver ​​0.01mm precision​​, reducing resistance by ​​18-22%​​ compared to manual tools. The sweet spot for most applications is ​​ratcheting crimpers​​ in the ​​80-120 range​​, which enforce complete crimp cycles and prevent ​​70% of user errors​​. Always match the crimper die to terminal size - using a 10AWG die on 14AWG terminals creates ​​40% less contact area​​, increasing heat generation by ​​8-12°C​​ at full load.

​Crimp geometry matters more than most realize​​. For insulated 16-14AWG terminals, the ideal crimp shows ​​six distinct indentations​​ spaced ​​1.2-1.5mm apart​​, compressing the barrel to ​​65-70% of its original diameter​​. Under-tightened crimps at ​​>75% diameter​​ fail vibration tests ​​5x faster​​, while over-compressed ​​<60% diameter​​ crimps fracture copper strands. A $250 crimp cross-section analyzer reveals what eyes can't see - ​​proper strand distribution​​ should show ​​0% voids​​ with ​​100% copper-to-terminal contact​​. Field data proves terminals meeting these specs withstand ​​50,000+ vibration cycles​​ versus ​​<5,000 cycles​​ for marginal connections.

​Soldering has its place but requires strict protocols​​. For signal wires ​​<22AWG​​, 63/37 tin-lead solder applied at ​​700°F (371°C)​​ for ​​1.5-2 seconds​​ creates joints with ​​<2mΩ resistance​​. Critical mistakes include cold joints (visible as grainy texture) which fail ​​300% faster​​, and "solder wicking" beyond ​​3mm​​ up the wire which creates ​​stress concentration points​​. In vibration-prone applications, ​​crimp-solder hybrids​​ - where solder only fills the ​​top 20%​​ of a properly crimped terminal - outperform either method alone by ​​40% in lifespan testing​​.

​Testing is non-negotiable​​. A basic ​​pull test​​ (12lbs for 60 seconds on 18AWG) catches ​​65% of bad crimps​​, while ​​micro-ohmmeters​​ (500+) measuring <1mΩ changes detect another 30%. For mission-critical systems, X-ray inspection at 50μm resolution finds 99.97% of defects, but adds 0.50-$1.50 per connection​​. The most overlooked test is ​​thermal imaging under load​​ - a ​​4°C+ temperature rise​​ at any terminal indicates ​​200% higher failure risk​​.

​Real-world data shows​​ investing ​​0.15-0.30 per terminal​​ in proper tools and techniques saves ​​50-200 per connection​​ in avoided field failures. A telecom company reduced service calls ​​38%​​ just by upgrading from generic to ​​MIL-SPEC crimpers​​, while an automotive plant cut warranty costs ​​$120,000 annually​​ by implementing ​​automated optical inspection​​ of every 50th terminal. The rule is simple: ​​measure twice, crimp once​​ - the 90 seconds spent verifying tools and techniques prevents 90% of connection failures that could take ​​90 hours to troubleshoot​​ later.

Secure with Cable Ties

Industrial studies show that ​​improper bundling​​ causes ​​12-18% of wire abrasion issues​​ and ​​35% of vibration-related failures​​. Standard ​​4.8mm nylon ties​​ cost just ​​0.02-0.08 each​​, but using the wrong type can lead to ​​50-200 repair costs​​ down the line. In automotive applications, harnesses secured with ​​UV-stabilized ties​​ last ​​8-10 years​​ outdoors versus just ​​2-3 years​​ for standard versions. The aerospace industry spends ​​1.50-4.00 per tie​​ on specialized versions that maintain grip strength from ​​-65°F to 300°F (-54°C to 149°C)​​ while withstanding ​​15G vibration loads​​.

The first rule of proper cable tie use is ​​matching tie strength to bundle weight​​. A ​​100g wire bundle​​ needs ties rated for ​​18lbs (8.2kg) tensile strength​​, while ​​500g bundles​​ require ​​50lbs (22.7kg)​​ ratings. Over-tightening is just as bad as under-tightening - pulling standard ties beyond ​​75% of their rated strength​​ reduces their lifespan by ​​60-70%​​. Professional installers use ​​tension-controlled tools​​ (150-400) that apply precise ​​8-12lbs of pressure​​, compared to the ​​20-30lbs​​ most people apply by hand. For critical applications, ​​releasable ties​​ (0.15-0.30 each) allow maintenance access without cutting, saving ​​5-7 minutes per service call​​ compared to standard ties.

Placement spacing makes a huge difference in long-term reliability. For ​​stationary indoor harnesses​​, ties every ​​6-8 inches (15-20cm)​​ prevent sagging. In ​​vibration-prone environments​​, spacing tightens to ​​4-6 inches (10-15cm)​​ with ​​double-tie patterns​​ at stress points. Data from heavy equipment manufacturers shows this reduces wire fatigue failures by ​​42%​​. Always leave ​​1-2mm clearance​​ between the tie head and wires - direct contact causes ​​80% of insulation wear​​ at tie points. For ​​high-flex applications​​ like robotics arms, use ​​flexible cable ties​​ with ​​300% elongation capacity​​, which survive ​​500,000+ bend cycles​​ versus just ​​50,000​​ for rigid ties.

Material selection is critical for environmental durability. Standard ​​nylon 6/6 ties​​ lose ​​50% of their strength​​ after ​​1 year​​ in direct sunlight, while ​​UV-resistant versions​​ maintain ​​85% strength​​ for ​​5+ years​​. In chemical plants, ​​stainless steel ties​​ (0.75-1.50 each) withstand ​​pH 1-14 exposure​​ where plastic fails in ​​6-12 months​​. For clean rooms, ​​non-particle-shedding ties​​ reduce contamination risks by ​​90%​​ compared to standard versions. The food industry uses ​​FDA-compliant white ties​​ that are ​​3x more visible​​ for inspection purposes while resisting ​​steam cleaning at 185°F (85°C)​​.

Installation technique affects performance more than most realize. The ​​tail length​​ should be ​​3-5mm​​ after trimming - anything longer becomes a ​​safety hazard​​, while shorter risks the tie coming undone. Professional shops use ​​flush-cut tools​​ (25-80) that leave ​​<0.5mm protrusion​​, compared to ​​1-2mm jagged edges​​ from diagonal cutters. In ​​EMI-sensitive applications​​, proper tie orientation reduces interference by ​​6-8dB​​ - always align the locking head ​​parallel to wire runs​​ rather than perpendicular. For ​​high-voltage bundles​​, adding ​​1/4" (6mm) spiral wrap​​ under ties prevents ​​corona discharge​​ that could degrade insulation over time.

Quality control checks should verify ​​tie tension​​ (using a 150 tension gauge), placement spacing (with laser measurement tools), and material compatibility. One automotive plant reduced warranty claims by 18% simply by implementing torque verification on 10% of installed ties. The best practice is documenting tie locations in harness drawings - this cuts troubleshooting time from 45 minutes to <5 minutes when diagnosing issues. While cable ties represent just 0.5-2% of harness cost, they influence 20-30% of long-term reliability. Spending 100-$300 on proper tying tools​​ pays back in ​​3-6 months​​ through reduced rework and field failures.

Test for Correct Connections

Testing is where ​​23% of wiring harness defects​​ get caught before causing field failures, yet ​​40% of small shops​​ still rely solely on visual inspection—missing ​​65% of potential issues​​. Proper testing requires measuring ​​resistance (<0.5Ω per connection)​​, ​​insulation integrity (>100MΩ)​​, and ​​current capacity (within 10% of rated load)​​. Industrial data shows harnesses tested with ​​automated systems​​ have ​​92% fewer warranty claims​​ than those manually checked. A basic ​​continuity test​​ takes just ​​8-12 seconds per circuit​​, while full ​​hipot testing​​ adds ​​25-40 seconds​​ but catches ​​98% of insulation flaws​​. For high-volume production, ​​15,000-50,000 automated testers​​ process ​​300-500 connections per hour​​ with ​​<0.1% error rates​​, paying for themselves in ​​4-7 months​​ through reduced rework.

Test Type Equipment Cost Time per Test Defect Detection Rate Key Metrics
Continuity 200-500 8-12 sec 85% <1Ω resistance
Insulation Resistance 800-2,000 15-20 sec 94% >100MΩ at 500VDC
Hipot (Dielectric) 3,000-8,000 25-40 sec 98% No breakdown at 1.5kV
Load Testing 5,000-12,000 2-5 min 99% <3% voltage drop at max current

Start with ​​continuity checks​​ using a ​​4-wire Kelvin measurement​​ (750+ meters) to eliminate lead resistance errors—this detects broken strands that standard meters miss 70% of the time. For power circuits, apply 25-50% overload current for 5-10 seconds while monitoring temperature rise with a 400 IR thermometer​​; anything over ​​8°C increase​​ indicates undersized wires or poor terminations.

​Insulation tests​​ require applying ​​500VDC​​ for ​​15-30 seconds​​ while measuring leakage current—values above ​​1mA​​ signal potential moisture ingress or damage. In automotive harnesses, ​​100% hipot testing​​ at ​​1.5kV AC​​ reduces field failures by ​​55%​​, though it adds ​​0.20-0.50 per harness​​ in testing costs. For data cables, ​​TDR (Time Domain Reflectometry)​​ units ($7,500+) pinpoint ​​opens/shorts​​ within ​​±5cm accuracy​​ on runs up to ​​100m​​, catching ​​98% of installation errors​​ missed by basic tests.

​Signal integrity validation​​ needs specialized tools—a ​​$12,000 network analyzer​​ measures ​​crosstalk (<-50dB)​​, ​​impedance (55±5Ω for CAN bus)​​, and ​​propagation delay (<5ns/m)​​. In Ethernet cables, testing ​​NEXT (Near-End Crosstalk)​​ at ​​100MHz​​ finds ​​90% of twisted pair issues​​, while ​​return loss (>20dB)​​ ensures proper termination.

​Environmental stress testing​​ separates professional work from amateur efforts. ​​Thermal cycling​​ (-40°C to +85°C) reveals ​​38% of intermittent faults​​, while ​​vibration testing​​ at ​​5-500Hz​​ for ​​4 hours​​ exposes ​​65% of mechanical weaknesses​​. These procedures add ​​50-150 per harness​​ but prevent ​​$5,000+ field repairs​​.

Document every test—​​serialized records​​ reduce troubleshooting time from ​​hours to minutes​​ when issues arise. One aerospace supplier cut diagnostic labor ​​70%​​ by scanning QR codes linking to original test data. While comprehensive testing adds ​​5-8% to project costs​​, it slashes ​​warranty expenses by 40-60%​​, with most ROI periods under ​​180 days​​. The rule is simple: ​​test like your business depends on it—because it does​​.
