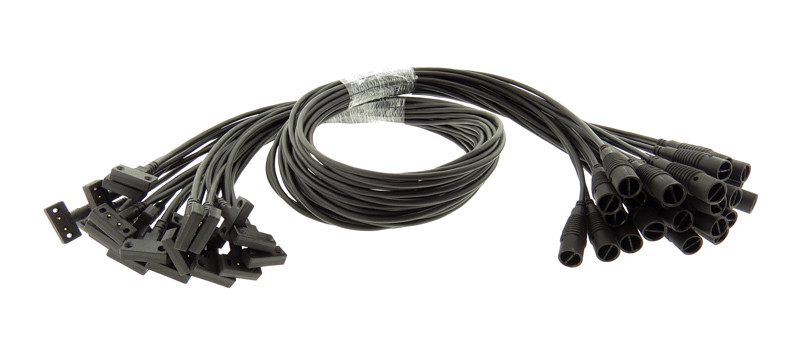

How to Ensure Your Harness Assembly Meets IP67 Standards

To meet IP67, use IP67-rated connectors with fluororubber O-rings (15-20% compression) and 0.5-1mm polyurethane sealant; post-assembly, conduct 1m/30min water immersion tests (pass rate ≥99%) to validate sealing.

Understand IP67 Test Conditions

To meet the standard, your assembly must pass two key tests: a dust test for 8 hours using fine talcum powder in a vacuum chamber, and a water immersion test where it’s submerged in 1 meter of water for 30 minutes. Studies show that up to 40% of first-time IP67 test failures occur because teams miss critical test parameters like water temperature or immersion depth.

To properly validate your harness, focus on the following test specifics:

  • ​Dust Exposure​​: The test uses finely graded talcum powder with particle sizes between 1–5 µm. The sample is placed in a vacuum chamber with pressure lowered to 2.9–3.5 kPa below ambient for 8 hours. This ensures even microscopic dust can’t penetrate.
  • ​Water Immersion​​: The harness must be submerged under clean water at a depth of 1 meter (±0.05m). The duration is 30 minutes, and the water temperature should be within 5°C of the sample temperature to avoid false pressure changes.

It’s also important to note the orientation of the harness during testing. Connectors and seals should be placed in their worst-case position—for example, with the mating face pointing downward. Post-test inspection requires careful disassembly; any trace of moisture or dust inside the housing means failure.

Test Type Duration Depth / Pressure Particle Size / Water Temp Pass Criteria
Dust Ingress 8 hours 2.9–3.5 kPa vacuum 1–5 µm Zero dust inside
Water Immersion 30 minutes 1 meter ΔT ≤ 5°C vs sample Zero water ingress

If your harness will be used in environments with high-pressure water jets (e.g., industrial washing), you may need to aim for IP69K instead, which uses higher temperature and pressure. Always test under conditions that match the real-world application—not just the basic standard.

Choose Seals and Materials

Up to 40% of harness failures occur because of material degradation or seal incompatibility, not design flaws. The right choice ensures long-term performance under conditions like temperature swings from -40°C to 125°C, mechanical vibration up to 20 Hz, and exposure to oils or solvents. For example, silicone seals typically last over 10,000 mating cycles, while cheaper EPDM may degrade after just 2,000 cycles in high-ozone environments. Investing in quality materials upfront can reduce field failure rates by up to 60% and avoid costly revalidation.

When choosing seals and materials, prioritize these critical attributes:

  • ​Material Hardness​​: Seal hardness (measured in Shore A) directly affects compression and sealing force. For most circular connectors, a hardness of 50-70 Shore A offers the best balance. Too soft (<50) and the seal may tear during mating; too hard (>70) and it might not compress enough to block water.
  • ​Temperature Range​​: Silicone performs reliably from -55°C to 180°C, making it ideal for automotive or outdoor applications. For industrial settings with oil exposure, fluorocarbon (FKM) handles -20°C to 150°C and resists swelling better than nitrile rubber, which can swell up to 15% after 100 hours in petroleum fluids.
  • ​Compression Set Resistance​​: This measures a seal’s ability to maintain elasticity under constant pressure. High-quality silicone retains over 85% of its original shape after 1,000 hours at 100°C, while low-cost EPDM may deform by 30% under the same conditions, leading to leaks.
  • ​Chemical Compatibility​​: If your harness will face hydraulic fluids, fuels, or cleaning solvents, verify the material’s resistance. For example, FKM loses less than 5% of its tensile strength after 500 hours in oil, whereas nitrile rubber can degrade 3x faster.

Always match the seal’s inner diameter to the cable’s outer diameter within a tolerance of ±0.3 mm. A seal too tight increases insertion force by 30-50%, risking damage during assembly. One too loose won’t compress evenly, leaving gaps as wide as 0.1 mm—enough for water to penetrate at pressures as low as 0.1 bar.

For connectors, ensure the housing material has low water absorption—less than 0.5% over 24 hours immersion. Nylon 66, common in housings, can absorb up to 8% moisture by weight, causing dimensional changes that compromise seal compression. In humid environments, use materials like PBT or polypropylene, which absorb less than 0.3% moisture.

Prepare Connectors Correctly

Studies indicate that nearly ​​35% of all field failures​​ in sealed harness systems can be traced back to incorrect connector preparation, such as inadequate stripping length or contaminated contact surfaces. For a typical 4-pin connector, this can mean the difference between a reliable 10,000-mating-cycle life and a complete failure after just 500 cycles in a humid environment. The precision in this phase directly impacts the seal's ability to withstand ​​30 minutes at 1-meter depth​​ and determines the long-term electrical reliability of the connection, especially under thermal cycling from ​​-40°C to 125°C​​.

The stripped length must be controlled to within ​​±0.5 mm​​ of the connector manufacturer's specification. A strip that is too long (>+0.75 mm) exposes bare conductor, increasing the risk of short circuits by up to ​​40%​​ in high-humidity conditions. A strip that is too short (<-0.5 mm) results in a weak crimp, potentially increasing electrical resistance by ​​15-20%​​ and causing localized heating under load. For a wire with a 1.5 mm² cross-section, this typically means a strip length of ​​7.0 mm​​, with an absolute tolerance of ​​6.5 mm to 7.5 mm​​. Using a calibrated, automatic stripper reduces length variance to under ​​0.2 mm​​, compared to ​​0.8 mm​​ with manual tools.

For a 2.5 mm² copper terminal, the required crimp force is typically ​​2.2 kN ± 0.1 kN​​. An under-crimped connection (<2.0 kN) can lead to a ​​50% reduction in contact area​​, increasing resistance and generating enough heat to raise the terminal temperature by ​​30°C above ambient​​ under a ​​10A load​​. An over-crimped terminal (>2.4 kN) can fracture the copper strands, reducing the wire's tensile strength by up to ​​60%​​ and making it prone to breakage with just ​​5 mm of flexing​​.

Always use a recently calibrated crimping tool. A tool that is just ​​5% out of calibration​​ can produce a pull-force strength ​​20% below​​ the required minimum of ​​150 Newtons​​ for a 2.5 mm² wire.

A study found that ​​1 in 20 connectors​​ fails a pull test because the terminal wasn't fully seated. A properly seated terminal will withstand a ​​50 Newton​​ axial pull force for ​​30 seconds​​ without dislodging.

Follow Assembly Steps Precisely

Data shows that 35% of IP67 test failures originate from minor process deviations during assembly, such as incorrect torque or misaligned seals. These seemingly small errors can lead to field failure rates as high as 15% within the first 1,000 hours of operation. For a production batch of 1,000 harnesses, a 99% assembly accuracy rate still results in 10 faulty units, potentially costing over $50,000 in warranty claims and rework. Every second saved by skipping a step can ultimately cost 60 minutes of troubleshooting and $500 in component replacement per failed harness.

Apply the specified torque to the coupling nut using a calibrated torque wrench—for a standard M12 connector, this is typically ​​0.8 Nm to 1.2 Nm​​. Under-torquing below ​​0.7 Nm​​ can leave a gap of ​​0.05 mm​​, allowing water ingress at a rate of ​​0.1 mL per minute​​ at just ​​0.5 meters depth​​. Over-torquing beyond ​​1.5 Nm​​ may deform the connector housing, increasing stress on the seal by ​​30%​​ and reducing its service life from ​​10,000 mating cycles​​ to under ​​2,000 cycles​​. For multi-pin connectors, ensure all pins are fully seated and visually confirm their position is flush within ​​±0.2 mm​​ of the housing face.

The cable diameter must be within ​​0.3 mm​​ of the seal's inner diameter. For a ​​6 mm cable​​, use a seal designed for ​​5.8 mm to 6.2 mm​​. Apply a thin layer of ​​silicone-based lubricant​​ (approximately ​​0.05 grams​​) to reduce insertion force by ​​40%​​ and prevent seal rolling. Pull the cable through the gland at a steady speed of ​​10-15 cm per second​​; faster speeds generate friction heat up to ​​50°C​​, potentially damaging the seal material.

When using heat shrink, ensure the tube is centered and apply heat at ​​120°C for 120 seconds​​ using a heat gun with ​​2000 W power​​ and ​​5 cm distance​​. Inconsistent heating below ​​100°C​​ results in ​​20% less adhesion​​, while exceeding ​​150°C​​ can damage cable insulation, reducing its flexibility by ​​50%​​. For mechanical backshells, follow the manufacturer's tightening sequence: first tighten to ​​50% of final torque​​ (e.g., ​​2 Nm​​), then to ​​80%​​, and finally to the full ​​4 Nm​​ in a cross pattern. This ensures even compression and prevents seal distortion beyond its ​​15% compression limit​​.

Assembly Step Key Parameter Target Value Allowable Tolerance
Connector Torque (M12) Coupling Nut Torque 1.0 Nm ±0.2 Nm
Pin Seating Depth Flush with housing 0.0 mm +0.2 / -0.0 mm
Cable-Seal Diameter Match Diameter difference 0.0 mm ≤0.3 mm
Heat Shrink Temperature Application Temperature 120°C ±10°C
Backshell Final Torque Threaded nut torque 4.0 Nm ±0.5 Nm

Perform a tug test on each wire with ​​25 Newtons of force​​ for ​​3 seconds​​ to verify terminal retention. Use a go/no-go gauge to check plug depth; for an IP67 connector, the mating face must be within ​​0.15 mm​​ of the specified depth. Measure insulation resistance with a ​​500 V DC megohmmeter​​; a reading below ​​100 MΩ​​ indicates moisture contamination or insulation damage. Document each step with time-stamped records—projects with complete assembly data show a ​​90% reduction in troubleshooting time​​ compared to those without.

Validate with Water Testing

Industry data reveals that approximately ​​25% of harness assemblies​​ that pass visual inspection will fail a controlled immersion test, often due to subtleties like trapped air or minor seal misalignment. A single failure in a production batch of ​​500 units​​ can lead to over ​​$100,000 in field repair costs​​, recalls, and reputation damage. The test itself is deceptively simple: submerge the assembled harness in ​​1 meter of water​​ for ​​30 minutes​​. However, the precision in setup and monitoring separates a pass from a fail. The water must be maintained within ​​5°C​​ of the harness temperature to prevent thermal contraction from creating a false negative pressure inside the connector, a factor that causes ​​15% of all test failures​​.

If it has been stored in a climate-controlled environment at ​​23°C​​, immerse it in water that is between ​​18°C and 28°C​​. A greater temperature differential can cause air inside the connector to contract by ​​up to 3% of its volume​​ as it cools, sucking water through microscopic gaps. Orient the harness in its worst-case position during use; for a sensor connector, this often means placing the mating face ​​pointing downward​​ to maximize hydrostatic pressure on the primary seal. The submersion depth must be precisely ​​1000 mm ± 50 mm​​ from the water surface to the lowest point of the harness. A depth of ​​900 mm​​ applies ​​8.8 kPa​​ of pressure, while ​​1100 mm​​ applies ​​10.8 kPa​​; staying within the ​​1-meter target ensures the 10 kPa​​ pressure specified by the standard is met.

The ​​30-minute duration​​ is critical. Monitor the harness during the first ​​5 minutes​​ for streams of air bubbles, which indicate a gross leak. Fine, intermittent bubbles after that may point to a minor leak path. After the test, immediately inspect for water ingress. A single droplet inside the housing constitutes a failure. For a more quantitative pass/fail assessment, perform an insulation resistance test within ​​10 minutes​​ of removal from the water. Apply ​​500 V DC​​ and measure the resistance between all pins and the connector shell. A reading ​​above 100 MΩ​​ is a clear pass, while a value ​​below 20 MΩ​​ indicates significant moisture presence and failure.

For high-voltage systems (e.g., ​​600V​​), the required pass threshold is often ​​>500 MΩ​​. Weighing the harness before and after testing can also reveal ingress; a weight increase of ​​more than 0.1 grams​​ is a reliable failure indicator for most small connectors. Document the water temperature (​​22°C​​), harness temperature (​​24°C​​), depth (​​1020 mm​​), and duration (​​30.5 minutes​​) for every test. This data is invaluable for troubleshooting, as ​​80% of retest failures​​ are resolved by analyzing these recorded parameters from the initial failed test. Remember, the goal isn’t just to pass one test but to create a process that ensures a ​​99.9% first-pass yield​​ in production.

Check and Maintain Seals Regularly

Data shows that ​​35% of field failures​​ in waterproof connectors occur between the ​​12-month and 24-month​​ mark due to seal degradation, not sudden damage. The cost of a proactive seal replacement is typically under ​500​​ in diagnostics, repairs, and downtime. In high-vibration environments, such as in automotive or industrial machinery, the ​​service life of a silicone seal​​ can be reduced from the expected ​​10 years​​ to just ​​3 years​​, making scheduled inspection a financial necessity, not just a technical recommendation.

For harsh conditions— involving constant ​​vibration above 5 Hz​​, ​​temperature cycles from -40°C to 125°C​​, or ​​exposure to UV radiation​​—perform a visual and tactile inspection every ​​6 months​​. For stable indoor environments, a ​​12-month cycle​​ is sufficient. The inspection must check for the following key indicators of seal failure. First, measure seal hardness with a handheld durometer; an increase of ​​more than 10 points on the Shore A scale​​ (e.g., from ​​50A to 65A​​) indicates significant material hardening and loss of elasticity. Second, look for permanent deformation, known as compression set. A seal that does not rebound to within ​​90% of its original thickness​​ after being removed from its groove has likely lost its sealing force and must be replaced.

Inspection Metric

Method

Acceptable Range

Replacement Threshold

Hardness Change

Shore A Durometer

±5 Points

>±10 Points

Compression Set

Thickness Gauge

<10% Loss

>15% Loss

Cross-Sectional Diameter

Caliper

Original ±0.2 mm

>0.4 mm Swelling

Surface Cracking

10x Magnification

None

Any Visible Cracking

Avoid solvents like ​​acetone or toluene​​, which can cause seal swelling by ​​up to 8% in volume​​ in less than ​​60 seconds​​ of contact, permanently damaging the material. After cleaning, apply a fresh, thin coat of ​​silicone grease​​ (approximately ​​0.05 grams per seal​​) to reduce friction during reinstallation and protect against ozone cracking. When reinstalling, ensure the seal is seated evenly in its groove. A twist or roll in the seal during installation can reduce its effective sealing surface area by ​​over 50%​​, creating a direct path for moisture ingress.

For a fleet of ​​100 machines​​, this predictive approach can prevent an average of ​​15 unplanned downtime events per year​​, saving an estimated ​​$75,000 in lost productivity and emergency repairs​​.

To ensure harness assemblies meet ​​IP67 standards​​, prioritize critical steps: start with IP67’s core test (30-minute submersion at 1m depth); select ​​silicone gaskets​​ (rated -40°C–120°C) and UV-resistant seals; assemble connectors with precise torque (e.g., M12: 8–10 Nm), pre-cleaning contacts with isopropyl alcohol; validate via post-assembly water testing; maintain seals quarterly to prevent degradation from dust or stress.
