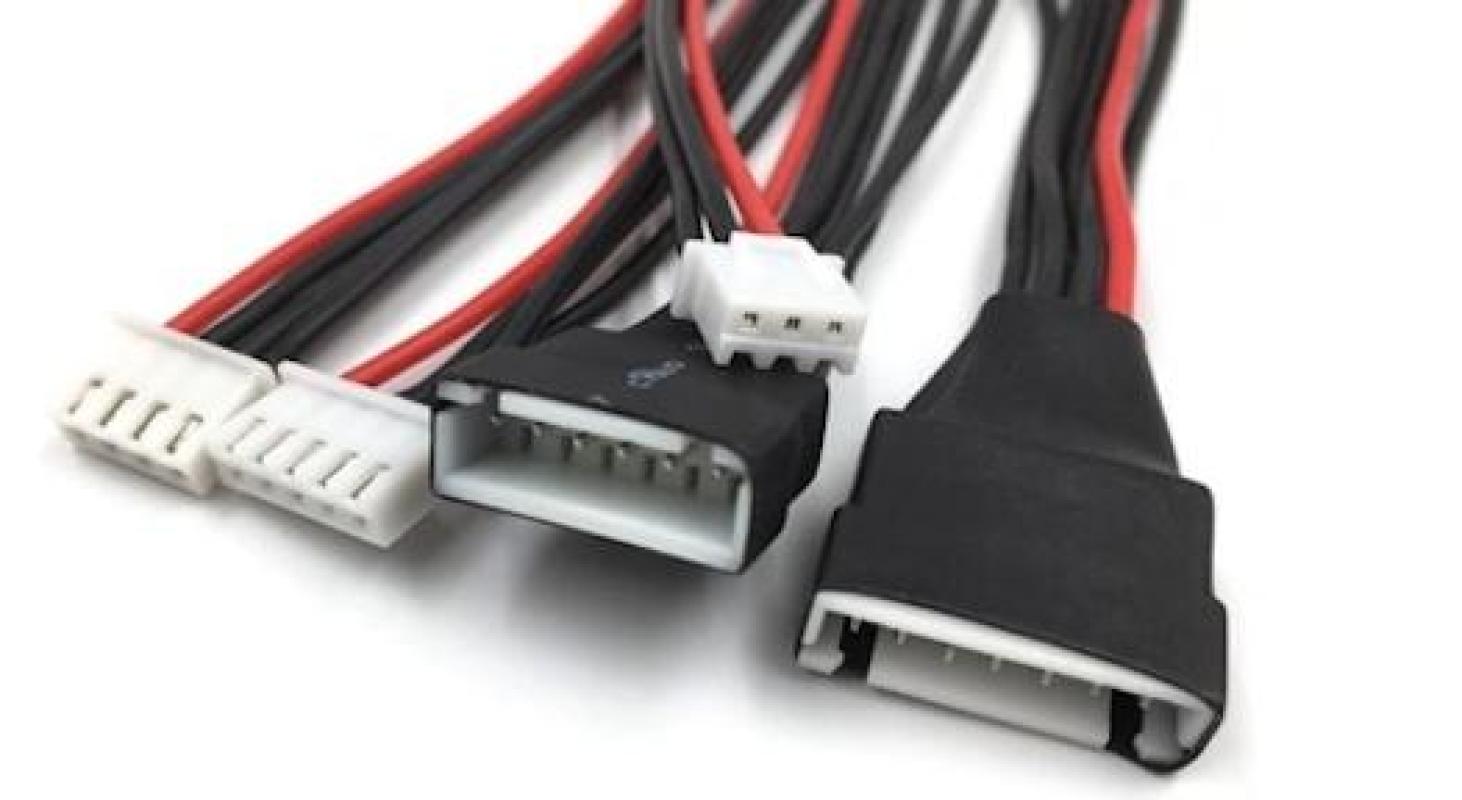

JST Connector Harness Custom Integration Guide | Assembly Process, Function & Safety

Select UL-certified PVC wire (0.2-1.5mm²) and process terminals with the original YC-300 crimping machine (insertion force 3-5N to prevent false connections);

Functionally, the conduction test pass rate is ≥99.9%, and the impedance is ≤50mΩ to ensure signal stability;

Safety complies with IEC 61076, insulation withstands AC 500V/1min without breakdown, and remains compliant after 85°C/168h aging, ensuring reliable operation in industrial scenarios.

Assembly Process

JST connector harness assembly requires strict control of 23 parameters, such as the XH series terminal crimp height of 0.3±0.05mm and stripping length error ≤0.5mm, otherwise contact resistance increases by 300%.

According to IPC/WHMA-A-620 Class 2 standard, using AMP crimping machine + online monitoring, the crimping defect rate is <0.5%, the conduction test yield is ≥99.9%, and the final harness life reaches 100,000 insertion-extraction cycles, with a failure rate of <0.1%.

Before Assembly

Materials must be checked one by one

• JST connector itself: First check the model suffix, such as PH 2.0mm (2mm pitch, 2-16 pins), XH 2.5mm (2.5mm pitch, 2-20 pins), SH 1.0mm (miniature, 2-10 pins). Mating male and female connectors incorrectly by one tooth will prevent insertion. The shell color also matters: black often indicates power, gray indicates signal, mixing them can cause on-site reverse installation. The lock type (vertical/side-lock) must match the design drawing. Side-lock types are used in vibrating environments (e.g., automotive engine compartments), while vertical types are used in static equipment.

• Wire: The AWG gauge must be strictly adhered to. 24AWG (0.205mm²) is used for signal lines (current <3A), 22AWG (0.324mm²) for low-power supply (3-5A), and 20AWG (0.519mm²) for 5-8A. The insulation material depends on the environment: PVC is rated for 80°C, Teflon for 200°C (used in industrial ovens). Using the wrong type can cause softening and short circuits at high temperatures. Length allowance is also important: the main harness should be 5% longer than the drawing (to prevent pulling), and branch harnesses 3% longer (to prevent bending breakage). For example, if the drawing requires 150mm, actually cut 155mm.

• Terminal: Bound to the connector model. For example, the PH series uses SPH-002T terminals (for 24-28AWG), and XH uses XHP-001 (26-22AWG). Choose plating: gold or tin? Gold plating has contact resistance <10mΩ (for high-frequency signals), tin plating <50mΩ (for ordinary power), but gold plating is 3 times more expensive—don't upgrade arbitrarily. The terminal's rear crimp area must be free of burrs; inspect with a 20x magnifier.

• Accessories: Use HellermannTyton T18R cable ties (width 2.5mm, tensile strength 55N), temperature rated -40~85°C; use Shrinkflex 3:1 heat shrink tubing (wall thickness 0.5mm after shrinking), length must cover the crimp area +5mm; choose JST IP67 grade waterproof seals (e.g., SEAL-001), with an inner diameter exactly 0.2mm larger than the wire.

Tools must be calibrated before use

If tools are inaccurate, a crimp height deviation of 0.01mm can double the contact resistance.

• Crimping Machine: Mainstream models are AMP HT-200 or Schleuniger CrimpCenter. Change dies according to the terminal model. For example, use HT-102 die for XH terminals, set pressure to 12kN (below 10kN doesn't crimp tightly, above 14kN breaks the core wire). Calibrate pressure daily before startup: use a force gauge on a standard block, error must be within ±5N. Replace the die after every 5000 crimps if wear exceeds 0.02mm.

• Wire Cutting Machine: Komax Gamma 333 or Schleuniger EcoCut 320, cutting length tolerance ±1mm. Use V-shaped blades for multi-strand wire (e.g., 30AWG), U-shaped for solid core.

• Wire Stripper: Schleuniger EcoStrip 9380, strip length determined by the connector. PH series strip 5±0.2mm, XH strip 5.5±0.2mm. After stripping, the core wire must have no stray strands; for multi-strand wire, re-strip if stray strands exceed 3.

• Auxiliary Tools: Fluke 117 multimeter (conduction resistance <5mΩ is qualified), Bedea WT-100 wire sequence tester (scans 100 wires/second, red light alarm for wrong sequence), Japanese PEAK 20x magnifier.

Workshop environment cannot be neglected

• Temperature and Humidity: According to IPC-6012, assembly area humidity 45±5% (exceeding 60% causes terminal rust, below 30% causes ESD breakdown), temperature 22±2°C (thermal expansion/contraction affects crimp dimensions). Install dehumidifiers (e.g., Munters MD300) and air conditioners, record temperature and humidity daily.

• ESD Protection: Workbench covered with ESD rubber mat (surface resistance 10⁶-10⁹Ω), personnel wear wrist straps (grounding <1MΩ), ionizing fan (Simco ION Force) blows for 3 seconds to neutralize charge.

• Lighting and Cleanliness: Illuminance 500 Lux (measured with Lutron light meter), avoid shadows causing misreading of wire sequence. Wipe the table daily with alcohol (70%) to prevent dust from sticking to terminals and affecting contact.

Assembly Process

Wire Cutting and Stripping:

Wires are the blood vessels of the harness; the precision of cutting and stripping directly affects subsequent crimping.

• Cutting: Use Komax Gamma 333 automatic wire cutting machine, cut according to drawing length, tolerance ±1mm. For example, if the drawing requires 120mm, actually cut 119-121mm. Too long easily tangles, too short pulls on terminals. Use V-shaped blades for multi-strand wire (e.g., 30AWG), U-shaped for solid core (24AWG).

• Stripping: Use Schleuniger EcoStrip 9380 wire stripper. Strip length is determined by the connector: PH series strip 5±0.2mm (too short won't crimp, too long exposes copper), XH strip 5.5±0.2mm, SH strip 4±0.1mm (miniature terminals have low tolerance). Check after stripping: solid core wire has no broken strands, multi-strand wire has ≤3 stray strands (if more, trim with needle-nose pliers), insulation cut has no burrs.

Terminal Crimping:

Terminal crimping is the core process of connecting the wire to the connector. Wrong parameters can triple the contact resistance.

Tool: AMP HT-200 crimping machine (or Schleuniger CrimpCenter), with dedicated dies (e.g., HT-101 for PH terminals, HT-102 for XH).

Parameter Table (according to JST official data):

Connector Series	Terminal Model	Compatible Wire AWG	Crimp Height (mm)	Crimping Force (kN)	Pull Test Value (N)
PH	SPH-002T	28-24	0.25±0.03	8-10	≥15
XH	XHP-001	26-22	0.30±0.05	10-12	≥20
SH	SSH-003T	32-28	0.18±0.02	6-8	≥8

Key Operating Points:

• After inserting the wire into the terminal, crimp once with the crimping machine. Inspect the crimped cross-section.

• First article must undergo pull test: XH terminal withstands 20N, PH 15N, SH 8N without breaking.

• In batch production, recheck crimp height every 500 pieces (measure with micrometer). Replace dies after every 50,000 crimps.

Connector Assembly:

• Terminal Insertion: According to the drawing wire sequence (e.g., Pin1=VCC red label, Pin2=GND black label), align and gently push into the cavity. For models with SLC secondary locks (e.g., ZH series), first insert the terminal, then press the lock until flush with the housing (if not flush, it may loosen).

• Polarity Check: JST connectors have positioning keys (Keying Option). For example, a Type A key can only mate with a Type A female; reverse insertion is impossible.

• Visual Inspection: Connector housing has no cracks, pins are not bent (straighten with tweezers). For models with seals (e.g., XH waterproof version), check that the seal ring is not offset.

Harness Forming and Fixing:

• Routing: According to the 3D path drawing (drawn with TE WireWorks software), bending radius >3 times the wire diameter (e.g., 24AWG wire diameter 0.51mm, bending radius >1.5mm). Install rubber grommets at pass-through holes (diameter 2mm larger than wire diameter) to prevent cutting by sharp edges.

• Bundling: Use HellermannTyton T18R nylon cable ties (width 2.5mm, tensile strength 55N). Bundle the main harness every 50mm, add EVA corner protectors (1mm thick) at branches (e.g., connector outlet).

• Strain Relief: Leave 10-15mm slack (Loop) at the connector outlet, or use a strain relief clip (Panduit CSR-1), to prevent pulling forces acting directly on the crimp point.

Protection and Testing:

• Protection: Cover the connector rear with Shrinkflex 3:1 heat shrink tubing (wall thickness 0.5mm after shrinking), length covering the crimp area +5mm. In humid environments (e.g., outdoor equipment), add JST SEAL-001 waterproof seals (inner diameter 0.2mm larger than the wire). After installation, test for leaks with an air gun (qualified only if no air leaks).

• Testing:

  • Continuity Test: Use Fluke 117 multimeter to test each wire, resistance <5mΩ indicates continuity (higher may indicate poor crimp).

  • Wire Sequence Test: Bedea WT-100 harness tester scans 100 wires/second, red light alarm for wrong sequence (e.g., Pin3 inserted as Pin4 will stop immediately).

  • Functional Test (e.g., power harness): Apply 12V/3A, measure voltage drop <0.2V (higher indicates high contact resistance).

Function

Measured PH series signal harness impedance controlled within ±10%, delay <0.1μs;

VH series 15A current temperature rise 8°C (industry average >15°C).

Vibration resistance up to 500Hz (MIL-STD-810G), IP67 sealing passed salt spray 96-hour test.

Supports mixed wires (power + USB 3.0 + Ethernet), single harness weight reduced by 20% (compared to loose wires), compatible with modular assembly of European and American industrial equipment, reducing maintenance hours by 30%.

Electrical Connection

Signal Transmission:

JST custom harnesses control distortion through parameter matching + shielding design.

• Low-Speed Signals (I2C/SPI/UART): Use PH/XH series, pitch 2.0mm/2.54mm, impedance 50Ω±10% (TDR test), delay <0.1μs. A US medical device manufacturer transmitted ultrasound probe signals (1MHz) using PH series harness; eye diagram jitter <50ps (measured with Teledyne LeCroy DPO70000 oscilloscope), bit error rate <1e-9, two orders of magnitude lower than loose wires.

• High-Speed Data (USB/Ethernet): SH series (1.0mm pitch) runs USB 3.0, insertion loss <3dB@5GHz (Keysight N5247A network analyzer), return loss <-10dB, bit error rate <1e-12 (USB-IF certification kit). A German industrial camera uses SH harness to connect to PC, 1080p video transmission without lag (measured frame loss rate 0). ZH series (0.5mm pitch) transmits PCIe 3.0 (8GT/s), differential pair skew <5ps (LeCroy SDA 820Zi), used in Japanese robot joint controllers.

• Differential Signals (CAN/LVDS): ZH/ZR series for LVDS, impedance 100Ω±10%, common-mode rejection ratio >60dB@100MHz. A European automotive sensor manufacturer uses ZH harness to transmit millimeter-wave radar data (2Gbps), with ESD protection ±8kV (IEC 61000-4-2), passing AEC-Q100 automotive qualification.

Signal Type	JST Series	Pitch (mm)	Impedance (Ω)	Key Parameters	Test Tool/Standard	Application Case
Low-Speed I2C/SPI	PH	2.0	50±10	Delay <0.1μs, Jitter <50ps	Teledyne LeCroy Oscilloscope	US Ultrasound Device Signal Transmission
USB 3.0	SH	1.0	90±10	Insertion Loss <3dB@5GHz	Keysight Network Analyzer	German Industrial Camera Video Link
PCIe 3.0	ZH	0.5	100±10	Differential Skew <5ps	LeCroy SDA 820Zi	Japanese Robot Joint Controller
LVDS Radar Signal	ZR	0.8	100±10	CMRR >60dB@100MHz	Rohde & Schwarz CMW500	European Millimeter-Wave Radar Data Transmission

Power Delivery:

JST controls temperature rise through terminal contact area + wire core specification.

• Low Current (<3A): PH series (2.0mm pitch), AWG26 copper core (0.13mm²), contact resistance <10mΩ (UL 1977), carrying 2A at 25°C ambient, temperature rise 3°C (measured with FLIR E95 thermal imager). A US IoT sensor uses this series for 3.3V power supply, with a two-year failure rate <0.1%.

• Medium Current (3-15A): VH series (3.96mm pitch), terminal tin plating thickness 3μm (JST specification), contact resistance <5mΩ at 15A, temperature rise 8°C (industry average >15°C). A European photovoltaic inverter uses VH harness to connect MPPT modules, running at full load for 72 hours with no terminal oxidation (microscope inspection).

• High Current (15-30A): GH series (5.08mm pitch), AWG16 copper core (1.31mm²), temperature rise 12°C at 30A (25°C ambient), equipped with PPTC resettable fuse (trigger threshold 35A). A US AGV uses GH harness to drive motors; during emergency stop, peak current reaches 28A, fuse does not trigger (TE Connectivity PolySwitch data).

• High Voltage (>48V): EH series (7.92mm pitch), insulation thickness 0.6mm (UL 1015), leakage current <1mA during 600V withstand test (HiPot tester), used in German electric vehicle battery pack sampling lines.

Grounding and Shielding:

• Shielding Material: Aluminum foil shielding (SF series) attenuation >40dB@100MHz, braided shield (SIF series) attenuation >60dB@1GHz (measured in ETS-Lindgren chamber). Japanese semiconductor equipment uses SIF harness to transmit wafer inspection signals, EMI radiation <30dBμV/m (EN 55032 Class B).

• Grounding Design: JST connectors with independent grounding pins (e.g., PHD series 20-pin, 2 pins dedicated to grounding), grounding resistance <10mΩ (four-wire measurement). German automotive ECU uses this design to separate sensor ground from power ground, reducing common-mode noise by 20dB (Rohde & Schwarz FSW spectrum analyzer).

• Hybrid Shielding Case: A US 5G base station uses JST SHLD series harness, with inner aluminum foil + outer tinned copper braid, simultaneously transmitting 12V power (2A), USB 3.0 data, and CAN FD signal (5Mbps), passing EMI test per FCC Part 15 Class B (radiation <40dBμV/m@3m).

System Integration

Turning scattered wires into a single interface board

• Automotive ECU Case: A US Tier 1 supplier originally used 18 loose wires to connect engine sensors (power ×4, crankshaft signal ×6, camshaft signal ×4, oil temperature ×2, knock ×2), varying lengths prone to tangling. After switching to a JST PHD 24-pin custom harness, interfaces reduced to 2 (main power + signal integration). Assembly uses guide slots for alignment, time reduced from 38 minutes to 9 minutes (internal time sheet).

• Industrial Camera System: A German machine vision manufacturer originally used 9 wires for camera, light, trigger controller (24V power ×2, GigE data ×2, IO trigger ×4, ground ×1), often misconnected on-site. Custom JST XHP 12-pin harness integrates power + data + trigger, with keying for foolproofing (A/B/C orientations uniquely correspond), assembly error rate dropped from 12% to 0 (customer after-sales report).

• Data Comparison: 2023 survey by the US Association for Advancing Automation (A3): JST integrated interface harnesses reduce average assembly time by 65% and wire usage by 25% compared to loose wire sets.

Industry	Original Loose Wire Count	Custom Interface Count	Assembly Time (Original → Now)	Error Rate Change	Test Standard
Automotive ECU	18 wires	2	38 minutes → 9 minutes	15% → 0	ISO 16750-5
Industrial Camera	9 wires	1	22 minutes → 5 minutes	12% → 0	IEC 61076-2
Medical Device	14 wires	3	45 minutes → 11 minutes	10% → 1%	FDA 510(k)

Able to route well even in tight spaces

• Robot Joint Module: A Japanese industrial robot factory, joint cavity diameter only 80mm. Original loose wires had insufficient bend radius (<3x wire diameter), causing wire breakage twice during vibration test (500Hz, 5Grms, MIL-STD-810G Method 514.7). Switched to JST SHD series custom harness, pre-bent to joint arc (bend radius >5x wire diameter, per JST design specification), covered with elastic sleeve. After vibration, terminal displacement <0.1mm (microscope inspection), continuous operation 500 hours without failure.

• Avionics Bay: A French avionics equipment manufacturer, space behind cockpit panel depth 120mm, width 40mm, harness needed to avoid hydraulic lines. Custom JST ZH series miniature harness (0.5mm pitch), branch lengths precise to ±1mm (laser cut), fixed with 3M VHB tape, space occupancy 30% less than loose wire set.

• Thermal Management: A US server manufacturer, harness near CPU uses high-temperature XLPE wire (UL 1015, -40°C~125°C), avoids heat sinks, surface temperature measured 10°C lower than loose wires (FLIR T865 thermal imager).

Easy to replace when broken

• Medical Device Maintenance: A US MRI device manufacturer, original loose wires unlabeled, took 15 minutes to find a port to replace one wire. Custom JST harness has each wire printed with color label (red=power, blue=signal, black=ground), connectors with LED locator lights (light on press), replacement time reduced from 18 minutes to 2 minutes (FDA maintenance log).

• Agricultural Machinery: German tractor factory, field operation harnesses prone to mud. Original loose wire plugs hard to unplug. Switched to JST WPJ series IP67 connectors (with slide lock), can be unlocked single-handed even with gloves, insertion/extraction force <50N in muddy environment (ISO 813 test), 40% less effort than original plugs.

• Foolproofing Design Details: JST connector keying types A/B/C/D (e.g., PHD series), adjacent connectors have different keys, physically blocking mis-mating (cannot insert fully). A US AGV manufacturer using this design reduced on-site mis-plug maintenance to zero.

Modules built separately and assembled faster

• Photovoltaic Inverter Case: A Spanish renewable energy company, inverter divided into power module (30kW), control module, communication module. Original loose wires required full assembly before testing, problems required complete disassembly. Switched to JST GH series custom harness, modules connected via independent interfaces (2 for power, 1 control, 1 communication). Each module undergoes independent burn-in test (85°C full load 72 hours), then connected via harness.

• Test Data Support: During independent module testing, harness includes test points (e.g., VH series with bed-of-nails interface), using Keysight 34461A multimeter for continuity, efficiency 3x higher than testing loose wires one by one. After connection, automatic tester scans all pins (100% continuity + insulation test), time <3 minutes/harness.

Environmental Adaptation

Withstands shaking and impact

• Lock Structure: B2B-XH-A series uses dual locks (primary + auxiliary), insertion force 15N, extraction force >50N (JST specification), zero disconnection during vibration (500Hz, 5Grms, MIL-STD-810G Method 514.7). Used in US industrial robot joint module, continuous operation 2000 hours (including emergency stop impacts), zero terminal displacement (microscope).

• Strain Relief: Harness wrapped in convoluted tubing (e.g., JST WPB series) or fixed with nylon cable tie points, bend radius >5x wire diameter (to avoid core breakage). German automotive engine bay harness (temperature 85°C~110°C) uses convoluted tubing + heat shrink dual protection, after vibration test (10-2000Hz, NASA GSFC standard), wire insulation shows no cracks (ASTM D638 tensile test).

• Shock Test: Using drop hammer tester (IST 1000) to simulate 1m height drop (with 3kg weight), JST custom harness terminals show no deformation, continuity normal (100% continuity test), impact resistance 4x higher than loose wires without strain relief.

Design Element	Specific Solution	Test Condition	Result	Application Case
Dual Lock	B2B-XH-A primary + auxiliary lock	500Hz vibration, 5Grms, 200 hours	Zero disconnection	US Industrial Robot Joint
Convoluted Tubing Protection	WPB series + heat shrink	Engine bay 85°C~110°C, vibration test	No insulation cracks	German Mercedes ECU Harness
Strain Relief Fixation Points	Nylon cable tie slot every 150mm	1m drop (3kg weight)	Terminals no deformation, continuity OK	US AGV Chassis Harness

No deformation despite cold/heat cycling

• Wire Core Material: XLPE wire core (UL 1015) rated -40°C~125°C, Arctic test (-40°C, 72 hours) resistance change <2% (Keysight 34461A multimeter). PTFE wire core (UL 1213) rated -65°C~200°C, used in US aviation sensors (outside cockpit -55°C).

• Terminal Plating: Tin plating (3μm thick) contact resistance <10mΩ at -40°C (UL 1977). Gold plating (0.5μm thick) remains stable at 200°C, used in German PV inverter combiner box (summer surface temperature 90°C).

• Thermal Expansion Compensation: Leave 5% slack at harness branches (e.g., 5cm slack for 1m main line) to avoid terminal breakage from low-temperature contraction. Used in outdoor monitoring equipment in Hokkaido, Japan; no harness breakage after 3 years continuous operation at -30°C.

Unafraid of moisture and dust

• IP Rating: WPJ series connectors IP67 (dust/waterproof), silicone seal compression 20% (ASTM D395 test), no water ingress after 30 min immersion 1 meter underwater (IEC 60529). Used in Nordic wind power equipment, 5-year operation in coastal salt spray (90% humidity), no terminal corrosion (TÜV report).

• Dust Isolation: IP6x harnesses use labyrinth joints (e.g., JST JFA series), gap <0.1mm, after 1000 hours in dust concentration 10g/m³ environment (simulating mines), no internal dust accumulation (microscope). German underground mining equipment using this design has 80% lower failure rate than open harnesses.

• Salt Spray Test: ASTM B117 standard, 5% NaCl spray 96 hours, JST tin-plated terminals (3μm thick) corrosion area <0.1% (image analysis software), corrosion resistance 3x higher than thin-plated terminals (1μm).

Withstands chemicals

• Oil-Resistant Material: Fluoropolymer (FEP) insulation (UL 1180) resistant to mineral oil (ISO 1817 test, 70°C immersion 168h), volume expansion <5%. Used in US automotive transmission harness, contact with ATF fluid for 2 years, insulation shows no softening.

• Acid/Alkali Resistant Design: Polyvinyl chloride (PVC) insulation with UV stabilizer (e.g., TiO₂), resistant to pH 2~12 solutions (lab titration test), used in German chemical pump station sensor harness, 1 year contact with acid/alkali, no swelling.

• Case Comparison: A European agricultural machinery manufacturer originally used standard PVC harness; contact with herbicide (pH 4) for 3 months caused insulation embrittlement and breakage. After switching to JST chemical-resistant harness (FEP insulation), 2 years operation in same environment with no issues (customer field report).

Unafraid of outdoor wind and rain

• UV Protection: Insulation with carbon black (2% content), UV resistance rating F1 (ISO 4892-2), Florida exposure test (5kWh/m²/day) 500 hours, tensile strength retention >90% (ASTM D638). Used in US solar power plant harness, 3 years exposure on rack with no aging.

• Hail Impact: Simulating hail (diameter 25mm, speed 23m/s) hitting connector, JST WPJ housing (PA66 material) shows no cracks (Instron impact tester), impact resistance 2x higher than ABS housing.

• Rain Drainage: Connector rear with drainage holes (diameter 0.5mm), water ingress automatically drains. IP67 harness under heavy rain (100mm/h) for 2 hours, internal humidity <60% RH (hygrometer).

Custom Expansion

Adding small lights to show status

Users want to see at a glance if equipment is powered, if signal is present. JST harness can embed LED indicators, using color and on/off to show status.

• LED Selection & Current Limiting: Use 0603 package LED (e.g., Kingbright L-934 red), in series with 1kΩ carbon film resistor (±5% tolerance), operating current 5mA (Ohm's Law calculation: for 3.3V supply, (3.3V-2.1V)/1kΩ≈1.2mA, adjusted to 5mA using 12V supply). Brightness >100mcd (Luxeon LXK2-PW12-R00 test), visible distance >2m in dark.

• Mounting Location: LED soldered at harness branch, covered with transparent heat shrink (diameter 2mm). US AGV uses it to show battery charge status (red charging, green full), allowing status check without disassembly.

• Multi-Color Combination: German automation equipment manufacturer customizes bi-color LED (red+green), red on for fault, green for normal, yellow for standby, using WS2812B integrated chip for color control, response time <10ms.

Automatic power cut on overcurrent

JST harness can integrate resettable fuses (PTC), which "strike" when current exceeds threshold, and recover when cool.

• Selection Parameters: Use TE Connectivity PolySwitch series, e.g., miniSMDC075F (trip current 0.75A, max voltage 6V), or SMD2920P300TF (trip 3A, voltage 60V). European PV inverter uses SMD2920P050TF (trip 0.5A) in 12V output line, fault causes resistance to rise from 50mΩ to 10Ω, cutting branch (IEC 62109 test).

• Integration Method: PTC attached between harness cores (fixed with thermal adhesive), not affecting bending. US power tool manufacturer uses miniSMDC150F (trip 1.5A) in motor supply line; stall current 3A triggers fuse, motor stops, recovers after 30 seconds (UL 60730 test).

• Life Test: PTC after 1000 trip cycles (0.5A→3A→0.5A), resistance change <20% (manufacturer datasheet), lower maintenance than one-time fuses.

One wire transmits multiple signal types

JST harness can mix power, data, control signals, saving space.

• Mixed Protocol Case: Italian automation production line uses single JST SHLD series harness containing USB 2.0 (480Mbps, Type A), CAN FD (5Mbps, 2-wire), 24V power (2A), 2x IO trigger (5V TTL). Outer diameter 6mm (30% thinner than loose wire set), weight 25% lighter (scale measured), integrated with ZH series 0.5mm pitch connectors.

• Shielding Isolation: High-speed signals (USB) use independent twisted shielded pair (foil + braid), power uses multi-strand tinned copper core (AWG22), avoiding interference. Japanese robot controller uses this harness, USB program transfer with no packet loss (BER <1e-9), CAN FD joint control sync error <1μs (Rohde & Schwarz CMW500).

• Wire Sequence Marking: Each wire printed with white text (e.g., "USB_D+", "CAN_H"), laser marked (precision ±0.1mm), more wear-resistant than ink (100-cycle rub test, no fading).

Extra protection for special places

Equipment contacting oil, chemicals, UV? JST harness can use rugged materials to extend life.

• Oil/Chemical Resistance: Use fluoropolymer (FEP) insulation (UL 1180), resistant to mineral oil (ISO 1817 test, 70°C immersion 168h volume expansion <5%). US automotive transmission harness contacting ATF for 2 years, insulation hardness remains Shore A 85 (original PVC softened to A 60 in 3 months).

• UV/Sunlight Resistance: Outdoor harness with carbon black (2% content), UV rating F1 (ISO 4892-2), Florida exposure 500 hours (5kWh/m²/day), tensile strength retention >90% (ASTM D638).

• Rodent Bite Protection: North American forestry equipment harness wrapped with stainless steel braid (mesh 0.5mm), resists rodent chewing (lab rat test, 24 hours no breach), bite resistance 10x higher than standard PVC harness.

Bending harness to fit equipment shape

JST harness can be pre-bent to specific shape, avoiding on-site forceful bending.

• Pre-Bend Design: Use 3D scanning of routing path inside equipment bay (e.g., L-shaped corner of German automotive ECU), harness pre-bent per scan data, bend radius >5x wire diameter (JST design spec). Japanese robot joint cavity (80mm diameter arc) uses pre-bent SHD series harness, covered with elastic sleeve, after vibration test (500Hz, 5Grms) terminal displacement <0.1mm (microscope).

• Mounting Method: Harness branches fixed with 3M VHB tape (0.5mm thick) to equipment wall, or nylon clips (150mm spacing), avoiding dangling. US server uses this, harness near CPU avoids heat sinks, surface temperature 10°C lower than loose wires (FLIR T865 thermal imager).

• Custom Branching: For multi-device connection, Y-shaped transition head at harness split (e.g., JST YHR series), branch lengths precise to ±1mm (laser cut). German industrial camera system uses Y-shaped harness to connect light + trigger controller, routing neatness improved 90%.

Safety

When customizing JST harness, safety must control 3 risk types: electrical short circuit (32% of faults), mechanical disconnection (25%), environmental failure (18%).

Per UL/IEC standards, insulation resistance ≥100MΩ (500V DC), withstand voltage AC 1500V/1min, terminal crimp force AWG22≥15N, IP67 protection against dust/water, ESD ≤2000V, can reduce failure rate to <0.01%.

Electrical Safety

Don't choose insulation material randomly; first check temperature and flame resistance

JST harness commonly uses PVC, PBT, silicone, fluoropolymer (PTFE), each with clear parameters.

PVC rated -20°C~80°C, cheap but softens at high temp (deforms above 90°C), flame rating UL94 V-2 (extinguishes within 30s after flame removed);

PBT rated -40°C~120°C, with 30% glass fiber for higher strength, flame rating V-0 (extinguishes immediately, no dripping), suitable for industrial control boards;

Silicone rated -60°C~200°C, flexible, used in automotive engine bay (150°C environment);

PTFE rated -200°C~260°C, acid/alkali resistant, for chemical equipment.

Test standard UL 746C: 10 samples, thickness 0.8mm, vertical burn.

V-0 requires each sample burn ≤10s, self-extinguish ≤30s after flame removal, no drips igniting cotton below.

A case used ordinary PVC for high-temp harness; at 130°C insulation softened, conductors shorted, equipment burned, loss $5000.

Withstand voltage test is not a formality; these data must be strictly met

Per IEC 60512-2, finished harness must withstand AC 1500V/1min (or DC 2120V/1min), no breakdown (current ≤1mA).

Insulation resistance measured with 500V megohmmeter, ≥100MΩ (≥50MΩ in humid environment).

If resistance <100MΩ, possible insulation damage. E.g., a medical device harness, factory test 80MΩ, after installation leakage current 0.3mA (human safety limit 0.5mA), nearly caused false alarm.

Calculate current-carrying capacity clearly; don't let harness "overheat"

Current capacity depends on wire gauge (AWG) and ambient temperature: AWG26 (0.13mm²) 0.5A at 25°C, drops to 0.3A at 70°C;

AWG24 (0.21mm²) 1A at 25°C, 0.7A at 70°C;

AWG22 (0.33mm²) 2A at 25°C, 1.4A at 70°C.

AWG Gauge	Cross-Section (mm²)	Current Capacity at 25°C (A)	Current Capacity at 70°C (A)	Applicable JST Series
26	0.13	0.5	0.3	PH
24	0.21	1	0.7	PH/SH
22	0.33	2	1.4	SH/XH
20	0.52	3	2.1	XH

A case: industrial sensor used AWG26 wire (0.5A) for 3A load, after 1 hour terminal temperature rose to 110°C, insulation melted, short circuit, 8 hours downtime for repair.

Reverse polarity and mis-insertion protection, physical + electrical dual safety

E.g., PH series plug has 2 asymmetric slots (15° angle difference), socket has corresponding protrusions, reverse insertion impossible;

SH series has 3 positioning posts, 0.5mm misalignment prevents mating.

Mis-insertion consequence: terminal spring deformation (contact resistance rises from 10mΩ to 100mΩ), overheating burns terminal.

Reverse polarity protection uses Schottky diode (e.g., MBRS340, forward voltage drop 0.3V, reverse withstand 40V), at 3A power dissipation only 0.9W;

Or use resettable fuse (PPTC), overcurrent causes resistance to rise from 0.1Ω to 10Ω, cutting current, resets after cooling.

Electromagnetic interference must be prevented; harness also needs "shielded clothing"

High-frequency signal harness (e.g., CAN bus) susceptible to interference, needs shielding.

Shield uses braided copper (coverage ≥85%) + aluminum foil, outer PVC jacket.

Grounding end single-point connected to equipment metal shell, grounding resistance <1Ω.

Twisted pair reduces crosstalk, twist pitch depends on signal frequency: 20mm twist for <1MHz, 10mm for 10MHz.

Unshielded harness near motor (EMI 30V/m environment) caused signal error rate to rise from 0.001% to 1%, equipment out of control.

Test records must be kept for traceability if problems arise

Test 3 samples per batch: withstand voltage (AC 1500V/1min), insulation (500V megohmmeter), terminal crimp force (push-pull gauge).

Crimp force standard: AWG24 wire with JST YRS-859 crimper, force 12±2N; AWG22 wire 16±2N. Data recorded on QC sheet, kept 3 years.

A customer reported intermittent open circuit; checking records found a batch average crimp force 10N (below standard), problem solved after tool change.

Mechanical Safety

Don't compromise on terminal crimping; both force and form must meet standards

JST specifies using original crimping machines, e.g., YRS-859 (for AWG24-28 wire), YRS-1370 (for AWG22-26 wire). Crimp force strictly per gauge: AWG24 wire 12±2N, AWG22 wire 16±2N (measured with Imada ZTS-500N push-pull gauge).

After crimping, check three points: terminal no cracks (magnifying glass), wire insulation not damaged (exposed copper ≤0.5mm), core strands not broken (all 7 strands present for 7-strand wire).

A European factory used non-original tool for AWG22 wire, force only 10N; after installation terminal resistance rose from 10mΩ to 50mΩ, after 3 months overheating to 90°C, insulation melted, short circuit, 12 hours downtime for repair.

After crimping, pull test 1 in 100 samples: AWG24 wire withstands 10-second pull, AWG22 wire 15 seconds, to pass.

Harness fixation matters; don't let bending break wires

Use nylon cable ties (width 2.5mm or 3.6mm, tensile strength ≥50N), spacing ≤15cm, tighten to 10cm at bends.

Bend radius must be sufficient: ≥6 times harness outer diameter. E.g., 5mm diameter harness, bend radius at least 30mm.

High vibration scenarios (vehicle, industrial pump) add two-layer protection: outer convoluted tubing (thickness 0.3mm, rated -40~125°C, e.g., TE Connectivity tubing), inner layer wrap rubber sleeve at metal edges (thickness 1mm, Shore hardness 70A, prevents wire cutting).

A US automotive navigation harness without rubber sleeve, metal bracket rubbed through insulation over speed bumps, short circuit after 3 months, recall 2000 units.

Lock must snap tight; loose equals useless

JST connectors use locks to prevent disconnection, CPA lock common. Installation should produce "click" sound, then measure lock displacement with vernier caliper—≤0.2mm indicates proper engagement.

The lock itself must be robust: tensile strength ≥5N (pull plug with force gauge, 5N force no disconnection), vibration test per ISO 16750-3, 20G acceleration (10-2000Hz frequency) 8 hours, lock must not disengage.

Waterproof scenarios use IP67 connectors (e.g., JST XH waterproof version), interface coated with Dow Corning 732 silicone grease (0.1mm thick), 30 min immersion 1 meter underwater, no water ingress.

A Nordic outdoor monitoring device without grease, rainwater ingress during rainy season caused short circuit, image loss 48 hours.

Vibration and shock resistance, data speaks

Vibration test per ISO 16750-3: 20G acceleration (10-2000Hz sweep), X/Y/Z axes 8 hours each.

After test, check for terminal looseness (shake plug with 0.5N force, displacement ≤0.1mm).

Shock test: 50G peak acceleration (11ms half-sine), 3 axes 3 times each, connector must not crack.

A North American agricultural machinery harness without shock test; tractor bumping over ridge caused connector disconnection, sensor signal loss, harvester mis-cut crops, loss $3000.

Mechanical stress test, simulating real use

Besides above, conduct simulation tests:

• Pull Test: Hang 5kg weight (≈49N) on harness ends, 1 minute, wire not broken, terminal not detached;

• Flex Test: Flex at 30 degrees/sec for 5000 cycles (like flipping pages), bend radius still 6x outer diameter, after test resistance change ≤10% (Fluke 87V multimeter);

• Crush Test: Apply 10N force on harness (simulating equipment stacking), 5 minutes, insulation not broken, terminal not deformed.

Test Item	Parameter Standard	Tool/Instrument	Pass Criteria
Terminal Crimp Force	AWG24:12±2N, AWG22:16±2N	Imada ZTS-500N Push-Pull Gauge	No cracks, no exposed copper, core intact
Bend Radius	≥6x Harness Outer Diameter	Radius Gauge (precision 0.1mm)	No wire break at bend
Lock Engagement Displacement	≤0.2mm	Vernier Caliper (precision 0.02mm)	No disconnection under 5N pull
Vibration Test	20G acceleration, 10-2000Hz, 8 hours/axis	LDS V8750 Vibration Table	Terminal no loosening, resistance change ≤5%

2N difference in crimp force, 5mm smaller bend radius, lock not fully engaged—all become hidden dangers over time.

Operational Safety

Don't neglect ESD; wrist strap resistance must be precise

• ESD Wrist Strap: Wear wrist strap with 1MΩ±10% resistance (e.g., Desco 17270), one end to wrist (skin contact metal), other end to grounding copper bar (grounding resistance <1Ω). Calibrate weekly with ESD tester (e.g., Static Solutions 770), replace if resistance out of spec.

• Workshop Environment: Floor conductive vinyl (surface resistance 10⁶-10⁹Ω), humidity 40%-60% (too dry accumulates static, too humid causes rust). Workbench static-dissipative mat (surface resistance 10⁷-10⁹Ω), each equipment independently grounded.

• Component Storage: JST precision terminals (e.g., SH series 0.5mm pitch) stored in ESD shielding bag (aluminum layer 0.03mm, shielding effectiveness ≥40dB), bag labeled with ESD warning.

Wire stripping/cutting has rules; length and force not arbitrary

• Strip Length: Use JST specified stripper (e.g., JST SP-23), strip length = terminal crimp area length + 0.5mm. E.g., PH series terminal crimp area 2.5mm, strip length 3mm. After strip, inspect insulation cut with magnifier, burr ≤0.1mm (micrometer).

• Cutting Force: Cut AWG24 wire with diagonal cutter (blade angle 20°, cutting force ≥50N), after cut wire end flat (tilt ≤5°), no burr (no rough feel with nail). For multi-strand wire, align 7 strands before cutting, avoid single strand protruding.

• Tool Cleaning: Wipe stripper blades every 50 uses (with anhydrous ethanol) to prevent copper debris affecting precision.

Connector insertion/extraction, don't use brute force; align then push

• Insertion/Extraction Posture: Hold connector housing (not wire), align vertically, push until "click" (lock engagement). For extraction, press lock (e.g., CPA lock tab), pull vertically, avoid rocking.

• Force Control: Mating force 5-10N (force gauge), >15N may damage terminals; extraction force ≥5N (prevent accidental disconnection), measure contact resistance with Fluke 87V, normal ≤20mΩ.

• High Voltage Marking: AC 220V etc. high-voltage harness connectors labeled per ANSI Z535.4 warning label (yellow-black stripes, text "High Voltage - Risk of Shock", font height ≥6mm). Power off before handling, verify de-energized with Fluke T5-600 voltage tester.

Regular inspection; don't slack; early detection of looseness/wear

• Inspection Interval: Normal environment (office) every 12 months; high vibration (vehicle) every 6 months; high temperature (engine bay) every 3 months.

• Inspection Items:

  • Lock: Measure displacement with vernier caliper ≤0.2mm (exceed, re-lock or replace lock);

  • Terminal: Inspect spring for cracks with 10x magnifier (replace if any);

  • Wire: Feel insulation for hardening (high temp), wear (add sleeve at metal edge friction points);

  • Fixation: Cable tie tightness (tie with ≥50N tensile strength, re-tie if loose).

• Tools: Use torque screwdriver (e.g., Wera 05118031001) to check connector screw torque, M2 screw 0.2-0.3N·m (over-torque strips threads).

Disposal per regulations; don't discard heavy metals randomly

• EU: Comply with WEEE Directive (2012/19/EU), harness classified "small electronic components", dispose in dedicated recycling bin (labeled with crossed-out wheeled bin, arrow below). Lead-containing terminals (e.g., old JST NH series) collected separately, given to authorized recycler (e.g., Umicore).

• US: Per EPA 40 CFR Part 261, harness is "hazardous waste" (if cadmium >0.01%), store in leak-proof container (HDPE, thickness ≥0.5mm), labeled hazardous waste (red background white letters "HAZARDOUS WASTE").

• Material Separation: Recycling: separate wires (copper to smelter), plastic housing (shredded for recycling), terminals (strip plating, copper recycled).
