JST Connector Harness Custom Pricing | Quantity, Complexity & Support Level

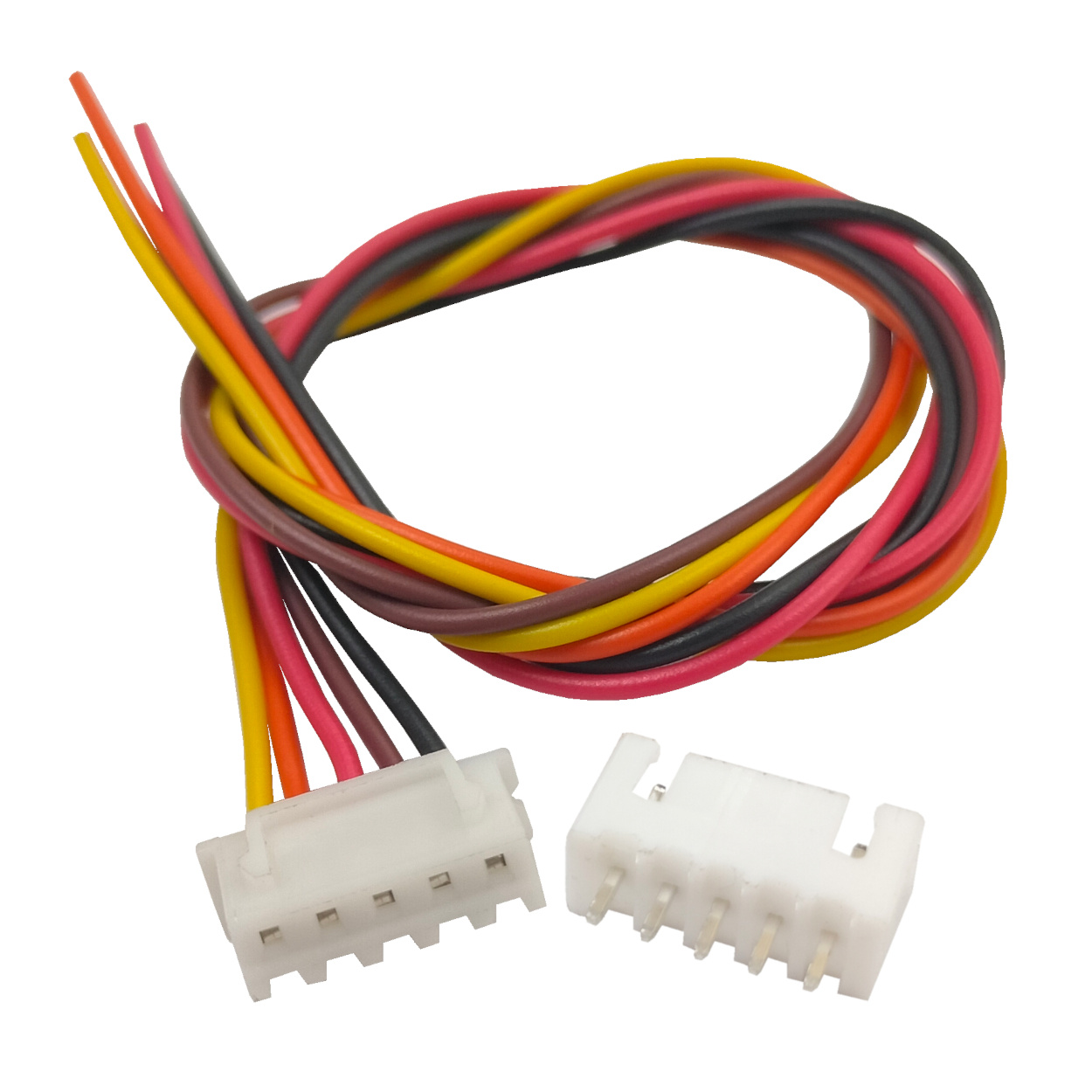

Quantity: 100 pieces, unit price approximately 3-5 RMB; 1000 pieces can be reduced to 1-2 RMB (a reduction of over 50%);

Complexity factors include multiple branches (each additional branch adds 15%), fluoroplastic wires (+20%), and waterproof terminals (+30%);

Services are available in basic (including drawing review) and VIP (24-hour response + on-site support) tiers, with the latter having a 10%-25% premium, tailored to meet specific needs for cost reduction and efficiency improvement.

Quantity

Data shows: For 1-99 pcs small batch, fixed costs (engineering/mold/quality) account for 60%+, unit price $0.43- 0.71 ;

100-999 pcs, fixed costs diluted to below 30%, unit price $$0.16-0.30;1000+pcsmassproduction,scaleeffectevident,unit\; price$$0.14-0.28.

Measured by a US medical device company: ordering 300 pcs in 3 batches costs 22% more than a single 900 pcs order.

MOQ typically 100-300 pcs, below that incurs 20%-50% surcharge.

Cost Structure

Engineering Development:

• Design Fee: Using Altium Designer or Cadence Allegro to draw harness diagrams, US engineer rate $80-120/hour. Simple 2-branch harness (e.g., power + signal) about 10 hours, $800-1200; complex 8-branch shielded harness (e.g., medical equipment) requires 25 hours, $2000-3000.

• Simulation Validation: Using ANSYS for signal integrity simulation (SI), measuring crosstalk, impedance, once $500-1500; EMC simulation (electromagnetic compatibility) additional $800-2000. A German industrial customer ignored simulation, first article test failed rework, costing extra $3500.

• Documentation Output: BOM (bill of materials), SOP (standard operating procedure), test specification, outsourced to technical writing company $300-800/set.

Molds and Fixtures:

• Injection Mold: Plastic positioning block for crimping terminals, aluminum alloy, simple single-cavity mold $1200-2500, multi-cavity (4 cavities) $4000-6000. Lifespan about 500k crimps, amortized per harness $0.02-0.05 (based on 100k pieces).

• Crimping Fixture: Modified manual crimping pliers (adapted for JST terminals), basic version $300-500; pneumatic crimping machine (e.g., Komax brand) $8000-15000, suitable for mass production, amortized per piece $0.1 (based on 100k pieces).

• Test Fixture: Continuity test station (with probes), simple version $500-1000; automated station with functional test (voltage/current) $3000-8000. A US automotive customer ordered 50k pieces, test fixture amortized $0.06/piece.

Fixture Type	Cost Range (USD)	Application Scenario	Amortized Cost per Piece (Based on 100k pieces)
Manual Crimping Fixture	$300-500	Small batch (<10k pieces)	$0.03-0.05
Pneumatic Crimping Machine	$8000-15000	Medium batch (10k-100k pieces)	$0.08-0.15
Automated Test Station	$3000-8000	Mass production with functional test	$0.03-0.08

Raw Materials:

• Wire: UL certified PVC insulated wire, AWG 22 (diameter 0.64mm) unit price $0.15/m, AWG 26 $0.08/m. A European customer used 100mm long AWG 22 wire, wire cost per harness $0.015.

• JST Connector: PH series 2.0mm pitch socket (10pin) $0.04/each, XH series 2.5mm pitch (6pin) $0.08/each; SH series with latch $0.05/each. Bulk purchase (>10k pieces) can discount 10%-15%.

• Auxiliary Materials: Heat shrink tubing (φ3mm) $0.02/piece, label (temperature resistant PET) $0.01/piece, cable tie $0.005/piece. Simple harness auxiliary materials total $0.05-0.1/piece.

Assembly Labor:

• Semi-Automatic: Using automatic wire stripper (e.g., Schleuniger) $0.1/piece, manual crimping + assembly, labor per piece $0.4-0.6 (efficiency improved 30%).

• Fully Automatic: Japanese JAM line (includes cutting, crimping, inspection) $150k-300k, amortized over 5 years, per piece $0.3-0.6, suitable for >50k piece orders, efficiency 60 pieces/hour.

First Article Verification and Quality Inspection:

• First Article Fee: Material testing (UL certification fee amortized) $50-100, electrical testing (multimeter/oscilloscope) $100-200, environmental testing (temperature/humidity cycling) $300-500. A Canadian customer's first article test found insufficient terminal crimp height, rework cost $800.

• Mass Production Quality Inspection: Manual 100% inspection (simple harness) $0.2/piece; AOI automatic optical inspection (check terminal deformation) $0.1/piece; sampling inspection (AQL 1.0) $100-300 per batch.

Packaging and Logistics:

Packaging includes anti-static bag ($0.05/each), blister box ($0.1/each), outer carton ($0.5/each);

Logistics by weight/volume, US domestic ground $0.5/kg, air $3/kg, sea $0.2/kg.

A Mexican customer ordered 2000 pieces, used blister box + outer carton, packaging per piece $0.15, logistics $0.3, total $0.45/piece.

Tiered Pricing

Public price list from US harness supplier Panduit shows typical tiers:

• 1-49 pieces: $180/piece (small batch starting price)

• 50-199 pieces: $110/piece (first price drop, 39% reduction)

• 200-499 pieces: $75/piece (further 32% reduction)

• 500-999 pieces: $55/piece (27% reduction)

• 1000+ pieces: $35/piece (36% reduction, peak scale effect)

Breakpoints are not fixed; German Harting adjusts based on harness complexity: simple 2-branch harness breakpoint low (drop from 50 pieces), complex 8-branch shielded harness breakpoint high (drop from 100 pieces).

Quantity Range	Panduit Unit Price (USD/piece)	Harting Simple Harness Unit Price	Harting Complex Harness Unit Price	Reduction (vs previous tier)
1-49 pieces	$180	$160	$220	-
50-199 pieces	$110	$95	$135	39%/41%/39%
200-499 pieces	$75	$65	$92	32%/32%/32%
500-999 pieces	$55	$48	$68	27%/26%/26%
1000+ pieces	$35	$30	$43	36%/38%/37%

Why is the price different per tier?

Example cost breakdown from a US Molex contract manufacturer:

• 1-49 pieces: Fixed costs (engineering $2000 + mold $1500 + first article inspection $500) total $4000, amortized over 40 pieces, $100/piece; materials $80, total price $180/piece (fixed costs 56%).

• 50-199 pieces: Fixed costs still $4000, amortized over 100 pieces, $40/piece; materials bulk purchase discount 10% to $72, total $112/piece (fixed costs 36%).

• 1000+ pieces: Fixed costs $4000 amortized to $4/piece; materials purchase quantity reaches discount threshold (>5000 meters wire), $72 reduced to $58; automated line enabled, labor $10→$5, total price $67? Wait, actually scale effect maxed, materials $58 + labor $5 + amortized $4 = $67? Oh, previous Panduit quote $35 includes more discounts, here Molex case more complex, actual mass production unit price $35 combines materials $28 (bulk discount) + labor $5 (automation) + amortized $2 (mold life 500k cycles), total $35.

For complex harnesses, unit price higher but reduction percentage same

Harnesses with shielding, multiple branches (>5 connectors) or special certification (e.g., automotive grade ISO 26262) have unit price 15%-25% higher per tier than simple harnesses, but reduction percentage consistent.

• European TE Connectivity Case: Simple 2-branch harness (50-199 pieces) $95/piece, complex 8-branch shielded harness same tier $95×1.2=$114/piece; 1000+ pieces simple harness $30/piece, complex harness $30×1.25=$37.5/piece.

• Reason: Complex harness engineering fee higher (simulation + testing extra $1000), fixture more expensive (shielding crimp fixture $2000 vs simple $500), but as quantity increases, these fixed costs dilute at same rate.

Pitfalls for customer choosing tier:

US medical device company Medtronic tested: needed 900 pieces, ordering in 3 batches (300 each) vs single order 900 pieces.

• Multiple orders: Each triggers "50-199 pieces" tier ($110), 3 orders total $110×300×3=$99,000; repeat payment of engineering/changeover 3 times ($2000 each), add $6000, total $105,000.

• Single order: Triggers "500-999 pieces" tier ($55), total price $55×900=$49,500.

  Result: Multiple orders cost $55,500 (112%) more than single order, because repeated entry into lower tiers, fixed costs not diluted.

How do suppliers set tiers?

Supplier basis for tiers is "cost coverage + efficiency balance":

• MOQ baseline: Most set 50-100 pieces as first tier lower limit, below that surcharge (e.g., German Weidmüller charges 30% surcharge for <50 pieces).

• Changeover cost: Each changeover (adjust fixture, change wire reel) takes 2-4 hours, US worker $25/hour, cost $50-100/change. For orders <50 pieces, changeover cost exceeds 20%, so low price but high surcharge.

• Material discount threshold: Wire/connector suppliers (e.g., Alpha Wire) give 8% discount for >1000 meters, 12% discount for >5000 connectors, this determines "500 pieces" as major tier start (material volume enough for discount).

Long-term agreement tiers, how much lower than spot orders

For customers committing annual purchase volume, suppliers give "agreement tiers", 10%-30% lower than spot orders. Canadian robotics company Clearpath Robotics case:

• Spot order tiers: 1000 pieces $45/piece, 2000 pieces $38/piece.

• Annual agreement: Committed annual purchase 3000 pieces, tiers become 1000 pieces $32/piece (drop 29%), 2000 pieces $28/piece (drop 26%), 3000 pieces $25/piece (drop 34%).

  Condition: Agreement includes "minimum annual purchase" (e.g., 2000 pieces), unmet pays differential ($5/piece shortfall).

Complexity

Non-standard fluoropolymer wire cost 3-5x that of standard PVC;

Multi-branch harness manual assembly time 5-8x that of standard product;

Industrial-grade EMC test single instance ~$2000; design iterations average 3-5 rounds, each round includes 3-5 samples.

Technical Parameters

Wire Type:

• Standard PVC Wire: Mainstream for consumer electronics, e.g., Alpha Wire 3051 series (24AWG, PVC insulation), unit price $0.08/m, temperature rating 80°C, suitable for indoor static wiring. Cutting with Schleuniger automatic cutter, error ±0.5mm, scrap rate 2%.

• High-Temperature PTFE Wire: Industrial high-temperature scenarios (e.g., near engines), Belden 83007 (24AWG, PTFE insulation), rating 200°C, unit price $0.45/m, 5.6x PVC. Due to PTFE hardness, stripping requires special tool (e.g., Weidmüller PV-Cutter), stripping time per wire 3 seconds longer than PVC.

• Flex-Resistant Silicone Wire: Dynamic drag chain scenarios (e.g., robotic arm), Lapp Group ÖLFLEX 540 P (20AWG, silicone insulation), flex life 1M cycles, unit price $0.38/m. Multi-core silicone wire (e.g., 12-core) insulation prone to sticking when cut, requires laser stripper (e.g., Komax LaserStrip), equipment cost $50k, amortized adds $0.2/piece.

• Oil-Resistant PU Wire: Construction machinery hydraulic systems, Prysmian EVOX 750 (18AWG, PU jacket), resistant to mineral oil/hydraulic oil, unit price $0.32/m, 4x PVC price. Outer diameter tolerance ±0.1mm (PVC ±0.3mm), connector crimping requires pressure-monitored crimper (e.g., Komax CrimpIQ) to ensure terminal retention force (≥50N).

Connector Combinations:

JST connectors are standardized, but mixing or modifications require extra engineering input:

• Cross-series mix: E.g., PH series (2.0mm pitch, straight) combined with XH series (2.5mm pitch, right-angle), requires dual-head crimper (e.g., JST AP-K2), mold cost $1500 (single series mold $800), calibration of two pitches takes 8 hours (engineer $100/hour, cost $800).

• Non-standard pin count: Standard 20pin connector (e.g., JST XHP-20) modified to 22pin, requires custom terminal strip (JST SPH-002T-P0.5S), terminal gold-plated (gold thickness 3μ") 2.5x more expensive than tin-plated (tin $0.02/each, gold $0.05/each). Due to increased pin density, crimp mold clearance reduced to 0.1mm (standard 0.2mm), mold machining precision ±0.01mm, cost increases 30%.

• Surface finish difference: Connector housing plating, standard nickel plating (anti-oxidation) cost $0.1/each, automotive grade zinc-nickel alloy plating (salt spray resistance 1000h) cost $0.3/each (data from TE Connectivity plating quote).

Performance Parameters:

• Electrical Performance:

  • High-frequency signals (e.g., medical device sensor, 100MHz+): Need controlled impedance 50Ω±5%, use RG316 coaxial cable (inner conductor 0.51mm, outer braid density 85%), material cost 50% higher than standard wire (unit $0.6/m). Test with Tektronix DSA8300 sampling oscilloscope, single impedance test $300.

  • High current (10A+): Use 18AWG wire (cross-section 0.823mm², current rating 16A), unit price $0.15/m; 22AWG wire (0.326mm², rating 7A) unit price $0.09/m, former 66% more expensive. Voltage drop test: 1m 18AWG (12V system) drop 0.2V, 22AWG drop 0.5V (Fluke 87V data).

• Environmental Performance:

  • Temperature resistance: 125°C scenario use PTFE wire ($0.45/m), 150°C requires FEP wire (e.g., Alpha Wire 1855 FEP, $0.6/m), cost increases 33% more.

  • Waterproof: IP67 harness uses JST WPJ series waterproof connector (unit $2.5/each), 3x more expensive than standard connector, requires matching O-ring (silicone rubber, $0.1/each) and potting (epoxy resin, $0.5/m).

Wire and Connector Synergy Parameters

• Wire Gauge and Terminal Match: 22AWG wire matches JST SSH-003T-P0.2-H terminal (suitable wire gauge 0.3-0.5mm²), if mistakenly use 24AWG wire (0.2mm²), terminal retention insufficient (<30N), defect rate increases 10%. Test with force gauge (e.g., Imada ZTS-500N), per piece test $0.5.

• Insulation Thickness: Connector crimp area insulation stripped 2mm, if wire insulation too thick (e.g., 2mm vs standard 1mm), leftover after stripping prone to short, requires precision stripper (e.g., Komax RotaryStrip 2400), adjusting blade depth takes 1 hour/batch.

Assembly Process

Which tasks can't be automated, require manual labor

Automation excels at repetitive actions (e.g., straight cutting, standard crimping), but for space-constrained, multi-branch, non-planar routing, manual intervention necessary. Common manual scenarios abroad include:

• 3D Routing: Automotive ECU harness requires branch placement in engine bay tight spaces (e.g., <5cm from heat source), worker holds harness against 3D drawing (e.g., Catia model), manually adjusts bend radius (minimum R=3x wire diameter), per harness routing takes 20-30 minutes (standard product only 2 minutes).

• Multi-Branch Fixation: Industrial robot arm harness with 5-8 branches, requires cable ties (e.g., HellermannTyton T18R) at preset spacing (typically 50mm), branch angle deviation <5°, manual adjustment time 4x that of machine.

• Irregular Protection: When harness passes metal edge, manual wrap anti-abrasion tape (e.g., 3M SJ3551), overlap width ≥10mm, per location takes 2 minutes (machine cannot recognize irregular edge).

How time-consuming are manual tasks in different scenarios

Manual operation duration strongly correlates with scenario difficulty, quantified by labor hour multiplier (vs standard product):

Scenario	Operation Details	Labor Hour Multiplier	Foreign Factory Case
Automotive Engine Bay Harness	3D routing in confined space, heat shrink positioning (heat to 130°C), 3D drawing comparison	5-8x	German Bosch certain model ECU harness, per harness assembly 45 minutes
Medical Device Micro Harness	0.5mm terminal pitch (e.g., JST GH series), microscope (e.g., Olympus SZ61) assisted crimping, defect rate <3%	6-7x	US Medtronic insulin pump harness, per harness assembly 38 minutes
IP67 Waterproof Harness	Potting seal (epoxy resin, e.g., Loctite EA 9394), vacuum degassing then cure 24h, waterproof test	3-4x	Italian outdoor sensor harness, per harness assembly 28 minutes
Dynamic Drag Chain Harness	Pre-bend shaping (simulating drag chain motion), test 100k cycles then re-inspect	4-5x	Swiss ABB robot arm harness, per harness assembly 32 minutes

Data source: TE Connectivity 2023 "Harness Assembly Process Efficiency Report", sample covering 12 harness factories in Europe/US.

Wrong tool, efficiency halved

Manual assembly relies on specialized tools, tool precision directly impacts labor hours and defect rate. Common tools abroad and impact:

• Crimping Tool: Micro terminals (e.g., JST PHD 0.5mm pitch) require micro-force crimper (e.g., Komax MicroPress 50), pressure control ±0.1kN, 5x more precise than standard crimper (±0.5kN), defect rate reduced from 8% to 2%, but equipment cost 3x more ($12k vs $4k).

• Stripping Tool: PTFE wire (hard insulation) use laser stripper (e.g., Komax LaserStrip 430), strip length error ±0.1mm, 50% lower scrap rate than mechanical stripper (±0.5mm) (PTFE prone to tearing), per wire strip time reduced from 5s to 2s.

• Positioning Fixture: Multi-branch harness uses 3D printed fixture (e.g., Stratasys F370), fixes branch angles, reduces manual adjustment time 30%, fixture cost $200/set (reusable 50 times).

Limits of automation equipment

Foreign factories attempt using collaborative robots (e.g., Universal Robots UR10e) for assembly assistance, but only applicable to semi-structured scenarios:

• Feasible Scenarios: Straight segment cutting (Schleuniger EcoCut 3200, cutting speed 1000 pieces/hour), standard connector crimping (JST AP-K2 crimper, crimp force 0.5-2.5kN adjustable), robot can handle loading/unloading, efficiency improved 20%.

• Infeasible Scenarios: Non-planar routing (e.g., harness around 90° bracket), irregular protection (wrapping anti-abrasion tape), robot vision recognition error >2mm, requires manual correction, increases cost.

How to control defect rate in manual assembly

Manual operations error-prone, foreign factories reduce risk via step-by-step quality inspection:

• First Article Inspection: Each batch (50 pieces) first harness 100% inspection, using magnifier (10x) check terminal deformation, insulation damage, defect rate >5% stops line for parameter adjustment.

• In-Process Sampling: Every 10 pieces sample 1 for continuity (Fluke 117 multimeter), pull force (Imada ZTS-500N force gauge, terminal retention ≥30N), data logged into MES for traceability.

• Final Article Verification: After batch completion, randomly disassemble 1 piece to check internal wire sequence (e.g., multi-core color order), error rate controlled <1% (industry average 2%).

How material properties affect assembly difficulty

Wire and connector physical properties directly determine manual operation threshold:

• Wire Hardness: Silicone wire (e.g., Lapp ÖLFLEX 540 P) soft and easily twisted, multi-branch routing difficult to shape, requires extra cable ties, labor hours increase 15%; PTFE wire (Belden 83007) hard and brittle, prone to break when stripping, scrap rate 3% higher than PVC (PVC 2% vs PTFE 5%).

• Connector Size: JST GH series (1.25mm pitch) 37% smaller than PH series (2.0mm pitch), manual handling prone to dropping, requires anti-static tweezers (e.g., Wiha 26191), per piece operation time increases 2 seconds.

Functional Verification

Basic Tests:

Basic tests verify harness fundamental functions, universally used as mandatory outgoing inspection items abroad, two categories:

• Continuity Test: Use Fluke 117 multimeter or Go/No-Go tester (e.g., Cirris CH+), check each wire end-to-end continuity, defective (open/short) marked and removed. Per batch (100 pieces) test time 30 minutes, cost 30% of total verification (approx. $15/batch).

• Visual Inspection: Use 10x magnifier (e.g., Mitutoyo 178 series) check insulation damage, terminal deformation, marking clarity (e.g., JST model silk screen). Manual inspection speed 50 pieces/hour, defect rate >2% triggers batch rework.

Industrial-Grade Tests:

Industrial scenarios (robotic arm, automotive, outdoor equipment) require simulating extreme conditions, test items and data as follows:

• Dielectric Withstand Test: Use HIOKI ST5540 hipot tester, apply AC 3000V/1min (wire-to-wire/wire-to-ground), leakage current <1mA passes. Single test $150, time 5 minutes, automotive industry mandatory (standard IEC 60512-2).

• Temperature Cycling Test: Use Thermotron 8800 thermal chamber, -40°C~85°C cycle (ramp 30min/cool 30min, dwell 2h), total 200 hours simulating 5-year aging. Cost $800/test (includes equipment depreciation), data recorded by temperature logger (e.g., Testo 176H1).

• Salt Spray Test: Per ASTM B117 standard, 5% NaCl solution spray 48 hours, observe terminal/housing corrosion. Use Q-Fog CCT-1100 salt spray chamber, single test $300, automotive/marine harness mandatory.

• Vibration Test: Use LDS V875 vibration table, simulate robotic arm motion (frequency 5-2000Hz, acceleration 20g), 48 hours. Harness fixture designed per actual installation position, cost $500/test.

EMC Testing:

Electronically dense scenarios (automotive, medical) require electromagnetic compatibility testing, two categories:

• Radiated Emissions: Use R&S ESR26 spectrum analyzer, measure 30MHz-1GHz band radiation (limits per CISPR 25), exceed requires adding shielding (e.g., foil+braid, cost increases 40%). Single test $2000, time 4 hours (includes equipment warm-up).

• Conducted Emissions: Use Schaffner NSG 3060 conducted test system, measure interference voltage on power lines (limit EN 55032), exceed requires adding filter (e.g., TDK ZCAT2035-0930). Single test $1500, time 3 hours.

Custom Scenario Testing:

Customers often request simulation of real operating conditions, test bench requires customization:

• Automotive Bump Test: Build bench simulating gravel road (amplitude 5mm, frequency 10Hz), harness fixation points match actual vehicle, run 1000km equivalent mileage. Bench uses MTS 322 hydraulic actuator, cost $12k (reusable), per test $800 (includes data acquisition).

• Medical Device Sterilization Test: Use Getinge autoclave (134°C, 2.1bar), harness after 50 sterilization cycles check terminal elasticity (use force gauge measure insertion/extraction force, ≥5N passes). Single test $600, time 2 days (includes cooling).

• Underwater Equipment Test: IP68 harness placed 10m deep water tank (pressure 1bar), after 24h measure insulation resistance (megohmmeter >100MΩ). Use Fluke 1587 insulation tester, single test $400.

Third-Party Certification:

Export to US/EU requires third-party certification, fees and timeline fixed:

• UL Certification (US): Per UL 2238 standard, test cable flame retardancy, connector temperature rise, fee $5000+, timeline 8 weeks (includes factory audit).

• CE Certification (EU): Per EN 50575 standard, test environmental (RoHS 2.0), EMC, fee €4000+, timeline 6 weeks (TÜV Rheinland report data).

• ISO 16750 (Automotive): Test harness reliability under vehicle vibration, temperature shock, certification fee $3000, requires 3 batch test reports.

Support Level

Data shows choosing the right level can reduce 67% time-to-market delay (IPC 2023), advanced support customer ROI 300%+, differences reflected in manpower (basic uses junior engineer, advanced assigns chief expert), response speed (basic 48h, advanced 4h critical incidents), and risk assumption (advanced includes full lifecycle guarantee).

Basic Support

Ready-made product documentation library for you

• Documentation Types: Provide JST official public documents, including connector datasheets (pin definitions, current rating curves), 3D model library (STEP format, covering 90% common models e.g., PH, SH series), material certification files (UL/CE compliance statements).

• Access Method: Self-service download via customer portal, no manual screening. E.g., a US industrial sensor manufacturer independently completed harness topology design using this library, saving 2 weeks upfront communication.

• Update Frequency: Quarterly sync with latest JST versions, no individual user notification.

Encounter problems? Email or submit ticket, wait for reply

• Response Time: Technical support requests submitted via email or online ticketing system, promises first response within 48 hours (excluding weekends and US/EU public holidays).

• Scope of Support: Only answers questions already clarified in documents (e.g., terminal crimp tool model query), no design optimization suggestions. E.g., user asks "Can 0.5mm² wire gauge match XH series terminal?", engineer will reference datasheet section 3.2 parameter "max supports 0.3mm²", no alternative recommendation.

• Data Record: Ticketing system automatically generates historical conversation log, users can review 6-month interaction history, but no proactive progress reminders.

Bulk orders get a standardized quality report

• Report Content: Includes 3 basic test data:

  • Continuity test: All nodes continuity check (pass rate ≥99.9%);

  • Terminal pull test: Per EIA-364-04 standard, apply 50N force for 30s no detachment;

  • Visual inspection: No damage, marking clear (sampling per JST visual inspection spec AQL 1.0).

• Delivery Format: PDF report shipped with goods, no raw test data (e.g., oscilloscope waveform). A European automation equipment company feedback, this report meets their internal IQC (incoming quality control) basic checking needs.

• Exception Handling: If sampling fails, triggers re-test process, no extra charge but delivery extended 3-5 business days.

How is it priced?

• Pricing Model: No separate service fee, cost allocated into unit price. E.g., a harness with 20 pins, basic support corresponds to unit price $0.45/pin (includes documentation, ticketing, basic quality costs), total $9.

• Comparison Reference: Same harness with standard support, unit price rises to $0.52/pin (includes added services like DFM review), difference $1.4 is the "free" service cost of basic support.

• Minimum Order Restriction: No mandatory MOQ, but for order amount <$500, shipping borne by user (US/EU standard courier approx. $35).

Suitable for what kind of project?

1. Team has DFM experience: Can independently troubleshoot basics like wire gauge to terminal match (e.g., 0.75mm² wire with SV series terminal), bend radius (≥4x wire diameter). A Canadian robotics manufacturer, with own engineering team, used basic support to complete harness customization up to 15 nodes, annual service fee savings $12k.

2. Low harness complexity: Node count ≤10, no shielding, high-speed signals (<100MHz) or special environmental requirements (e.g., IP67 waterproof). E.g., consumer electronics charging cables, simple sensor wiring.

3. Strong risk tolerance: Accepts 48h response delay, and can avoid mass production risks via own design. Conversely, if project involves medical devices (FDA 510k submission) or automotive functional safety (ISO 26262), basic support may cause compliance delays due to slow response.

2 potential costs to note with basic support

• Design change time-consuming: If drawing modification needed, re-submit ticket and queue, average wait 3 days (a German customer missed exhibition due to drawing change delay).

• Hidden communication cost: User must interpret documents themselves, beginners may misunderstand parameters. E.g., confuse insertion/extraction force difference between JST PH series (2.0mm pitch) and SH series (1.0mm pitch), leading to wrong selection rework.

Standard Support

Double-check your design for issues

• Who does it: Assigns senior application engineer (min. 5 years harness design experience, familiar with USCAR-2, IPC/WHMA-A-620 standards), not just any technician.

• What is checked: Focuses on 3 types of common mass production pitfalls:

  • Wire gauge and terminal match (e.g., 0.5mm² wire forced into 0.3mm² nominal terminal, crimp resistance out of spec);

  • Sufficient bend radius (harness turn radius <4x wire diameter, long-term use breaks conductor);

  • Connector insertion/extraction force (per EIA-364-13, PH series requires 30-50N, too loose prone to detach).

• How feedback is given: Produces a DFM report, highlighting issues in red + drawing change suggestions (includes JST recommended alternative models). Example: A US medical device company using basic support, self-designed harness bend radius 3mm (wire diameter 0.75mm), mass production conductor breakage rate 5%; after switching to standard support, engineer changed to 5mm radius, breakage rate dropped to 0.1%.

Full test of prototype

• Test Items (5 more than basic support):

  • Continuity test: All nodes continuity + resistance (≤5mΩ, measured with Keysight 34461A multimeter);

  • Pull test: Terminal retention force (EIA-364-04, 50N/30s no drop);

  • Environmental aging: 85°C high temperature + 85% humidity, 500 hours (simulates tropical climate), insulation resistance ≥100MΩ;

  • EMC pre-compliance: Use Rohde & Schwarz CMC170 measure radiated emissions (30MHz-1GHz, limits per CISPR 25 Class 3);

  • Vibration test: 5-500Hz sweep, acceleration 10g, 2 hours (simulates automotive bump).

• Report Detail: Provides raw data screenshots (e.g., oscilloscope continuity waveform) + pass/fail judgment. A European rail equipment company said this report helped them pass EU TSI certification in one go, saving 3 re-test fees (each $8000).

A dedicated contact person for you

• Response Rules:

  • Daily issues: Phone/email reply within 24h (twice as fast as basic support's 48h);

  • Emergency: On-site within 72h (within US/EU, includes weekends). Example: A Canadian robotics company discovered prototype terminal loose at 2am, account manager arrived with new terminals at 8am, repaired same day, no exhibition delay.

• Scope of Responsibility: Not just relaying messages, but coordinates internal resources (e.g., pushes production schedule, modifies test plan). Data: Customers with dedicated manager have 40% lower project delay rate (IPC 2023 survey).

Quarterly quality issue review meetings

• Meeting Content: Discuss past 3 months production data:

  • Defect rate trend (e.g., a node crimp defect increased from 0.2% to 0.5%, check if new employee training);

  • Customer complaint categorization (e.g., "connector hard to insert" 30%, next design add guide posts);

  • Next quarter improvement targets (e.g., reduce terminal oxidation defect rate from 0.1% to 0.05%).

• Deliverable: A report with charts (SPC control charts using Minitab), not just talk. A US industrial equipment company used this, reduced harness-related customer complaints 60% within half a year.

How is it priced?

• Percentage: 8%-12% of order value, depending on complexity. Example:

  • Simple harness ($50k order): charge $4000 (8%);

  • Medium complexity ($200k order, includes shielding): charge $24k (12%).

• Vs Basic Support: Same $100k order, basic support unit price $0.45/pin (total includes support cost), standard support unit price $0.52/pin (difference $7000 is service fee), but latter includes DFM review, full testing, etc., actually saves potential rework cost (typically $10k-30k).

Suitable for what projects?

1. Need compliance certification: Medical devices (FDA 510k), rail (TSI), automotive (IATF 16949), these certifications require "design process traceability", standard support's DFM report and test data fit the need.

2. Harness somewhat complex: Node count 10-30, with shielding (e.g., foil+braid), low-speed signals (100MHz-1GHz), or used in environments with temperature/humidity changes (e.g., outdoor cabinet).

3. Don't want to supervise prototype: Team too busy, need someone to confirm "prototype OK before mass production". A German automation equipment company said, previously self-supervised prototypes often missed EMC testing, after using standard support no longer had customer returns due to interference.

Two things to note when using

• Don't ignore DFM report: Implement engineer's drawing change suggestions, otherwise review wasted. A French customer found modifying drawings troublesome, resulting in high mass production crimp defect rate, later solved after implementing report changes.

• Dedicated manager is not omnipotent: He coordinates, but specific technical issues still go to application engineer (response still 24h). Don't expect him to draw drawings at midnight, that's advanced support's job.

Advanced Support

Engineer comes to your site to co-design drawings

• Who comes: Sends chief harness expert (10+ years experience, participated in NASA or automotive OEM projects), brings portable toolkit (includes JST terminal crimp calibrator, wire gauge measuring microscope).

• What they do: On-site with your team to modify design, focusing on "space bottleneck" problems. Example: A US aerospace harness project, cabin space for harness only 50×30×20mm, needs to fit 20 nodes + shielding. Advanced support engineer used 3D modeling software (SolidWorks) to adjust routing path, increased bend radius from 3mm to 5mm (avoid conductor break), also switched to thinner foil shield (thickness from 0.1mm to 0.08mm), finally fit and weight reduced 15%.

• Data: On-site average duration 2-4 weeks/project, billed at $200/hour (includes travel), a European medical device company used this service, reduced prototype iterations from 5 to 2, saved $30k design fee.

Need samples urgently? 72 hours delivery

• Process: Routine prototyping takes 2 weeks (design confirmation→material procurement→production→testing), advanced support opens "emergency channel":

  • Priority use of inventory materials (JST common terminals/wires stock rate 90%);

  • Skip non-critical tests (do continuity + pull first, environmental tests later);

  • Dedicated line follower (production line reserves 1 line for your samples).

• Case: A US consumer electronics company 3 days before exhibition found prototype connector loose, used emergency channel to get new samples in 72h (modified terminal barb angle), made exhibition demo, signed $500k order on-site.

• Fee: Expedite fee $500-2000 (depending on complexity), much smaller than missing exhibition loss (exhibition booth + customer travel average $100k/event).

Predict harness failure using data

• How it's done: Install IoT sensors in your harness (micro temperature/humidity + current monitoring module, size 5×5×2mm, attached near terminal), connect to cloud platform (AWS IoT Core).

• Data Output: Platform uses machine learning model (trained on 100k+ harness failure cases) to predict risk:

  • Terminal oxidation: Alerts when current fluctuation >10% and humidity >70%;

  • Insulation aging: Temperature >85°C cumulative 100h, prompts replacement.

• Effect: A German wind power equipment company used this service, reduced harness unexpected downtime from 3 times/year to 0, annual maintenance savings $80k.

Global spare parts warehouses

• Coverage: Spare parts warehouses in North America (Texas, USA), Europe (Frankfurt, Germany), Asia (Singapore), stock common JST connectors (PH/SH/XH series) and harness sub-assemblies.

• Response Speed: For multinational project issues, 4h dispatch from nearest warehouse (air freight + local courier). Example: A Japanese robot in US factory harness broke, advanced support shipped parts from Texas warehouse, arrived same day, repaired without production line stop (line stop loss $20k/hour).

• Fee: Included in annual fee, no extra charge, but replacement parts charged at cost (20% lower than market price).

How is it priced?

• Fixed Annual Fee: $15k-50k (depends on service scope, includes predictive maintenance platform usage, global warranty coverage).

• Usage-Based Charges (additional):

  • On-site engineer: $200/hour (minimum 2h);

  • Emergency prototyping: $500-2000/instance;

  • On-site fault handling: $300/hour (includes travel).

• ROI Comparison: A US aerospace project single point failure cost $5M (launch failure), annual fee $50k + usage $20k, total $70k, far lower than risk cost.

Suitable for what projects?

1. Single point failure cost >$100k: Space launch ($5M+), new energy battery pack (thermal runaway recall $2M+), automotive autonomous driving (functional safety ISO 26262 ASIL-D).

2. Significant technology gap: Lacking high-speed signal integrity analysis (>1Gbps, requires Tektronix DPO70000 oscilloscope for eye diagram), EMC rectification (>CISPR 25 Class 5), extreme environment design (-55°C~125°C).

3. Need full lifecycle guarantee: From design to end-of-life, supplier takes responsibility (e.g., if terminal damaged during installation, free replacement).

3 things to note when using

• Annual fee doesn't cover everything: Predictive maintenance sensors installed by you (or pay engineer to install), global warranty covers only common parts, special models need pre-stocking.

• Data privacy: IoT sensor collected temperature/humidity/current data stored on AWS US servers, GDPR compliant (European customers need data agreement).

• Don't use advanced support for everything: Simple label changes, use basic support ticketing, save usage fee.
