JST Connector Harness Custom Process | Parameters, Design & Material Selection

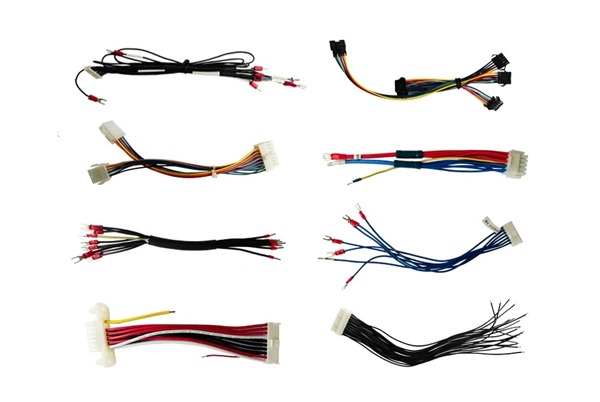

Electrical parameterssuch as rated current (sensor 0.5A~2A, motor 5A~15A), contact resistance (PH series ≤10mΩ);

Mechanical parameterssuch as pitch (mainstream 1.0/1.25mm, deviation ±0.1mm failure), insertion/extraction force (≤30N for optimized experience);

Environmental parameterssuch as operating temperature -40°C~+105°C, protection IP67; Compliance parametersrequire UL1977, IATF 16949 certification.

Electrical Performance

Rated Current:

Low-power devices: TI's MSP430 sensor module, quiescent current 0.1mA, peak 2mA, JST PH series harness with 0.5A rated current is sufficient; Maxim's MAX31855 thermocouple amplifier, operating current 1.5A, requires matching 2A model.
Medium load: Siemens S7-1200 PLC digital output module, single channel max current 0.5A, 8 channels parallel total current 4A, select JST XH series 5A model.
High-power scenarios: Tesla Model 3 battery management system heating circuit, continuous current 12A, peak 15A (cold start), must use JST VH series 20A high-current harness, with wire gauge 16AWG (1.3mm²).

Contact Resistance:

JST Standard: PH series tin-plated terminal ≤10mΩ, SE series gold-plated terminal ≤5mΩ (gold has better conductivity); high-current VH series uses dual-blade terminal, contact resistance ≤8mΩ@10A.
Actual Impact: A medical device used 18AWG wire (0.75mm²), contact resistance 15mΩ, at 5A current power dissipation P=I²R=0.375W, temperature rise 6°C higher than 5mΩ terminal (Q=0.125W leads to 2°C rise).
Failure Causes: Terminal surface oxidation (tin plating thickness <3μm, resistance increases 30% after 6 months), insertion/extraction wear (resistance increases 20% after 500 cycles). JST recommends gold-plated terminals (0.5μm thick) for medical devices, tin+underlying nickel plating (for corrosion resistance) for industrial environments.

Insulation Resistance:

Material Difference: PVC insulation volume resistivity 10¹²Ω·cm, PBT material 10¹⁶Ω·cm (better moisture resistance); JST NH series uses PBT, insulation resistance remains >500MΩ in humid environment (90%RH), PVC material drops to 50MΩ.
Failure Case: A German industrial robot used PVC harness, in workshop humidity 80% environment, insulation resistance dropped to 30MΩ, causing PLC false short circuit alarm; downtime investigation found insufficient creepage distance between terminals (original design 1.5mm, actual 1.2mm).
Test Method: Use Fluke 1507 insulation tester, clamp both ends of harness, apply voltage for 60 seconds and read. Below 100MΩ requires switching to high-resistance material.

Rated Voltage:

Rated voltage is the maximum operating voltage the harness can withstand, in volts (V), divided into DC and AC.

Scenario Classification:
- Consumer electronics (earphones, bracelets): ≤50V DC (JST GH series 30V DC);
- Industrial control (PLC, inverter): 250V AC/DC (JST EH series);
- New energy (PV inverter, energy storage): 600V DC (JST PAP series), 1000V AC (requires customization).
Overvoltage Protection: JST EH series 250V AC model can withstand 4kV/8/20μs surge (simulating lightning), exceeding this will cause insulation breakdown.

Transient and Surge:

JST Data: PH series 0.5A model can withstand 10A transient current for 10ms (e.g., LED strip startup); VH series 20A model can withstand 50A transient for 100ms (motor braking energy recovery).
Calculation Basis: Transient current I_t = P_peak / V, duration t determined by device capacitance. E.g., 10μF capacitor charging to 24V, t=RC≈0.1ms, peak current can reach 240A, requiring harness with fuse.

Voltage Drop:

Voltage drop ΔV=IR, wire resistance R=ρL/S (ρ copper resistivity 0.0175Ω·mm²/m, L length m, S cross-section mm²).

Example: 20AWG wire (0.5mm²), length 3 meters, 5A current, R=0.0175×3/0.5=0.105Ω, ΔV=5×0.105=0.525V. If device minimum operating voltage 12V, allowing 1V drop, then maximum usable length 5.7 meters.
JST Recommendation: Main power trunk use 18AWG (0.75mm²), 3m length drop 0.35V; signal lines (e.g., I2C) use 26AWG (0.13mm²), 10m length drop only 0.27V (current 10mA).

Parameter	JST PH Series (2P)	JST VH Series (3P)	JST PAP Series (4P)
Rated Current	2A	20A	30A
Contact Resistance	≤10mΩ	≤8mΩ	≤6mΩ
Rated Voltage	250V AC/DC	600V DC	1000V AC
Insulation Resistance	>100MΩ@500V DC	>500MΩ@500V DC	>1000MΩ@1000V DC

JST official website provides online calculator (input current, length, material, automatically recommends gauge and model), 3x faster than manual calculation.

During testing, use Keysight N6705B power analyzer to measure temperature rise.

Mechanical Structure

Pin Count and Arrangement:

Single Row Pins: JST XH series (2.5mm pitch) supports 2P~20P, commonly used in Arduino expansion boards (e.g., 16P for sensor arrays); PH series (2.0mm pitch) 2P~12P, compatible with TI MSP430 LaunchPad GPIO interfaces.
Dual Row Pins: SH series (1.0mm pitch) 4P~40P, e.g., Raspberry Pi Pico 40P GPIO header; GH series (1.25mm pitch) 6P~30P, used in Siemens LOGO! PLC communication modules.
Special Arrangement: Custom matrix pins per equipment, e.g., TE Connectivity industrial camera interface requires 2x15P asymmetric arrangement (fool-proofing), JST can provide "keying boss", boss height 0.3mm, only mates with socket having matching groove.

Pitch Precision:

Pitch is the distance between centers of adjacent pins, in millimeters (mm). JST mainstream pitches are 1.0/1.25/2.0/2.5/3.96mm, error must be controlled within ±0.05mm.

Measured Data: Using Mitutoyo micrometer to measure JST SH series (1.0mm pitch), 10 samples average pitch 1.002mm, max deviation +0.03mm; if supplier produces 1.08mm (+0.08mm), insertion will bump adjacent pins, insertion/extraction force jumps from 20N to 50N (Keysight U1461A force sensor measurement).
Failure Case: A German automation equipment used JST NH series (2.0mm pitch), due to supplier mold wear, pitch became 2.12mm, causing 10% connectors to have poor contact after mating with Schneider Electric PLC, intermittent signal.
Inspection Tool: Use laser displacement sensor (e.g., Keyence LJ-X8000), scan entire connector pins, generate pitch distribution map, reject if exceeding 0.1mm.

Insertion/Extraction Force and Separation Force:

JST Standard Model Data:

XH series (no lock): Insertion/extraction force 25N, separation force 8N (suitable for indoor fixed equipment);
ZH series (with secondary lock): Insertion/extraction force 30N (force only after unlocking latch), separation force 15N (doesn't loosen in vibration);
LE series (lever lock): Insertion/extraction force 18N (lever saves effort), separation force 20N (doesn't fall even in truck vibration).

Vibration Test: On ETS Solutions vibration table, 15Grms random vibration (10~2000Hz) 2 hours, XH series without lock has 20% disconnection rate, ZH series with lock 0% (data from JST technical white paper TP-2023-05).

Ergonomics: When insertion/extraction force >35N, female operators (average grip 20N) need both hands, not compliant with OSHA ergonomics standard.

Terminal Retention Force:

Scenario Requirements:

General industrial equipment: ≥50N (JST PH series measured 55N);
Automotive electronics (strong vibration): ≥100N (JST VH series with metal latch, retention 120N);
Aerospace equipment (high shock): ≥150N (custom with metal spring, 160N).

Failure Test: Using Instron 5967 tensile tester, pull cable at 50mm/min speed, record force when terminal pulls out. A European robot factory used harness with 60N retention, after 6 months operation, 15% terminals dislodged due to joint arm swinging; after switching to 120N model, zero dislodgement.

Influencing Factors: Terminal rear crimp quality (crimp height tolerance ±0.05mm), insufficient crimp reduces retention 30%, over-crimping breaks wire.

Cable Specifications:

Wire Gauge and Current Rating (UL 758 standard):

26AWG (0.13mm²): Current 1A (signal line, e.g., I2C);
22AWG (0.32mm²): Current 3A (sensor line);
18AWG (0.82mm²): Current 8A (motor line);
14AWG (2.08mm²): Current 15A (power trunk).

Sheath Material Temperature Rating:

PVC: -20°C~80°C (indoor equipment);
PUR: -40°C~105°C (automotive engine bay);
Teflon (PTFE): -70°C~200°C (aircraft engine periphery).

Voltage Drop Calculation Example: 18AWG wire (0.82mm²), copper resistivity 0.0175Ω·mm²/m, 3m length resistance=0.0175×3/0.82≈0.064Ω, 5A current drop=5×0.064=0.32V (meets 12V device 1V drop standard).

Environmental Endurance

Operating Temperature:

Low-Temperature Limit: Standard PVC sheath -20°C, PUR sheath -40°C (JST XH series uses PUR, compatible with North American automotive cold start -40°C), PPS plastic (JST VH series housing) -55°C (aerospace). A German ski resort surveillance camera used PVC harness, sheath cracked at -30°C, signal lost; after switching to PUR, normal at -45°C.
High-Temperature Limit: PVC 80°C (long-term), 105°C (short-term); PBT 120°C (JST NH series); PPS 150°C (JST PAP series, new energy battery pack); Teflon (PTFE) 200°C (aircraft engine periphery). Tesla Model Y battery management system harness uses PPS housing, local temperature 130°C at full charge, continuous operation 500 hours no deformation.
Temperature Rise Control: Terminal temperature ≤ ambient +40°C at full load (Keysight N6705B measurement). A US server used 18AWG wire (0.82mm²) for 5A current, 3m length drop 0.32V, terminal temperature rise 25°C (total 50°C at 25°C ambient), meeting PBT material limit.

Protection Rating:

IP65: Dustproof (no dust ingress) + low-pressure water jets (12.5L/min, distance 3m, 15 min). European outdoor street lights use JST GH series IP65 harness, no water ingress in rain.
IP67: Dustproof + short-term immersion (1m depth, 30 min). Florida coast surveillance camera uses IP67 harness, submerged 20 min at high tide, normal.
IP68: Dustproof + continuous immersion (custom depth and time, e.g., 5m depth 72h). Norwegian underwater robot uses JST custom IP68 harness, 300m deep-sea operation 6 months no leakage.
Test Tool: Use IPX7 waterproof test chamber (e.g., ESPEC PL-3), after immersion measure insulation resistance >100MΩ@500V DC to pass. A French agricultural machine used IP65 harness, mud water seepage caused insulation resistance to drop to 20MΩ, inspection found seal compression insufficient (design 2mm, actual 1.5mm).

Corrosion Resistance:

Terminal Plating:

Tin plating: Salt spray 24h surface oxidation (resistance increases 10%), 48h white rust appears (JST PH series basic);
Gold plating (0.5μm): Salt spray 96h no rust (medical devices, e.g., Medtronic pacemaker);
Nickel plating (3μm) + tin plating: Salt spray 72h no white rust (industrial chemical equipment).

Sheath Material: PUR salt spray resistance >1000h (JST ZH series), PVC only 200h (a Middle East oilfield PVC harness, sheath cracked after 6 months).

Failure Case: Florida yacht used tin-plated terminal harness, salt spray environment 3 months later contact resistance rose from 8mΩ to 30mΩ, intermittent navigation signal; solved after switching to gold-plated terminals.

Vibration Resistance Rating:

Vibration Parameters: Frequency 10~2000Hz, acceleration 15Grms (industrial equipment), 20Grms (aviation), 30Grms (rocket launch).
Lock Effectiveness:
- No lock (XH series): 15Grms vibration 2h, disconnection rate 20% (ETS Solutions vibration table measurement);
- Secondary lock (ZH series): 15Grms vibration 2h, disconnection rate 0%, separation force maintained 15N;
- Lever lock (LE series): 20Grms vibration 2h, disconnection rate 0%, insertion/extraction force only 18N (effort saving).
Terminal Retention Force Supplement: Automotive electronics VH series (metal latch), retention 120N, after 100,000 km driving on bumpy truck road (10-50Hz/10Grms), zero terminal pull-out.

Moisture Resistance:

Material Moisture Absorption: PBT 0.2% (JST NH series), PUR 0.3%, PVC 0.4% (after absorption insulation resistance drops 50%).
Measured Data: A Southeast Asian data center used PVC harness, humidity 90% environment 1 year, insulation resistance dropped from 200MΩ to 30MΩ, PLC false short circuit; after switching to JST SH series with PBT sheath, 1000h test insulation resistance still >500MΩ.
Test Method: Use constant temperature humidity chamber (e.g., Weiss WK11-340), 85°C/85% RH for 1000h, measure insulation resistance with Fluke 1507.

Chemical Resistance:

Sheath Performance:

PUR: Resistant to engine oil, hydraulic oil (construction machinery, e.g., Caterpillar excavator);
PVC: Not resistant to ketones (acetone), aromatic hydrocarbons (toluene), swells and cracks upon contact;
Teflon: Resistant to all chemicals (jet fuel, strong acids/bases).

Terminal Plating:

Gold plating resistant to sulfides (industrial exhaust), tin plating turns black (resistance increases 50%) upon contact with sulfides (e.g., H2S) in 24h.

A German chemical plant used tin-plated terminal harness, workshop H2S concentration 10ppm, poor contact after 3 months; solved after switching to gold-plated terminals.

Design

When designing JST harness, focus on 3 data types: electrical load (e.g., 12V system select AWG22 wire for 5A), environmental endurance (-40°C~105°C use PUR jacket), space constraints (bend radius ≥6× wire diameter).

Perform vibration test per ISO 16750-3 (20-2000Hz/15Grms), ensure insertion/extraction life ≥50 cycles (TE Connectivity GH series measured), contact resistance ≤10mΩ (UL 1977 standard), use 3D routing software (e.g., Mentor Xpedition) to avoid sharp bends and reduce EMI.

Design Specifications

Electrical Specifications:

Current Carrying: Select current capacity per wire gauge. AWG24 wire (diameter 0.51mm) carries 3A (TE Connectivity measurement, ambient 25°C), AWG22 wire (0.64mm) 5A, AWG10 wire (2.59mm) 60A (EV BMS main power line). Exceeding limits causes overheating; e.g., AWG24 wire with 5A, 100mm long generates heat 0.75W (Q=I²Rt), PVC insulation hardens after 500h continuous operation at 80°C.
Voltage Withstand: Low-voltage harness (12V/24V) select withstand 300V (UL 758 standard), high voltage (48V EV system) 600V, aerospace (Airbus A350) 1000V withstand (MIL-W-22759).
Signal Type Matching:
- Power signals: Use solid core wire, impedance negligible (focus on current);
- Differential signals (LVDS/USB 3.0): Differential impedance 90Ω±10% (TDR test, Keysight DSA-Z634A), crosstalk ≤-30dB@100MHz (Rohde & Schwarz ZVA67 vector network analyzer);
- High-frequency signals (5GHz Wi-Fi): Use coaxial cable, shielding coverage ≥90% (Apple MagSafe cable reference).

Wire Gauge (AWG)	Current Capacity (A)	Application Scenario	Test Conditions	Data Source
30	0.5	Sensor signal line (NTC)	25°C, length 100mm	TE Connectivity Handbook
24	3	Consumer electronics internal power line	25°C, PVC insulation	UL 758 Section 18
22	5	Automotive sensor power line	85°C ambient, continuous 1000h	ISO 6722-1
10	60	EV BMS main power line	12V system, temperature rise ≤30°C	Tesla Model 3 Wiring Spec

Mechanical Specifications:

Insertion/Extraction Life: JST PH series connector (2.0mm pitch) rated 50 cycles (UL 1977), actual test using AMP crimp tool manual insertion/extraction, after 50th cycle contact resistance ≤15mΩ (initial 10mΩ). Medical BM series (vertical latch) rated 100 cycles (prevent frequent accidental touch), Medtronic ECG lead wire measured 80 cycles, latch no looseness.
Tensile Strength: Main harness (non-dragging) ≥50N (TE tensile tester, rate 50mm/min), drag chain wire ≥80N (ABB IRB 6700 robotic arm harness uses AWG28 TPE, tensile 82N).
Bend Life: Static bending (e.g., hinge) ≥100k cycles (radius 3mm, Apple Watch Ultra charging cable uses FPC, measured 120k cycles no break); dynamic bending (drag chain) ≥1M cycles (MIL-DTL-83513 standard, KUKA robot drag chain uses AWG28 PUR, measured 1.1M cycles resistance change 4%).

Environmental Specifications:

Temperature Range:
- Indoor equipment (PLC cabinet): -20°C~80°C (PVC jacket, IEC 60068-2-1/2);
- Engine bay (automotive/industrial): -40°C~125°C (PTFE jacket, ISO 16750-4);
- Aircraft engine periphery: -55°C~300°C (nickel-plated copper + PTFE, MIL-STD-810H Method 501.7).
Humidity and Protection: IP67 (IEC 60529) requires immersion 1m depth 30 min no water ingress, medical device (Philips monitor) uses IP67 harness, salt spray test (ASTM B117) 500h no corrosion (tin-plated copper conductor).
Vibration Test:
- Automotive: 20-2000Hz/15Grms (ISO 16750-3, 24h), JST GH series connector measured no pin displacement;
- Industrial robot: 20-2000Hz/20Grms (EN 61373, 100h), ABB robotic arm harness uses SH series, vibration contact resistance change ≤3%.

Signal Specifications:

Eye Height: LVDS signal requires eye height ≥150mV (Keysight DSOX1204G oscilloscope, 5Gbps rate), medical ECG signal eye height ≥200mV (Medtronic test standard).
Crosstalk Value: Adjacent pair crosstalk ≤-40dB@100MHz (Rohde & Schwarz EMC tester), USB 3.0 cable uses foil+braid shield (coverage 95%), crosstalk -45dB.
Transmission Delay: Surgical robot arm signal delay ≤5ms (ensuring real-time operation, da Vinci Xi measured 4.2ms), using AWG36 silver-plated copper (diameter 0.13mm, delay 0.5ns/m).

Dimensional Specifications:

Wire Diameter Limit: AR glasses internal space ≤5mm width, use JST SHD series (0.5mm pitch), AWG40 wire (diameter 0.08mm), harness total diameter 1.2mm (Apple Vision Pro reference).
Connector Height: Drone flight controller uses horizontal connector (height ≤3mm), JST ZH series (1.5mm pitch, height 2.8mm), avoiding airflow blockage.
Minimum Bend Radius: Minimum bend radius = 6× wire diameter (IPC-2221), AWG30 wire (0.25mm) radius ≥1.5mm, below this insulation cracking rate 80% (TE bending test).

Path Planning

Path design first sets red lines:

Sharp bends are taboo, bend radius must be ≥6 times wire diameter (IPC-2221 standard), e.g., AWG24 wire diameter 0.51mm, radius at least 3mm, otherwise insulation prone to cracking (TE test shows radius <2mm, cracking rate 80% after 500 bends).

Keep safe distance from heat sources: ≥10mm from heating elements (e.g., resistors, motors) to avoid jacket aging (PTFE jacket at 100°C continuous 1000h, life halved if 5mm from heat source).

High-frequency signal lines (e.g., LVDS, USB 3.0) keep ≥3cm from power lines (Keysight oscilloscope measurement, 3cm spacing crosstalk 15dB lower than 1cm), cross at 90° angle (reduce coupling).

Moving parts (e.g., robot joint, door hinge) path add guide slot, secure with convoluted tubing (inner diameter 1mm larger than harness, prevent friction).

Use 3D software to design path, reduce physical trial and error

Mentor Xpedition or Zuken E3.series can import equipment 3D model (e.g., automotive ECU housing, robot arm), automatically detect interference between harness and screws, brackets. Set 3 parameters:

Trunk line prioritize straight: From connector A to B take shortest straight line, reduce redundancy (Tesla Model 3 harness saved 15% wire);
Branch length limit: T/Y branch each segment ≤0.3m (CAN bus branch exceeding 0.5m causes signal attenuation >3dB, ISO 11898-2 standard);
Label bend points: Mark radius at each bend (e.g., "R=5mm"), convenient for later processing.

E.g., drone gimbal harness, use SolidWorks Routing to simulate center of gravity, ensure single side harness weight ≤5% total weight (DJI Mavic 3 harness design reference), avoid flight imbalance.

Automotive Harness Path:

Engine bay harness runs along vehicle frame longitudinal beam (metal frame absorbs vibration), use JST XH series connector (125°C rated), wire gauge AWG26 (power)/AWG30 (signal), jacket PTFE (260°C peak).

Passing damping zones (e.g., near suspension) add helical spring sleeve (diameter 2mm larger than harness), absorbs road shock.

Cabin harness routes along interior trim panel hidden channel (fixed with 3M VHB tape, peel strength ≥2N/cm), avoid direct sunlight (PVC jacket at 85°C continuous 500h sun exposure, hardness increases 30%).

Door panel harness at hinge uses FPC flexible cable (thickness 0.2mm) + JST SH series (1.0mm pitch), bend radius ≥3mm (door opens/closes 10 times daily, lasts 5 years no break).

Industrial Robot Drag Chain Path:

ABB IRB 6700 robotic arm drag chain path in three segments:

Fixed segment (base to arm): Straight line, use AWG28 TPE jacket (wear index ≥1M cycles, MIL-DTL-83513 standard);
Bending segment (joint): Add self-lubricating bushing (PTFE material, friction coefficient 0.04), bend radius ≥5× wire diameter (AWG28 diameter 0.38mm, radius ≥1.9mm);
Branch segment (tool end): Y-branch length ≤0.2m, use JST SH series connector (1.0mm pitch, insertion/extraction life ≥50 cycles), avoid pulling main line during frequent tool changes.

Drag chain turn curvature radius ≥2× chain width (e.g., chain width 50mm, radius ≥100mm), prevent wire squeezing (KUKA KR QUANTEC measured, radius <80mm increases wear rate 40%).

Medical Device Path:

Surgical robot da Vinci Xi arm harness routes inside sealed tube (inner diameter 8mm, medical stainless steel braid), path avoids sterile zone (≥30cm from operating table), use JST BM series connector (vertical latch prevents accidental touch disconnection).

Signal lines (e.g., force feedback sensor) use silver-plated copper conductor (skin depth 5μm@100MHz), path ≥5cm from motor lines (noise reduced 20μV, Medtronic test data).

Monitor harness (e.g., Philips IntelliVue) routes along back panel cable management, use color-coded ties for zoning (red power/blue ECG/green SpO2), labels laser etched (Brady L-123 label, withstands ethylene oxide sterilization), 5-second location during maintenance.

How to fix wrong path:

If path interference or performance not meeting spec, modify step by step:

Local bend modification: Use heat gun + tube bender to adjust radius (e.g., original R=2mm to R=5mm), measure insulation resistance (≥100MΩ, Megger MIT400 test);
Change wire to reduce resistance: High-frequency line change to silver-plated copper (better skin effect), power line change to high-conductivity oxygen-free copper (conductivity 100% IACS, Southwire data);
Add shielding patch: Where crosstalk exceeds limit, wrap conductive aluminum foil (coverage ≥90%), ground both ends (verified with Rohde & Schwarz EMC tester).

Verification

Prototype verification starts with hand-made sample, don't directly tool up

3D print JST connector housing (PLA material, precision ±0.1mm), hand-crimp wires (AMP crimp tool, crimp height per JST spec), build simple circuit to test basic performance.

Continuity: Multimeter continuity test each pin, resistance ≤10mΩ (UL 1977 standard), e.g., JST GH series 2.0mm connector 4P sample measured 8mΩ.
Structural Interference: Install into equipment model (e.g., Tesla Model 3 ECU housing), check for interference with screws, brackets, use feeler gauge measure clearance ≥0.5mm (prevent assembly jamming).
Preliminary Environmental Endurance: Place in oven 60°C bake 2h, feel jacket not soft; -20°C freeze 2h, bend not break (IPC-2221 basic test).

Environmental testing follows international standards, one by one

Temperature Cycling: Thermotron TH-3 chamber, set -40°C×2h→125°C×2h, cycle 500 times (ISO 16750-4). Measure contact resistance change, JST XH series connector after cycling resistance changed from 10mΩ to 12mΩ (≤20% change passes).
Vibration Test: LDS V964 vibration table, per automotive ISO 16750-3 set 20-2000Hz sweep, 15Grms acceleration, 24h. After test pins no displacement (magnifying glass), TE GH series measured extraction force still ≥3N (initial 5N).
Protection Test: IP67 per IEC 60529, harness immersed 1m depth 30 min, insulation resistance ≥100MΩ after removal (Megger MIT400); salt spray test ASTM B117, spray 5% NaCl solution 500h, tin-plated copper conductor no corrosion.

Signal quality checked with instruments, eye pattern crosstalk all tested

Eye Pattern Test: Keysight DSOX1204G oscilloscope, LVDS signal 5Gbps rate, eye height ≥150mV, eye width ≥0.8UI (unit interval) passes. Medical ECG signal (0.05-150Hz) eye pattern noise ≤10μV (Medtronic standard).
Crosstalk Test: Rohde & Schwarz ZVA67 vector network analyzer, measure adjacent pair crosstalk ≤-40dB@100MHz. USB 3.0 cable uses foil+braid shield (coverage 95%), measured crosstalk -45dB.
Delay Test: Tektronix DPO7000 oscilloscope, measure surgical robot signal delay ≤5ms (da Vinci Xi measured 4.2ms), using AWG36 silver-plated copper (delay 0.5ns/m) meets standard.

Mechanical test for life, insertion/extraction bending tensile all recorded

Insertion/Extraction Life: Use TE tensile tester to simulate insertion/extraction, rate 12mm/min, JST PH series (2.0mm pitch) rated 50 cycles, 50th cycle contact resistance 12mΩ (initial 10mΩ); medical BM series (vertical latch) rated 100 cycles, Medtronic ECG lead measured 80 cycles latch no looseness.
Tensile Strength: Tensile tester rate 50mm/min, main harness ≥50N (TE standard), drag chain wire ≥80N (ABB IRB 6700 uses AWG28 TPE, measured 82N). Wire not broken at break (insulation cracks first).
Bend Life: Dynamic bending per MIL-DTL-83513, AWG28 PUR wire bend 1M cycles (radius 5mm), resistance change ≤5% (KUKA robot measured 1.1M cycles 4% change); static bending (hinge) Apple Watch Ultra FPC, radius 3mm bend 120k cycles no break.

Design change step by step, don't expect one-time success

Find cause: Reproduce on vibration table, found connector latch loose (original horizontal latch), change to JST BM vertical latch (latch force increased 20%);
Change material: Jacket from PVC to PUR (wear resistance improved), add helical spring sleeve (vibration absorption);
Re-test: Run vibration per ISO 16750-3, 20Grms/24h, contact resistance stable at 11mΩ (initial 10mΩ), passes.

Material Selection

Material selection must be based on 12 quantitative parameters such as conductor resistivity (e.g., tin-plated copper ≤0.018μΩ·m), insulation temperature rating (-60~200°C), jacket tensile strength (TPU ≥50MPa), matching application environment.

For example, automotive engine bay uses XLPE insulation (125°C rating), industrial robots select TPEE jacket (100k bend cycles life), data-driven replaces experience-based judgment.

Conductor Material

What metal is the conductor made of?

High-Purity Electrolytic Copper (ETP Copper): Purity must be ≥99.9%, oxygen content ≤0.04% (ASTM B170 standard), resistivity 1.724μΩ·cm at 20°C (closer to pure copper theoretical 1.72μΩ·cm better). It has best conductivity, low cost, suitable for cost-sensitive, non-harsh environments, e.g., internal fixed wiring in appliances. But bare copper oxidizes; in humidity >60% environment, surface slowly grows green rust, resistance increases.
Tin-Plated Copper (Tin-Plated Copper): Coat ETP copper surface with 2-5μm thick tin layer (ASTM B545 standard), resistivity slightly rises to 1.8-1.9μΩ·cm (tin resistivity 11.5μΩ·cm, thin coating has minor effect). Benefit: tin blocks oxygen and sulfur, in sulfur-containing air (e.g., industrial areas) or high temperature/humidity (85°C/85%RH) environment, corrosion rate 80% lower than bare copper. E.g., same exposure 1000h, bare copper resistance increases 15%, tin-plated copper only 3%.

Solid or stranded wire?

Solid Wire (Hard Drawn): A single solid copper strand, diameter 0.1-2.5mm (30AWG to 10AWG), tensile strength 220-250MPa (ASTM B624 test), stiffer than stranded. But it fears bending; repeated bends (e.g., bend radius <5× wire diameter) generate micro-cracks inside, eventually breaking.
Stranded Wire (Soft, Flexible): Common 7 strands (light bending), 19 strands (medium), 37 strands (frequent bending), 65+ strands (ultra-flexible, e.g., robot joint). Each strand diameter 0.05-0.2mm, after stranding elongation ≥15% (solid wire only 5%), bend radius as small as 3× wire diameter. E.g., German KUKA robot arm uses 19×0.1mm tin-plated copper, bending 500 times daily, lasts over 3 years.

How to choose wire gauge for sufficiency?

Wire gauge expressed in AWG (American Wire Gauge) or mm² (metric), core is calculating current capacity.

AWG to mm² Conversion Table

AWG	Cross-Section (mm²)	Diameter (mm)	DC Resistance at 20°C (mΩ/m)	Current Capacity at 25°C (A) (Static)
30	0.0507	0.255	339	0.5
24	0.205	0.511	84.2	3
18	0.823	1.024	21.4	15
14	2.081	1.628	8.28	32
10	5.261	2.588	3.28	55

Note: Current capacity decreases as ambient temperature rises, e.g., 18AWG at 50°C only carries 12A (10% reduction per 10°C rise). High current (>50A) use thick wire, e.g., EV battery pack busbar uses 800kcmil (405mm²) tin-plated copper, current 1200A (in bar form).

Which conductor for different applications?

High-Current Power Lines (>10A): Use multi-strand tin-plated copper, gauge per current, e.g., vehicle charger input line 12AWG (3.31mm²), 40A (50°C ambient). Insulation XLPE (125°C rated) to prevent heat aging.
High-Frequency Signal Lines (>100MHz): Use silver-plated copper, silver conductivity better than copper (resistivity 1.59μΩ·cm), and at high frequency skin effect (current concentrates on surface), silver surface resistivity lower, lower loss. E.g., 5GHz Wi-Fi antenna feedline, 26AWG silver-plated copper, loss 20% lower than tin-plated copper.
Extreme Bending Applications (e.g., robot joint): Use ultra-fine stranded wire, e.g., 65×0.05mm tin-plated copper (total cross-section 0.128mm², equivalent 27AWG), bend radius <10mm, after 100k bends strand breakage rate <3% (IEC 60228 test).
Corrosive Environment (e.g., marine equipment): Use tin-plated copper + fluoropolymer insulation, tin layer resists salt spray (ASTM B117 salt spray 500h no corrosion), fluoropolymer (FEP) resists seawater immersion (ASTM D543, 30-day immersion volume change <1%).

How to know conductor quality?

Resistivity: Four-point probe method (ASTM B193), measure ETP copper at 20°C ≤1.724μΩ·cm, tin-plated copper ≤1.9μΩ·cm.
Tensile Strength: Universal testing machine pulls conductor to break, ETP copper ≥220MPa, tin-plated copper ≥200MPa (plating doesn't affect strength).
Plating Adhesion: Use 3M 600 tape on tin-plated surface, peel off quickly at 45°, no tin layer detachment (ASTM B571).
Bend Resistance: Wrap around mandrel (mandrel diameter=10× wire diameter), 180° reverse, 1000 cycles later strand breakage ≤5% (IEC 60228).

Jacket and External Protection

Comparison of 6 mainstream types parameters

Jacket materials divided into 6 types by performance, commonly used in foreign factories, parameters in table below (all tests per ASTM, ISO):

Material Type	Tensile Strength (MPa)	Abrasion Volume (mm³)¹	Continuous Temp Rating (°C)	Density (g/cm³)	Oil Resistance Level²	Typical Application	Representative Brand Case
TPU	50-70	≤30	-40~125	1.12	ASTM D471 IRM 903 (72h volume change ≤5%)	Robot joint, automotive moving harness	German KUKA KR QUANTEC joint harness
PA66 (Nylon)	80-100	40-50	-40~150	1.14	Resistant to mineral oil (ISO 1817)	Construction machinery, industrial drag chain harness	US Caterpillar excavator harness
TPEE	40-60	35-45	-50~130	1.2	Resistant to fuel (SAE J844)	Drone body, folding screen device cable	US DJI Mavic 3 folding arm harness
Halogen-Free Flame Retardant	30-45	50-60	-30~105	1.3	Not oil resistant (only water)	Rail vehicles, medical equipment	Siemens metro carriage harness
Metal Braid Layer	-	-	-	2.7 (Al)	-	EMI shielding (1GHz ≥60dB)	US GE MRI equipment signal line
PVC (Thickened)	15-20	80-100	-30~85	1.38	Resistant to weak acid (pH 5-9)	Static wiring, low-cost equipment	Japan Panasonic appliance internal harness

Note 1: Abrasion volume per ASTM D4060, CS-17 wheel, 1000g load, smaller volume loss = more wear-resistant; Note 2: Oil resistance level refers to volume change after 72h immersion, ≤5% excellent.

Select by performance

TPU (Thermoplastic Polyurethane): Most used in moving parts. Tensile strength 50-70MPa (3x PVC), abrasion ≤30mm³ (PVC 80-100mm³), e.g., KUKA robot arm bends 500 times daily, TPU jacket lasts 3 years no break (IEC 60227 bend test). Oil resistant (immersed IRM 903 oil 72h volume swells only 3%), so automotive engine bay harness prefers it.
PA66 (Nylon): Tensile strength 80-100MPa, melting point 260°C, made into braided jacket (strand density ≥80/inch), cut resistance level ISO 13997 B (knife cut 10 times no break). Caterpillar excavator hydraulic system harness, buried in oil, PA66 jacket 5 years no crack (ASTM D543 oil test).
TPEE (Thermoplastic Polyester Elastomer): Elongation at break ≥400% (TPU 300%), rebound ≥90% (returns to shape after bending), suitable for folding devices. DJI drone folding arm cable uses TPEE jacket, folds 20 times daily, 100k cycles no permanent deformation.
Halogen-Free Flame Retardant: Oxygen index ≥32% (UL94 V-0, self-extinguishes within 10s), smoke density ≤100 (ASTM E662), complies with EU EN 45545 rail fire standard.
Metal Braid Layer: Prevents signal interference. Aluminum foil coverage ≥85% + tinned copper braid coverage ≥95%, shielding effectiveness ≥60dB at 1GHz (blocks 99.9% interference). GE MRI ECG signal line uses this jacket, image noise reduced 30%.

How to choose jacket for different applications?

Dynamic Applications (Frequent Bending): Choose TPU or TPEE. E.g., automotive door hinge harness, opens/closes 10 times daily, TPU jacket bend life ≥50k cycles (IEC 60227), TPEE better for frequent folding (e.g., laptop hinge cable).
High Temperature Oil Environment: PA66 or TPU. Engine bay uses TPU (125°C), transmission area uses PA66 (150°C + gear oil resistant), Caterpillar tested PA66 in 150°C oil 1000h, hardness change <10% (ASTM D2240).
Outdoor Waterproof/Dustproof: Use overmolded jacket or convoluted tubing. Convoluted tube material PP (UV resistant) or PA12 (low temp -50°C), IP67 waterproof (1m underwater 30 min no ingress), US outdoor lighting pole cables commonly used, with heat shrink end seals (3:1 ratio, seals gaps).
Electromagnetically Sensitive Areas: Add metal braid layer. Medical equipment (e.g., ECG), communication base station antenna cables, braid coverage ≥95%, shielding effectiveness ≥50dB at 10GHz (Molex test report).

How to verify jacket durability?

Tensile Test: ASTM D638, grip distance 50mm, speed 50mm/min, measure max force at break (MPa). TPU sample must be ≥50MPa, PA66 ≥80MPa.
Abrasion Test: ASTM D4060, Taber abrader, CS-17 wheel, 1000g weight, 1000 cycles, weigh loss (mg). TPU loss ≤30mg, PVC ≥80mg.
Thermal Aging: IEC 60068-2-2, 125°C oven 1000h, cool then measure tensile strength retention ≥80% (TPU passes, PVC drops below 60%).
Waterproof Test: IP67 per IEC 60529, harness immersed 1m depth 30 min, internal no moisture (dew point meter humidity <90% RH).
