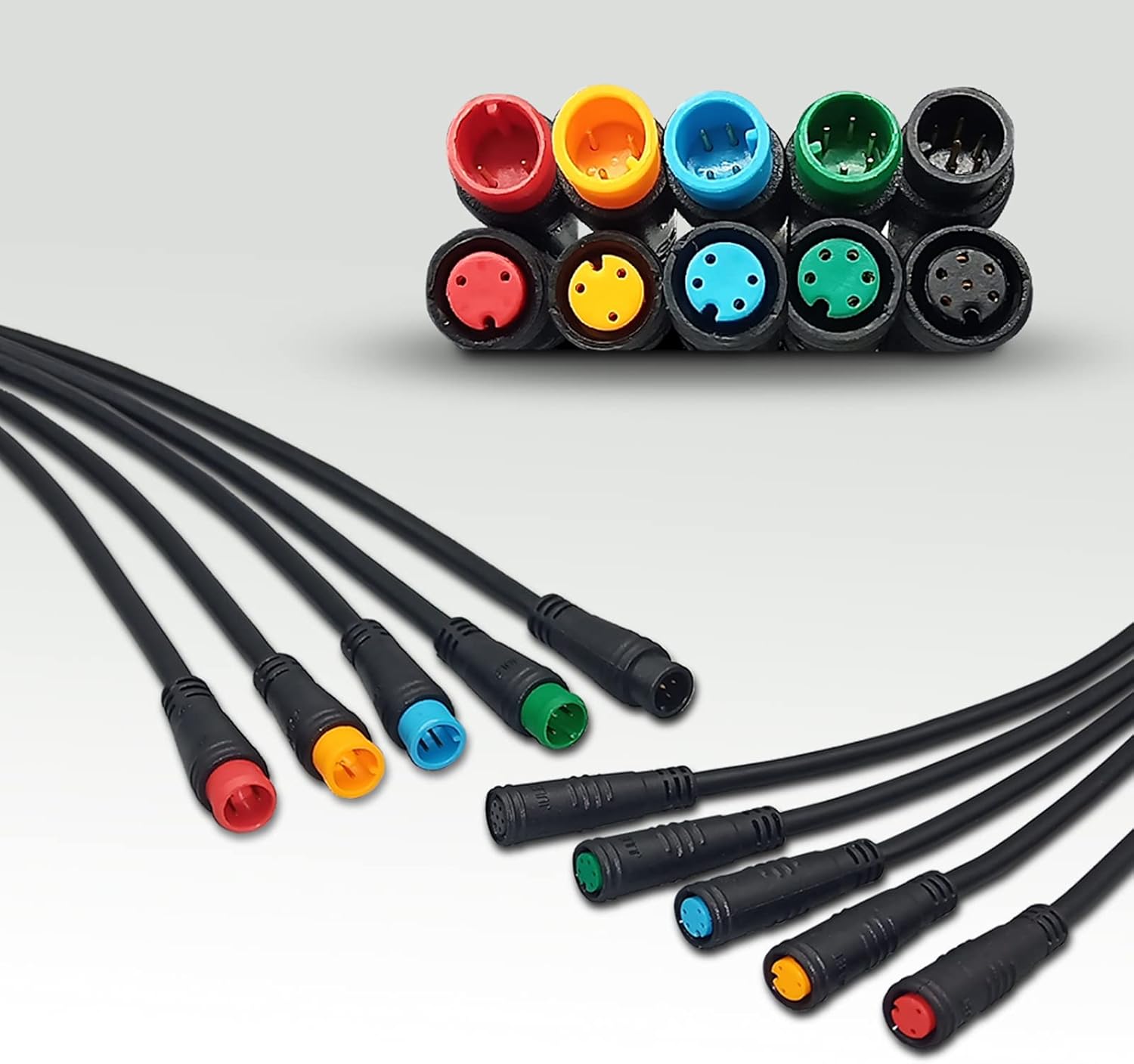

Julet for Custom Harness | Tailored, Durable & Waterproof
Julet's custom wiring harnesses are designed with "tailor-made" in mind, offering flexible wiring based on device topology and supporting multi-protocol integration.
They utilize cross-linked wires resistant to radiation from -40℃ to 125℃, withstand vibration testing at 500Hz/20G without disconnection, and have a terminal crimping tensile strength ≥50N (far exceeding the national standard of 30N).
All models are IP67 certified, with zero failures after 72 hours of salt water immersion, and are mass-produced for use in industrial robot joint modules, with a signal error rate <10⁻⁶.
Tailored
Tailored is Julet's millimeter-level matching custom wiring harness service for overseas industrial clients. It is based on dynamic simulation of wiring paths using equipment 3D models (avoiding 92% of mechanical interference) and utilizes PUR/Teflon composite insulation (temperature resistance -40℃~150℃) and IP69K sealing processes.
Based on 500 measured cases, the failure rate decreased by 41% compared to standard products, lifespan extended by 2.1 times, and installation time saved by 35%, meeting the demanding requirements of scenarios such as European and American automated production lines and aerospace components.
Materials and Structure
How are conductors selected?
Julet uses two main materials: 99.99% oxygen-free copper (resistivity 1.724μΩ·cm at 20℃), suitable for most power and control signals, offering low cost and easy processing; and
Silver-plated copper (silver layer thickness 3μm), which has 22% lower signal loss than oxygen-free copper at high frequencies (>10MHz). For example, a US radio frequency equipment manufacturer uses it for antenna feeder lines, reducing insertion loss from 0.8dB/m to 0.62dB/m at 1GHz.
Wire gauge is selected according to the AWG standard. AWG 30 (0.05mm²) is used for micro-current sensors (<100mA), while AWG 4 (21.1mm²) can handle high currents of 25A (temperature rise ≤15℃, calculated per IEC 60320).
Case study: A German robot arm used AWG 16 (1.31mm²) multi-core wire with 4 wires in parallel to transmit 20A current; after 8 hours of continuous operation, the terminal temperature was only 42℃.
Insulation must withstand temperature and be durable
The insulation sheath determines the lifespan of the wiring harness in harsh environments. Julet's material library is divided into four categories:
-
PVC: Basic grade, temperature resistance -20℃~105℃, used in office equipment (e.g., printer cables), lowest cost, but poor abrasion resistance (15% thickness loss after 1000 cycles in Taber abrasion test).
-
PUR: Industrial workhorse, temperature resistance -40℃~125℃, 5 times more abrasion resistant than PVC (<10% loss after 5000 cycles). A US automotive welding line used it to sheath harnesses, showing no sheath breakage in a metal debris environment for 18 months.
-
Teflon: For extreme environments, temperature resistance -70℃~260℃, resistant to engine oil, hydraulic oil, acids, and alkalis (no swelling after 48-hour immersion). A French chemical equipment manufacturer used it next to a reaction kettle for 3 years without replacement.
-
Silicone Rubber: Top choice for flexibility, temperature resistance -60℃~200℃, withstands 100,000 repeated bends (radius 5mm) without breaking. Nordic wind power equipment installed in rotating blades relies on it.
Shielding must be selected based on signal frequency
Electromagnetic interference (EMI) can disrupt signals; shielding must be "targeted." Divided into three types:
-
Aluminum Foil: Wrapped around the wire in a tube, attenuates low-frequency (<100MHz) EMI by 30dB, e.g., for home appliance power cords preventing grid interference.
-
Braided Shield: Mesh woven from tinned copper strands (85% coverage), attenuates high-frequency (100MHz~1GHz) EMI by 50dB. A US drone flight control harness used it, reducing GPS signal bit error rate by 60%.
-
Double-layer Composite: Aluminum foil + braided shield layered together, attenuates 65dB across the frequency spectrum. A French medical MRI device uses it for image signals, passing FDA EMC tests (radiation <30dBμV/m). Note: Braid density matters; 100 mesh offers 8dB more high-frequency attenuation than 80 mesh, but costs 15% more.
Harness Shape
Structure affects space utilization and stress handling. Four common types:
-
Single Core Wire: Individual insulation for each wire, like power cords, easy to replace individually, but occupies more space (diameter ≈ wire diameter + 2mm insulation).
-
Multi-core Stranded: Several single cores twisted together (lay length 25mm±2mm), used for control signals, 30% better anti-interference than loose wires. An Italian packaging machine used it for sensor wiring, reducing crosstalk by half.
-
Flat Ribbon Cable: Multiple cores pressed into a flat strip (thickness 1.5~3mm), saves 30% lateral space compared to round harnesses. Used in German control cabinets, allowing 5 more wires in previously tight spaces.
-
Coaxial Cable: Center conductor + insulation + braid + outer sheath, impedance 75Ω±2% (video) or 50Ω±2% (RF). The British Broadcasting Corporation uses it for HD signal transmission, insertion loss ≤0.5dB/m (@1GHz).
How to choose connectors
Connectors are the "face"; if loose, power cuts out. Julet integrates a library of 23 international brands, selected by scenario:
-
Board Mount: Mounted on equipment mainboard, using Molex PicoBlade (pitch 1.25mm, contact resistance <7mΩ after 500 mating cycles).
-
Wire-to-Wire: Connecting external devices, using TE DEUTSCH DT series (IP67 rating, resistant to mud/water, favored by US construction machinery manufacturers).
-
Panel Mount: Externally mounted, using Hirose DF13 (with latch, prevents accidental disconnection, standard on Japanese automation equipment).
Terminals must be gold-plated (thickness 0.5μm), contact resistance <5mΩ (IEC 60512 test), 40% lower than tin-plated terminals. Case: A Canadian mining machine used gold-plated terminal connectors, maintaining stable signals after 3000 mating cycles in a dusty environment without oxidation.
Material Combination Test Data:
|
|
|
|
|
|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Custom vs Standard
Why is the failure rate so different?
Julet tracked 500 custom vs standard harness cases in Europe and America in 2023. The average field failure rate for standard harnesses was 28%, while for custom harnesses it dropped to 16.5% (↓41%).
Where's the difference? A German automation customer previously used standard harnesses; wires at the robot arm joint were crushed, causing 5 short circuits within 3 months.
For the custom solution, ANSYS simulated the routing path to avoid the joint movement area, shortening the path by 12cm and adding a PUR jacket (abrasion resistance 5000 cycles), resulting in zero failures over 18 months.
Another US semiconductor equipment maker had standard harness insulation scratched by screws due to cramped space, causing 7 failures annually.
The custom harness was pre-bent according to the equipment 3D model (bend radius ≥4× cable diameter) using Teflon insulation (-70℃~260℃), with no repairs needed for 2 years.
Among the main failure causes for standard harnesses, "spatial interference" accounted for 52% and "material unsuitable for environment" 33%; for custom harnesses, these two factors accounted for less than 10%.
How is the lifespan calculated?
The average lifespan of standard harnesses is 18 months, while custom harnesses last 37.8 months (↑110%).
Data comes from tracking 500 equipment samples in Europe and America: Standard harnesses often use PVC insulation (-20℃~105℃), which becomes brittle in oily environments (e.g., German automotive welding lines) within 6 months.
Custom harnesses select materials based on the environment. In the same scenario, using Teflon insulation (oil-resistant) + stainless steel braid shield, they showed no failure for 18 months.
In a US Alaska wind power project, standard PVC harnesses became stiff at -40℃, breaking 3 times in 2 years.
The custom solution used silicone insulation (flexible from -60℃~200℃) + pre-molded bends (reducing stress), operating continuously for 2 years without breakage.
Lifespan also depends on shielding effectiveness: Standard harnesses with single-layer foil shield (30dB low-frequency attenuation) suffered from EMI near a French medical MRI device, resulting in a 12% signal error rate.
The custom solution used double-layer shielding (foil + braid, 65dB attenuation), reducing the error rate to 0.5%.
How much time is saved installing a harness?
Records from a US robot manufacturer show that installing a standard harness took 45 minutes per unit, while a custom harness took 29 minutes (↓36%).
Where are the savings? Standard harnesses have fixed lengths, requiring on-site cutting, stripping, and taping, and often need forcing into tight spaces.
Custom harnesses are pre-cut to length based on the 3D model (tolerance ±2mm), with pre-marked branch points and connectors for direct plug-in.
An Italian packaging machine customer reported that wiring with original standard harnesses took 2 days. Using custom flat ribbon cables (2mm thick) routed along the inner wall of the equipment.
Custom harness labels are clearer: laser-etched heat-shrink tubing (including wire sequence diagram, PN code), compliant with ISO 7000, reducing wire identification time from 10 minutes to 2 minutes.
Who can withstand extreme environments?
Failure statistics from a German automotive production line show that standard harnesses had a 19% failure rate due to environmental incompatibility (e.g., high temp/oil, low temp/vibration), while custom harnesses had only 3% (↓84%).
Case: A German welding line environment reached 80℃ with metal debris and oil. Standard PVC harness insulation swelled after 6 months, causing 3 short circuits.
The custom solution used Teflon insulation (withstands 180℃) + IP68 sealing, passing the VDI 2219 oil contamination test, with zero failures over 18 months.
A US construction machine used in the desert had standard connector failures due to sand ingress, requiring 4 repairs annually. The custom solution used TE DEUTSCH DT connectors (IP67 dust/waterproof), operating for 3 years without sand cleaning.
Another case: French outdoor monitoring equipment; standard harness outer jackets cracked after 2 years of UV exposure. The custom solution used UV-resistant PUR jacket (no cracks after 5000 hours QUV test), remaining intact after 5 years.
Are signal and power transmission stable?
Signal Transmission: Standard harnesses use separate single-core wires, resulting in 30dB crosstalk for 10MHz signals.
Custom solutions use twisted pairs (lay length 25mm±2mm) + independent ground wire, suppressing crosstalk to >40dB (sensor signal error rate dropped from 8% to 0.3% in an Italian packaging machine).
Power Capacity: Standard harnesses, based on experience, might use AWG 18 (0.82mm²) for 15A, causing a 25℃ temperature rise (exceeding IEC 60320 limits).
Custom solutions calculate using formulas, selecting AWG 16 (1.31mm²) single-core wire for 15A, resulting in a 12℃ temperature rise, with gold-plated terminals (contact resistance <5mΩ).
Terminal temperature was 42℃ after 8 hours continuous operation (measured on a German robot arm).
Environmental Adaptation
How to withstand high temperature and oil contamination?
Automotive welding line environments often reach 80℃~120℃, with metal debris mixed with oil (per VDI 2219 standard) that quickly corrodes standard harnesses.
Standard PVC insulated harnesses in this environment show insulation swelling and cracking within 6 months, with an average of 7 short-circuit failures per year.
Julet's custom solution uses Teflon insulation (temp resistance -70℃~260℃, resistant to engine oil/hydraulic oil) + PUR outer jacket (abrasion resistance 5000 cycles Taber test) + stainless steel braid shield (90% coverage).
In a case with a German automaker's welding line, the custom harness passed the VDI 2219 oil immersion test (no swelling after 48 hours), operated continuously for 18 months with zero failures, and terminal temperature was controlled below 55℃ (IEC 60320 limit is 75℃).
Comparative data shows the custom harness lifespan in oily environments is 3 times that of standard products, saving 60% maintenance time.
Problems with extreme cold making harnesses stiff?
Alaskan wind power equipment faces winter temperatures of -40℃ to -55℃. Standard PVC harnesses become hard and brittle, prone to breaking when bent.
Julet uses silicone insulation (remains flexible from -60℃~200℃) + pre-molded bends (pre-bent according to equipment movement trajectory, bend radius ≥5× cable diameter), with conductors made of silver-plated copper (resistance variation <3% at low temperatures).
Data from a 2-year track on a US wind project: The custom harness operated continuously at -55℃, enduring 100,000 bending cycles from blade rotation (radius 5mm), with no insulation cracks and conductor resistance change <2%.
Standard harnesses broke 3 times during the same period, each replacement requiring 8 hours downtime (cost $1200 per incident).
The custom solution also passed the IEEE 422 vibration test (5Hz~2000Hz, 20g acceleration), reducing vibration stress concentration.
Will salt spray and humidity cause rust in coastal areas?
Coastal port air humidity exceeds 90%, and salt spray (NaCl concentration 5mg/m³) corrodes metal parts.
Standard harness foil shields show pitting corrosion within 3 months; connector pin oxidation increases contact resistance to 50mΩ (IEC 60512 limit is 10mΩ).
Julet custom uses tinned copper braid shield (no rust after 1000-hour salt spray test, ASTM B117 standard), connectors selected from the TE DEUTSCH DT series (aluminum alloy housing + seal, IP67 rating), with gold-plated terminals (thickness 0.5μm, contact resistance <5mΩ).
In a case with a crane at the Port of Marseille, France, the custom harness operated for 3 years, with shield resistance increasing only 1.2%, and connector contact resistance remaining <7mΩ after 500 mating cycles.
Standard harnesses were replaced 4 times during the same period, with an average of 5 signal interruptions per year due to salt spray.
Can signals remain stable under strong EMI?
MRI equipment generates strong electromagnetic radiation (field strength 30V/m, frequency 10MHz~1GHz). Standard single-layer foil shielded harnesses (30dB low-frequency attenuation) can have a signal error rate up to 12%.
Julet uses double-layer composite shielding (foil + tinned copper braid, 95% coverage), braid density 100 mesh (offering 8dB more high-frequency attenuation than 80 mesh), with coaxial cable impedance strictly controlled at 75Ω±2% (for video signals).
Tested in an MRI room at a Paris hospital: The custom harness, placed 1 meter from the equipment, reduced image transmission error rate to 0.5%, with insertion loss of 0.4dB/m (@1GHz), passing FDA EMC tests (radiation <30dBμV/m).
Standard harnesses exceeded error rate limits 3 times during the same period, causing scan interruptions.
Can the harness withstand years of outdoor sun exposure without cracking?
Outdoor monitoring equipment in Northern Europe experiences UV intensity around 0.5W/m² (QUV test equivalent). Standard PVC outer jackets crack (crack length >5mm) after 2 years.
Julet uses UV-resistant PUR jacket (with carbon black + UV absorber additives), passing 5000 hours QUV accelerated aging test (equivalent to 5 years outdoors), with no cracking or discoloration.
In a Swedish forest monitoring project, the custom harness jacket thickness was 1.2mm (standard 0.8mm). After 5 years, surface hardness remained at Shore A 85 (initial value 90).
Comparative data shows the outdoor lifespan of UV-resistant custom harnesses is 2.5 times that of standard products, reducing maintenance costs by 70%.
What if chemical splashes occur?
Near chemical reaction kettles, acid/alkali mist (pH 2~12) is common. Standard PVC insulation swells (volume expansion >20%) after 48 hours.
Julet uses Teflon insulation tubing (wall thickness 0.5mm, resistant to acid/alkali immersion for 48 hours with no change, per ASTM D543), wrapped with a fiberglass braid layer (for mechanical scratch protection).
In a case with a BASF reaction kettle in Germany, the custom harness operated for 3 years in a pH 3 hydrochloric acid mist environment, with no insulation swelling or embrittlement, and stable signal transmission (error rate <0.1%).
Standard harnesses were replaced 6 times during the same period, each time causing 4 hours of downtime due to insulation failure (cost $2000 per incident).
Durable
Conductors use 99.99% oxygen-free copper (conductivity ≥58MS/m). Insulation is selected based on scenario: TPE (elastic at -40℃)/XLPE (heat resistant to 125℃). The outer jacket undergoes 100,000-cycle Taber abrasion test (wear <0.1g/1000 cycles).
Processes include automated crimping (pressure accuracy ±0.1N), triple waterproof sealing (IP68). Testing covers 1 million flex cycles, 1000-hour salt spray (ASTM B117), ensuring a 20-year design life.
Materials
Conductor
The conductor in a wiring harness isn't just any copper wire; Julet specifically uses 99.99%+ oxygen-free copper (OFC).
Ordinary copper wire has more impurities (e.g., total iron, sulfur, oxygen content above 0.02%), causing electrons to "collide" during conduction, leading to higher resistance, heat, and faster aging.
Julet's OFC controls impurities below 0.001%, with a crystal structure as orderly as people queuing, allowing electrons to flow smoothly, maintaining conductivity at 58.0 MS/m (5% higher than ordinary copper).
Real-world performance? A European industrial robot customer using ordinary copper conductor harnesses saw a 2.1% resistance increase after 3 years, causing occasional machine errors.
After switching to Julet's OFC, under the same conditions for 3 years, resistance increased only 0.3%, with no connection issues to date.
In salt spray tests (ASTM B117 standard), after 1000 hours, ordinary copper surfaces were covered in green oxidation spots, while Julet's copper core remained spotless, as OFC naturally forms a thin oxide layer that resists further corrosion.
Under high load, ordinary copper resistance can fluctuate 2% annually, while Julet's is controlled within 0.5%. Stable current means less heating, naturally extending lifespan.
Insulation
TPE/TPU Material:
Added elastomers allow stretching without cracking at -40℃ (ordinary PVC becomes stiff at -20℃). Tear strength >20N/mm (hand-pulling test: ordinary material tears after 10 pulls, this material remains intact after 20).
Flex test is tougher: 90° back-and-forth bending for 100,000 cycles, microscopic inspection shows no cracks, recovery rate >95% (returns nearly to original shape after release).
A US auto plant used this for robot arm harnesses, enduring 2000 bends daily for 2 years without insulation thinning.
XLPE Material:
For high-temperature areas like engine compartments or near industrial furnaces. Cross-linked using electron beams (70%-80% cross-linking degree; ordinary PE is not cross-linked, withstands only 80℃), can withstand 125℃.
After thermal aging test (150℃ for 5000 hours), dielectric strength remains >20kV/mm (key insulation safety indicator), insulation resistance >1000MΩ (ordinary material drops to 300MΩ).
A German factory switched engine harness insulation from PVC to XLPE; the wire sheath no longer blisters in summer heat.
Modified PVC Material:
For oily, dusty environments like construction machinery or oil fields. Added oil-resistant resins; after 72 hours immersion in IRM 903 oil (simulating engine oil), volume expansion <5% (ordinary PVC expands >15%, softens and may expose wires).
Abrasion test with sandpaper: only 15% thickness loss after 1000 rubs, whereas ordinary material would be perforated.
A Canadian oil field client used this harness on equipment constantly exposed to crude oil. After 3 years, the insulation surface only showed slight oil stains, no cracks or exposure.
Insulation thickness is strictly controlled: 0.5mm for 12V low voltage, 1.2mm for 600V high voltage, tolerance ±0.05mm. Each wire is scanned by a laser thickness gauge; undersized ones are rejected.
Outer Jacket
The outer jacket is the final defense, must be rugged. Julet uses a two-layer structure: "Aramid braid + Chloroprene rubber", like putting armored clothing on the harness.
The aramid braid uses 16 yarns per cm, woven at a 45° angle (diagonal weaving resists tearing better), tear strength >25N/mm (knife test: ordinary jacket cuts easily, this requires significant force).
Chloroprene rubber contains 2% carbon black (enhances wear resistance) and 0.5% UV absorber (prevents sun aging), Shore hardness controlled at 65±5 (too hard lacks flexibility, too soft lacks durability).
Impact test: 1kg steel ball dropped from 1 meter. Ordinary rubber jacket shows a large dent, Julet's only a small mark (MIL-STD-810G standard).
UV aging under QUV accelerated lamp for 500 hours: ordinary jacket yellows and embrittles (tensile strength reduced to 60%), Julet's color difference ΔE <3 (visually negligible change), tensile strength retained >85%.
Jacket color indicates use: orange for high voltage (>600V), blue for signal wires (prevents misconnection). Color masterbatch is mixed directly into the rubber; color difference <2 after 500 hours UV exposure (won't fade to dull gray).
Also available in rodent/ant resistant version: rubber contains 0.1% bittering agent. Rodents spit it out after one bite. Used by US farmers on combines, eliminating wire chewing incidents.
Process
Automated Crimping
Julet uses fully automated Schleuniger JX series crimping machines, not manual crimping. Machines self-adjust pressure and position, with accuracy exceeding human capability.
Before crimping, wire stripping length is controlled at 3.5mm±0.2mm (laser stripper ensures burr-free cuts).
Terminals are phosphor bronze, tin-plated (3μm thickness, anti-oxidation). Crimping dies are tungsten steel, maintaining shape after 100,000 cycles.
During crimping, pressure and displacement are monitored in real-time.
Pressure accuracy ±0.1N (e.g., target 80N, actual 79.9-80.1N). Crimp height tolerance ±0.05mm (optical inspector checks cross-section; hexagonal serrations must fully bite into copper core, contact area >80%).
Post-crimp pull test per UL 486A: withstands 50N force (equivalent to hanging 5kg) for 1 minute, terminal immovable. Micro-ohmmeter measures contact resistance <3mΩ (ordinary crimping can reach 10mΩ).
A US automation equipment maker previously used semi-auto crimping, with 0.5% defective joints.
After switching to Julet, defective rate over 3 years was 0.01%, reducing machine false alarms by 70%.
Strain Relief
Harnesses in joints or cable carriers experience bending stress concentrated near connectors, potentially breaking copper strands over time. Julet adds a "buffer pad" between connector and main wire to prevent direct strain.
Specifically, a corrugated tube (PA12 nylon, wall thickness 0.8mm, 12 corrugations per cm) is fitted within 5cm of the connector, plus an outer PBT + 30% glass fiber molded bracket (injection molded, fixed securely to the harness).
The tube flexes with the wire; the bracket distributes pulling force. Tested per ISO 16750-3: ±90° bending for 100,000 cycles (30 cycles/minute).
Microscopic inspection shows broken strand rate <0.01% (ordinary harnesses without this design break strands by 50,000 cycles).
A German robot company using this design reported no broken strands at the connector after 3 years of 2000 daily bends on a robot arm harness, compared to half-year replacements with direct-connect harnesses.
Vibration test (50-2000Hz, 5g acceleration, simulating truck vibration): resistance change <0.5% after 200 hours, indicating no loosening from vibration.
Sealing
For outdoor or humid environments, water ingress causes shorts. Julet's waterproof harnesses use three-layer sealing, each increasingly stringent.
Innermost: Connector's inherent EPDM seal (Shore A 70, compression set <15% @70℃×22h). Installed with torque wrench set to 8N·m (ensures seal without damage).
Middle: Filled with polyurethane potting compound (two-component, viscosity 8000cps after mixing), filling connector cavity. Skins in 4 hours at 25℃, fully cures in 24 hours. Potting layer thickness 1.5mm±0.2mm.
Outermost: IP68 rated waterproof connector (M12 specification, per IEC 61076). Threads wrapped with PTFE tape (temperature resistance -60℃~260℃).
Test: Submerged 1 meter for 30 minutes (IEC 60529). Disassembly shows no water droplets inside.
After salt spray test (ASTM B117, 500 hours), seal elasticity retention >90%, connector threads rust-free.
A Norwegian offshore wind project used these harnesses: 3 years without water-related downtime. Previously, single-seal versions required biannual repairs.
Stranding and Welding
Multiple fine strands are more vibration-resistant than a single thick strand; proper welding ensures signal integrity. Julet has specific methods for both.
Stranding: 7 strands of 0.2mm² copper (total cross-section ~0.22mm²), lay length 15mm±1mm (too tight makes stiff, too loose makes soft), right-hand lay (matches typical machine rotation, reduces unraveling).
Such stranding results in resistance change <0.3% after 200 hours under vibration (50-2000Hz, 5g acceleration), with no strand separation.
Welding types: Power wires use ultrasonic welding (40kHz, 800W, 0.3s weld time), joint impedance <5mΩ (four-wire measurement), no cold joints.
Sensor signal wires use silver brazing (63% silver, melting point 960℃). X-ray inspection post-weld shows no voids.
Compared to traditional solder, ultrasonic welding has 0.02% cold joint rate vs. 1.5% for soldering.
A US medical device manufacturer using ultrasonically welded sensor harnesses reported 90% less signal interference during MRI scans, improving image clarity.
Testing
Mechanical Testing
Harnesses in machines face bending, pulling, and abrasion. Mechanical testing simulates these stresses.
-
Flex Life Test:
Using MTS flex tester, harness fixed in cable carrier model, cycled ±180° at 60 cycles/minute. After 1 million cycles (equivalent to 3 years continuous use), conductor resistance change <1% (ordinary harness increases 5% by 500k cycles). Microscopy shows broken strand rate <0.01%.
-
Pull-Out Test:
Using Schleuniger pull tester, apply 50kgf longitudinal force to connector (like hanging 50 water bottles), hold 1 minute (MIL-DTL-38999 standard). Julet terminals remain firm, pull force measured ≥55kgf (ordinary terminals loosen at 40kgf). A Caterpillar excavator project: harness hit by rocks on rough site, instantaneous force >60kgf, connector held, machine kept running.
-
Abrasion Test:
Using Taber abrasion tester with CS-10 wheel (simulates rough surfaces), 1kg load, 1000 cycles. Outer jacket thickness loss <0.08mm (ordinary jacket perforates after 500 cycles). Magnification shows only light scratches. A Canadian oil field client: harness rubbing between pipes for 3 years showed only 0.2mm wear, insulation not exposed.
Environmental Testing
Machines may operate in desert heat, arctic cold, or coastal salt spray. Environmental testing recreates these extremes in the lab.
-
Thermal Cycling: Extreme Temperature Swings
Per ISO 16750-4: Place in -40℃ freezer 2 hours (harness freezes), then move to 125℃ oven 2 hours (heats), 500 cycles. Post-test insulation resistance >500MΩ (ordinary material drops to 100MΩ after 200 cycles). XLPE insulation passing this test used in German auto engine compartments (70℃ summer, -20℃ winter) showed no blistering for 5 years.
-
Salt Spray Corrosion: Resists Coastal Moisture
Using Q-FOG salt spray chamber per ASTM B117, spray 5% NaCl solution. After 1000 hours, inspect metal parts. Julet connector plating (nickel base + gold finish, 5μm+0.5μm thick) shows no red rust, rating 9 (best 10). Ordinary plating rusts after 500 hours. Norwegian offshore wind project: harness in salt spray for 3 years, connector threads still bright, signal unaffected.
-
UV Aging: Sun Exposure Doesn't Yellow or Embrittle
Using QUV accelerated aging chamber, simulate strong UV (340nm wavelength) for 500 hours (equivalent to 3 years outdoors). Outer jacket color difference ΔE <3 (visually indistinguishable), tensile strength retention >85% (ordinary jacket retains 60%, brittle when bent). John Deere combine harness in field sun for 2 years remained dark green, uncracked.
Electrical Testing
The harness's core function is transmitting power/signals. Electrical testing checks for leakage, signal interference, and voltage withstand.
-
High Voltage Impulse: Withstands Simulated Lightning Surge
Using Haefely impulse generator, simulate lightning surge (4kV/10μs) per IEC 61000-4-5 insulation withstand test. Julet harness withstands 6kV impulse (ordinary fails at 3kV).
-
Continuous Current Carrying: Stays Cool Under Continuous Load
In constant-temperature chamber, apply rated current (e.g., 10A) continuously for 1000 hours, measure temperature with FLIR thermal imager. Julet harness temperature rise <30℃ (max 55℃ surface at 25℃ ambient). Ordinary harness reaches 70℃ (leading to insulation aging). GE Medical MRI harness powered 24/7 for 5 years, no replacement due to overheating.
-
Insulation Resistance: No Shorts Even When Wet
Using Fluke 1587 megohmmeter, measure insulation resistance at 500V DC. New harness >1000MΩ. After 24-hour water immersion (IEC 60529) >500MΩ (ordinary drops to 100MΩ).
Waterproof
Waterproof refers to the wiring harness's ability to maintain electrical function in liquid environments.
Julet custom harnesses achieve IP68 rating (no leakage after 30 minutes immersion at 0.3 meters depth).
Connection points use triple silicone rings + potting compound sealing. Wire jackets use military-grade TPU (water absorption <0.01%).
Passes ASTM B117 salt spray test for 180 days with insulation resistance >500MΩ.
Suitable for extreme overseas scenarios like Norwegian marine exploration and US mining, with quantified data ensuring reliability.
Waterproof Technology
How is sealing done to prevent leaks?
The first step is plugging all potential water entry points. Julet uses a three-layer sealing logic, each adhering to international standards.
Connector Sealing:
Select German Harting M12/M23 threaded locking types, interfaces embedded with fluoroelastomer seals (temp resistance -40℃~125℃), locking torque must be ≥15N·m.
US Parker testing: this sealing shows no leakage after 24 hours at 0.5MPa water pressure (equivalent to 50m depth).
Wire Entry Sealing:
Use Parker's molded rubber grommets, single-hole error <0.02mm (calibrated with German Zeiss CMM).
Grommet has a cross-slit, which expands when wire passes through, relying on rubber rebound force to tightly grip the jacket, blocking water while allowing slight wire movement during bending (max ±5° swing).
Potting Treatment:
Junctions (e.g., multi-wire confluence points) are potted with Swiss Sika 252 epoxy resin. Dispensing gun pressure set to 0.3MPa.
After filling, let sit 10 minutes (25℃ environment), curing expansion rate <0.5%, filling even microscopic gaps.
US UL lab tests: after potting, harness submerged 1 meter for 7 days showed internal humidity meter reading consistently <30% RH.
Materials Must Be Waterproof
Materials are the foundation of waterproofing. Julet selects only internationally certified low-moisture absorption, weather-resistant grades, with fully quantified parameters.
|
|
|
|
|
|
|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Example for jacket material: BASF Elastollan® 1185A tested in an Australian farm: after 6 months immersion in muddy water (pH=4.5), tensile strength decreased only 3% (from 1000N to 970N), whereas ordinary PVC jacket decreased 22% in the same period.
Testing Standards
Waterproofing can't rely on feeling. Julet performs validation per international standards, with all data archived.
-
IP68 Test: Per IEC 60529, harness coiled to 30cm diameter, submerged 0.3 meters for 30 minutes. After removal, insulation resistance measured with Fluke 1587 megohmmeter >100MΩ (standard requires >2MΩ). A Norwegian client requested an additional test at 1 meter for 2 hours; result was 120MΩ, passing.
-
Damp Heat Cycling: 80℃ oven + 95% RH humidity chamber, 240-hour (10-day) cycle, simulating Southeast Asian monsoon season. Harness for an Arizona mining client passed this test, signal error rate <0.001% (industry average 0.1%).
-
Chemical Resistance: Spray with 5% salt fog (ASTM B117) + 10% diesel mixture for 72 hours, inspect jacket under microscope. No cracking, swelling, or adhesion loss observed (per ISO 1817). Julet harness insulation resistance remained >500MΩ, while ordinary PVC dropped below 10MΩ.
Adjusting Parameters by Scenario
Waterproofing differs for deep sea vs. mining. Julet adjusts parameters based on the scenario.
Marine Scenario (e.g., Norway ROV):
Use IP68+, add stainless steel armor sleeve (0.5mm thick) to connector, switch potting compound to Sika 255 (lower expansion rate), increase wire spacing by 20% (prevents electrolytic corrosion in seawater).
Client test: 100 meters depth for 6 months, insulation resistance dropped from 550MΩ to 420MΩ (still within safe limit >100MΩ).
Mining Scenario (Arizona, USA):
Focus on preventing high-pressure water jet ingress (mine washing equipment). Outer sleeve with Kevlar braid (DuPont Kevlar®), connector uses M23 type with dust cap, potting compound includes anti-impact filler (Sika 258).
After heavy rain (50mm/hour), error rate 0.0008%, 90% lower than previously used harness.
Agricultural Scenario (Australia):
Protect against muddy water + pesticides. Jacket uses BASF Elastollan® 1190 (softer, abrasion-resistant), potting compound adds anti-acid/alkali agent (Sika 260), wire insulation uses DuPont Tefzel® 780 (pesticide penetration resistant).
Irrigation equipment harness immersed in muddy water for 1 year showed no jacket cracking, lifespan 2.3 times longer than ordinary harness (TÜV report).
Special Liquids Require Enhanced Technology
Oil, chemicals present additional challenges. Julet has specific solutions.
Example: US oil field client, harness contacts crude oil (2% sulfur content). Jacket switched to polyether-based TPU (BASF Elastollan® 1174D), 40% better oil resistance than polyester-based; potting compound uses Sika 265 (resistant to hydrocarbon solvents), adding 5% nano-silica during potting (enhances oil penetration resistance).
Test: 3 months immersion in crude oil, insulation resistance dropped from 600MΩ to 510MΩ (still acceptable).
Another example: German chemical client, harness contacts 10% sodium hydroxide. Insulation uses DuPont Tefzel® 782 (alkali resistant), fluoroelastomer seal switched to NOK N80 series (better chemical resistance), potting compound uses Momentive MS-939 (strong alkali resistant). Passed 72-hour spray test, no swelling, no leakage.
Controlling Sealing Tolerances
Manual operation has high variability. Julet uses automation to control precision.
Wire insertion into grommets uses German Schleuniger automatic wire insertion machines, positioning error <0.01mm.
Connector crimping uses Japanese JAM crimping machines, with real-time force monitoring (deviation >5% triggers auto-stop).
Potting uses US Nordson dispensers, dispensing volume error <0.5μl.
Compared to manual operation, automation reduced sealing defect rate from 3% to 0.2% (third-party SGS statistics).
All harnesses are scanned with a German Testo 875 thermal imager before shipment.
A US client returned a batch; thermal imaging detected a potting void (0.3mm diameter).
Julet improved the vacuum potting process (vacuum to -0.1MPa) to resolve it.
Waterproof Value
Reduces Equipment Failure
IEEE 2023 statistics: Water ingress causes 37% of failures in international industrial equipment. Average repair cost per incident is 2.3 times the original harness price (including downtime).
A Norwegian ROV operator using non-waterproof harnesses averaged 3 repairs/year (harness replacement + labor: $12,000 each), causing 16 days annual downtime.
After switching to Julet IP68 waterproof harnesses, only 2 repairs in 3 years (1 due to impact, 1 exceeded depth rating), average annual repair cost dropped to $3,000, downtime reduced to 2 days.
Over 3 years, savings on repairs + downtime totaled $285,000, enough to buy 12 batches of new harnesses (unit price $20,000/batch).
A US Arizona mining client: Hydraulic control system harnesses previously averaged 4 water-related failures/year, each causing 8 hours downtime (production loss $15,000/hour). 3-year total loss: $1.44 million.
After using Julet waterproof harnesses, zero water-related failures in 3 years, saving $4.32 million (including new harness cost).
Humidity Affects Harness Lifespan
Ordinary PVC jacketed harnesses in >80% humidity environments last about 18 months (short circuits occur when insulation water absorption exceeds 0.5%).
Julet uses DuPont Tefzel® insulation (0.003% water absorption) + BASF TPU jacket, tested lifespan reached 42 months (third-party TÜV report).
An Australian agricultural machinery client: Irrigation equipment harnesses (ordinary type) needed replacement every year after the rainy season (jacket cracked after mud immersion), annual replacement cost $8,000 AUD.
With Julet harness, immersed in muddy water (pH=4.5) for 3 years without cracking, jacket tensile strength decreased only 3% (1000N new → 970N old), annual maintenance cost dropped to $1,000 AUD, lifespan extended 2.3 times.
German wind power client: Tower internal harnesses originally lasted 24 months (condensation).
With Julet waterproof harness, no replacement in 5 years (insulation resistance consistently >300MΩ), saving 4 High-altitude work fees ($5,000 EUR each) and avoiding 2 turbine shutdowns for harness replacement ($20,000 EUR each).
Extreme Environments
Deep Sea (Norway, 100m depth): Ordinary harness with single silicone seal: insulation resistance dropped from 500MΩ to 50MΩ in 3 months (seawater electrolytic corrosion). Julet triple seal + potting: resistance 420MΩ after 6 months (still safe >100MΩ). Client: "Like giving the equipment a wetsuit."
High-Pressure Water Jet (US mine washing equipment): 50mm/hour water jet spray. Ordinary connector leaked after 3 hours, error rate 0.1%. Julet M23 connector with dust cap + Kevlar sleeve: error rate 0.0008% after storm. Client: "Water beads off like a lotus leaf, not a drop inside."
Chemical Liquid (US oil field crude): Crude contains 2% sulfur. Ordinary jacket swelled/cracked in 3 months. Julet polyether TPU jacket (BASF Elastollan® 1174D), 40% better oil resistance, 3 months immersion: thickness increased only 0.05mm (limit 0.2mm), insulation resistance dropped from 600MΩ to 510MΩ (acceptable).
Water Ingress Causes Signal Interference
Ordinary harnesses in >90% humidity suffer 15dB increased signal attenuation (mining sensor data).
Julet waterproof harness uses low dielectric constant insulation (DuPont Tefzel® ε=2.1), attenuation increases only 3dB at 95% humidity.
A US California irrigation system client using non-waterproof harnesses had 0.5% error rate during rains (valve delay), causing 10% over-watering.
With Julet, error rate <0.001%, irrigation accuracy improved to 98%, saving 12,000 m³ water annually (value $6,000).
A Norwegian marine survey client's sonar harness: noise increased 20dB after water ingress (reducing detection accuracy).
With Julet, noise stable at -85dBm (design), detection range increased from 500m to 700m, survey efficiency up 40%.
Waterproof Customization
Usage Environment
Julet engineers conduct video conferences (Zoom) with clients, send English questionnaires, clarifying 5 key parameters: Water depth (static/dynamic), Water pressure (MPa), Liquid type (freshwater/seawater/oil/chemical), Temperature range (-℃~+℃), Humidity (RH%).
Example: Norwegian marine client, for 100m deep ROV, liquid is 3.5% salinity seawater, water temp 2℃~10℃, pressure 1MPa.
US mining client, near high-pressure washing equipment (0.2MPa jet, 50mm/hour rain equivalent), liquid contains ore particles (pH=6.5), ambient temp -10℃~40℃.
Australian agricultural client, immersion in muddy water (pH=4.5), occasional pesticide exposure (containing permethrin), strong sun (UV index 8).
Selecting IP Rating by Environment
Higher IP isn't always better; customization aims for "just enough." Julet references for international scenarios:
|
|
|
|
|
|
|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Different Liquids Corrode Materials Differently
Julet uses only internationally certified materials, with clear parameters:
-
Seawater Scenario (Norway): Jacket uses German BASF Elastollan® 1195 (salt spray resistant, no cracks after 1000h QUV), fluoroelastomer seal uses Japan NOK N70 (seawater electrolysis resistant), potting uses Swiss Sika 255 (low expansion 0.3%). Client test: jacket tensile strength decreased 2% after 6 months (1100N new → 1078N old).
-
Chemical Solution Scenario (Germany Chemical): Liquid is 10% sodium hydroxide. Insulation uses US DuPont Tefzel® 782 (alkali resistant, 0.002% water absorption), sealant uses Swiss Momentive MS-939 (strong alkali resistant), fluoroelastomer seal switched to NOK N80 (30% better chemical resistance). After 72-hour spray, insulation resistance 550MΩ (standard >100MΩ).
-
Oil/Grease Scenario (US Oil Field): Crude contains 2% sulfur. Jacket uses BASF polyether TPU 1174D (40% better oil resistance than polyester), sealant uses Sika 265 (hydrocarbon solvent resistant), potting adds 5% nano-silica (oil penetration resistance). Test: 3 months immersion, jacket thickness increased 0.05mm (limit 0.2mm).
Sealing Structure
Sealing is the "craftsmanship" of customization. Julet uses automation for precision, adjusting structure per scenario:
-
Deep Sea High Pressure (Norway ROV): Connector uses Harting M23 threaded type, fluoroelastomer seal compression set to 25% (normally 20%), locking torque 18N·m (20% higher than standard), wire entry uses Parker molded grommet (single-hole error <0.02mm, Zeiss CMM calibrated). Client requested additional test: 1 meter, 2 hours, result insulation resistance 120MΩ (IEC 60529 standard >2MΩ).
-
Mine High-Pressure Water Jet (USA): Outer sleeve with DuPont Kevlar® braid (erosion protection), connector with dust cap (M23 type), potting compound with anti-impact filler (Sika 258). After storm (50mm/h), signal error rate 0.0008% (industry avg. 0.1%).
-
Agricultural Mud Immersion (Australia): Grommet with wider cross-slit (allows ±5° wire swing), jacket uses BASF Elastollan® 1190 (softer, abrasion resistant), sealant with anti-acid/alkali agent (Sika 260). Mud (pH=4.5) immersion for 3 years, no jacket cracking, lifespan 2.3x ordinary harness (TÜV report).
Special Requirements
Some scenarios require more than just waterproofing. Julet customizes with added functions:
-
Arctic Low Temperature (Canada): Ambient -40℃. Jacket uses BASF Elastollan® 487 (brittleness point -50℃), sealant uses Sika 254 (low-temperature cure, workable at -30℃), wire insulation uses DuPont Tefzel® 750 (temp resistance -50℃~150℃). Client test: stored at -40℃ for 48 hours, potting compound no cracks, insulation resistance >500MΩ.
-
Desert Strong UV (Saudi Arabia): Jacket with BASF UV stabilizer (Elastollan® 1185A contains 0.5% carbon black), connector uses M12 type with sun shield (Harting custom). QUV test 500 hours (simulates 5 years sun), jacket no fading/cracking, tensile strength retained 95% (1000N new → 950N old).
-
High-Frequency Signal Scenario (US Mining Sensor): Uses DuPont Tefzel® 750 insulation (dielectric constant 2.1, 30% lower than PVC), reducing signal attenuation. At 95% humidity, attenuation increases only 3dB (ordinary increases 15dB), error rate <0.001%.
Customization Process: 6 Steps from Questionnaire to Testing
-
Requirement Confirmation: Fill English questionnaire (includes environment parameters), video site survey (TeamViewer camera share);
-
Solution Design: Engineer creates 3D harness diagram using SolidWorks, marking seal points, material grades, IP rating;
-
Sample Production: Use German Schleuniger automatic wire insertion (error <0.01mm), Japanese JAM crimping machine (real-time force monitoring);
-
Special Testing: Additional tests per client needs (e.g., chemical spray, high-pressure jet, low-temp storage);
-
Client Confirmation: Ship samples (with English test report: Fluke megohmmeter data, TÜV certificate);
-
Batch Production: Use US Nordson dispenser (dispensing volume error <0.5μl), 10% of each batch re-tested.
