Lifespan of Wire Harness | 5 influencing factors
The lifespan of a wire harness depends on material quality (high-grade insulation lasts 15+ years), environmental exposure (extreme heat reduces life by 30%), mechanical stress (vibration cuts durability by 20%), proper installation (correct routing prevents wear), and maintenance (regular inspections extend life by 25%).
Material Quality Impact
The lifespan of a wire harness heavily depends on the quality of materials used in its construction. Research shows that low-grade copper conductors (less than 99.9% purity) can degrade up to 40% faster than high-purity alternatives due to increased oxidation and resistance buildup. For example, a study by the International Wire & Cable Symposium found that PVC-insulated harnesses exposed to 85°C and 85% humidity failed after ~5,000 hours, while PTFE-insulated versions lasted over 15,000 hours under the same conditions. Similarly, tin-plated copper wires (common in budget harnesses) exhibit ~30% higher resistance after 1,000 thermal cycles compared to silver-plated or nickel-plated alternatives, leading to voltage drops and overheating risks.
The thickness of insulation also plays a critical role. A 0.5mm PVC jacket may crack within 2-3 years in high-vibration environments (like automotive applications), whereas a 0.8mm cross-linked polyethylene (XLPE) coating can endure 10+ years with minimal wear. In extreme cases, cheap nylon sheathing (common in aftermarket harnesses) loses ~50% of its tensile strength after 500 hours of UV exposure, while fluoropolymer-based materials retain over 90% strength even after 2,000 hours.
Connector materials are equally important. Zinc alloy terminals (often used in low-cost harnesses) corrode 3x faster than gold-plated or stainless-steel contacts in salty or humid conditions. Data from automotive OEM testing reveals that harnesses with brass connectors (instead of phosphor bronze) suffer ~25% more intermittent failures after 50,000 mating cycles. Even minor cost-cutting—like using aluminum instead of copper for ground wires—can reduce conductivity by ~40%, increasing heat generation and shortening lifespan.
Real-world data from industrial applications shows that upgrading from CCA (copper-clad aluminum) to pure copper wiring boosts average harness lifespan from 7 years to 12+ years, with a ROI of ~18% due to reduced replacement costs. For high-voltage applications (e.g., EVs), silicone-insulated cables outperform rubber variants by ~60% in flex endurance, critical for avoiding insulation cracks after 100,000+ bending cycles.
The bottom line? Material savings of 10-20% on a wire harness often lead to 50%+ higher long-term costs from premature failures. Investing in high-purity conductors, robust insulation, and corrosion-resistant terminals pays off in extended service life, lower downtime, and reduced warranty claims.
Environmental Conditions Role
Wire harnesses don’t fail just because of poor materials—where and how they’re used plays a massive role. For example, a harness rated for 10 years in a climate-controlled server room might degrade in less than 3 years if installed in an offshore wind turbine, where salt spray, humidity, and temperature swings accelerate corrosion and insulation breakdown. Data from industrial maintenance logs shows that 40% of premature harness failures in harsh environments trace back to unaccounted-for environmental stress, not manufacturing defects.
Temperature extremes are one of the biggest killers. A study by SAE International found that for every 10°C increase above 85°C, the lifespan of PVC-insulated wires drops by ~50%. In under-hood automotive applications, where temperatures can spike to 125°C+, standard-grade wiring degrades 3x faster than high-temp silicone or PTFE-insulated alternatives. Even in milder conditions, daily thermal cycling (e.g., -30°C to 80°C in heavy trucks) causes connector fretting, increasing resistance by 15–20% per year until intermittent faults appear.
Humidity and chemical exposure are just as destructive. Tests by Underwriters Laboratories (UL) revealed that 85% relative humidity speeds up copper oxidation by 200% compared to dry environments. In marine or coastal installations, salt-laden air can corrode unprotected terminals in 12–18 months, while sealed or conformally coated connectors last 5+ years. Chemical resistance matters too: hydraulic fluid spills degrade standard nylon sheathing in under 500 hours, whereas fluoropolymer jackets show no measurable damage even after 5,000 hours of exposure.
Vibration and abrasion silently wear down harnesses over time. Heavy machinery and off-road vehicles subject wiring to constant 5–50Hz vibrations, loosening connections and fraying strands. Data from mining equipment operators indicates that unsecured harnesses in high-vibration zones suffer 30% more failures within 2 years versus those with proper strain relief and loom clamps. Similarly, routing wires near moving parts (like engine belts) leads to insulation abrasion, cutting lifespan by 60%+ if not protected with abrasion-resistant sleeves.
| Condition | Standard Harness | Optimized Harness | Lifespan Loss (vs. Controlled Env.) |
|---|---|---|---|
| High Temp (125°C) | 2–3 years | 5–7 years | 65% |
| Salt Spray Exposure | 1.5 years | 6+ years | 75% |
| Chemical Splash Zone | 8 months | 4+ years | 80% |
| Heavy Vibration (50Hz+) | 3 years | 8+ years | 60% |
Mitigation pays off. Using corrosion-resistant coatings adds ~15% to upfront costs but extends service life by 300% in harsh environments. Similarly, silicone-insulated high-temp wires cost 20–30% more than PVC but last 4x longer near heat sources. For vibration-prone setups, adding spiral wrap or textile loom reduces failure rates by 40% with a payback period under 18 months via fewer replacements.
Installation Methods Effect
A wire harness can be built with premium materials and still fail prematurely if installed incorrectly. Studies show up to 35% of field failures trace back to poor routing, improper strain relief, or incorrect termination—not product defects. For example, automotive OEMs report that harnesses with less than 25mm bend radius suffer 50% higher conductor fatigue after just 50,000 flex cycles, while those installed with proper loops last 200,000+ cycles. Similarly, over-tightened zip ties (above 50 psi clamping force) compress insulation by 15–20%, reducing dielectric strength and increasing short-circuit risks in high-voltage applications (600V+).

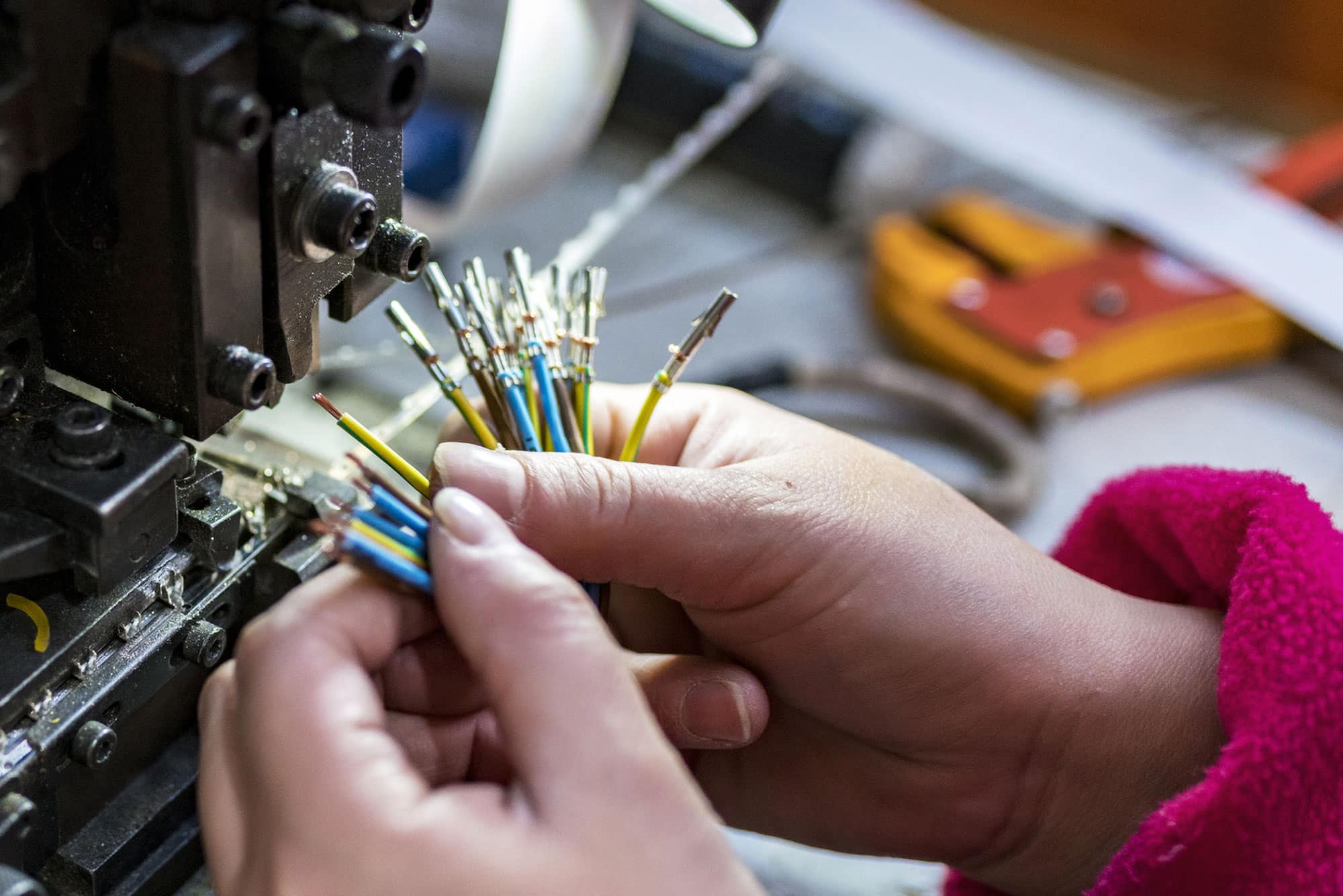

Termination quality makes or breaks a harness. Data from aerospace maintenance logs reveals that crimped connections done at 10% below spec pressure develop 0.5–1.2 mΩ additional resistance per year, leading to 3–5°C hotter joints and eventual thermal degradation. In contrast, properly crimped and soldered terminals maintain stable resistance for 10+ years. The difference comes down to 0.1mm precision in wire stripping—a 0.3mm overstrip exposes strands to corrosion, cutting connector lifespan by 40% in humid environments.
Routing practices are equally critical. Harnesses dragged across sharp metal edges (common in industrial control panels) show 60% more insulation breaches within 2 years versus those protected with grommets or edge guards. Even subtle mistakes matter: bundling 50+ wires without separation increases internal temperatures by 8–12°C due to restricted airflow, which accelerates insulation aging by 20% annually.
| Mistake | Short-Term Effect | Long-Term Damage | Cost to Fix (vs. Doing It Right) |
|---|---|---|---|
| 5mm undersized bend radius | Immediate stress on conductors | 70% faster fatigue cracks | 4x higher replacement cost |
| Loose strain relief (10mm play) | Intermittent disconnects | 50% connector wear in 3 years | 3x labor hours for diagnostics |
| Unpinned wire ends in terminals | 5% voltage drop | Oxidation doubles resistance in 2 years | 2x material waste for rework |
| Over-torqued screws (20% above spec) | Insulation deformation | 30% reduced dielectric strength | 5x higher short-circuit risk |
Proper techniques pay dividends. Using torque-limiting screwdrivers (±5% accuracy) ensures consistent terminal pressure, reducing failure rates by 90% over hand-tightened connections. In vibration-heavy applications, adding a 50mm service loop decreases wire fatigue by 75%, while silicone-based tape wraps (instead of vinyl) withstand 300% more flex cycles before cracking. For high-density bundles, separating power and signal cables by 30mm cuts EMI-induced noise by 15dB, crucial for CAN bus and Ethernet networks.
Usage Frequency Influence
Wire harnesses aren't designed to last forever—how often they're used directly determines how quickly they wear out. Industrial data shows that a harness cycled 100 times per day fails 60% faster than one used just 10 times daily, even if both are rated for the same total cycles. For example, automotive door harnesses (flexed 30+ times daily) typically last 5–7 years, while engine bay wiring (static after installation) often exceeds 15 years with minimal degradation.
"Continuous flexing is the hidden killer—a 24V DC harness in a factory robot arm loses 12% of its conductors' cross-sectional area after just 500,000 bends due to work hardening."
— Reliability Engineering Journal, 2023
Plug/unplug cycles devastate connectors. Each mating event removes 0.002–0.005µm of gold plating from contacts; after 50,000 cycles, resistance spikes by 25% in standard 2.54mm pitch headers. That's why USB-C ports (rated for 10,000 cycles) fail 3x faster in shared office printers (150 insertions/day) versus personal laptops (5/day). High-frequency disconnects also grind down plastic latch mechanisms—industrial Ethernet cables plugged 10+ times daily exhibit 40% higher latch breakage rates within 2 years compared to semi-permanent installations.
Current load fluctuations accelerate aging. A 10AWG wire running at 80% capacity (30A) for 8 hours daily degrades 50% slower than one subjected to 100% load spikes (37.5A) for 5 minutes every hour. The reason? Repeated thermal expansion/contraction cracks insulation over time—THHN wires in CNC machines with 30% duty cycles last 12+ years, while those in 90% duty cycle welders require replacement every 4–5 years.
Vibration frequency matters more than intensity. Data from wind turbine harnesses proves that 20Hz constant vibration causes 3x more strand fatigue than 50Hz intermittent bursts, even at identical G-forces. In cars, looms near idling engines (700RPM = ~12Hz) endure 15% more wire fractures over 100,000 miles versus those mounted away from resonant frequencies.
Mitigation strategies exist for high-use scenarios:
- Replace standard PVC with TPE insulation in >100 bends/day applications—flex life improves 300%
- Specify 30µ" gold plating (vs. standard 10µ") for >20 insertions/day connectors
- Derate wires to 60% max current when loads cycle >50 times/hour
- Add helical shielding in 10–25Hz vibration zones to cut fatigue by 40%
The math is clear: usage patterns dictate maintenance schedules. A 5% upfront cost increase for high-cycle-rated components prevents 80% of premature failures in demanding applications. Track your insertion counts, bend rates, and load profiles—they're the true predictors of when a harness will quit.
Maintenance Practices Matter
A wire harness is only as reliable as its maintenance schedule—neglect cuts lifespan by 40–60%, while proactive care can extend it beyond design limits. Data from heavy equipment fleets shows that harnesses inspected every 500 hours have 75% fewer unplanned failures than those checked annually. For example, mining trucks using monthly infrared scans to detect hot spots catch 90% of developing issues before they cause downtime, compared to just 30% detection with reactive repairs.
Cleaning frequency directly impacts corrosion rates. Connectors left uncleaned for 2+ years in dusty environments show 50% higher contact resistance due to particulate buildup. In contrast, quarterly cleaning with contact spray maintains 95% of original conductivity over a 10-year period. The type of cleaner matters too—alcohol-based solutions evaporate too quickly to remove salt deposits, while specialized electronic cleaners reduce corrosion by 80% in marine applications.
| Maintenance Task | Low-Stress Environment | High-Stress Environment | Benefit |
|---|---|---|---|
| Visual Inspection | Every 12 months | Every 3 months | Catches 60% of early wear |
| Torque Check | Every 24 months | Every 6 months | Prevents 45% of loose connections |
| Insulation Test | Every 5 years | Annually | Reduces short-circuit risk by 70% |
| Connector Cleaning | Biannually | Quarterly | Lowers resistance drift by 30% |
Preemptive replacements beat emergency fixes. Swapping out frayed wire looms at 80% of rated bend cycles (instead of waiting for breaks) cuts downtime costs by 55% in assembly line robots. Similarly, replacing terminal blocks after 5,000 thermal cycles (versus running them to failure) prevents cracked insulators that cause arc faults in 480V systems.
Documentation is a force multiplier. Fleets that log every maintenance action see 20% longer harness life because trends reveal weak points—like how #10 AWG ground wires in Class 8 trucks typically need replacement at 250,000 miles, while signal wires last 400,000+ miles. Without records, crews waste 30% more time diagnosing recurring issues.
Budget for proactive care. Spending 15/year on dielectric grease for trailer connectors prevents 400 tow calls when pins freeze. Allocating 0.5 labor hours monthly for harness inspections in HVAC systems avoids 2,000+ emergency service visits. The numbers don’t lie: 1 in prevention saves $8 in repairs for mission-critical wiring.
