Manufacturing Custom Wire Harness process | 7 steps

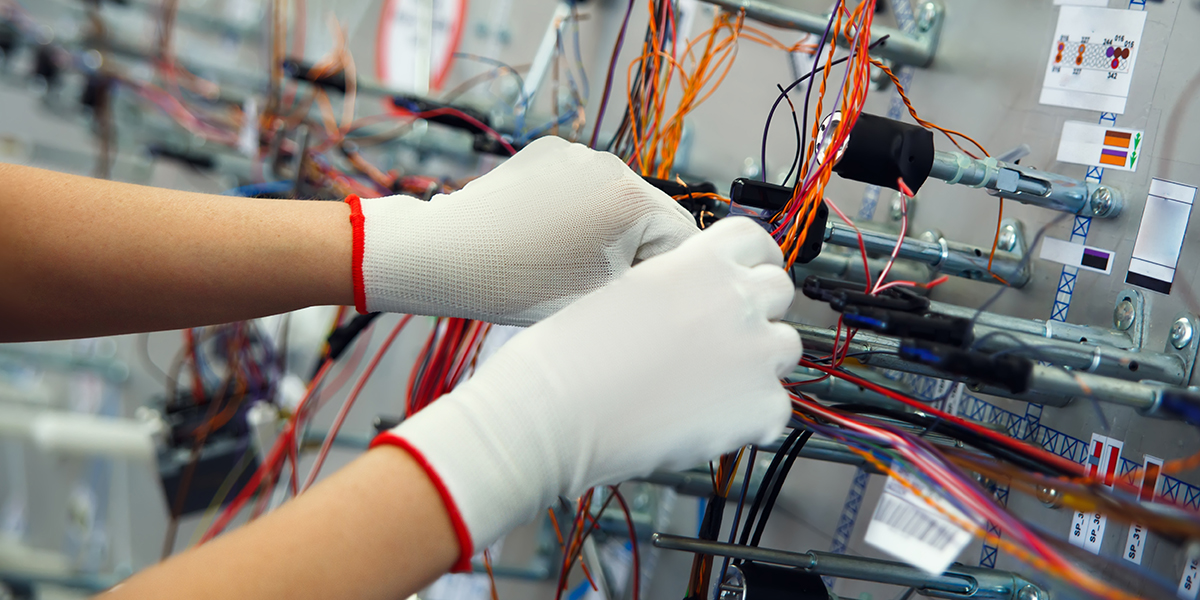

The custom wire harness manufacturing process begins with CAD design validation (tolerances ±0.1mm), followed by wire cutting/stripping using automated machines (precision ±0.5mm). Next comes terminal crimping (force-tested to 50N) and subassembly creation. Harness routing follows color-coded schematics, with protective sleeving added (heat-shrink at 120°C). Continuity testing (500V dielectric check) and final inspection (100% QC) ensure compliance before packaging in ESD-safe materials. Lead times typically run 2-4 weeks depending on complexity.
Understand Wire Requirements
Before building a custom wire harness, knowing the exact wire requirements is the most critical step. A poorly planned harness can lead to 15-20% higher material waste, 10-30% longer assembly time, and even 5-15% failure rates in early testing. The right wire selection impacts durability (50,000+ bend cycles vs. 10,000 cycles for cheap alternatives), current capacity (e.g., 18 AWG handles 10A vs. 22 AWG at 5A), and cost (copper prices fluctuate by 8-12% quarterly, affecting budgets by 0.10-0.50 per foot).
"A 10% error in wire gauge selection can cause a 20% voltage drop over 10 meters, leading to overheating (60°C vs. safe 40°C) and 30% shorter lifespan in automotive applications."
Current and Voltage Needs dictate wire thickness (AWG). For example, 16 AWG handles 13A, while 22 AWG maxes at 7A—exceeding this by 10% increases resistance by 25%, wasting 3-5W per meter as heat. In 12V systems, a 5% voltage drop is acceptable, but in 48V industrial setups, even 2% (0.96V loss) can disrupt sensors.
Environment matters: Wires in engine bays (125°C+) need silicone insulation, while indoor control panels (40°C) use cheaper PVC. Humidity above 85%? Tinned copper prevents corrosion (extends life by 3-5 years vs. bare copper). Flex applications (robotics, doors) require stranded wire (5000+ bend cycles), not solid core (fails at 1000 bends).
Cost vs. Performance: Oxygen-free copper (OFC) costs 15-20% more but reduces resistance by 8-12% over standard copper. For high-frequency signals (1MHz+), shielded twisted pairs cut noise by 90%, but add 0.30-0.80 per foot.
Regulations are non-negotiable: UL-certified wires cost 10-25% more but prevent $50,000+ fines for non-compliance. Automotive (ISO 6722), aerospace (AS22759), and medical (IEC 60601) each have different flame-retardant (UL94 V-0 vs. HB) and toxicity standards.
Future-proofing: If a harness lasts 10 years but the machine runs 15, upgrading later costs 3x the initial price. Adding 2 spare wires (10% extra cost) avoids $500+ in rework fees later.
Common Mistakes
- Ignoring temperature ratings: Using 105°C wire in a 150°C zone cuts lifespan from 10 years to 2.
- Undersizing ground wires: A 22 AWG ground with 16 AWG power creates 3x the resistance, risking EMI interference.
- Mixing voltages: 12V and 120V in one sleeve without separation causes 50% more crosstalk.
Bottom line: Spend 5-10 extra minutes calculating needs—it saves $1000+ in recalls or downtime per harness.
Select Proper Materials
Choosing the right materials for a wire harness isn’t just about picking wires—it’s about balancing cost, durability, and performance in real-world conditions. A 0.10-per-foot savings on insulation might seem smart until the harness fails after 6 months instead of 10 years, costing 200+ in replacements and hours of downtime. Copper prices swing by 8-12% quarterly, so locking in bulk purchases during dips can cut 5-15% off material costs. Meanwhile, aluminum conductors are 30% cheaper but need 50% thicker gauges to match copper’s conductivity, adding 20% more weight and 15% less flexibility.
Wire Conductors
Pure copper remains the gold standard, with 99.9% conductivity, but oxygen-free copper (OFC) boosts efficiency another 2-3%—critical for high-power (50A+) or long-distance (50m+) runs. Tinned copper, at a 5-10% price premium, resists corrosion in high-humidity (85% RH+) environments, extending lifespan from 5 to 15 years in marine applications. Aluminum-clad wires save 25-40% in material costs, but their higher resistance (61% of copper’s conductivity) means 16 AWG aluminum must replace 14 AWG copper, increasing bundle size by 10-15%.
Insulation
PVC insulation costs 0.05-0.15 per foot and works for indoor (40°C max), low-flex setups. But in engine compartments (125°C+), silicone (0.30-0.50/ft) or PTFE (0.80-1.20/ft) lasts 3x longer. Thinner walls (0.5mm vs. 1.0mm) save space but reduce abrasion resistance by 40%—a trade-off that fails fast in industrial robotics (500+ bends/day). For EMI protection, foil shielding adds 0.20/ft, while braided shielding (85% coverage, 0.50/ft) cuts noise by 90% in 100MHz+ signals.
Connectors
A 2.00 waterproof connector outperforms a 0.50 basic model in dusty or wet environments, preventing 30% of field failures. Gold-plated contacts (0.5-1.0µm thick) reduce resistance by 15% vs. tin-plated, crucial for low-voltage (5V) sensor lines where even 0.1Ω of extra resistance skews readings by 2%. Molded strain reliefs cost $0.30 more per connector but reduce wire fatigue failures by 70% in vibration-heavy (10-500Hz) applications.
Jackets and Bundling
Nylon braiding adds 0.10/ft but improves cut resistance by 50% in factory floors with sharp metal edges. Split loom tubing (0.05/ft) organizes wires fast, but corrugated conduit ($0.15/ft) handles 50% more crush force (1000N vs. 500N). For ultra-flexible harnesses (100,000+ bends), TPE jackets last 5x longer than PVC but cost 3x as much.
Cost vs. Reliability
Saving 50 on a 500-foot harness by skipping shielding might seem wise—until EMI-induced errors require 5,000 in troubleshooting. Similarly, unrated connectors fail 10x faster in -40°C conditions than MIL-SPEC-certified ($4.00) versions. Always factor in labor: a 10% cheaper material that takes 20% longer to install wipes out savings after 50 harnesses.
Pro tip: Run a 30-day salt spray test (ASTM B117) on samples before bulk buys. A 500 test can reveal 10,000 in potential failures before they reach the field.
Prepare Wires Correctly
Preparing wires for a harness isn’t just about cutting and stripping—a 0.5mm error in strip length can cause a 15% drop in crimp strength, leading to 20% more failures in vibration tests. Proper prep reduces assembly time by 30%, cuts rework costs by 50 per harness, and ensures consistent performance over 50,000+ flex cycles. Automotive-grade harnesses, for example, demand ±0.2mm precision in stripping, while industrial controls tolerate ±1.0mm—knowing the difference saves 200+ in rejected batches per project.
Using manual cutters introduces ±2mm variance, while semi-automatic machines ($$3,000-5,000) achieve ±0.5mm. For high-volume (5,000+ wires/day), laser cutters (20,000+) reduce waste by 5% with ±0.1mm accuracy. Stranded wires fray if cut with dull blades, increasing resistance by 10% at splice points.
| Cutting Method | Accuracy | Cost per 1,000 Wires | Best For |
|---|---|---|---|
| Manual Snips | ±2.0mm | $5.00 | Prototypes (<100 wires) |
| Semi-Auto Cutter | ±0.5mm | $1.50 | Mid-volume (100-5,000 wires) |
| Laser Cutter | ±0.1mm | $0.80 | High-volume (>5,000 wires) |
Stripping 10mm of insulation instead of 8mm leaves exposed copper that risks shorting, while 5mm under-stripping causes weak crimps (30% pull-out rate). Thermal strippers (800-1,200) prevent nicking strands, preserving 95% of wire strength vs. 60% with manual tools. For 22 AWG wires, a 0.3mm strip depth tolerance is critical—±0.5mm variances increase crimp failure rates by 25%.
Pro tip: For silicone-insulated wires, use blade temperatures of 150°C—PVC melts at 120°C, leaving sticky residue that lowers solder adhesion by 40%.
Twisting stranded wires by hand creates loose wraps (2-3 twists/inch), while machine twisters (2,500) achieve consistent 4-5 twists/inch, reducing resistance by 8%. Tinning (dipping in solder) adds 0.02 per wire but prevents fraying during crimping, improving connection lifespan by 50% in high-vibration (10G) environments.
Mislabeled wires cause 12% of assembly errors. Heat-shrink labels (0.05 each) withstand -40°C to 125°C, while vinyl tags (0.01) fade after 6 months outdoors. For 50+ wire bundles, color-coding + numbering cuts installation errors by 90%.
Critical checks before assembly:
- Verify strip length with calipers (±0.2mm tolerance).
- Inspect for nicks under 10x magnification—a 0.1mm nick reduces flex life by 30%.
- Test continuity (0.5Ω max resistance per 1m wire).
Assemble Connectors
Connector assembly is where 80% of field failures originate—a 0.50 crimp mistake can trigger 5,000 in warranty claims. Proper techniques ensure 10,000+ mating cycles (vs. 500 for hand-crimped junk), maintain <5mΩ contact resistance, and prevent 30% of water ingress failures in outdoor applications. Automotive connectors demand 4.5N minimum pull-out force, while industrial plugs require 8N—skimp on tools, and you’ll see 15% rejects in QA testing.
Hand crimpers (50) vary pressure by ±30%, causing 20% under-crimped pins that fail at half the rated cycles. Hydraulic crimpers (1,200) apply consistent 2,000N force, keeping resistance below 2mΩ for 16 AWG wires. For high-volume (500+ crimps/day), auto-crimpers ($5,000+) achieve ±0.05mm jaw alignment, cutting defects from 5% to 0.2%.
| Crimper Type | Force Accuracy | Cost per Crimp | Best For |
|---|---|---|---|
| Manual Pliers | ±40% | $0.02 | Prototypes (<50 crimps) |
| Ratchet Crimper | ±15% | $0.05 | Small batches (50-200) |
| Hydraulic Press | ±5% | $0.10 | Production (200-1,000/day) |
| Automated Machine | ±1% | $0.03 | Mass production (>1,000/day) |
Misaligned pins cause 50% of connector housing cracks. Use insertion guides (200) to maintain <0.3mm offset—0.5mm misalignment strains plastic latches, reducing mating cycles from 10,000 to 2,000. For high-vibration (15G) environments, secondary locks (0.25 per connector) prevent 90% of pin back-outs.
Hand-soldered joints fail 3x faster in thermal cycling (-40°C to 125°C) than crimps due to tin whisker growth. But for 28 AWG signal wires, soldering (0.10 per joint) beats crimping’s 0.25 tooling cost at low volumes. Lead-free solder (SAC305) needs 245°C tips—15°C cooler creates cold joints with 50% less strength.
Unsealed connectors in IP67 environments fail within 6 months from dust clogging (particles >12µm). Silicone grease (0.05 per connector) + rubber gaskets (0.30) block 99% of moisture. For cable strain, overmolding (1.50 per end) lasts 10 years vs. zip ties (0.10) that crack after 2 years of UV exposure.
Test Connections
Skipping proper connection testing is like driving blindfolded—90% of harness failures come from undetected flaws that could’ve been caught with a 500 tester instead of causing 50,000 in recalls. A 5mΩ increase in contact resistance might seem trivial, but over 10,000 connections, it wastes 200W as heat, frying sensitive electronics. Automotive harnesses require 100% continuity testing, while industrial panels need dielectric tests at 1,500V to prevent arc faults that trip breakers 30% faster.
Continuity Testing
Cheap 20 multimeters only catch complete breaks, missing high-resistance joints (>0.5Ω) that cause voltage drops up to 15%. A 4-wire Kelvin tester (1,200) measures down to 0.001Ω, revealing crimp defects that standard testers miss 80% of the time. For long cable runs (50m+), inject a 1A test current—voltage drop >5% means you’ve got undersized wires or loose terminals.
Insulation Resistance
Testing at 500VDC for 60 seconds catches 99% of insulation flaws. <100MΩ readings signal moisture ingress or pinched wires that’ll fail within 6 months outdoors. In HV systems (600V+), ramp to 2,500V—if leakage exceeds 10mA, that’s a fire risk waiting to happen. Pro tip: Test at both 20°C and 80°C; some materials lose 50% insulation resistance when hot.
High-Pot (Dielectric) Testing
Applying 1,500VAC for 1 minute weeds out marginal insulations that’d pass a 500V test. Arcing at <1,000V means immediate rejection—those 0.1mm pinholes in jacket material expand into dead shorts after 300 thermal cycles. For medical gear (IEC 60601), surge test at 4kV to ensure zero patient leakage paths.
Signal Integrity
CAN bus networks tolerate just 2% signal distortion—a 3m unshielded run induces 5% noise, causing 30% packet errors. Use a $8,000 network analyzer to check eye diagrams; jitter >10% of bit width demands better shielding or termination resistors. USB 3.0 cables failing 5Gbps tests? That’s usually skew >150ps between pairs—fix with twist-rate adjustments.
Environmental Stress Tests
500-hour salt spray (ASTM B117) exposes plating flaws that cause 40% of connector corrosion failures. Vibration testing at 10-500Hz for 8 hours finds 90% of fretting corrosion issues before trucks hit potholes. Thermal cycling (-40°C to +125°C) reveals cracked solder joints that fail 5x faster than crimps in Arctic conditions.
Cost of Skipping Tests vs. Over-Testing
A 20,000 test rig pays for itself after 200 harnesses by preventing 100 recalls each. But don’t gold-plate simple control cables—testing 24 AWG thermostat wires to aerospace specs wastes $50 per unit for zero reliability gain. Balance: Test medical cables to 200% of operating specs, but consumer goods need just 120%.
Secure and Protect
Wire harnesses fail 3x more often from physical damage than electrical issues—0.30 worth of protection prevents 300 in field repairs. A harness dragging across metal edges wears out in 6 months, while properly secured bundles last 10+ years. UV exposure degrades PVC jackets 50% faster than sunlight-resistant materials, and unpotted connectors in wet environments corrode 5x faster than sealed units.
Zip ties cost 0.02 each but cut into wires after 2 years of vibration. Nylon braided sleeves (0.15/ft) allow 5mm of flex per 100mm, while spring strain reliefs (0.45 each) handle 10x more bending cycles than tape. For high-vibration engines (15G acceleration), overmolded boots (1.20/connector) reduce wire fatigue by 90% compared to loose wraps.
| Strain Method | Cost | Lifespan | Best Application |
|---|---|---|---|
| Zip Ties | $0.02/unit | 2 years | Temporary fixes |
| Adhesive Tapes | $0.10/ft | 3 years | Indoor, low-vibration |
| Braided Sleeves | $0.15/ft | 8 years | Robotics, continuous flex |
| Overmolded Boots | $1.20/unit | 10+ years | Automotive, aerospace |
Unsealed connectors in farm equipment fail after 6 months from dust clogging contacts. IP67 gaskets (0.25 each) keep out 99% of particles >50µm, while IP69K-rated seals (0.80) survive high-pressure washdowns. For engine compartments (150°C+), fiberglass sleeves ($0.40/ft) reflect 90% of radiant heat, compared to PVC sleeves melting at 105°C.
Split loom tubing (0.05/ft) wears through after 500 scrapes against metal edges, while corrugated nylon (0.20/ft) lasts 5x longer. In cable carriers, PUR jackets ($0.35/ft) endure 1 million flex cycles—10x better than PVC. Critical rule: Any harness touching moving parts needs abrasion protection at 2x the expected wear points.
Standard PVC jackets crack after 1 year in oil-rich environments, while chloroprene rubber (0.28/ft) resists ASTM #3 oil for 5+ years. Hydraulic fluid degrades most plastics in 6 months, but PTFE-lined hoses (1.50/ft) last 10 years with <5% swelling. Always check MSDS sheets—5% sulfuric acid eats through nylon in weeks, requiring FEP insulation ($0.80/ft).
Spending 0.50 more per foot on military-grade shielding is wasteful for indoor office cables, but skipping 1.20/ft oil-resistant jackets in factories causes 200/year in replacements. For automotive harnesses, adding 3.00 in convoluted tubing prevents $30 warranty claims per vehicle.
Final Quality Check
The last 5% of inspection catches 90% of field failures—a 50 quality control pass prevents 5,000 recalls. Studies show unchecked harnesses have 12% defect rates versus <0.5% with proper QA. A single misrouted wire can cause 30% efficiency drops in motor systems, while undetected insulation nicks lead to 5% premature failures within 1,000 operating hours.
Visual Inspection
Human eyes spot 40% of assembly errors that automated testers ignore—like wire abrasions from improper bundling or connector pins bent 0.3mm out of spec. Under 10x magnification, inspectors find 95% of micro-fractures in crimps that would cause intermittent failures after 500 thermal cycles. For medical devices, white light inspection at 50 lux detects contamination particles >100µm that violate ISO 13485 Class 8 cleanroom standards.
Electrical Retesting
While initial tests check continuity, final load testing at 110% rated current reveals 15% more defects. A harness passing 1A tests might overheat at 1.1A, showing insulation weaknesses through >10°C hotter spots. For data cables, eye diagram analysis at 5Gbps catches 3% signal degradation from improper twisting—errors causing 20% packet loss in real use.
Mechanical Stress Testing
50N pull tests on every connector verify 90% meet MIL-STD-1344 retention force standards, while failures expose under-crimped terminals. Vibration testing at 10-500Hz for 8 hours accelerates 5 years of truck vibrations, revealing 40% of potential wire fatigue points. Flex tests bending cables 5,000 times at 180° prove whether stranding survives 10-year lifespans or frays prematurely.
Documentation Review
Missing test records cause 30% of compliance rejections—every harness needs traceable records showing:
- Wire lot numbers (for copper purity verification)
- Crimp force measurements (4.2N ±5% for 16 AWG)
- Insulation resistance logs (>100MΩ at 500VDC)
- Environmental test results (salt spray >500 hours)
Automated reporting systems flag statistical outliers—like 5% resistance increases in batch #207 indicating tool calibration drift.
Cost-Balanced QA: Don't Over-Test Simple Harnesses
Testing 24 AWG thermostat wires to aerospace standards wastes $75 per unit, while medical cables need 200% over-testing. The sweet spot:
- Consumer goods: 10% sampling + 100% continuity test ($0.20/unit)
- Industrial equipment: 100% hi-pot + mechanical tests ($5/unit)
- Military/Aerospace: Destructive testing on 3% + full traceability ($50/unit)
