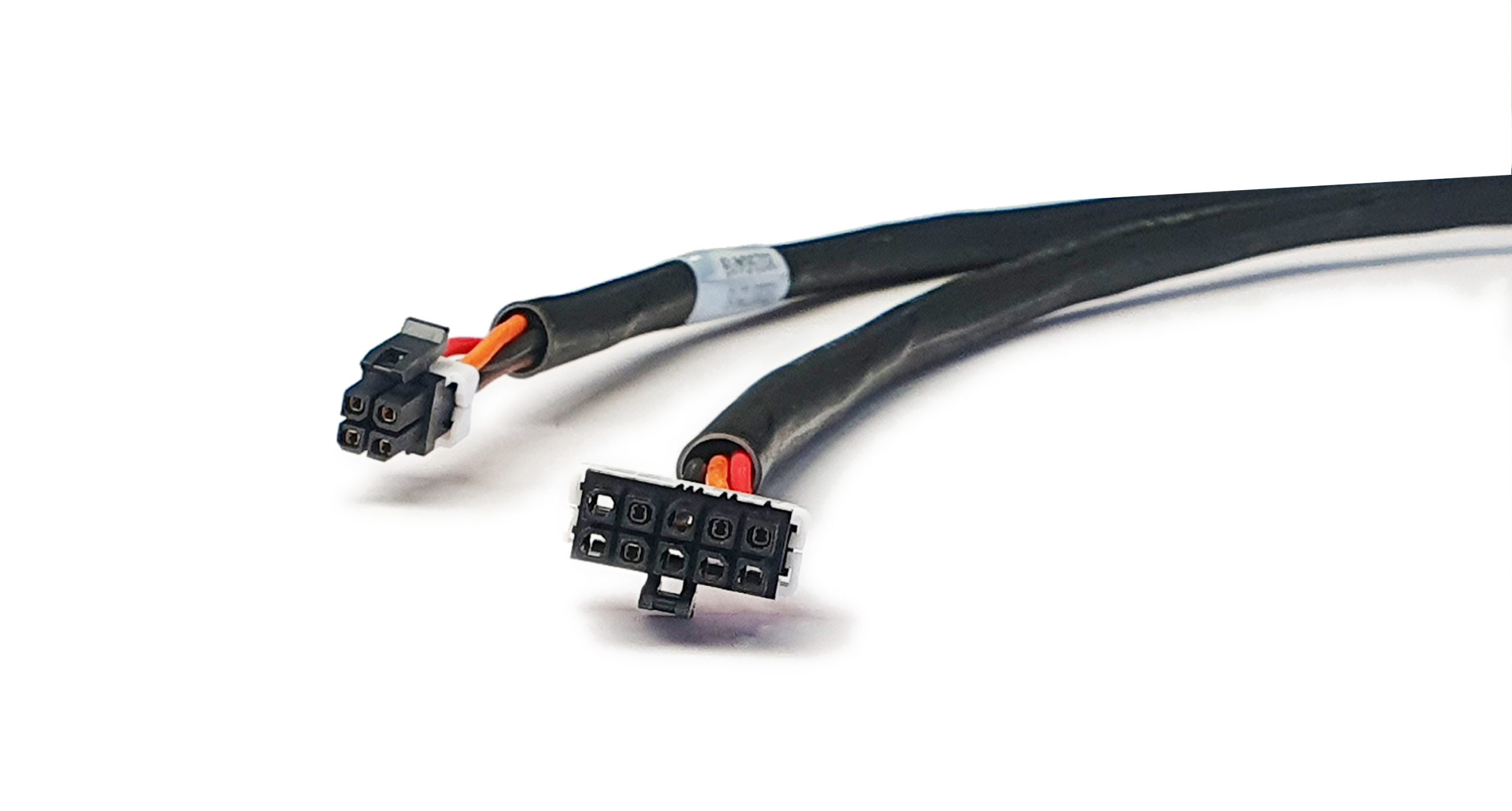

Molex Connectors Custom Wire Harnesses | Bespoke Design, Procurement Guide

Molex connector custom harnesses can support 16-24 AWG wire gauge, 1000V withstand voltage. During design, it is necessary to provide the interface definition and 3D model. We will provide full-process support from component selection, wiring design to high-voltage testing.

Bespoke Design

Custom design is not simply about component selection, but a deeply integrated engineering collaboration process.

The goal is to achieve optimization of the connection system in terms of performance, reliability, and total cost by precisely matching electrical load, mechanical constraints, and environmental stress.

Typical projects can improve wiring space utilization by over 25% and reduce field failure rates caused by connector issues to below 0.02%.

Requirement Definition

1. Define Specific Numbers for Electrical Requirements

• Current and Voltage: Do not just say "need to transmit power". Must specify clearly:

  • Normal operating current: e.g., continuous current 3A, peak current (e.g., during motor startup) 15A, duration 200 milliseconds.

  • Operating voltage: e.g., nominal voltage 48VDC, the highest transient voltage the system might withstand (e.g., load dump) 80VDC.

• Signal Type: Different signals have vastly different requirements for cables.

  • High-speed differential signals (e.g., USB 3.0, HDMI): Need to specify signal rate (e.g., 5 Gbps), impedance requirements (typically 90Ω or 100Ω ±10%), allowable maximum insertion loss and return loss.

  • Sensor signals (e.g., thermocouple, strain gauge): Need to specify signal level (usually millivolt level), accuracy requirements, and whether shielding is needed to resist electromagnetic interference.

• Wire Gauge Calculation: Select wire diameter based on current and temperature rise requirements. For example, at an ambient temperature of 85°C, requiring a conductor temperature rise not exceeding 20°C, according to standards (e.g., ISO 6722) lookup tables, a 3A current might require 22 AWG wire, while a 15A peak current would require 18 AWG wire to ensure safety.

2. Clarify Physical Space and Mechanical Constraints

• Three-Dimensional Wiring Route: Provide the host device's 3D CAD model (e.g., STEP, IGES format). The design team will perform virtual routing to check the minimum bend radius (usually more than 5 times the harness outer diameter), and avoid interference with moving parts or sharp edges.

• Connector Size and Locking Method: Select straight or right-angle connectors based on space. The locking mechanism must be reliable:

  • Board-to-wire connectors often use push-pull locks to ensure connection is maintained in vibrating environments.

  • Blind-mate connectors require guide pins and greater mating tolerances (e.g., ±1.5mm).

• Strain Relief: Effective strain relief devices need to be designed at the harness exit points to ensure terminals do not withdraw from the connector when subjected to a pull force of 20N.

3. Define Operating Environment and Durability Standards

• Temperature Range:

  • Automotive engine bay: -40°C to +150°C.

  • Industrial automation control cabinet: -25°C to +85°C.

• Protection Rating (IP Code):

  • IP67: Allows equipment to be temporarily immersed in water (1 meter depth, 30 minutes).

  • IP69K: Can withstand high-pressure, high-temperature water jet cleaning.

• Chemical Exposure: Specify whether it will be exposed to engine oil, transmission fluid, brake fluid, coolant, or cleaning solvents. This determines the material selection for the connector seals and cable jackets (e.g., TPE, PUR).

• Vibration and Shock: Specific vibration profiles must be provided. For example, require the harness to withstand random vibration with a frequency of 10Hz to 2kHz, acceleration of 5 Grms, for a duration of no less than 50 hours.

4. Confirm Industry Regulations and Test Specifications

• Automotive Electronics: Must meet USCAR series standards (e.g., USCAR-2 for connector vibration performance), LV series standards (for wire performance).

• Medical Devices: Must meet IEC 60601-1 (electrical safety) and relevant EMC standards. Parts contacting patients have biocompatibility requirements (e.g., ISO 10993).

• Consumer Electronics: Must meet UL/EN/IEC 62368-1 (safety standard for audio/video, information, and communication technology equipment).

• Material Flammability: Specify the required material UL94 flammability rating, e.g., V-0 (in vertical burn test, flame extinguishes within 10 seconds).

Collaborative Design

What tools do we use for collaborative design?

Modern harness design relies heavily on specialized software to ensure accuracy.

• 3D Modeling and Routing: We use SOLIDWORKS Electrical or Siemens Capital Harness for 3D harness design. Your team can provide the device's 3D model in STEP or IGES format.

• Data Management: All design data, including harness drawings, nailboard diagrams, form BOMs, etc., are managed through a central platform.

How is assembly testing performed in the computer?

1. Interference and Clearance Check: The software automatically detects collisions between the harness and surrounding components. For example, the system will flag areas where the distance between the harness and a metal bracket is less than 2mm and suggest rerouting to avoid wear caused by vibration during vehicle operation.

2. Bend Radius Verification: The software calculates the radius at every bend of the harness. We ensure this radius is always greater than 5 times the outer diameter of the harness. For example, for a harness with a 6mm outer diameter, the bend radius must not be less than 30mm to prevent long-term damage to internal wires.

3. Locking Mechanism Motion Simulation: For complex connectors, we can simulate the mating/unmating process. This verifies if the guide pins align correctly, and if the lock produces a clear "click" sound at the predetermined position, ensuring assembly efficiency on the production line.

How is electrical performance and signal quality analyzed?

• Voltage Drop Calculation: For power lines, we calculate the voltage loss from source to end based on wire length, cross-sectional area, and load current. For example, for a 12V/5A load using 20 AWG wire over a 3-meter length, we confirm through calculation whether the voltage drop is within the allowed 350 millivolts.

• Signal Integrity Simulation: For high-speed signals (e.g., PCIe, Ethernet), we use simulation tools to predict signal quality after passing through the cable and connector. We focus on insertion loss (signal attenuation) and return loss (signal reflection). The target might be to ensure insertion loss does not exceed -3dB at 5 GHz.

How to make the harness easier to manufacture and assemble?

• DFM Analysis: Our manufacturing engineers review the design in advance. For example, they might suggest increasing the minimum distance between two branch points from 50mm to 80mm to give automated equipment sufficient operating space, increasing production efficiency by 15%.

• DFA Analysis: We focus on the assembly experience in your factory. For example, we ensure different connector models have polarization features to prevent misinsertion during final assembly. We also optimize the sequence for securing the harness within the equipment, reducing average assembly time by 30 seconds.

Testing Phase

Sample Preparation and Test Environment Setup

• Test Sample Preparation: Randomly select at least 20 harness samples from the pilot production batch. 5 sets are used for destructive testing (e.g., tensile, mating cycle life), and 15 sets are used for non-destructive and environmental testing.

• Test Equipment Calibration: All test equipment, such as network analyzers, vibration shakers, temperature/humidity chambers, must be within their calibration validity period (typically following ISO 17025 standard). For example, the milliohmmeter used for contact resistance measurement needs an accuracy of ±0.1 milliohm.

Environmental Stress Testing Simulating Product Life

1. Temperature Cycling Test:

   • Method: Place the sample in a temperature chamber and cycle between -40°C and +125°C. Dwell at each temperature for 2 hours, transition time no more than 30 minutes, perform 500 consecutive cycles (approx. 42 days).

   • Monitoring Points: At the high and low temperature points of each cycle, monitor and record the contact resistance of each circuit. Pass criteria: resistance change must not exceed 10% of the initial value.

2. Temperature Humidity Bias Test:

   • Method: Place the sample at 85°C, 85% relative humidity for 500 hours continuously. Simultaneously, apply the rated operating voltage to the sample.

   • Monitoring Points: Immediately after the test, measure the insulation resistance under standard atmospheric conditions; the value must be ≥100 MΩ.

3. Dust and Water Ingress Test (IP Test):

   • IP67 Test: With connectors mated, immerse in water at a depth of 1 meter for 30 minutes. After the test, open the connector; there must be no trace of water inside.

   • IP69K Test: Use 80°C hot water, with a flow rate of 14-16 liters/minute, from a distance of 0.1-0.15 meters, spray the connector from 4 angles for 30 seconds each.

Physical Tests Verifying Mechanical Strength

• Vibration Test: Perform according to ISO 16750-4 or USCAR-2 standards. Secure the harness on a vibration table, apply a specific frequency range (e.g., 10Hz-2000Hz) random vibration profile for 96 hours. During this period, continuously monitor the dynamic resistance of the circuits; any instantaneous resistance fluctuation (microsecond-level open circuit) must not exceed 100 milliohms.

• Mating/Unmating Force and Durability Test: Use automated equipment for connector mating/unmating cycles.

  • Mating Force: Single cycle mating force should be stable between 20N and 60N, ensuring consistent feel.

  • Life: After completing the required number of cycles (e.g., 5000 cycles), the change in contact resistance must still meet requirements.

• Cable Pull-Out Force Test: Apply a constant pull force (e.g., 60N) to the wire for 1 minute. After the test, the withdrawal displacement of the wire within the connector must not exceed 0.5 mm.

Verifying Electrical Safety and Signal Performance

• Withstand Voltage Test (Hi-Pot): Apply 1500VAC between conductors and shield for 60 seconds. There should be no breakdown or arcing.

• Signal Integrity Test: For high-speed harnesses, use a Vector Network Analyzer to measure S-parameters.

  • Insertion Loss: At 5GHz, the loss value should be better than -3dB.

  • Return Loss: At the same frequency, it should be better than -15dB.

Analyzing Test Failures and Updating the Design

• Failure Analysis Process:

  1. Phenomenon Recording: Precisely record the test phase when the failure occurred and the specific phenomenon (e.g., after 48 hours of vibration test, pin 3 resistance increased by 200 milliohms).

  2. Teardown Analysis: Dissect the failed sample and inspect the terminal surface and wire crimp area under a microscope.

  3. Root Cause Determination: Determine if it is a design defect, material issue, or manufacturing process variation.

• Design Update and Retesting: Modify the design based on the analysis results (e.g., optimize terminal gold plating thickness from 0.76µm to 1.27µm).

Procurement Guide

In custom harness procurement, up to 70% of the total cost of ownership is locked in during the design stage, and nearly 35% of project delays stem from ambiguous specifications.

A minor connector selection error—such as an unspecified secondary lock (CPA) or insufficient terminal plating—can lead to a batch product recall, with losses potentially exceeding 300% of the project's profit.

From the ±0.05mm tolerance of the AWG wire specification to the UL94 V-0 flammability rating of the connector housing, every parameter is the cornerstone of system reliability.
