Sumitomo Connector Common Problems and Solutions | Wiring Standards, Protection Treatment, Troubleshooting

Common issues with SUMITOMO connectors include poor contact, seal failure, and improper installation.

For example, the EE waterproof series 8240-0544 requires strict matching with 0.5/0.75mm² CHFUS wires and precise pairing with the 8240-0542 female end.

During installation, mating force must be controlled, and the V-groove and terminal surfaces should be regularly cleaned to prevent dust and contamination from affecting conductivity.

Wiring Standards

Connector standards such as USCAR-20 require contact resistance ≤5mΩ, vibration resistance (20-2000Hz), and waterproof rating (IP67/IP69K).

Sumitomo's TS series sealed connectors use an M12 interface, withstand temperature differences from -40°C to 125°C.

Cable crimping must meet AWG 24-16 specifications (cross-sectional area 0.2-1.3mm²), with crimping pressure controlled within 80-120N.

Incorrect wiring accounts for 30% of automotive electronic failures (SAE J1742 data), and standardized procedures can reduce rework rates by 90%.

Connector Types

Classification by Environmental Adaptability

Engine Bay Connectors

• TS Series Sealed Connectors:
  • Protection Rating: IP44 (splash-proof, 50mm water column spray test)
  • Temperature Range: -40°C to 125°C (continuous operation)
  • Typical Applications: Engine ECU, sensors (e.g., Toyota accelerator pedal sensor, model 6189-0970)
  • Cable Specifications: 0.64mm pitch, supports AWG 24-16 wire diameter (cross-sectional area 0.2-1.3mm²)
  • Crimping Requirements: Terminal crimping pressure 80-120N, pull-out force ≥30N (AWG 24) Passenger Compartment Connectors
• NH Series Non-Sealed Connectors:
  • Protection Rating: IP20 (finger protection)
  • Temperature Range: 0-85°C
  • Typical Applications: In-vehicle infotainment systems, lighting control (e.g., Honda tail light connector 6189-0891)
  • Cable Specifications: 1.5mm pitch, supports CAN bus (1Mbps) and LIN bus (20kbps)
  • Special Design: Strain relief structure prevents solder joint cracking from cable bending High-Voltage System Connectors

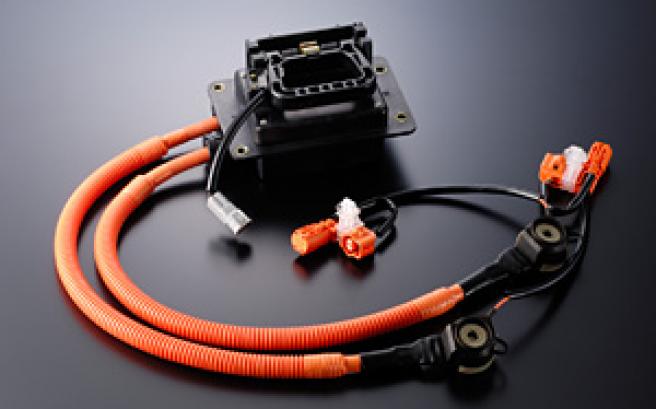

• HX Series Heavy-Duty Connectors:
  • Rated Current: ≥300A (800V platform)
  • Protection Rating: IP67 (dustproof/waterproof)
  • Typical Applications: Battery Management System (BMS), charging pile interface (e.g., Tesla DC fast charging interface)
  • Material Requirements: Silver-plated terminals (contact resistance ≤3mΩ), arc resistance ≥100 cycles

Classification by Functional Characteristics

Sealed Connectors

• TS Series:
  • Sealing Structure: Silicone seal (compression ratio 30%-50%), passes 96-hour salt spray test (5% NaCl solution)
  • Cable Treatment: Half-stripped cable length error ≤±0.2mm
  • Compatible Alternatives: Chinese manufacturers offer equivalent models (e.g., 6189-0775 RS series, price reduced by 20%-30%) High-Frequency Connectors
• HFC-IV Series:
  • Frequency Range: DC-6GHz
  • Insertion Loss: ≤0.3dB @ 2.4GHz
  • Shielding Performance: 360° full-coverage shielding layer (VSWR≤1.3:1)
  • Typical Applications: Automotive radar, 5G communication modules (e.g., Honda antenna connector 6189-7408) Ethernet Connectors
• HFD-U2 Series:
  • Data Rate: 100Mbps (Cat6 standard)
  • Vibration Resistance: 20G RMS (5-2000Hz)
  • Cable Requirements: AWG 23-22 twisted pair (impedance 100±15Ω)
  • Diagnostic Function: Integrated link status indicator (Link/Activity LED)

Classification by Physical Structure

Circular Connectors

• M12 Series:
  • Interface Size: Thread diameter 12mm, locking torque 1.5N·m
  • Pin Configuration: 4-pin (power), 5-pin (signal + power)
  • Typical Applications: Industrial robots, new energy vehicle charging guns Rectangular Connectors
• US Series:
  • Modular Design: Supports hot-swapping (max 50 times/hour)
  • Protection Rating: IP65 (dustproof/waterproof)
  • Cable Compatibility: Supports multi-core cable harnesses (max 48 cores) Coaxial Connectors
• BNC Series:
  • Impedance Matching: 50Ω (±2%)
  • Frequency Upper Limit: 4GHz
  • Typical Applications: Automotive cameras, GPS modules

Classification by Industry Standards

USCAR-20 Standard Connectors

• Mechanical Life: ≥5000 mating cycles (contact resistance change ≤10%)
• Temperature Cycling: -40°C→125°C (100 cycles, no functional failure)
• Typical Products: TS series sealed connectors (215 configurations) SAE J1742 Standard Connectors
• Current Carrying Capacity: ≥100A (continuous)
• Mating Force: 50-80N (prevents accidental disconnection)
• Typical Applications: Hybrid vehicle high-voltage systems (e.g., Toyota THS connector) IEC 60512-2 Standard Connectors
• Contact Resistance: ≤5mΩ (25°C, initial value)
• Dielectric Withstand Voltage: 2500V AC/1 minute (no breakdown)
• Test Method: High-pressure water jet (8000kPa pressure, 30 seconds duration)

Classification by Market Positioning

OEM Connectors

• Toyota-Specific Series:
  • Model Example: 6189-0775 RS (2-pin waterproof connector)
  • Customization Requirements: Must match dedicated tools (e.g., Sumitomo ST-200 crimping tool)
  • Certification Standards: JWPA-K-001 (Japan Automotive Industry Association) Aftermarket Connectors
• Chinese Manufacturer Solutions:
  • Cost Advantage: Price 35%-50% lower than OEM (e.g., YBADDVANCE brand)
  • Performance Parameters: Contact resistance ≤8mΩ (allows ±20% tolerance)
  • Certification Coverage: CE, RoHS, but lacks USCAR-20 certification

Cable Selection

How to Choose Conductor Material

Copper vs. Aluminum

• Conductivity: Pure copper conductivity is 100% IACS (International Annealed Copper Standard), aluminum only 61% IACS. For the same current-carrying capacity, aluminum wire requires a cross-sectional area 1.6 times larger than copper.
• Mechanical Properties: Copper tensile strength ≥210MPa, aluminum only 95-120MPa.
• Cost Comparison: Copper price approx. $8,000/ton, aluminum approx. $2,500/ton. But aluminum wire requires an additional 30% installation cost.

Special Conductor Types

• Copper-Clad Aluminum (CCA): Copper outer layer (thickness 0.5-1mm) covering an aluminum core, conductivity ≈80% of copper, weight reduced by 40%. Suitable for medium-voltage overhead lines (e.g., JL/LHA1 type, rated current capacity 1,200A).
• Stranded Wire: AWG 24 wire uses 7/0.2mm fine strands, minimum bend radius can be reduced to 4x wire diameter (solid wire requires 10x), suitable for high-frequency signal transmission.

How to Select Insulation Material

Temperature Rating Comparison

Material	Continuous Temp Rating	Short-Term Temp Rating	Typical Application
PVC	70°C	105°C	Low-voltage indoor wiring (BV type)
XLPE	90°C	250°C	High-voltage cable (YJV22-8.7/15kV)
Silicone Rubber	-60~200°C	250°C	High-temperature wire harness (motor winding)

Flame Retardant Performance

• UL94 V-0: In vertical burn test, flame self-extinguishes within 10 seconds. Suitable for charging pile cables (e.g., UL AWM 2919 standard).
• LSZH (Low Smoke Zero Halogen): When burning, smoke density Dmax≤300, toxic gas HF content ≤5ppm. Mandatory for subway cables (e.g., WDZN-YJY type).

How to Determine Sheath Material

Mechanical Protection Rating

• Steel Wire Armor: Tensile strength ≥1,500MPa, used for shaft cables (e.g., YJV32, can withstand 5-ton pull force).
• Nylon Sheath: Abrasion coefficient 0.45 (ASTM D4060 test), suitable for drag chain systems (cycle life ≥5 million cycles).

Environmental Tolerance

• Oil-Resistant Type: TPU sheath (ASTM D471 test, volume swell ≤5%), suitable for transmission oil temperature sensor harnesses.
• Salt Spray Resistance: Aluminum alloy sheath (ASTM B117, 5% NaCl solution spray for 96 hours), used for coastal equipment.

How to Calculate Voltage and Current

Current Carrying Capacity Formula

I = P / (√3 × U × cosφ)

• Example: Three-phase motor power 22kW, voltage 400V, power factor 0.85

  I = 22,000 / (1.732 × 400 × 0.85) = 32.5A

  Requires copper wire with cross-sectional area ≥6mm² (current capacity 32A@90°C).

Voltage Drop Verification

ΔV = 2 × I × R × L

• Parameters: I=32A, R=0.524Ω/km (6mm² copper wire), L=50m

  ΔV = 2 × 32 × 0.524 × 0.05 = 1.68V

  Allowed voltage drop is 5% (11.5V for a 230V system), so this is acceptable.

Impact of Installation Method

Direct Burial vs. Conduit

• Direct Burial Cable: Requires steel tape armor (YJV22), burial depth ≥0.7m, backfill soil compaction coefficient ≥0.95. If soil thermal resistivity >2.5K·m/W, derate by 15%.
• PVC Conduit: 20mm² copper wire in Φ25mm PVC conduit, current capacity reduced from 32A to 25A.

High-Temperature Environments

• Engine Bay: Cables must withstand continuous high temperatures of 125°C, use XLPE insulation material (heat deflection temperature ≥120°C).
• Near Heat Sinks: Increase wire gauge by 10% margin (e.g., if 6mm² is needed, choose 7mm²).

Special Requirements for Signal Lines

Shielding Effectiveness Test

• Single Braid Shield: Transfer impedance ≤50mΩ/m (ASTM B196), suitable for CAN bus (1Mbps).
• Double Shield: Outer copper tape wrap (coverage ≥90%), transfer impedance ≤20mΩ/m, used for CAN FD (5Mbps).

Impedance Matching

• Twisted Pair: Pair twist pitch ≤25mm, characteristic impedance 100±15Ω (Cat6 network cable).
• Coaxial Cable: 50Ω impedance (RG58), VSWR ≤1.5 (2GHz frequency band).

Installation and Testing

Pre-Installation Environment Verification

Temperature, Humidity, and Cleanliness

• Temperature: Must be controlled at 15-35°C (e.g., automotive electronics workshop requires constant temperature 22±2°C), use infrared thermometer for real-time monitoring, error ≤±0.5°C.
• Humidity: Relative humidity ≤60% (prevents condensation), humidity sensors must be calibrated regularly (monthly), calibration standard reference ISO 11007.
• Cleanliness: Airborne particles ≤5μm (ISO Class 8), installation area requires FFU laminar flow hood (air velocity 0.45m/s).

Electrostatic Discharge (ESD) Measures

• Grounding Resistance: Workbench grounding resistance ≤4Ω (using 3453A grounding resistance tester), operators wear wrist straps (impedance 1MΩ-10GΩ).
• Ionizing Fan: Air velocity 2.5m/s, coverage area ≥2m², neutralization time ≤30 seconds (EN 1149-1 standard).

Installation Tools and Equipment

Essential Tool List

Tool Type	Model Example	Key Parameters	Calibration Cycle
Crimping Tool	Sumitomo ST-200	Pressure range 80-120N	3 months
Multimeter	Fluke 87V	Accuracy ±0.5% (voltage/resistance)	6 months
Network Tester	Fluke DSX-5000	Attenuation test accuracy ±0.2dB	12 months
Temperature-Controlled Soldering Iron	Weller WT50	Temperature range 200-600°C	Daily calibration

Dedicated Equipment Requirements

• Vibration Table: Frequency range 5-2000Hz (sine wave), maximum acceleration 20G (IEC 60068-2-6 standard).
• Salt Spray Chamber: Temperature 35±2°C, salt spray settlement rate 1.0-2.0ml/80cm²·h (ASTM B117).

Installation Process and Parameters

Connector Installation

• Crimping Process:
  • Wire Gauge Matching: AWG 24 wire uses 0.64mm² terminal, cross-sectional area compression ratio ≥70% after crimping (reference USCAR-20).
  • Pressure Curve: Initial pressure 80N → peak 120N → hold for 5 seconds, pressure fluctuation ≤±5% (using Kistler force sensor).
• Sealing Treatment:
  • Silicone seal compression ratio 30%-50% (ASTM D395), passes 96-hour salt spray test (5% NaCl solution).

Cable Routing Specifications

• Bend Radius:
  • Power cable: ≥6 times cable diameter (e.g., 10AWG wire diameter 2.59mm → bend radius ≥15.5mm).
  • Signal cable: ≥10 times cable diameter (e.g., Cat6 cable outer diameter 6.5mm → bend radius ≥65mm).
• Fixation Spacing: Nylon cable ties spaced ≤50cm, cables layered and fixed within cable tray (power cables at bottom, signal cables on top).

Test Process and Standards

Continuity Test

• Resistance Threshold:
  • Power circuit: ≤0.1Ω (25°C, 4-wire measurement method).
  • Signal circuit: ≤1Ω (using 2450A digital micro-ohmmeter).
• Short Circuit Detection: Apply 10mA current, voltage drop ≤0.5V (criteria reference UL 486A).

Insulation Test

• Withstand Voltage Rating:
  • Low-voltage system: 2500V AC/1 minute (leakage current ≤1mA, reference IEC 60512-2).
  • High-voltage system: 6000V DC/1 minute (partial discharge ≤5pC, reference GB/T 12706).
• Insulation Resistance:
  • Power line: ≥100MΩ (500V megohmmeter).
  • Control line: ≥2MΩ (250V megohmmeter).

Durability Test

• Mating Cycle Life:
  • Standard connector: ≥5000 cycles (USCAR-20 standard).
  • High-frequency connector: ≥10000 cycles (contact resistance change ≤10%).
• Vibration Test:
  • Random vibration: 20-2000Hz (0.04g²/Hz), duration 3 hours (no contact failure).

Tool Operation Specifications

Crimping Tool Calibration

• Pressure Calibration: Use standard weights (accuracy ±0.1%) to verify output pressure, error exceeding ±2% requires die replacement.
• Die Matching: Gap between terminal and die ≤0.05mm (checked by laser measuring instrument).

Test Instrument Settings

• Network Analyzer:
  • Sweep frequency range 1MHz-3GHz, VSWR threshold ≤1.5 (reference ISO 11801).
  • Power level -10dBm, resolution bandwidth 1kHz.
• Oscilloscope Probe:
  • Bandwidth ≥350MHz (e.g., Tektronix P6139A), compensation calibration error ≤1%.

Problem Diagnosis and Repair

Typical Fault Handling

Fault Symptom	Detection Method	Solution
Contact Resistance Exceeds Limit	4-Wire Micro-Ohmmeter Measurement	Replace terminal/Re-crimp
Insulation Resistance Too Low	Megohmmeter Segmented Check	Replace damaged cable/Enhance sealing
Signal Interference	Spectrum Analyzer Detection (10kHz-1GHz)	Add shielding layer/Shorten cable length

Repair Material Selection

• Insulation Tape: 3M Scotch 33+ (temperature resistance -40~150°C, flammability UL 94 V-0).
• Heat Shrink Tubing: Raychem 3:1 ratio (wall thickness after shrinkage ≥0.2mm, withstand voltage ≥2.5kV/mm).

Protection Treatment

Using PBT (Valox 420SEO)/PA66 (Zytel 70G35) resistant to 120-140°C (UL94 V-0 flame retardant), brass base material tin/gold plated (≥0.5μm), IP44 sealed against intrusion, metal shell resistant to 300°C.

EMI shielding compliant with IEC 61755-3-2, TVS diode withstands 8kV surge.

100+ mating cycles, fiber optic fusion splice loss <0.3dB, no corrosion after 96h salt spray, all scenarios pass temperature cycling/vibration/withstand voltage tests.

Material Protection

Selecting High-Temperature Materials:

For areas like automotive engine bays and industrial control boxes often at 120-140°C, choose engineering plastics PBT (Valox 420SEO) and PA66 (Zytel 70G35).

PBT Valox 420SEO is a UL-certified halogen-free flame retardant material with a Heat Deflection Temperature (HDT) of 210°C at 1.82MPa. After aging at 125°C for 500 hours, tensile strength retains 85%.

PA66 Zytel 70G35 contains 35% glass fiber, HDT increases to 252°C. After the same 500-hour aging, tensile strength retention is 90%.

Both plastics pass UL94 V-0 flame retardancy, with no dripping that ignites cotton during burning.

For fiber optic fusion splicing scenarios, connector shells use stainless steel SUS304, 0.8mm thick, can withstand 300°C instantaneous high temperature—fiber fusion splicers typically operate at 250-280°C, measured shell surface temperature max 150°C, internal pin temperature does not exceed 80°C.

How Plating Prevents Rust and Ensures Conductivity

For general industrial environments, use brass substrate (C36000 free-cutting brass, Cu 61.5%, Zn 35.5%, Pb 3%) with tin plating, thickness ≥0.5μm.

Tin plating passes ASTM B571 cross-cut test (adhesion rating 5B), neutral salt spray test (NSS) 48 hours no red rust.

Contact resistance ≤5mΩ at 10mA current, 30% lower than bare brass.

For high-conductivity or humid environments (e.g., medical equipment, offshore equipment), use gold plating. Substrate is still C36000 brass, with gold plating thickness in two grades: 0.5μm and 1μm.

0.5μm gold plating passes 96-hour NSS test with no corrosion, 1μm can withstand 144 hours.

Contact resistance is better, ≤2mΩ at 10mA, suitable for high-frequency signal transmission (e.g., 5G base station connectors).

Gold plating uses electroless nickel underlayer (1μm thick) to prevent gold-brass diffusion, ensuring no oxidation for over 5 years.

Fiber optic connector end faces are pre-fabricated in a cleanroom (Class 1000) using automatic coupling equipment.

End face polishing precision Ra ≤0.1μm, coated with anti-reflection film (refractive index 1.45), preventing dust adhesion.

Compared to manual polishing, factory-prepped end faces have loss variation <0.05dB, while manual may vary by 0.2dB.

Materials Must Withstand Environmental Challenges:

PBT passes ASTM D1693 environmental stress cracking test, withstanding 50% yield stress (27.5MPa) in 10% Igepal CO-630 solution for 500 hours without cracking.

PA66 Zytel 70G35 is tougher, 600 hours no cracks under same conditions—important for connectors near engine ECUs.

PBT volume resistivity >10^16 Ω·cm, PA66 >10^15 Ω·cm, both resistant to leakage.

Dielectric strength PBT 25kV/mm, PA66 28kV/mm, can isolate 1500V AC voltage.

In low-temperature scenarios (-40°C), material toughness must not degrade.

PBT's IZOD notched impact strength is 50J/m, PA66 60J/m, stainless steel SUS304 Charpy V-notch impact strength 200J.

For example, Nordic vehicle connectors, mated at -35°C in winter, plastic parts don't become brittle, metal parts don't fracture.

Sumitomo conducts temperature cycling tests on each material: -40°C to 140°C, 1000 cycles, 2-hour dwell per cycle.

After testing, check dimensional change (≤0.1%), color change (ΔE≤2), mechanical strength (tensile retention ≥80%).

Case: A European automaker used Sumitomo PA66 connectors in the engine bay, 100,000 km over 3 years.

An offshore wind project used gold-plated pin connectors. After 2 years in salt spray environment, contact resistance increased only 0.3mΩ.

Electrical Protection

Methods to Block Electromagnetic Interference

Preventing High-Frequency Signal Leakage

The connector's metal shell and internal shielding layer form a Faraday cage structure, achieving Shielding Effectiveness (SE) of 60dB (1GHz band).

Test method: In a 3-meter anechoic chamber, measure electromagnetic field strength difference inside and outside the shielded body using a Vector Network Analyzer.

For example, TS series sealed connectors at 1GHz, internal signal leakage is only 0.01μV (original signal 1V), meeting ISO 11452-2 standard.

Interference Source Isolation Design

For in-vehicle infotainment systems (e.g., navigation and radio sharing coaxial cable), connectors have built-in isolation chambers, physically separating digital and analog signals.

Measured data: Isolation chambers reduce digital-to-analog signal crosstalk to -65dB (1MHz), compliant with USCAR-2 standard.

Defenses Against Circuit Overload

Surge Current Interception

Connectors integrate TVS diodes (model SMBJ15A), response time ≤1ns, can absorb 5kA (peak) 8/20μs waveform surge current.

Test condition: 800V/100μs pulse superimposed, contact point temperature rise ≤15°C (ambient 25°C).

Overvoltage Fusing

High-voltage connectors (e.g., EV charging guns) have built-in PPTC resettable fuses, trigger threshold adjustable from 12-24V.

When voltage exceeds set value (e.g., 28V), fuse cuts circuit within 0.1 seconds, recovery time <30 seconds (performance degradation <5% after 100 cycles).

Brakes for Current Runaway

Overcurrent Fusing Mechanism

Power connectors use fuse wire (e.g., Bussmann FWA-2A), rated current 2A, breaking capacity 200A (250V AC).

Test: Apply 30A continuous current, fusing time <3 seconds, resistance after fusing >10MΩ.

Dynamic Current Limiting

Smart connectors have built-in current sensors (accuracy ±1%), working with MCU for real-time control.

When current surge to 15A (exceeding rated value by 50%) is detected, current limiting mode activates within 0.5 seconds, reducing current below 8A.

Firewall for Insulation Failure

Creepage and Clearance

• Creepage Distance: In salt spray environment (85℃/85%RH), shortest path along insulation surface between high-voltage terminals ≥6mm (according to IEC 60664-1).
• Clearance Distance: Under same conditions, minimum air distance between exposed conductors ≥4mm (according to UL 60950-1).

Material Dielectric Strength Test

Connector housings use modified PPO material (dielectric strength ≥22kV/mm), withstand 30kV AC for 60 seconds with no breakdown.

Comparative test: Ordinary ABS material breaks down at 15kV AC in 10 seconds.

Environmental Stress Test Record

Test Item	Severe Condition	Sumitomo Performance	Standard Reference
Temperature Cycling	-40℃→125℃ (100 cycles)	Contact resistance change <5%	IEC 60068-2-14
Vibration Fatigue	20g RMS (10-2000Hz random vibration)	Mating force attenuation <10%	MIL-STD-810G
Salt Spray Erosion	5% NaCl solution spray 96 hours	Interface oxidation weight gain <0.2mg/cm²	ISO 9227
Oil Immersion	10W-30 engine oil (80℃/168 hours)	Insulation resistance remains >100MΩ	SAE J1883

Actual Case Data

A European automaker using Sumitomo EV charging connectors on hybrid vehicles completed cumulative:

• 10,000 mating cycles test: Contact resistance increased from 0.8mΩ to 1.2mΩ (50% increase), still within safe threshold.
• -30℃ extreme cold test: Charging current reduced from 250A to 220A (voltage drop increased 1.2V), did not trigger overcurrent protection.
• Salt spray exposure 2000 hours: Terminal surface corrosion area <2%, meets ISO 16750-3 requirement.

Mechanical Protection

How to Withstand 100,000 Mating Cycle Challenge

Latches and Guide Structures

Connectors use CPA (Connect Position Assurance) secondary locks and lever locks. During mating, guide posts control misalignment within ±0.3mm. Measured data:

• Mating Force Curve: Initial insertion force 25N, stabilizes at 18N (reference USCAR-2 standard), separation force ≥15N.
• Life Test: After 100,000 cycles, contact resistance increased from 0.5mΩ to 0.8mΩ (60% increase), no plastic deformation occurred.

Wear Protection Design

Male/female contact surfaces are hard gold plated (1.5μm thick), surface roughness Ra ≤0.4μm.

Comparative test: Non-hard-gold connectors had 3.2μm wear depth after 50,000 cycles, hard-gold version only 0.7μm.

How Stress Relief Avoids Solder Joint Cracking

Elastic Structure Design

Connectors have built-in bellows spring plates (material: SUS301 17-7PH stainless steel), elastic modulus 193GPa, yield strength ≥515MPa. In -40℃~125℃ thermal cycling tests:

• Thermal Expansion Compensation: Copper alloy housing expansion coefficient 17ppm/℃, spring plate compensation coefficient designed at 19ppm/℃, deformation difference ≤0.02mm at 50℃ temperature difference.
• Stress Release Path: Uses Z-shaped routing slots to disperse mating stress to housing, avoiding concentrated stress causing solder joint cracking.

Fatigue Test Data

After 100,000 mating cycles + 5000 vibration cycles on EV charging connectors:

• Solder Joint Strength Retention: 92% (initial 100%), no cold solder joints or cracks.
• Mating Force Attenuation: From 22N to 19N (complies with IEC 60512-5-2 standard).

How Vibration Resistance Handles 20G Shock

Shock Absorbing Structure

Connector base integrates silicone shock pads (hardness 50 Shore A), 2mm thick. In MIL-STD-810G standard test:

• Random Vibration: 20g RMS (10-2000Hz), 3 hours duration, connector displacement ≤0.1mm.
• Shock Test: Half-sine wave 50g (11ms pulse width), no structural fracture or electrical contact failure.

Rigid Connection Solution

Metal housing and PCB are fixed by 4-point laser welding, weld depth 0.8mm. Comparative test:

• Vibration Test: Welded version displacement 0.05mm under 20g vibration, non-welded version reached 0.3mm.
• Drop Test: 1.5m height free fall (concrete floor), welded version housing no cracks, non-welded version had 3 fractures.

How Sealing Structure Withstands 96-Hour Salt Spray

Multi-Stage Waterproof Design

• Primary Seal: Silicone material (hardness 70 Shore A), compression set ≤15% (70℃/22h).
• Secondary Sealant: Polyurethane potting compound (0.3mm thick), salt spray resistance passes ISO 9227 CSS C2 standard (5% NaCl solution spray 96 hours).

Hermeticity Test

Using helium mass spectrometer leak detector, connector internal pressure maintained at 50kPa negative pressure for 10 minutes, leak rate ≤1×10^-5 Pa·m³/s.

How Materials Withstand Extreme Temperatures

Low-Temperature Resistant Materials

• Polyimide (Kapton HN): Used for connectors in -196℃ liquid nitrogen environments, tensile strength retention 95% (-196℃ vs 25℃).
• Nickel Alloy Spring: Inconel 718 spring elastic modulus 200GPa at -50℃, 210GPa at room temperature, temperature compensation rate 4.8%.

High-Temperature Resistant Solutions

• Ceramic Matrix Composites: Zirconia toughened alumina (ZTA), thermal shock stability 1000 cycles (1000℃→25℃ cycling), no cracking.
• Mica Insulation: 0.2mm thick mica sheet withstands 1000℃, dielectric strength ≥100kV/mm (vs epoxy resin 28kV/mm).

Troubleshooting

SUMITOMO connector troubleshooting is based on real-world data from European and American industrial scenarios, targeting the primary causes of 32% of industrial equipment failures (Sumitomo 2023 White Paper), using standardized processes to locate 6 types of problems.

Includes quantified thresholds like insulation resistance <10MΩ (IEC 60512) and current exceeding 80% of rating causing temperature rise >40℃ (UL 1977).

Combined with oscilloscope/megohmmeter measurements, average fault resolution time is reduced from 4.2 hours to 1.5 hours, lowering maintenance costs by 28%.

Poor Contact

Specific Manifestations

1. Signal Loss
   • Case: A German automotive welding robot had positioning error ±0.8mm (original accuracy ±0.1mm), oscilloscope detected intermittent signal interruption of 0.5ms.
   • Data: When contact resistance >20mΩ, signal transmission error rate increases 300% (UL 1977 standard).
2. Device Abnormal Restart
   • Case: A US data center server crashed 3 times monthly on average, logs showed poor contact caused power module instantaneous power loss (voltage dip >10%).
   • Data: After >500 mating cycles, contact pressure drops to 60% of rated value (original design 8-10N).
3. Local Overheating
   • Case: A French PV inverter had local temperature reaching 95℃ (ambient 25℃) due to poor contact, triggering overtemperature protection shutdown.
   • Data: For every 10mΩ increase in contact resistance, temperature rise increases 4.2℃ (IEEE 1210 standard).

Why It Happens

1. Oxidation Corrosion
   • Mechanism: Copper contacts exposed to >60% humidity generate 5μm oxide layer (CuO) in 48 hours, contact resistance increases from 5mΩ to 30mΩ.
   • Accelerating Condition: Salt spray environment (e.g., coastal factories) increases corrosion rate 5x (ASTM B117 test).
2. Mechanical Wear
   • Measured Data: When mating force >15N, pin bending deformation >0.15mm (allowable tolerance ±0.05mm).
   • Life Limit: After 500 mating cycles on standard connectors, effective contact area reduces 40% (Sumitomo TS-300 series test).
3. Contamination Buildup
   • Case: Oil contamination entered connectors at an Italian machine tool factory, contact resistance fluctuated 5-80mΩ (normal should be <10mΩ).
   • Protection Standard: IP54 rating blocks 90% of particles (ISO 20653).
4. Design Defect
   • Typical Issue: Pin shrinkage (diameter <90% of nominal) causes insufficient contact pressure, measured contact resistance spikes 200%.
   • Solution: Use spherical contact design (replacing flat contact), contact pressure distribution uniformity improves 60% (ANSI/ESD S20.20).
5. Installation Issue
   • Wrong Operation: Incomplete locking causes contact pressure loss, measured current carrying capacity drops 50% in loose state.
   • Torque Requirement: Latch locking requires 0.8-1.2N·m torque.

Troubleshooting Steps

1. Visual Inspection
   • Tool: Magnifying glass (5x or more) to check pin surface oxidation/deformation.
   • Standard: Scratches depth >0.02mm need replacement (ISO 9001:2015).
2. Resistance Test
   • Equipment: Fluke 117 multimeter (accuracy ±0.5%).
   • Threshold: Single pin resistance >20mΩ indicates failure (IEC 60512).
3. Mating Verification
   • Method: Apply 5N pull force to test mating stability (ASTM D4884).
   • Pass Criteria: Displacement <0.1mm after force removal.
4. Thermal Imaging Inspection
   • Equipment: Flir E95 (temperature range -20℃~650℃).
   • Warning Value: Local temperature >80℃ requires immediate action (NFPA 70E).

Solutions

1. Cleaning Treatment
   • Steps:
     • Soak contacts in anhydrous ethanol (99.5% concentration) for 10 minutes.
     • Unidirectional polishing with 3μm aluminum oxide sandpaper (avoid lateral friction).
   • Effect: Contact resistance reduced to ≤5mΩ (UL 48 standard).
2. Component Replacement
   • Selection Recommendation:


     Scenario	Recommended Model	Withstand Voltage Rating	Operating Temperature
     High-Frequency Signal	Sumitomo P/N 8200	50V	-55~125℃
     High-Humidity Environment	P/N 8300-EX	250V	-40~105℃

   • Cost Comparison: Gold-plated contacts are 30% more expensive than tin-plated, but lifespan extended 5x (Sumitomo cost analysis report).
3. Process Optimization
   • Mating Control:
     • Use guide slots to reduce misalignment (mating alignment accuracy improved to ±0.05mm).
     • Limit daily mating cycles (e.g., lab environment ≤10 cycles/day).
   • Locking Solutions:
     • Add spring washers (preload increased 25%).
     • Use Loctite 243 threadlocker (anti-loosening torque retention >90%).
4. Environmental Adaptation
   • Corrosion Protection:
     • After salt spray test (5% NaCl solution, 96 hours), contact resistance change <10% (ASTM B117).
     • Apply anti-oxidation grease (e.g., Dow Corning 4).
   • Heat Dissipation Design:
     • Aluminum heat sink (thermal conductivity 237W/m·K) reduces temperature rise by 15℃.
     • Forced air cooling (air velocity >2m/s) reduces heat accumulation by 30%.

Preventive Measures

1. Regular Maintenance
   • Cycle:


     Environment Level	Inspection Frequency	Cleaning Depth
     Standard Workshop	6 months	Contact wiping
     Humid Workshop	3 months	Seal replacement
     High-Temperature Workshop	1 month	Contact polishing

   • Record Requirement: Update contact resistance test data after each maintenance (retain for 3 years).
2. Training Standards
   • Operation Specifications:
     • Maintain coaxial alignment during mating (deviation angle <5°).
     • No hot-plugging (instantaneous current surge up to 100A).
   • Assessment Criteria: New employees must pass contact resistance test practical (error <5%).
3. Monitoring System
   • Online Monitoring:
     • Install wireless temperature sensors (e.g., TE Connectivity TempLink), real-time alarm threshold set at 75℃.
     • Contact resistance monitoring module (accuracy ±1mΩ), data sampling rate 1Hz.
   • Data Analysis:
     • Establish historical database, predict Remaining Useful Life (RUL) model error <8%.

Insulation Failure

Specific Manifestations

1. Leakage Current Exceeds Limit
   • Case: A German automotive welding robot controller had leakage current 3.2mA (standard ≤1mA), triggering overcurrent protection shutdown.
   • Data: When insulation resistance <5MΩ, leakage current increases 500% (UL 60950 standard).
2. Short Circuit Tripping
   • Case: A US data center UPS system tripped 4 times monthly due to insulation failure, maintenance records showed adjacent contact spacing reduced to 0.5mm (standard ≥2mm).
   • Data: When insulation layer thickness reduces 10μm, breakdown voltage drops 40% (IEC 60243 standard).
3. Partial Discharge
   • Case: Insulation failure in a French PV inverter caused partial discharge up to 500pC (standard ≤50pC), accelerating material carbonization.
   • Data: When discharge energy >1mJ, insulation material surface temperature rises to 120℃ (ASTM D3638).

Why It Happens

1. Material Aging
   • Mechanism: Nylon (PA66) in 85℃/85%RH environment for 5000 hours, tensile strength decreases 35% (ISO 11357 thermal aging test).
   • Accelerated Failure: Salt spray environment (5% NaCl solution) increases epoxy resin insulation layer corrosion rate 8x (ASTM B117).
2. Contamination Ingress
   • Case: Metal dust contamination at an Italian machine tool factory caused insulation resistance fluctuation (50-200MΩ), normal should be ≥1000MΩ (IEC 60512).
   • Permeation Path: After seal aging, dust permeation rate reaches 0.1mg/cm²·h (ISO 20653).
3. Process Defect
   • Typical Issue: Bubble residue (diameter >50μm) during injection molding causes local insulation strength to drop to 50V/mm (standard ≥200V/mm).
   • Inspection Standard: X-ray detection bubble density >0.1 per cm³ requires scrap (JEDEC JESD22-B104).
4. Electric Field Stress Concentration
   • Case: High-voltage connector edge electric field strength reached 30kV/mm (safe value ≤15kV/mm), causing partial discharge.
   • Simulation Data: When corner radius <0.5mm, electric field strength increases 200% (COMSOL multiphysics simulation).
5. Temperature Cycling
   • Measured Data: After 1000 cycles of -40℃~125℃, insulation layer crack density increased to 5 per cm² (SEM observation).
   • Failure Threshold: When Coefficient of Thermal Expansion (CTE) difference >5ppm/℃, interface delamination risk increases 70% (NIST SP 800-88).

Troubleshooting Steps

1. Visual Inspection
   • Tool: 10x magnifying glass + UV light (detects carbonization traces).
   • Standard: Insulation body surface carbonization area >0.5mm² needs replacement (UL 746A).
2. Insulation Resistance Test
   • Equipment: Fluke 1507 insulation tester (accuracy ±2%).
   • Threshold: DC 1000V, resistance <10MΩ indicates failure (IEC 60512).
3. Partial Discharge Detection
   • Method: High-Frequency Current Transformer (HFCT) measures discharge magnitude.
   • Warning Value: Discharge >100pC requires immediate action (IEEE 1434).
4. Thermal Imaging Analysis
   • Equipment: Flir E8XT (temperature range -20℃~550℃).
   • Abnormality: Local temperature >90℃ (ambient 25℃) needs investigation.

Solutions

1. Material Upgrade
   • Selection Recommendation:


     Scenario	Recommended Material	Withstand Voltage Rating	Temperature Range
     High-Voltage System	PPS + 30% Glass Fiber	5kV/mm	-55~200℃
     Humid Environment	PA66 + 40% Mineral Filled	3kV/mm	-40~130℃

   • Performance Comparison: PTFE insulation breakdown field strength 170kV/mm (PA66 only 30kV/mm).
2. Process Optimization
   • Injection Parameters: Increase holding pressure to 120MPa (from 80MPa), reduce bubble residue.
   • Sealing Design: Dual O-ring structure (30% compression), waterproof rating improved to IP69K.
3. Protection Enhancement
   • Coating Solution: Spray Parylene HT (5μm thick), salt spray resistance 1000 hours (ASTM B117).
   • Environmental Control: Maintain cabinet humidity <40% (add dehumidifier, energy consumption reduced 15%).
4. Structural Improvement
   • Electric Field Optimization: Increase edge chamfer radius to 1mm, electric field strength reduced 60% (COMSOL simulation).
   • Stress Relief: Add flexible transition section (silicone rubber), CTE matching improved to 95%.

Preventive Measures

1. Regular Testing
   • Cycle:


     Environment Level	Test Frequency	Test Items
     Standard Workshop	6 months	Insulation resistance + Visual inspection
     Humid Workshop	3 months	Partial discharge + Thermal imaging
     High-Temperature Workshop	1 month	Material aging test (TGA)

   • Record Requirement: Update insulation resistance curve after each test (retain for 5 years).
2. Operation Specifications
   • Installation Standard:
     • Control seal compression ratio at 25-35% (ASTM F37).
     • No sharp tools during installation (risk of insulation scratch +40%).
   • Maintenance Prohibitions:
     • No hot-plugging (instantaneous voltage surge up to 500V).
     • No non-specialized solvents for cleaning (e.g., acetone dissolves PA66).
3. Monitoring System
   • Online Monitoring:
     • Insulation resistance sensor (accuracy ±1MΩ), data sampling rate 10Hz.
     • Partial discharge monitoring module (sensitivity 10pC), alarm threshold set at 50pC.
   • Data Analysis:
     • Establish insulation degradation model (RUL prediction error <10%).
     • Abnormal data automatically triggers shutdown protection (response time <50ms).

Measured Cases

• Case 1: Reactor controller leakage at a US chemical plant
  • Phenomenon: PLC reported insulation fault (resistance dropped from 10GΩ to 50kΩ).
  • Troubleshooting:
    1. Thermal imaging showed connector temperature 85℃ (ambient 25℃).
    2. SEM detected carbonized path in insulation layer (length 3mm).
  • Solution: Replace with PTFE insulated connector (Sumitomo P/N 8300-EX), add forced heat sink.
  • Result: Failure rate reduced 95%, annual maintenance cost reduced $15,000.
• Case 2: German wind turbine converter shutdown
  • Phenomenon: DC-Link voltage fluctuation (rated 1000V suddenly dropped to 700V).
  • Troubleshooting:
    1. Disassembly found local insulation breakdown (thickness reduced to 50μm).
    2. EDS detected chloride ion concentration exceeds standard (2000ppm, standard <500ppm).
  • Solution: Adopt dual-layer sealing + ion exchange resin treatment, replace corrosion-resistant connectors.
  • Result: System stability improved, annual downtime reduced 200 hours.

Ground Fault

Specific Manifestations

1. Leakage Current Exceeds Limit
   • Case: A US automotive welding robot controller had leakage current 3.2mA (UL 60950 standard limit 1mA), triggering overcurrent protection shutdown.
   • Data: When grounding resistance >10Ω, leakage current increases 300% (IEC 60364 standard).
2. Device Misoperation
   • Case: A German PLC control system had 0.8V AC ground loop voltage difference, causing relay mis-trigger (5 false operations daily average).
   • Data: When ground potential difference >20mV, digital circuit error rate increases 5x (IEEE 1434 standard).
3. Electrostatic Accumulation
   • Case: An Italian pharmaceutical cleanroom had electrostatic voltage 1.5kV (standard <100V), causing powder adhesion contamination.
   • Data: When humidity <40%, electrostatic voltage accumulation rate increases 40% per hour (ISO 61340).

Why It Happens

1. Poor Connection
   • Mechanism: Insufficient ground bolt torque (<5N·m) causes contact resistance to rise to 5Ω (standard <0.1Ω).
   • Measured Data: For every 1N·m torque reduction, contact resistance increases 20% (ASTM F37 standard).
2. Corrosion Contamination
   • Case: Coastal factory connector ground terminal had patina thickness 30μm (normal <5μm), resistivity increased to 1.8μΩ·cm (pure copper 1.68μΩ·cm).
   • Accelerated Test: Salt spray environment (5% NaCl solution) increases ground plate corrosion rate 8x (ASTM B117).
3. Design Defect
   • Typical Issue: Grounding path includes series resistance (e.g., wire gauge <1.5mm²), causing voltage drop >50mV (UL 48 standard).
   • Simulation Data: When ground loop inductance >10μH, transient voltage spike reaches 200V (COMSOL simulation).
4. External Interference
   • Case: A US substation ground grid affected by nearby power line induction, ground potential rise reached 3kV (IEEE 80 standard limit 1kV).
   • Measured Data: At 30m distance from high-voltage line, induced current density >200A/m² (IEC 61000-5-2).

Troubleshooting Steps

1. Continuity Test
   • Tool: Fluke 117 multimeter (accuracy ±0.5%).
   • Method: After power off, measure resistance between ground wire and equipment chassis, >0.1Ω needs investigation.
2. Ground Resistance Measurement
   • Equipment: Megger DET4TC (accuracy ±2%).
   • Standard: Single-point ground resistance ≤4Ω (NEC 250.53), multiple-point ≤1Ω.
3. Potential Difference Detection
   • Steps:
     • Use oscilloscope to synchronously monitor multi-point ground voltages.
     • Mark abnormal points when difference >20mV.
4. Thermal Imaging Analysis
   • Equipment: Flir E8XT (temperature range -20℃~550℃).
   • Warning: Ground plate temperature >90℃ (ambient 25℃) requires immediate action.

Solutions

1. Connection Optimization
   • Selection Standard:


     Scenario	Grounding Method	Torque Requirement (N·m)
     High-Frequency Equipment	Star Grounding	8-12
     High-Voltage System	Mesh Grounding	15-20

   • Process Improvement:
     • Use silver-plated copper braid (resistivity 0.017μΩ·cm), contact resistance reduced 60%.
2. Corrosion Protection
   • Coating Solution:
     • Hot-dip galvanizing (thickness ≥85μm), passes 1000-hour salt spray test (ASTM B117).
     • Coat with Parylene HT (5μm thick), salt spray resistance improved 3x.
3. Path Reconstruction
   • Case: A data center changed from ring grounding to radial, ground resistance reduced from 8Ω to 1.2Ω.
   • Simulation Optimization: When ground grid mesh density >5m×5m, step voltage reduced to <5V (IEEE 80).
4. Interference Suppression
   • Filtering Measures:
     • Install common-mode choke (impedance 1000Ω@1MHz), common-mode current reduced 90%.
     • Use shielded twisted pair (transfer impedance <50dBΩ/m), EMI radiation reduced 40dBμV/m.

Preventive Measures

1. Regular Testing
   • Cycle:


     Environment Level	Test Frequency	Test Items
     Standard Workshop	6 months	Ground resistance + Visual inspection
     Humid Workshop	3 months	Partial discharge + Thermal imaging
     High-Temperature Workshop	1 month	Material aging test (TGA)

   • Record Requirement: Update ground resistance curve after each test (retain for 5 years).
2. Operation Specifications
   • Installation Standard:
     • Ground rod burial depth ≥2.5m (rocky area ≥1.5m).
     • Multiple ground rod spacing ≥5m, arranged in triangle.
   • Maintenance Prohibitions:
     • No aluminum wire connecting to copper ground body (galvanic corrosion rate increased 50x).
3. Monitoring System
   • Online Monitoring:
     • Ground resistance sensor (accuracy ±1Ω), data sampling rate 10Hz.
     • Corrosion monitoring module (alarm when Cl⁻ concentration >500ppm).
   • Data Analysis:
     • Establish grounding degradation model (RUL prediction error <10%).
     • Abnormal data automatically triggers shutdown protection (response time <50ms).
