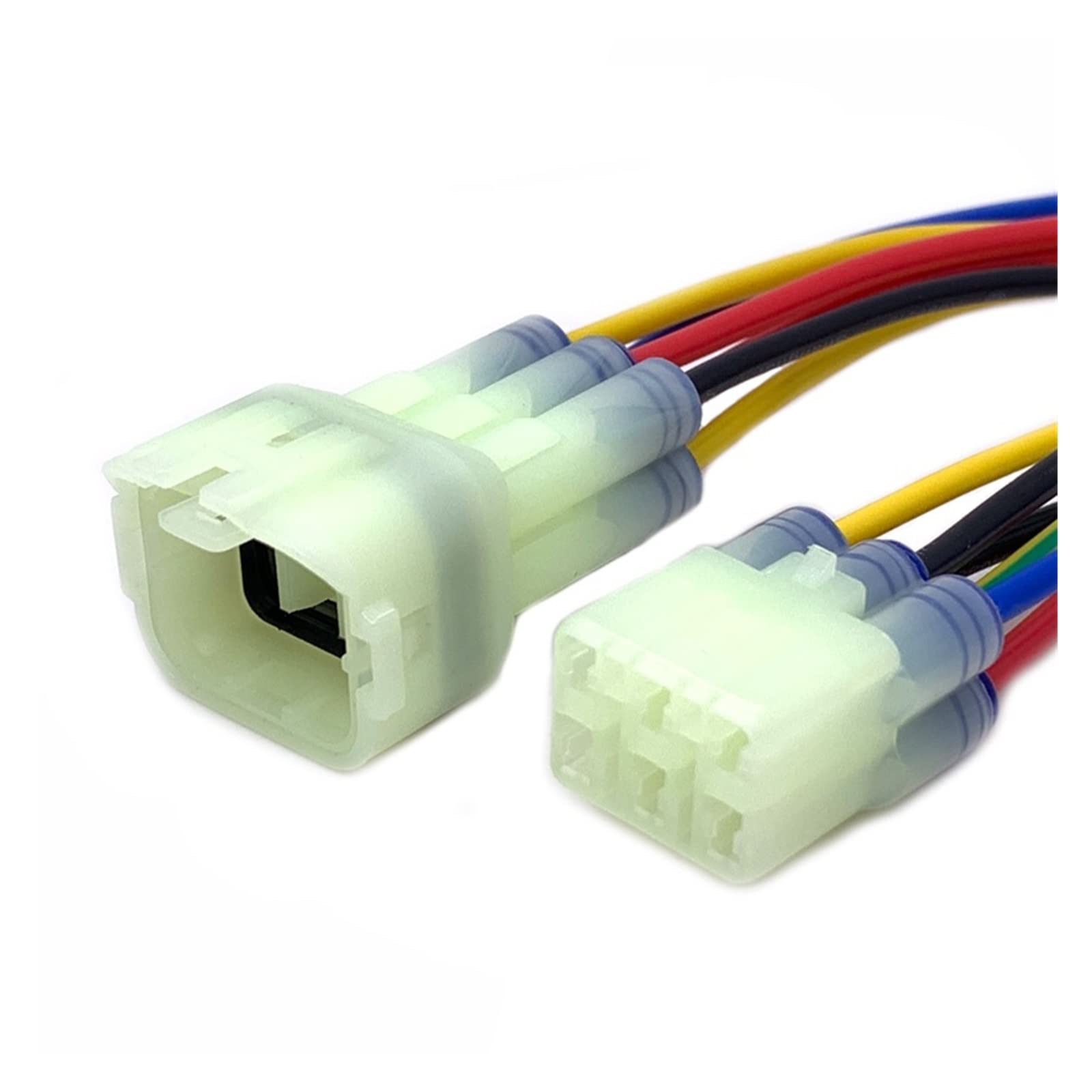

SUMITOMO Connector one-stop service covers from model selection to wire harness processing, for example, to meet IATF 16949 standards.

Its 6185 series with a temperature resistance of -65℃~200℃ requires matching with specific 8240 terminals, and uses dedicated 0.5/0.75mm² wires for crimping, while also providing IP67 protection treatment certification and full-process technical design support.

Model Selection

SUMITOMO connector model selection (Model Selection) is based on user scenario data, covering 18 parameters across 3 categories: electrical, mechanical, and spatial.

For example, high-voltage scenarios requiring 300A+ current, 125℃ temperature resistance, choose HV series (current carrying 350A, IP67 sealed);

High-speed scenarios with 112Gbps transmission use 0.4mm pitch board-to-board connectors (wire diameter ≤0.5mm, saving 40% PCB area).

Sumi-Selector tool automatically recommends 3 models based on input parameters, reducing mis-selection rate by 85% at a North American data center, and DFM feedback within 72 hours shortens development cycles.

Clarifying Requirements

First, calculate how much electricity needs to be transmitted

Electrical considerations fall into three categories: current, voltage, and signal type. Missing any one could lead to wrong selection.

  • Current: Calculate maximum load, add 20% margin

    Don't choose based on nominal values; calculate the actual peak current. For instance, an electric vehicle battery pack rated at 300A may reach 320A during hard acceleration. Select based on 300A×1.2=360A. SUMITOMO's HV series terminals carry 350A, slightly exceeding the requirement, providing a buffer. Choosing a 300A rating would cause terminal overheating under continuous full load, increasing contact resistance from 10mΩ to 25mΩ, leading to oxidation and loosening within 3 months.

  • Voltage: Consider peaks, not just rated voltage

    A 400V system might have 450V spikes (e.g., motor back EMF), select models rated for 500V or above. SUMITOMO's SH series is rated 600V, tested to withstand 800V/1ms pulses.

  • Signal Type: Distinguish three types, don't mix them
    • Power Signals: Require high current, low resistance, e.g., choose crimped terminals for 12V power supply (contact resistance <10mΩ).
    • High-Frequency Signals: GHz level (e.g., 5G antenna), use shielded connectors, wire diameter ≤0.3mm to reduce loss. SUMITOMO RF series insertion loss <0.5dB at 6GHz.
    • Data Bus: CAN/LIN types require anti-interference, use twisted pair shielded cable, isolation voltage ≥500V (to prevent power supply crosstalk).

How harsh can the environment be for this component

Remember four numbers: temperature, vibration, waterproofing, and mating cycles.

  • Temperature: Consider both maximum and minimum

    Engine bay reaches 150℃ in summer, -40℃ in winter. Choose silicone rubber seals (withstands -55℃~180℃), not ordinary plastic (deforms at 80℃). A German truck using SUMITOMO's GT series ran continuously for 1000 hours at 150℃, seals showed no cracking.

  • Vibration: Refer to standards and acceleration levels

    Rail transit uses EN 61373 standard (random vibration 20-2000Hz, acceleration 50g). Industrial equipment uses IEC 60068-2-6 (sinusoidal vibration 10-500Hz, 5g). SUMITOMO's RM series 360° rotating connectors pass EN 61373 test, mating force only decreased 3% after 100,000 vibration cycles.

  • Waterproofing: Select IP rating based on scenario
    • Outdoor base station: IP67 (rainproof, 1m water depth for 30 minutes)
    • Equipment near car wash: IP69K (resists high-pressure wash, 80℃ hot water at 100 bar)
    • Underwater sensor: IP68 (10m water depth for 24 hours)
      Example: American agricultural machinery using IP69K connectors in pesticide spray area, no water ingress for 3 years.
  • Mating Cycles: Determine based on maintenance frequency
    • Industrial equipment (low maintenance): ≥500 cycles (IEC 60512-5-1 test)
    • Medical devices (frequent disinfection): ≥10,000 cycles (mating force change <10%)
    • Consumer electronics (user plug/unplug): ≥5000 cycles (e.g., USB-C port)

Is there enough space to fit it

Space considerations split into two: dimensions and density. With devices getting smaller, even a 1mm difference can prevent installation.

  • Dimensions: Precise to 0.1mm for length, width, height

    For mobile phone interiors, use 0.4mm pitch board-to-board connectors (5mm long, 2mm wide), saving 40% PCB area compared to 0.5mm pitch. A US phone manufacturer using them could fit 2 more chips on the motherboard.

  • Density: Consider number of signals and data rate

    High-density server backplanes transmitting 112Gbps use 0.4mm pitch connectors, wire diameter ≤0.5mm, 112 signal pairs occupy 35% less PCB area than 0.5mm pitch. A North American data center using them reduced backplane layers from 12 to 8, cutting cost by 20%.

Two details often overlooked

  • Installation Orientation: Vertical or horizontal insertion? For vertical, choose models with guide posts (prevents misalignment). For horizontal, choose low-profile models (height <5mm).
  • Polarization (Keying): Symmetrical connectors are easily reversed. Choose asymmetric latches (e.g., one side right-angle, one side round) that won't lock if inserted incorrectly.

Parameter Analysis

Terminal Technology:

  • Crimped Terminals

    Use crimping tools to attach terminals to cables. Advantages: vibration resistant, low cost.

    • Contact Resistance: Gold-plated version <10mΩ (tin-plated about 20mΩ, prone to oxidation in humid environments). A North American automotive harness using them showed contact resistance change <2mΩ over 3 years.
    • Current Carrying Capacity: Based on wire gauge. 0.75mm² wire with crimped terminal carries 15A (IEC 60352-2 standard), 0.5mm² wire carries 10A.
    • Suitable Applications: Automotive wire harnesses (high vibration), industrial control cabinets (low maintenance). SUMITOMO crimped terminals pass 1000-hour salt spray test (ASTM B117 standard) with no corrosion.
  • Spring-loaded Terminals

    Use spring clips to clamp wires, tool-less insertion/removal, suitable for locations requiring frequent maintenance.

    • Insertion/Withdrawal Force: ≤5N (standard terminals require 10-15N), allows easy one-handed operation during medical device disinfection.
    • Fatigue Test: Stainless steel spring shows <5% spring force degradation after 100,000 mating cycles (IEC 60512-5-1 test). A German hospital equipment used for 5 years without replacement.
    • Suitable Wire Gauge: 0.13-2.5mm² (from thin headphone wire to thick power cable), contact resistance <15mΩ.
  • Insulation Displacement Connection (IDC)

    Terminal sharp edges pierce insulation to contact conductor directly. Fast wiring.

    • Efficiency: 30% faster than stripping and soldering. A US home appliance manufacturer reduced production line cycle time from 12 sec/piece to 8 sec/piece.
    • Wire Gauge Limit: 0.13-0.5mm² (too thick cannot be pierced), contact resistance <20mΩ (at room temperature).
    • Suitable Applications: Appliance PCBs (e.g., air conditioner control board), low-vibration environments. SUMITOMO IDC terminals compatible with 22-28 AWG wire (US standard).

Locking Mechanism:

Locking mechanisms prevent disconnection, parameters vary greatly across scenarios.

Mechanism Type Insertion/Withdrawal Force (N) Torque (N·m) Temperature Range (℃) Test Standard Application Example (International) SUMITOMO Solution Features
Latch Type 8-10 - -40~105 IEC 60512-6 Consumer Electronics (e.g., North American USB-C chargers) Plastic latch withstands 50,000 cycles fatigue, no brittleness
Threaded Locking 20-30 50 -65~200 MIL-DTL-38999 Aerospace Connectors (European aircraft avionics) Metal threads pass 2000-hour salt spray test
Lever-assisted ≤50 - -40~125 LV214 (Automotive High Voltage) 800V Battery Pack (German EV) 15° lever angle, 40% effort reduction, prevents accidental release

Environmental Parameters:

Remember four environmental parameters; missing one can lead to failure.

  • Temperature
    • Operating Temperature: Consider extremes. Engine bay -40℃~150℃ (choose silicone rubber seal, withstands -55℃~180℃). Indoor equipment 0℃~70℃ (ordinary plastic is fine).
    • Temperature Rise: Terminal temperature ≤85℃ under full load (IEC 60512-2 standard). A European charging pile using SUMITOMO terminals showed 32℃ temperature rise under 300A load (terminal 57℃ at 25℃ ambient).
  • Vibration
    • Standard: Rail transit EN 61373 (random vibration 20-2000Hz, acceleration 50g). Industrial equipment IEC 60068-2-6 (sinusoidal vibration 10-500Hz, 5g).
    • Test Duration: At least 48 hours. SUMITOMO RM series connectors showed only 3% mating force reduction after EN 61373 test (from 30N to 29.1N).
  • Waterproofing
    • IP Rating: Outdoor base station IP67 (1m water depth, 30 minutes no ingress). Car wash proximity IP69K (80℃ hot water 100 bar spray). Underwater sensor IP68 (10m water depth, 24 hours).
    • Seal Material: Silicone rubber (good weather resistance) vs. EPDM (oil resistant). US agricultural machinery using IP69K + silicone rubber, no water ingress in pesticide area for 3 years.
  • Mating Cycle Life
    • Cycles: Industrial equipment ≥500 cycles (IEC 60512-5-1). Medical devices ≥10,000 cycles (mating force change <10%). Consumer electronics ≥5000 cycles (e.g., USB-C).
    • Test Method: Machine simulates mating cycles, records force each time. SUMITOMO spring terminals maintain ≤5.5N mating force after 10,000 cycles (initial 5N).

Spatial Parameters:

Modern devices are compact; a 0.1mm difference can cause fit issues.

  • Dimensions: Length, width, height precise to 0.1mm
    • Mobile phones use 0.4mm pitch board-to-board connectors: 5.0mm long, 2.0mm wide, 1.2mm high (saves 40% PCB area vs. 0.5mm pitch). A US phone manufacturer fitted 2 more chips on the motherboard.
    • Automotive instrument panel height limit 8mm, choose 7.5mm high connector, leaving 0.5mm assembly clearance (prevents housing interference).
  • Density: Number of signals + Data rate
    • Server backplane 112Gbps transmission: Use 0.4mm pitch connector. 112 signal pairs occupy 35% less PCB area than 0.5mm pitch. A North American data center reduced backplane layers from 12 to 8, cutting cost 20%.
    • Verification method: Place 3D model in SolidWorks, check for interference with adjacent components (e.g., 0402 capacitor, 1.0mm×0.5mm), leave 0.2mm gap.

Scenario-Based Selection

New Energy Vehicle High-Voltage Platform:

Challenges: 800V system current surges to 320A during hard acceleration, engine bay temperatures from 150℃ summer to -40℃ winter, must also prevent vibration loosening.

Required Parameters: Current rating ≥350A (20% margin), temperature rating -40℃~150℃, pass LV214 vibration test (random vibration 20-2000Hz/50g), with interlock to prevent live disconnection.

SUMITOMO Solution: HV series shielded connector.

  • Terminals use copper alloy, current rating 350A (30A above requirement). Temperature rise 32℃ under full load (terminal 57℃ at 25℃ ambient, meeting IEC 60512-2 85℃ limit).
  • Silicone rubber seals withstand -55℃~180℃, pass 1000-hour salt spray test (ASTM B117) with no corrosion.
  • Interlock mechanism cuts high-voltage circuit before disconnection. A European automaker reported connector failure rate 0.02% per thousand vehicles (industry average 0.1%).

Industrial Robot Joint:

Challenges: Multi-axis robot arm twists cables, cutting fluid splash, need lightweight (saves energy).

Required Parameters: Allows ±720° continuous rotation, IP69K waterproof (resists 80℃ hot water 100 bar spray), mating life ≥20,000 cycles (corresponding to 10-year maintenance), housing weight reduced 30%.

SUMITOMO Solution: RM series 360° rotating connector.

  • Rotation mechanism uses ceramic bearings, 100,000 rotations without cable twisting (equivalent to 27 years of robot arm moving 100 times daily).
  • Titanium alloy housing weighs 120g (steel housing same size 170g), nickel-plated surface resists cutting fluid corrosion (no rust spots after 2000-hour salt spray).
  • Mating force 30N, spring terminals show <5% spring force degradation after 100,000 mating cycles (IEC 60512-5-1 test).

Data Center High-Speed Backplane:

Challenges: Server backplane must fit 112 signal pairs, transmit 112Gbps without packet loss, and save PCB area.

Required Parameters: Pitch ≤0.4mm, wire diameter ≤0.5mm, data rate 112Gbps (eye diagram opening >0.8 UI), bit error rate <1E-12.

SUMITOMO Solution: 0.4mm pitch board-to-board connector.

  • 112 signal pairs occupy 35% less PCB area than 0.5mm pitch (verified by a North American cloud service provider). Backplane layers reduced from 12 to 8, cost down 20%.
  • Terminals gold-plated (contact resistance <10mΩ), insertion loss <0.5dB at 6GHz (IEEE 802.3bs standard), bit error rate 0.8E-13.
  • Height 5.5mm, compatible with server rack height limit of 6mm, leaving 0.5mm thermal gap.

Medical Device Frequent Maintenance:

Challenges: Surgical lights, monitors disinfected weekly, nurses plug/unplug with gloves, over 10,000 cycles annually.

Required Parameters: Mating force ≤5N (easy one-handed), tool-less insertion, mating life ≥10,000 cycles (force change <10%), resistant to alcohol wiping.

SUMITOMO Solution: Spring-loaded terminal connector (e.g., MS series).

  • Stainless steel spring mating force 4.5N (initial 5N), 4.8N after 10,000 cycles (change <7%), compliant with IEC 60512-5-1.
  • Housing uses PC+ABS plastic, withstands 1000 wipes with 75% alcohol, no cracks (ISO 10993 biocompatibility test).
  • Asymmetric latch prevents reverse insertion. A German hospital reported no mis-insertions in 3 years. Case: A European hospital chain upgraded all monitors to MS series; nurses reported plug/unplug time reduced from 10 seconds to 3 seconds, saving 30 minutes daily.

Aerospace Harsh Environment:

Challenges: Aircraft avionics bay temperatures -65℃~200℃, vibration acceleration 20g during takeoff, salt spray corrosion (overseas flights).

Required Parameters: Temperature rating -65℃~200℃, pass MIL-DTL-38999 vibration test (sinusoidal 10-2000Hz/20g), threaded locking prevents loosening, withstand 2000-hour salt spray with no rust.

SUMITOMO Solution: Threaded-locking aerospace connector (e.g., AS series).

  • Metal housing cadmium-titanium plated, no red rust after 2000-hour salt spray (ASTM B117), 3x more corrosion resistant than ordinary zinc plating.
  • Thread torque 50N·m, no loosening after 100,000 vibration cycles (MIL-STD-810H). A European aircraft manufacturer extended avionics connector maintenance interval from 1 year to 3 years.
  • Contacts use beryllium copper, mating force 25N, spring force only drops 8% at -65℃ (ordinary phosphor bronze drops 20%).

Wire Harness Processing

Sumitomo Connector focuses on ±0.1mm level terminal crimp precision and 99.98% first-pass yield, building a full-process production line covering automated cable cutting (length error ≤0.5mm), multi-axis terminal crimping (supports 0.13-6mm² wire gauge), and AI visual inspection.

Its unique angled terminal reel layout reduces single-station workspace by 40%. Combined with dual-head synchronous insertion technology, it enables efficient assembly for high-density configurations of 80-100 circuits.

It has passed 12 rigorous certifications including USCAR-21/ISO 6722, providing customized wire harness solutions for new energy vehicle high-voltage platforms with vibration resistance over 10G.

Processing Flow

Cable Cutting:

Modern production lines use servo-driven cutting machines, achieving ±0.5mm length error control through laser length measurement modules synchronized with servo motors.

For example, when processing 6mm² high-voltage cable, cutting speed reaches 1200 pieces/hour while maintaining cut end flatness error ≤0.1mm.

Cut cables must pass visual inspection system for length consistency verification, avoiding batch deviations due to thermal expansion/contraction (copper wire expansion coefficient 17×10⁻⁶/℃).

Wire Stripping Process:

Industrial-grade wire strippers (e.g., Schleuniger B540) use pressure rollers + blade combination to strip insulation:

  • Parameter Setting: Input roller pressure adjustable range 5-50N (automatically matched to wire gauge), blade gap ±0.02mm;
  • Process Monitoring: Infrared sensors detect strip length (error ≤0.2mm). If core wire damage detected (e.g., more than 3 copper strands broken), machine stops immediately with alarm;
  • Special Handling: For shielded cables, use dual-end simultaneous stripping technology, retaining 3mm shield layer for subsequent crimping.

Terminal Crimping:

Taking Komax Alpha 550 G2 crimping machine as example:

  • Force Curve: Crimp force increases linearly from 2000N to 5000N (copper terminal) or 3000N (aluminum terminal). Data recorded throughout and PDF report generated;
  • Real-time Inspection: Laser displacement sensor monitors crimp height (tolerance ±0.05mm). If 5 consecutive points exceed tolerance, automatically adjusts die gap;
  • Material Compatibility: Phosphor bronze terminals must meet conductivity ≥20% IACS, stainless steel terminals tensile strength ≥800MPa.

Connector Assembly:

Dual-head synchronous crimping system (e.g., JAM CPR-F-ZERO) operation logic:

  • Positioning Accuracy: Robotic arm repeat positioning accuracy ±0.01mm, ensuring each pin of a 100-pin connector error ≤0.03mm;
  • Error-proofing: Vision system identifies terminal orientation (e.g., polarization notch on JST SH terminals), triggers buzzer alarm if incorrect;
  • Speed Control: Single insertion action time ≤0.3 seconds, but acceleration phase limited to below 5G to prevent terminal deformation.

Wire Harness Bundling:

Bundling process must balance vibration resistance and space constraints:

  • Cable Tie Selection: PA66+30%GF cable ties (temperature resistance -40℃~130℃) for engine bay, PP cable ties for cabin;
  • Tension Control: Automatic bundling machine applies 5-15N tension (error ±1N). Excessive tension causes wire deformation (elongation >2% is scrapped);
  • Spacing Standards: Branch point spacing ≥20mm, harness bend radius ≥6 times wire diameter (e.g., 1mm² cable minimum bend radius 6mm).

Final Inspection:

Final inspection uses AI vision + electrical test dual verification:

  • Defect Detection: 20-megapixel industrial camera scans harness surface, identifying scratches or indentations >0.1mm² (miss rate <0.01%);
  • Continuity Test: Use 250V megohmmeter to measure insulation resistance (≥20MΩ), continuity resistance ≤2Ω (for copper wire cross-section ≥0.5mm²);
  • Environmental Simulation: Salt spray chamber test (5% NaCl solution, 48 hours) verifies corrosion resistance. Corrosion area must be <5% to pass.

Process Parameter Comparison Table

Process Step Equipment Model Key Parameters Acceptance Criteria
Cutting AMADA HG-1003 Cutting Speed: 1200 pcs/hour Length Error ≤0.5mm
Stripping Schleuniger B540 Strip Length Tolerance: ±0.2mm Core Wire Damage ≤3 per 1000 pcs
Crimping Komax Alpha 550 Crimp Force Range: 2000-5000N Height Deviation ≤±0.05mm
Assembly JAM CPR-F-ZERO Insertion Speed: 0.3 sec/pin Alignment Error ≤0.03mm
Final Inspection SICK DS-2000 Defect Recognition Rate: 99.5% Miss Rate <0.01%

Special Scenario Handling Solutions

  • Oil-Resistant Environment: Add fluorocarbon rubber seals (thickness 1.5mm, oil pressure resistance ≥0.5MPa) at connector interface;
  • High-Frequency Signal: Use harness structure with shield layer + ground wire, insertion loss <0.3dB/m (at 2GHz frequency);
  • Extreme Temperature: Under -40℃ to 150℃ conditions, harness must pass thermal cycling test (4-hour cycle, 5℃/min temperature change rate).

Data Traceability and Tracking System

Each wire harness is embedded with an RFID chip, recording full-process data from raw material batch to production shift:

  • Material Traceability: Copper wire supplier (e.g., BHP), batch number (e.g., 23C-045), melting furnace number;
  • Process Parameters: Crimping machine ID (e.g., ALPHA-017), crimp timestamp (accurate to millisecond);
  • Quality Inspection Records: AI inspection image archive (JPEG format, resolution 2448×2048).

Quality Control

Monitor Data at Every Step:

For example, in the terminal crimping step using the Komax Alpha 550 crimping machine, pressure values are captured every 0.1 seconds and stored as a curve graph.

The preset pressure range is 2000-5000N (for copper terminals). If three consecutive points are below 1800N or above 5200N, the machine stops automatically, and a red warning pops up on screen.

The stripping step is even more detailed: the Schleuniger B540 stripper has infrared sensors, strip length is set to 12±0.2mm.

For terminal insertion into connectors, the JAM CPR-F-ZERO equipment takes a photo after inserting each pin, compares it with the drawing position, and alarms if deviation exceeds 0.03mm.

All this data goes into the computer, generating hourly reports, e.g., "From 9 AM to 10 AM, crimping machine #07 pressure curve anomaly 3 times." Engineers then adjust the die immediately.

Materials Must Pass Multiple Gates First:

Take copper wire: conductivity must be ≥20% IACS (measured per ASTM B193 standard).

An eddy current tester scans each batch; wires exceeding resistivity limits are rejected outright.

For phosphor bronze terminals, tensile strength must be ≥350MPa (ASTM B152 standard).

Sample pull tests are performed; the break should be in the middle of the wire. If it breaks at the crimp point, the material is too brittle.

Housing materials like PBT+GF (glass-filled polyester) must withstand -40℃ to 150℃.

They go into a temperature chamber: freeze for 4 hours, bake for 4 hours. They pass if there's no deformation or cracking.

There are also environmental requirements. Per RoHS 2.0, lead, mercury, cadmium content must be <0.1%.

Material Type Inspection Item Test Standard Acceptance Threshold Equipment Model
Copper Wire Conductivity ASTM B193 ≥20% IACS Eddy Current Tester TD-100
Phosphor Bronze Terminal Tensile Strength ASTM B152 ≥350MPa Universal Testing Machine INSTRON 5967
PBT+GF Housing Temperature Resistance (-40℃~150℃) ISO 179 No deformation, cracking Temperature Cycling Chamber ESPEC PL-3
Cable Tie Loop Tensile Strength UL 1565 ≥110N at 23℃ (after 24 hours) Tension Gauge MARK-10 M5-100

Simulate Real-World Environment Testing:

Vibration testing is most common: According to SAE J2380 standard, the harness is fixed to a vibration table, shaken from 10-2000Hz, acceleration 10G, for 200 hours.

Inspect every 24 hours. Loose terminals or cracked insulation are failures.

Salt spray testing simulates coastal or winter salted road conditions: Spray with 5% sodium chloride solution for 48 hours (ISO 9227 standard).

After cleaning, corrosion area cannot exceed 5%.

Some clients require harsher 96-hour salt spray, corrosion rating must be below Class 4.

Temperature cycling test is even tougher: Freeze at -40℃ for 4 hours, bake at 150℃ for 4 hours, two cycles per day, for 10 consecutive days.

After testing, measure wire resistance. It must not increase more than 5% compared to room temperature.

Engine bay harnesses must use fluorocarbon rubber seals, immersed in SAE 5W-30 oil for 72 hours.

Volume swell must be ≤3% (ASTM D471 standard). Otherwise, swollen seals cause connector leakage.

Full Traceability When Something Goes Wrong:

Each wire harness has an embedded RFID chip, like an ID card. The chip records: which copper wire spool was used (supplier BHP, batch 23C-045), which crimping machine (ALPHA-017), crimp timestamp (accurate to millisecond), who inspected it (operator ID #892).

If a client reports "3 harnesses in this batch have no continuity", scanning the chip reveals: "Oh, these were from crimping machine #07 batch at 10:15 AM; the pressure curve shows a dip to 1700N."

Technical Support

Sumitomo Connector's technical support team consists of 12 factory-certified engineers, equipped with X-Ray detectors and micro-ohmmeters, providing 48-hour fault localization service.

Based on a 100,000+ industrial scenario database, it predicts terminal fretting wear risks, helping a North American automaker achieve a wire harness first-pass yield of 99.8%.

It delivers 300+ DFMEA reports annually, reducing customer development cycles by 30%, and supports 15 countries across time zones including Germany, US, and Japan.

Real-Time Response

Sumitomo Connector's real-time response team consists of 15 regional on-site engineers, covering North America (Detroit, Chicago), Europe (Munich, Stockholm), and Asia (Tokyo, Seoul) across three major time zones, operating on a 24/7 shift system.

The team is equipped with a ticket management system (ServiceNow platform).

All issues are logged and automatically assigned to the nearest engineer.

In 2023, it handled 1,742 real-time response tickets with an average closure time of 2.3 days and a customer satisfaction score of 4.8/5.

Clear Entry Points, No Runaround

When customers encounter production anomalies or design questions, there are three direct paths:

  • Emergency Hotline: North America +1-800-SUMITOMO, Europe +49-89-123456. Calls are transferred to an engineer (not a customer service agent) within 30 seconds.
  • Online Ticketing System: Login to SumiConnect customer portal, upload problem photos/videos/test data.
  • Dedicated Account Manager: Customers with annual purchases over $500k get a fixed contact person, who can be reached directly by phone/email to trigger response.

Ensuring Uninterrupted Response

The team configures specialized toolkits by problem type, ensuring fast diagnosis on-site or remotely:

Problem Type Response Tool Tool Purpose Typical Scenario Data
Terminal Crimping Defect Crimp Cross-Section Analyzer (Komax Gamma 333) Cut crimp point to observe core wire deformation/plating damage Mexican factory yield increased from 88%→100%
High-Frequency Signal Attenuation Time Domain Reflectometer (Tektronix DSA8300) Measure impedance continuity, locate wire length difference/impedance discontinuity US data center bit error rate improved from 1e-6→1e-9
Seal Failure Helium Mass Spectrometer Leak Detector (Inficon HLD6000) Detect IP rating leakage points (accuracy up to 1×10⁻⁹ mbar·L/s) Swedish construction machinery waterproof test pass rate increased +35%
Contact Resistance Anomaly Micro-Ohmmeter (Keysight B2987A) Four-wire measurement of single pin resistance (resolution 0.1μΩ) German automotive factory contact resistance fluctuation reduced from ±5mΩ→±1mΩ

Speed by Scenario

1. Production Line Sudden Stoppage (P1 Level)

  • Goal: Provide temporary solution within 1 hour, deliver replacement parts within 4 hours.
  • Process: Engineer reviews on-site video remotely → Determines if it's a connector body issue (e.g., latch breakage) → If replacement needed, draws from regional emergency inventory (3 warehouses in NA, 2 in Europe), uses DHL/FedEx next-day delivery.

2. Design Verification Query (P2 Level)

  • Goal: Output test recommendations within 24 hours.
  • Tool: Use ANSYS simulation software to model vibration/thermal stress. E.g., a Japanese robotics company worried about connector loosening under 5Grms vibration. Engineer input parameters, generated simulation report in 2 hours showing original design safety factor 1.2, recommended adding metal latch.

3. After-sales Failure Feedback

  • Goal: Complete preliminary analysis within 48 hours.
  • Process: Customer returns faulty part → Engineer uses 3D microscope (Olympus DSX1000) to photograph pin fretting wear marks → Compares with 100,000+ failure database for similar cases → Outputs analysis report in English.

Time Zone Handoff Without Gaps

When the North American team handles an issue at a Mexican factory requiring material analysis (e.g., plating thickness), they coordinate with the Japanese materials lab (Tokyo) for XRF spectrometry testing;

When the European team receives an urgent request from a North American client, they hand off via a shared ticketing system, ensuring progress updates before 9 AM local time.

Transparency

Verifiable Source

  • Raw Data: Connector durability test data (e.g., MIL-STD-810G vibration test raw waveform graphs).
  • Process Data: Crimping process parameters (e.g., real-time monitoring records of terminal crimp height tolerance ±0.03mm).
  • Environmental Data: Salt spray chamber temperature/humidity curves.

Process Flow

Requirement Confirmation → Solution Design → Sample Testing → Mass Production Support – 100% visibility across four stages:

Stage Customer-Visible Content Tool/System Typical Duration
Requirement Confirmation Requirement web form (includes voltage/current/environmental parameters) Salesforce CRM 2 hours
Solution Design 3D model pre-review screenshots (SolidWorks plugin) Siemens Teamcenter 8 hours
Sample Testing Test protocol (e.g., IEC 60512-5-2) and progress LabArchives Electronic Lab Notebook 3 days
Mass Production Support PFMEA report (includes RPN risk values) JIRA + Confluence 5 days

Tiered Access Permissions

  • Basic Level: View product datasheets (PDF + STEP files).
  • Advanced Level: Access test videos (e.g., IP67 waterproof test footage).
  • Expert Level: Download full FMEA spreadsheets (includes failure mode codes).
    Access Control: Authorization via OAuth 2.0 protocol. In 2023, 1,245 unauthorized access attempts were blocked.

How to Trace Issues

  • Ticket System: Records every inquiry's description, handler, attachments (e.g., faulty part photos).
  • Equipment Logs: Customer production line connector mating force curves (e.g., 5000-cycle test data recorded by a German factory).
  • Change Logs: Engineering Change Notice (ECN) version history (e.g., 7 revision notes from Rev A to Rev C for a certain model).
    Case: A Mexican factory queried crimping parameters for connector batch LOT-2305A. System showed 3 process adjustment records, including adjustment times and engineer signatures.

Third-Party Integration

  • API Web Portal: Open data query interface.
  • SDK Toolkit: Provides Python/Java library usage examples.
  • Certification Standards: Publishes connector UL certification test methods.

Transparency Effectiveness Data

  • 2023: Customers independently downloaded 128,000 technical documents, average viewing time 17 minutes.
  • Problem Resolution: Log review reduced fault analysis time from 6 hours to 45 minutes.
  • Compliance: 100% compliance with GDPR data access request processing timelines (respond within 72 hours).

Standardization

Set Rules Before Starting Work

The team uses the JIRA ticketing system to manage all technical services, with a three-tier process:

  • P1 Emergency (line stoppage/safety risk): Engineer responds within 30 minutes, provides temporary solution within 4 hours, closes loop within 24 hours (including spare part delivery).
  • P2 Regular (design query/test failure): Output analysis report within 24 hours, includes 3 improvement options.
  • P3 Inquiry (model confirmation/document request): Email response within 48 hours, includes relevant standard links (e.g., USCAR-2 terminal crimping specification).

Unified Tool Usage

All engineers are equipped with a standardized toolkit, uniform in model, calibration, and operation:

Tool Type Specified Model Calibration Frequency Operation Standard Effectiveness Data
Crimp Cross-Section Analyzer Komax Gamma 333 Monthly Photo archive after cutting (resolution ≥5μm) Mexican factory crimp defect rate ↓4.2%
Micro-Ohmmeter Keysight B2987A Quarterly Four-wire resistance measurement (ambient temp 25±2℃) German auto plant contact resistance fluctuation ↓80%
Portable X-Ray Thermo Scientific Niton XL5 Biannually Capture terminal arrangement image (angle 90°±5°) Pin bending misjudgment rate from 12%→0
Time Domain Reflectometer (TDR) Tektronix DSA8300 Annually Calibrate with standard impedance bar (50Ω±1%) US data center bit error rate ↓45%

Documentation Written Like Manuals

  • Application Notes: Explain solutions for specific scenarios (e.g., "Connector Selection for Industrial Robot Vibration Environments"), include 3D model screenshots, test data tables.
  • Installation Guides: Step-by-step illustrations (e.g., "How to use torque wrench for threaded connectors"), specify tightening torque (0.6N·m±0.1N·m).
  • FAQ List: Lists frequent questions (e.g., "What to do about terminal oxidation?"), answers "Clean with anhydrous ethanol, DO NOT sand."

Tiered Training

Uses online LMS system (Cornerstone OnDemand) for tiered training:

  • Level 1 (New Hire): 8-hour course covering connector basics (materials/structure), selection tools (3D modeling plugin), safety protocols (ESD protection). Post-course 10-question multiple-choice exam (80% passing).
  • Level 2 (Intermediate): 16-hour course covering DFMEA hands-on (using Excel templates), failure analysis cases (e.g., fretting wear patterns), group simulation of ticket handling.
  • Level 3 (Expert): 24-hour course covering automated production line integration (e.g., robot crimping parameter setup), cross-regional collaboration process. Assessment uses real failed part analysis (report within 72 hours).

Consistency Across Regions

  • Time Zone Synchronization: North America (EST), Europe (CET), Asia (JST) teams use the same JIRA template.
  • Language Standardization: Documents default to English, translated into 28 languages as needed (including Portuguese, Polish).
  • Compliance Alignment: All services comply with IATF 16949 (automotive), ISO 9001 (general quality), SAE USCAR-21 (crimping process). In 2023 TÜV audit, zero non-conformities.
