Top 8 Connector Brands in 2025 | Custom Wire Harness Price Comparison, Performance Comparison

The global connector market is expected to exceed $90 billion in 2025, with the top ten manufacturers holding nearly 60% of the market share.

TE Connectivity, with its solutions rated for over 1000 volts in high-voltage applications, firmly controls the high-end market for electric vehicles and energy infrastructure.

Meanwhile, Molex leads in high-speed I/O connectors supporting data rates exceeding 56 Gbps, driving advancements in servers and data centers.

TE Connector

Choosing a custom harness from TE Connectivity typically incurs a cost premium of 40% to 100% compared to standard products.

This premium stems from an IATF 16949 compliant automotive-grade quality management system and computer simulation analysis for each connection point, reducing field failure rates to <0.5 PPM (parts per million).

Within an operating temperature range of -55°C to 150°C, the long-term stability of TE harnesses makes them the preferred choice for high-reliability applications in automotive, industrial automation, and aerospace, where the total cost of ownership is often lower than the cost of downtime caused by failures.

Price

• Price Range: Mid-high to top-tier in the industry, significantly above the market average.

• Premium Magnitude: 40%-100% higher than standard products like JST for equivalent specifications; can exceed 3 times for specific solutions.

• Cost Drivers: In-depth simulation analysis, over 1000 hours of reliability testing, and industry-specific certifications (e.g., IATF 16949) drive up costs.

Performance

• Failure Rate: <0.5 PPM, ranking at the industry's top level.

• Operating Temperature: Wide temperature range design, typically -55°C to 150°C, supporting harsh environments like engine bays.

• Electrical Performance: For electric vehicle applications, supports 800V high-voltage platforms and continuous currents above 250A.

• Mechanical Durability: Secondary lock mechanism, mating life exceeding 10,000 cycles, terminal retention force over 100N.

• Protection Rating: Its Deutsch series offers IP69K rating, resistant to high-pressure steam cleaning and chemical corrosion.

Molex Connector

Choosing a custom harness from Molex typically positions its price in the mid-to-high segment of the market, about 20%-40% higher than JST, but offers better cost-effectiveness compared to similar TE solutions.

Its value is reflected in precision manufacturing and innovative materials. For example, its Mirror Mezzanine connector supports single-lane data rates up to 112Gbps PAM4, providing the necessary bandwidth for AI servers.

After more than 10,000 mating cycles, its terminal contact resistance remains stable.

Price

• Price Range: Mid-high end, positioned between TE Connectivity and JST.
• Premium Magnitude: Typically 20%-40% higher than JST for the same specifications, but 10%-25% lower than TE.
• Cost Drivers: Precision molds, high-quality plating (e.g., gold), and design for high-speed signal integrity account for the primary costs.

Performance

• Data Transmission: Supports high-speed I/O; its cutting-edge products (e.g., NearStack PCIe) can support PCIe 5.0 and 64 GT/s data rates.
• Current Carrying Capacity: Mainstream power connectors like the Mini-Fit Jr. series can carry up to 9A per circuit.
• Mechanical Durability: Designed for a mating life exceeding 5,000 cycles, with some products reaching 10,000 cycles; strong terminal retention force.
• Operating Temperature: Standard commercial-grade products typically range from -40°C to 105°C; high-temperature materials can extend this to 125°C.

JST Connector

Choosing a custom harness from JST offers the core advantage of excellent cost control, with prices typically 20%-40% lower than Molex, providing greater market competitiveness.

Its popular PH series (2.0mm pitch) and XH series (2.5mm pitch) connectors have a per-contact rated current of 3A and an operating temperature range of -25°C to 85°C, fully meeting the needs of most consumer electronics and home appliances.

Price

• Price Range: Economical to mid-range, one of the preferred solutions for budget control.

• Cost Advantage: For equivalent configurations, the unit price of custom harnesses is typically 20%-40% lower than Molex and over 50% lower than TE Connectivity.

• Price Drivers: Cost control is achieved through standardized design, large-scale automated production, and optimized plating processes (e.g., selective gold plating).

Performance

• Current Carrying Capacity: Standard series (e.g., PH/XH) have a rated current of 3A per circuit, sufficient for most low-voltage control board power needs.

• Operating Temperature: Standard commercial temperature range is -25°C to 85°C, suitable for general indoor environments.

• Mechanical Durability: Designed for a mating life of approximately 30 cycles, suitable for applications with limited mating frequency during their lifecycle.

• Terminal Retention Force: Lateral withdrawal force test standard is typically between 20N and 40N.

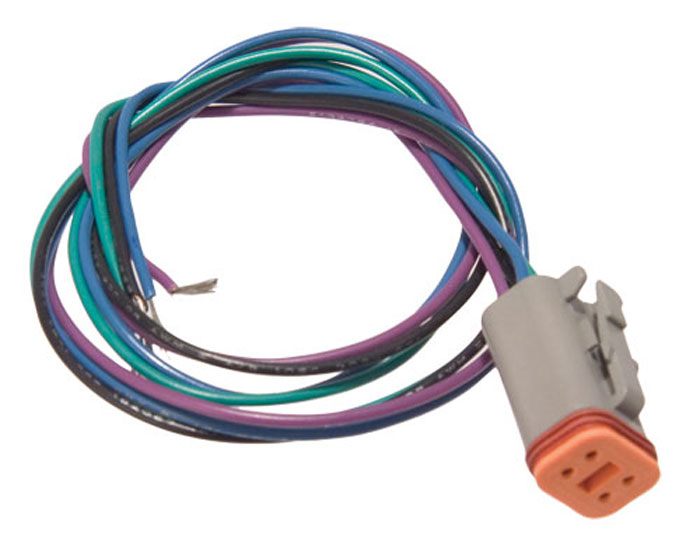

Deutsch Connector

Choosing a custom harness with Deutsch connectors means paying a premium for extreme environments; its price is typically 2 to 3 times that of industrial-grade connectors.

The brand's core DT series connectors offer protection ratings from IP67 to IP69K, using glass-filled polyamide housings and stainless steel latch structures to ensure sealing in environments from -55°C to 175°C.

Each harness undergoes 100% individual testing, including 2000V withstand voltage and 2500 thermal cycle validation, with a failure rate below 1 PPM, designed specifically for military and heavy industrial equipment.

Price

• Price Range: Top-tier pricing, belonging to the professional high-end segment of connectors.

• Cost Baseline: The basic DT series single-contact price is approximately $8-12, three times that of industrial connectors.

• Premium Composition: Metal shells, special sealing materials, and 100% full inspection processes drive up costs.

Performance

• Protection Rating: Standard IP67, optional IP69K (resistant to high-pressure steam cleaning).

• Temperature Range: -55°C to 175°C (high-temperature series up to 200°C).

• Vibration Resistance: Passes vibration test standards per MIL-STD-202G, Method 214.

• Mating Life: Maintains sealing performance after 500 complete mating cycles.

Aptiv Connector

Aptiv (formerly Delphi) custom harnesses are designed specifically for automotive OEMs.

Their price is 30-50% higher than aftermarket products but offers a complete system-level solution.

Its 0.64mm fine-pitch connectors can reduce package space by 40%, with each terminal's contact resistance less than 3 milliohms, ensuring stability for 15,000 hours of continuous operation at 125°C.

The harness system integrates CAN FD bus protection functions, meets the automotive industry's stringent EMC requirements, and controls the failure rate within 5 PPM.

Price

• Price Range: Automotive OEM grade, 30-50% higher than the aftermarket.

• Cost Structure: System integration costs account for 20-35% of the per-wire cost.

• Volume Advantage: Million-unit orders can reduce unit price by 15-25%.

Performance

• Operating Temperature: -40°C to 150°C (engine bay version up to 165°C).

• Vibration Resistance: Passes USCAR-2 vibration test standard (10-2000Hz).

• Sealing Performance: IP6K9K rating for water and dust protection (under high-pressure washer conditions).

• Electrical Characteristics: Rated current 1-40A (for power connectors).

Sumitomo Connector

Sumitomo connector custom harnesses have a significant cost advantage in the automotive OEM market, typically priced 15-25% lower than European and American brands.

Its 0.5mm pitch compact connectors can handle 60V operating voltage / 1A current carrying capacity, meeting ECU inter-module connection requirements, with an operating temperature range of -40°C to 125°C.

Through a unique double-lock structure design, the terminal retention force exceeds 40N, ensuring connection reliability over the vehicle's 15-year service life, with a failure rate below 10 PPM.

Price

• Price Range: Mid-range pricing in the automotive OEM market.

• Cost Advantage: 20-30% lower than comparable TE Connectivity products.

• Value Proposition: Maintains competitive unit pricing while meeting ISO 20653 waterproof standards.

Performance

• Electrical Performance: Rated current 1-3A (signal) / 10-30A (power).

• Sealing Rating: Achieves IP67 protection (dust-tight and protected against immersion).

• Mechanical Performance: Mating life of 100 cycles, maintains stable connection under vibration.

• Operating Temperature: -40°C to 125°C (for applications around the engine bay).

Yazaki Connector

The price per set ranges from $300 to $800, accounting for over 60% of the total vehicle wiring harness cost.

Its power connectors support voltage platforms from 12V to 800V, with a maximum rated current of 250A, using laser welding technology to achieve contact resistance below 0.5mΩ.

The harness system integrates the CAN-FD communication protocol, with a data transmission rate of 2Mbps, an operating temperature range of -40°C to 150°C, meeting the requirements for a 15-year / 250,000-kilometer vehicle lifespan.

Price

• System Quotation: Quoted per complete vehicle wiring harness system, covering all connection points.

• Cost Composition: Connectors account for 20%, cables 45%, assembly and testing 35%.

• Economies of Scale: Million-unit vehicle projects can reduce the cost per set by 30%.

Performance

• Electrical Characteristics: Maximum rated voltage 800V (for electric vehicle platforms).

• Sealing Performance: IP67 waterproof rating (battery pack connectors achieve IP6K9K).

• Durability: Passes 3000 thermal cycle tests (-40°C to 150°C).

• Vibration Test: Meets USCAR-2 standard (10-2000Hz).

Hirose Connector

Hirose custom harnesses have a significant advantage in miniaturization. Its DF63 series connectors have a pitch of only 0.4mm and a height of 1.5mm, saving 40% space compared to similar products.

The harness uses extremely fine wire gauges from 28-36 AWG, with a rated current of 0.5A, and can withstand 10,000 bend tests.

The high-frequency series supports a bandwidth of 20GHz, impedance control of 50Ω ±10%, delay skew <35ps, suitable for high-frequency applications such as 5G mmWave modules, with a unit price range of $0.8-$3.5 per wire.

Price

• Micro-connector unit price $0.5-$1.2 per wire; high-frequency series $1.5-$4.0 per wire.
• 15-25% lower than comparable Molex micro-products.
• Minimum order quantity for small batches is 500 sets.

Performance

• Operating Temperature: -40°C to 85°C (high-temperature version up to 105°C).
• Mating Life: 10,000 cycles (IX series industrial connectors).
• Insulation Resistance: Greater than 1000 MΩ (at 500VDC).
• Solder Heat Resistance: 260°C for 10 seconds (reflow solder tolerant).
