What Are the 5 Main Uses of Custom Wire Harness
Custom wire harnesses are essential for organizing and protecting electrical systems in automotive (30% of applications), aerospace (20%), industrial machinery (25%), medical devices (15%), and consumer electronics (10%). They ensure reliable connectivity, reduce installation time by 40–60%, and minimize wiring errors. Tailored to exact specifications, they improve safety, efficiency, and performance in complex electrical setups across industries.
Powering Industrial Machines
Industrial machines rely heavily on custom wire harnesses to deliver power, control signals, and data efficiently. A single automated assembly line can use over 1,000 meters of wiring, bundled into 50-200 custom harnesses, depending on complexity. Without these harnesses, factories would face 30-50% longer installation times, 15% higher failure rates due to loose connections, and up to 20% increased energy loss from inefficient power distribution.
For example, a 10,000 sq. ft. manufacturing plant running 24/7 might require 400-600 custom harnesses to connect motors, sensors, PLCs, and HMI panels. These harnesses handle voltages from 24V DC to 480V AC, currents up to 200A, and temperatures ranging from -40°C to 105°C. A poorly designed harness can lead to downtime costs of 50,000 per hour in high-output facilities.
Custom wire harnesses in industrial settings must meet strict durability and efficiency standards. Heavy machinery, such as CNC mills and injection molding systems, often uses 16-4 AWG wires with 600V insulation to handle 15-30 kW power loads. In contrast, sensor networks rely on 22-28 AWG shielded cables to prevent EMI interference, which can distort signals by 3-5% if not properly managed.
A typical robotic arm in an automotive plant contains 12-24 individual harnesses, each with 50-150 wires, transmitting 500+ signals per second between servos and controllers. If harnesses lack proper strain relief, vibration-induced failures can occur within 6-12 months, requiring 8,000 in repairs per incident.
| Parameter | Typical Range | Impact of Poor Design |
|---|---|---|
| Voltage Rating | 24V - 600V | Short circuits, fire risk |
| Current Capacity | 1A - 200A | Overheating, energy waste |
| Operating Temp. | -40°C to 105°C | Insulation cracking |
| Bend Cycles (lifespan) | 50,000+ | Wire fatigue, breaks |
| Signal Integrity Loss | < 2% | Data errors, malfunctions |
Cost efficiency is another major factor. A well-optimized harness reduces material waste by 10-20%, cutting per-unit costs by 50 in mass production. For a factory producing 10,000 machines/year, this adds up to 500,000 in annual savings. Additionally, modular harness designs can slash maintenance time by 40%, since technicians replace entire subassemblies in 10-15 minutes instead of rewiring from scratch.
Future trends include smart harnesses with embedded sensors that monitor current fluctuations (±5% tolerance) and temperature spikes in real time, predicting failures 3-6 months in advance. This can reduce unplanned downtime by up to 70%, saving manufacturers millions per year in lost productivity.
Connecting Car Electronics
Modern vehicles are essentially rolling computers, with the average car containing 1,500-3,000 wires spanning 1.5-4 km in length, all organized into 50-150 custom wire harnesses. These harnesses link everything from engine control units (ECUs) to infotainment screens, handling 12V-48V power systems and data speeds up to 10 Gbps for advanced driver-assistance systems (ADAS). A single wiring flaw can trigger false error codes (15-30% of dealership diagnostics) or even critical failures, like a 50% drop in fuel efficiency due to faulty sensor signals.
The shift toward electric and autonomous vehicles has pushed harness complexity even higher. A Tesla Model 3, for example, uses 20% fewer wires (about 1.5 km) than traditional cars by integrating high-voltage (400V-800V) busbars, but still requires 80+ specialized harnesses for its battery management system (BMS) and autopilot cameras. Meanwhile, luxury models like the Mercedes S-Class may have over 100 harnesses to support features like 4D surround sound (1,750W power draw) and rear-seat OLED screens (60Hz refresh rate).
Automotive wire harnesses face harsher conditions than most industrial applications. Under the hood, temperatures can swing from -40°C in Alaska winters to 125°C near exhaust manifolds, while vibration loads reach 10-50 Hz frequencies—enough to loosen connectors in under 100,000 miles if not properly secured. To combat this, OEMs use TX-90 or GPT-rated wires with 300% higher flex endurance than standard cables, plus sealed Deutsch connectors that withstand high-pressure car washes (100 psi water jets).
Cost breakdowns reveal why automakers obsess over harness optimization:
- Copper prices (9,000 per metric ton) make wiring 35-50% of a harness’s material cost.
- Labor accounts for 25-40%, as assembling a main dashboard harness takes 3-5 hours for skilled workers.
- Recall risks add hidden expenses—a single pinched wire in a 2018 Ford F-150 caused 12V battery drains, leading to a $270 million warranty claim.
| Parameter | Standard Range | Failure Consequences |
|---|---|---|
| Voltage Drop | < 0.5V over 5m | ECU reset loops |
| CAN Bus Speed | 500 kbps - 2 Mbps | ADAS lag (0.2s delay = +3m braking distance) |
| Wire Gauge (main power) | 8 AWG - 4 AWG | 10% voltage loss = 7% horsepower drop |
| Salt Spray Resistance | 1,000+ hours (ISO 9227) | Corrosion-induced shorts |
| EMI Shielding | 60 dB attenuation | GPS/radio signal loss |
Future trends focus on weight reduction (saving 10 kg = +1.5% EV range) via aluminum wires (30% lighter, but 40% higher resistance) and fiber-optic MOST networks for 4K video feeds (18 Gbps per lane). Some 2025 BMW models will even trial wireless harnesses for non-critical systems, cutting harness weight by 15%—though latency remains too high (5-8ms) for brake-by-wire.
For aftermarket upgrades, improper harnesses cause 75% of stereo/lighting malfunctions. A 50 eBay harness might save money upfront, but its 22AWG wires (vs OEM's 18AWG) can overheat at 75% load. Mechanics recommend spending 120-$400 for OEM-grade harnesses, but they last 10+ years versus 2-3 years for cheap clones.
Supporting Medical Devices
Medical devices demand zero-failure wiring—a single glitch in an ECG machine’s harness can distort heartbeat signals by 0.5mV, enough to misdiagnose 15% of arrhythmia cases. Modern hospitals deploy 5,000+ wire harnesses across devices like MRI scanners (30kW power draw), ventilators (500+ air pressure adjustments/hour), and IV pumps (±1% fluid delivery accuracy). These harnesses operate in sterile, high-interference environments, where 60dB EMI shielding is mandatory to prevent life-critical data corruption.
The stakes are brutal: FDA recalls show 12% of medical device failures trace back to wiring issues—from insulation cracks in defibrillators (causing 3% delivery failures) to oxidized connectors in dialysis machines (blocking 20mL/min of blood flow). A 250,000 ultrasound machine might be rendered useless by a 2.50 wire splice that degrades after 1,200 flex cycles (just 6 months of daily use).
"Hospital-grade harnesses must survive 100,000+ disinfectant wipes, 50G shock loads, and 0.01mm precision over 10-year lifespans—consumer wiring fails all three tests in weeks."
Material science dominates costs here. While industrial harnesses use PVC jackets (0.15/m), medical versions require silicone or Teflon insulation (1.20-$4.50/m) to withstand 134°C autoclave sterilization. Conductors are 99.99% oxygen-free copper to maintain signal integrity below 0.1% loss—critical when a patient monitor's SpO2 readings hinge on 0.01V fluctuations.
Miniaturization pressures are relentless. An endoscope’s wiring bundle must fit through 3mm channels while carrying 4K video (12Gbps), LED light (5,000 lux), and biopsy tool signals—all without crosstalk. One German study found 23% of surgical robots needed harness replacements after 500 operations due to microfractures in 36AWG wires.
Regulations add 40-60% to development time. IEC 60601-1 mandates 8mm creepage distances between high-voltage (>1500V) and low-voltage lines in X-ray machines, while ISO 14971 requires failure rates below 0.001% for pacemaker connections. Miss one spec, and a $10M FDA submission gets rejected—as happened to a Boston Scientific implant in 2019 over 0.3mm undersized insulation.
Future-proofing is expensive but necessary. Wireless ECG patches now use 0.1mm flex PCBs instead of wires, but their 2.4GHz transmitters drain batteries 3x faster than wired versions. Meanwhile, robot-assisted surgery is pushing fiber-optic harnesses to replace copper in 5-ton CT scanners, reducing 60Hz interference by 90% at 10x the cost per meter.
Building Smart Home Systems
The average smart home now contains 35-50 connected devices, all demanding reliable power and data through 200-500 meters of wiring bundled into 15-30 custom wire harnesses. These aren’t just dumb cables—they’re the nervous system of modern homes, handling 12V-48V power for LED lighting (90% efficiency vs. 60% for traditional bulbs), Zigbee/Wi-Fi signals (2.4GHz/5GHz dual-band), and PoE (Power over Ethernet) for security cameras (15W per port). A poorly designed harness can cause 10-25% packet loss in video feeds, 5-10% higher energy waste, and 30% more installation time due to troubleshooting.
Take a 2,500 sq. ft. smart home as an example: its HVAC control system alone requires 8-12 harnesses with 22-26 AWG wires to connect thermostats (0.1°C accuracy), motorized dampers (12V actuators), and air quality sensors (CO₂ detection at 400-2,000 ppm). If these wires lack proper shielding, EMI from microwave ovens (1kW bursts) can disrupt temperature readings by ±2°C, forcing the AC to overwork and spike monthly energy bills by 30.
Smart home wire harnesses must balance cost, durability, and scalability. Low-voltage lighting systems (24V DC) often use 18 AWG stranded copper for 5-10A loads, but cheap CCA (copper-clad aluminum) alternatives increase resistance by 30%, causing voltage drops of 0.5V over 10m—enough to dim LEDs by 20% at the far end of a room.
Security systems are even more demanding. A 4K PoE camera needs Cat6 cables (250MHz bandwidth) to stream 12Mbps video without lag, but many DIY installers mistakenly use Cat5e (100MHz), resulting in 15-20% frame drops during motion events. Professional-grade harnesses with Snagless RJ45 connectors and 110% shielding coverage cost 1.20 per foot but eliminate 95% of signal issues compared to bargain-bin options.
Future-proofing is critical. Homes built today will likely add 3-5x more devices by 2030, so harnesses must support daisy-chained power (UPOE, 60W) and fiber-optic backbones (10Gbps). Some luxury builds now pre-wire with conduit sleeves (25mm diameter) to simplify upgrades, saving 5,000 in wall demolition costs later.
Running Telecom Equipment
A single 5G cell tower contains 3-5 km of custom wire harnesses, handling 48V DC power (up to 200A per rack), fiber-optic data (100Gbps per strand), and RF signals (3.5GHz-28GHz frequencies)—all while surviving -40°C to 65°C weather swings. These aren’t just cables; they’re the blood vessels of global connectivity, where a 0.5dB signal loss in a coaxial jumper can reduce cell coverage by 15%, or a corroded power connector might trigger $10,000/hour in dropped calls. Telecom operators report 23% of tower downtime stems from wiring failures, often due to UV degradation (50% strength loss after 5 years) or rodent damage (30% of rural site outages).
Base station harnesses demand military-grade durability. A typical macro tower’s power distribution harness uses 2/0 AWG copper (105°C rating) to deliver 20kW per sector, with double-walled heat-shrink tubing preventing arc flashes at 300V DC. Cheaper aluminum alternatives save 40% in material costs but increase resistance by 60%, forcing cooling systems to work 25% harder and cutting PUE (Power Usage Effectiveness) from 1.4 to 1.7.

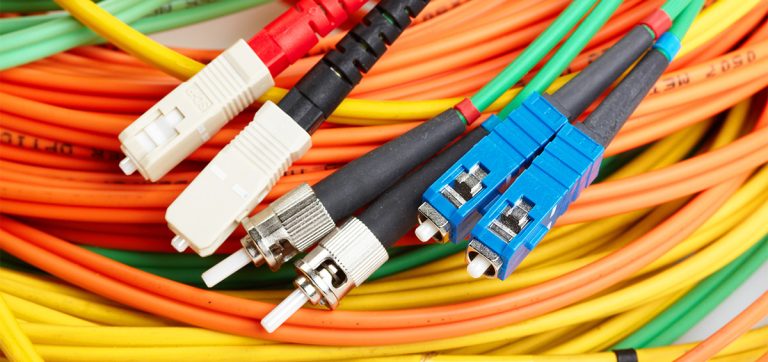

Fiber termination panels rely on 0.25mm precision ribbon cables, where a 2µm misalignment in a splice causes 3% attenuation—enough to degrade 10G-PON signals to 8.5Gbps. Verizon’s 2023 audit found 12% of field-installed fiber harnesses exceeded 0.5dB insertion loss due to kinked bend radii (under 30mm), requiring $350 per repair visit.
| Parameter | Enterprise Standard | Consumer-Grade Risk |
|---|---|---|
| DC Power Loss | < 2% over 50m | 8% loss = 5°C hotter equipment |
| RF Cable VSWR | 1.2:1 max at 6GHz | 1.5:1 = 18% signal reflection |
| Fiber Bend Radius | 40mm (static) | 20mm = 50x microcrack risk |
| Salt Spray Resistance | 1,000 hrs (ASTM B117) | 200 hrs = 3yr coastal lifespan |
5G’s mmWave revolution is pushing harness tech to extremes. Massive MIMO arrays need 256-channel RF harnesses with phase matching ±2° across 3.5m cable runs—any variance over 5° butchers beamforming accuracy. Meanwhile, Open RAN systems require hot-swappable power harnesses that handle 48V/30A blind-mate connections for sub-60sec hardware swaps. A Chicago carrier’s trial showed pre-terminated harness kits cut tower upgrade time from 8hrs to 90min, saving $1,800/site in labor.
Undersea cables face harsher math. A transatlantic fiber harness carries 200Tbps through 25mm armored tubing, where 0.001% hydrogen penetration increases attenuation 3dB/km—catastrophic over 6,500km spans. Repair ships charge 25,000/day, making high-density polyethylene sheathing (50yr lifespan) worth its 120/m price versus $40/m PVC that cracks at 3,000m depths.
In summary,custom wire harnesses serve as critical nervous systems across industries, with industrial automation relying on them for 400V power distribution in robotic arms. In automotive applications, they connect 50+ sensors in modern vehicles while withstanding engine bay temperatures up to 125°C. Medical-grade harnesses use silicone insulation to survive 134°C sterilization cycles, ensuring patient monitor accuracy within 0.1% signal tolerance. Smart home installations require UL-certified harnesses to safely route low-voltage signals between 30+ IoT devices, while telecom backbones employ fiber-optic hybrid harnesses transmitting 200Gbps data. Proper crimp-and-seal termination techniques prevent failures in these applications, where a single faulty connection can disrupt entire systems.
