What is the Lead Time for a Custom Wiring Harness | 5 Factors That Affect It

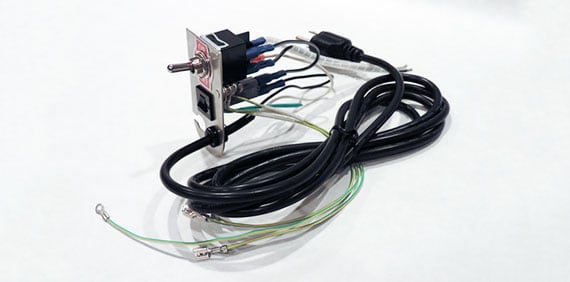

Complexity of Your Design
A basic harness with 2 to 5 circuits and a single connector might take an engineer just 8-16 hours to fully design and document. However, a complex harness for industrial machinery, featuring over 200 wires, dozens of multi-pin connectors (some with 50-200 pins each), and multiple branches, can easily require 3 to 5 weeks of dedicated engineering time.
For a simple 12-circuit harness, this might take 1-2 days. But complexity escalates time non-linearly. A harness with 150 circuits doesn't take 12 times longer; it can take 15-20 times longer due to the interdependencies. Each additional circuit must be routed, ensuring it avoids electromagnetic interference (EMI) from power cables, which might carry 48V DC at 30A. Signals for sensitive sensors, like those reading 0-5V analog signals with a required 1% accuracy, need shielding and specific separation from noise sources. This requires careful planning, not just simple line drawing. The choice of components directly impacts the design timeline. Specifying a common USCAR connector is fast, as its specifications are readily available. However, integrating a specialized, sealed connector from a less common manufacturer with a 6-week lead time itself adds time, as the engineer must source and integrate its technical drawings and cavity plug patterns.
For a harness that must fit into a tight 50mm x 80mm duct, the engineer must create a precise scale drawing, determining the exact length of each wire and the location of every sleeve, grommet, and clip. This is a meticulous, wire-by-wire process. A change as simple as moving a connector 50mm can force a re-calculation of the lengths for dozens of connected wires. Furthermore, complex harnesses often require 3D modeling in software like SOLIDWORKS or Zuken E3.series. This allows for virtual fit-checking within the final assembly, preventing costly physical prototypes. Generating a full 3D model for a harness with 15 branches can add 20-40 hours to the design phase but is crucial for avoiding installation issues.
Quantity You Need to Order
For a prototype order of 5 units, the lead time might be 3 weeks, but for a production run of 5,000 units, it will not be 1,000 times longer; it might only be 8 weeks. The initial phase—engineering review, machine programming, and setup—is a fixed time investment. This setup can account for up to 40% of the total lead time for a small batch of 20 units, but its impact dilutes to less than 5% for an order of 5,000 units.
For any order, the manufacturer must first conduct a final engineering review of your design, which might take 2-3 days to confirm all materials and tolerances. Then, they program automated cutting and stripping machines. Setting up a machine to cut 500 wires to 15 different precise lengths (e.g., 1.25 meters ±0.005m) might take a technician 4 hours. This same 4-hour setup is required whether you're making 10 harnesses or 10,000. This is why the per-unit lead time is so high for low volumes. After setup, assembling a 20-harness batch might be done by a single technician over 2 days, with each harness taking about 3 hours of hands-on labor.
The most significant shift occurs when orders cross a threshold of approximately 250-500 units. Below this point, manufacturing is a batch process. Above it, production can be organized into a flowing assembly line, which drastically reduces the time per unit.
For quantities exceeding 500 units, the process transforms. Instead of one technician building a complete harness from start to finish, the work is divided into stations. One station cuts all 5,000 wires of a specific type in one go, a process that might take 2 hours but serves the entire batch. Another station focuses solely on pre-assembling Type A connectors, achieving a speed of 50 connectors per hour due to specialization. This assembly-line method can reduce the hands-on time per harness from 3 hours to under 30 minutes. However, it requires more complex scheduling and a larger commitment of raw materials. The procurement lead time for materials becomes the dominant factor. While a prototype might use stock spools of wire, a 5,000-unit order requires purchasing a 10,000-meter spool of a specific gauge and color, which alone can have a 4-week lead time from the wire mill. The larger the order, the more the lead time is dictated by the slowest component in the supply chain.
|
Order Quantity Tier |
Estimated Impact on Lead Time |
Primary Time Drivers & Considerations |
|---|---|---|
|
Prototype (1 - 10 units) |
2 - 3 weeks |
Lead time dominated by setup (~40% of total). High per-unit cost. Manual, bench-style assembly. |
|
Low-Volume (50 - 200 units) |
3 - 5 weeks |
Setup time is amortized. Production done in small batches. Time for quality checks on each unit adds up. |
|
Mid-Volume (250 - 1,000 units) |
5 - 8 weeks |
Transition to assembly line. Lead time now depends on production sequencing and material availability for the entire batch. |
|
High-Volume (1,000+ units) |
8 - 12+ weeks |
Lead time is primarily driven by raw material procurement (e.g., 8-week cable lead time). Production rate is optimized but fixed. |
Telling a supplier you need 100 harnesses now but forecast 1,000 units per year allows them to advise on design-for-manufacturing changes that could slash 15% off the production time for future runs. They might suggest a different connector that is easier to automate, reducing installation time from 2 minutes to 30 seconds per connection.
Supplier's Current Workload
Even if your meal only takes 20 minutes to cook, you might wait 90 minutes for a table if the restaurant is fully booked. A harness manufacturer with a 15,000-square-foot facility might have 8 assembly lines, but if 7 of them are dedicated to long-running projects, your new project enters a queue. This queue time is often the most variable and least visible part of the lead time. A supplier operating at 85% capacity can typically slot in a new 500-unit order and commit to a 6-week timeline. However, an identical supplier operating at 98% capacity might quote 10-12 weeks for the exact same harness, as your project must wait for a 2-3 week window of open capacity before physical assembly can even begin.
-
Current Capacity Utilization: The percentage of their production lines and labor hours already committed.
-
Project Queue Complexity: The size and technical demands of the projects ahead of yours.
-
Production Line Flexibility: The ability to dedicate specific equipment or teams to your order.
A manufacturer running at 70% capacity has significant flexibility; they can assign a dedicated 3-person team to your project immediately, potentially working two shifts to compress the 3-week build time into just 8 business days. In contrast, a manufacturer at 95% capacity is functionally booked. Their production schedule is a tightly packed puzzle. Your 200-harness order might need to be split into 4 smaller batches of 50 units, each batch slotted into whatever small gaps appear in the schedule over a 6-week period. This stop-start production approach inherently increases the calendar time, even if the actual hands-on labor hours remain the same. The complexity of the projects already in the queue is equally important. If the line before you is producing a simple 5-wire harness for consumer electronics, the turnover might be quick. But if the factory is committed to a 9-month program building 5,000 complex harnesses for agricultural machinery, your project will be waiting for a substantial break in that production run.
A harness needing custom overmolding requires time on a specialized injection molding machine. If the supplier has only one such machine and it is scheduled for 20 hours per week for another client's project, your harness must wait for an open slot. The same applies for automated wire-processing machines. A supplier with 3 automated cutting machines can handle more concurrent projects than one with just 1 machine. Furthermore, a supplier's workload isn't just about assembly; it includes their engineering and quality assurance teams. A highly customized harness requiring 50 hours of engineering support will be delayed if the entire engineering department is already allocated 110% to existing projects for the next 3 weeks.
Parts and Material Availability
A harness might consist of 20 different part numbers, and if 19 of them are in stock with a 2-day delivery, but the 20th item is a specialty connector with a 16-week factory lead time, your entire project is delayed by those 16 weeks. The raw materials—wire, connectors, sleeving—typically account for 50-70% of the total harness cost, and their availability is the single greatest variable in your schedule. Common components like standard PVC-insulated 22 AWG wire might be readily available, while a shielded, double-insulated cable rated for 150°C could have a 8 to 12-week lead time from the mill.
-
Wire and Cable: The specific gauge, insulation material, shielding, and color approvals.
-
Connectors: The manufacturer, series, pin count, and locking mechanisms.
-
Specialty Items: Overmolds, custom grommets, and approved tie wraps.
A standard UL1007 22 AWG hook-up wire in a common color like red or black is a commodity item, often available from distributor stock with a lead time of under 5 business days. However, if your design requires a 20 AWG, multi-conductor (5-pair) cable with an overall foil shield and a drain wire, rated for 80°C in oil, you are now dealing with a specialty product. A manufacturer may need to place a minimum order of 50,000 feet directly with the cable mill, triggering a custom production run that can take 8 weeks from the time the copper is drawn to the final curing of the insulation. The color complexity also adds time. A harness using 10 different wire colors is far easier to source than one requiring 15 wires, all in the same shade of blue but with different printed alphanumeric legends for tracing. Producing that small amount of custom-printed wire can take 3-4 weeks, as it requires stopping a massive printing machine to set up for a run of only 5,000 feet.
The difference between a common Molex Micro-Fit 3.0 connector and a specialized Amphenol LTW series can be the difference between a 1-week and a 20-week wait. The lead time is not just about the plastic housing; it's about the complex interplay of the housing, the male and female contacts (which are often sourced separately), the seals, and the secondary locking mechanisms. A connector set with 25 pins requires 25 individual contacts, and a shortage of just the female contact, perhaps due to a backlog in the phosphor bronze stamping process at a specific factory, can halt the entire project. This is why manufacturers create a Bill of Materials (BOM) and immediately perform an availability check with their distributors and directly with component manufacturers. They are looking for the Minimum Order Quantity (MOQ), which for a rare connector might be 10,000 pieces, and the factory lead time, which can range from 0 weeks (stock) to 52 weeks (for highly customized, military-spec components).
Required Testing and Approval Steps
A process that can seamlessly add 3 to 8 weeks to your lead time. This phase is not about finding defects; it's about proving compliance to specifications that ensure reliability and safety. A simple harness for office equipment might only require a 15-minute continuity test. In contrast, a harness for an automotive or aerospace application must undergo a rigorous battery of tests defined by standards like ISO 16750 or AS50881, which can involve over 20 distinct procedures and take 4 to 6 weeks to complete. The timeline is dictated by the specific validations your application demands, which generally fall into a few key areas:
-
Electrical Validation: Continuity, hipot testing, and insulation resistance.
-
Environmental Stress: Thermal cycling, vibration, and moisture resistance.
-
Physical Durability: Connector mating force, wire pull strength, and bend testing.
-
Customer Approval: Sample inspection, documentation review, and formal sign-off.
The most basic electrical test, 100% continuity testing, is non-negotiable for every harness. This automated check verifies that every circuit is correctly connected and isolated from others. A machine can test a 150-circuit harness in about 90 seconds, checking for opens, shorts, and miswires with a low-voltage signal. However, a high-potential (hipot) test is more time-consuming. This test applies a high voltage—for example, 1,500 VAC for 60 seconds—to check the integrity of the insulation. While the test itself takes only 1-2 minutes per circuit, it requires careful setup and safety procedures. If your harness includes shielded wires, testing the shield continuity and its resistance, which must be less than 100 milliohms per meter, adds another layer of complexity. For prototypes or small batches, this testing might be done manually, taking 30-45 minutes per harness. For a production run of 1,000 units, this would be automated, but the programming and fixture setup alone could take 3-5 days.
Environmental testing is where the calendar time expands significantly. These tests are not performed on every harness but on a statistically significant sample size, often 5 to 10 units from the first production batch. A thermal shock test might require placing harnesses in a chamber that cycles between -40°C and +125°C with transition times of less than 30 seconds, for a total of 500 cycles spanning 10 consecutive days. A vibration test might run for 100 hours, subjecting the harness to a frequency range of 10 Hz to 2,000 Hz at a defined 5 G-force amplitude to simulate years of vehicle operation. These tests are destructive; the samples cannot be sold afterward. If a harness fails at hour 85 of a 100-hour test, the entire process must be restarted with a new sample set, adding a full 100-hour delay, plus analysis time.
|
Testing Category |
Typical Duration |
Key Parameters & Impact on Lead Time |
|---|---|---|
|
Basic Electrical (100% Testing) |
1-3 days (for a batch of 500 units) |
Continuity, short circuits. Automated. Adds a fixed, predictable time to production. |
|
Advanced Electrical (Sample Testing) |
3-5 business days |
Hipot (e.g., 1500V), insulation resistance (>100 MΩ). Requires manual setup and safety protocols. |
|
Environmental Simulation |
2-4 weeks |
Thermal cycling (-40°C to +125°C), vibration (100 hrs). Longest duration due to required exposure time. Non-negotiable for automotive/aerospace. |
|
Customer Approval Process |
1-3 weeks (highly variable) |
Physical sample inspection, documentation review. The single biggest variable, dependent on customer's internal speed. |
This allows the supplier to budget the 4 weeks for environmental testing into the lead time from the beginning, rather than it becoming a surprise 4-week extension later. For new designs, building 2 extra prototypes specifically for destructive testing can prevent delays. Furthermore, establishing a pre-approved checklist for the first-article samples within your company can cut the approval time from 3 weeks to under 5 days by streamlining internal feedback. The goal is to turn the validation phase from a hidden variable into a scheduled, predictable milestone on your critical path.
In summary, the lead time for a custom wiring harness typically ranges from 2-3 weeks for standard designs but can extend significantly. Key factors include the complexity of a design with 25+ unique components, order quantity, the supplier's current capacity, global material lead times, and a 1-2 week validation phase for rigorous testing.
