15 Best Network Cable CAT 5 5e, 6, 6A, 7, 8 Starlink Gen3 Cable Ethernet Patch Cable
Product ID : HH15121901
Product Tags :
Communication/ Telecom cable
Product Attributes :
- High-Quality Conductor: Features Bare Copper (BC) or Oxygen-Free Copper conductors, superior to CCA (Copper-Clad Aluminum) for conductivity and longevity.
- Advanced Shielding Options: Available in UTP (Unshielded), FTP (Foiled), or SFTP (Shielded & Foiled) types to suit different EMI/RFI environments.
- Durable Jacketing: Utilizes PVC or LSZH jackets; outdoor versions include waterproof, UV-resistant materials for exterior use.
- Precision Gauges: Offered in standard 23AWG or 24AWG for solid core, and slim 28AWG or 26AWG for flexible patch cords.
Product Description
Unlike Gen 1/Gen 2 (which used proprietary connectors), Starlink Gen 3 uses a standard shielded RJ45 Ethernet cable to connect the rectangular dish to the router, carrying both data and PoE power over a single cable.
That means:
|
Cable Property
|
Why It Matters for Gen 3
|
|---|---|
|
Pure copper (not CCA/aluminum-clad)
|
The cable carries PoE voltage to the dish — resistance causes a voltage drop over longer runs
|
|
Shielded (STP/FTP)
|
Outdoor environment = EMI + weather; shielding protects signal integrity
|
|
Outdoor-rated jacket (UV, water-resistant)
|
The dish ends outside 24/7
|
|
Category
|
The data link runs at ~1 Gbps class — you don't needCat7/Cat8 magic
|
Bottom line: For Starlink Gen 3, Cat6 (shielded, pure-copper, outdoor-rated) is the goldilocks choice. Cat5e works but is a downgrade. Cat6a is fine if you want margin. Cat7 and Cat8 are marketing fluff for this use case.
Quick Category Comparison
|
Category
|
Max Speed
|
Bandwidth
|
Max Distance for Rated Speed
|
Verdict for Starlink Gen 3
|
|---|---|---|---|---|
|
Cat5e
|
1 Gbps
|
100 MHz
|
100 m
|
✅ Adequate for LAN patches; ⚠️ not ideal for dish cable (thinner, less shielded)
|
|
Cat6
|
1–10 Gbps
|
250 MHz
|
100 m @ 1G / 55 m @ 10G
|
✅✅ Sweet spot — best price/performance for Gen 3
|
|
Cat6a
|
10 Gbps
|
500 MHz
|
100 m
|
✅ Worth it for long runs or if you're future-proofing a whole home network
|
|
Cat7
|
10 Gbps
|
600 MHz
|
100 m
|
❌ Not an official TIA/EIA standard; requires special GNDed shielded connectors; no real benefit here
|
|
Cat8
|
25–40 Gbps
|
2000 MHz
|
30 m
|
❌ Designed for data centers; zero benefit for Starlink's ~1Gbps link
|
Curated Recommendations — Organized by Use Case
A. Dish ↔ Router Cable (The Critical One — Carries PoE!)
|
#
|
Cable
|
Cat
|
Why Pick It
|
|---|---|---|---|
|
1
|
Starlink Official Replacement Cable (15 m / 23 m / 46 m)
|
Shielded Cat5e/Cat6-equivalent
|
✅ Guaranteed compatibility & weather sealing done right
|
|
2
|
Lucmo Gen 3 Replacement Cable — shielded, IP68-rated, 26AWG pure copper, welded RJ45 ends
|
Cat6-class
|
Purpose-built for Gen 3; waterproof seal at recessed port; pure copper = stable PoE
|
|
3
|
SanGuan / Goldendisk Waterproof Cat6 Extension (23 m / 75 ft)
|
Cat6, STP, pure copper, outdoor PVC jacket
|
Long-run replacement; shielded; gel-sealed coupler options available
|
|
4
|
Onten SL301 Gen 3 Cable (10 m / 15 m / 20 m+ options)
|
Cat6, 8× oxygen-free copper cores, waterproof
|
Flexible length choices; budget-friendly third-party option
|
Installation tip: If you're extendingthe stock cable rather than replacing it, use a weatherproof shielded RJ45 coupler / IP68 bulkhead — don't just leave a joint exposed. Maintain T-568B pinout straight-through.
B. Router → Switch / Mesh Node / Indoor Device (Standard RJ45 Patch Cables)
These are normal Ethernet patch cables (no PoE power concerns). Cat6 is the default recommendation; Cat6a if you're running 10G or long in-wall runs.
Top Tier (Well-Built, Pure Copper, Reliable Connectors)
|
#
|
Cable
|
Cat
|
Highlight
|
|---|---|---|---|
|
5
|
Cable Matters [Snagless] Cat6 Patch Cable
|
Cat6 (24 AWG, bare copper, snagless boot)
|
Widely trusted; consistent build quality; all lengths
|
|
6
|
Cable Matters Cat6a Shielded (SSTP)
|
Cat6a (SSTP double-shield, 26 AWG, 550 MHz)
|
Best if EMI is a concern or you want 10G-ready
|
|
7
|
Monoprice Flexboot Cat6
|
Cat6 (24 AWG, stranded copper, slim boot)
|
Excellent value; clean strain-relief boot; widely available
|
|
8
|
UGREEN Cat6 / Cat6a Patch Cable
|
Cat6 / Cat6a (pure copper, gold-plated contacts)
|
Clean molding; braided options look good in visible setups
|
Great Value / Visible-Run Options
|
#
|
Cable
|
Cat
|
Highlight
|
|---|---|---|---|
|
9
|
Amazon Basics Cat6 Patch Cable (snagless, 10 Gbps-capable)
|
Cat6
|
Cheap, consistent, multipacks available
|
|
10
|
Jadaol Cat6 Flat Cable (with wall clips)
|
Cat6 (flat, runs under carpet / along baseboards)
|
Best for rentals or running under doors discreetly
|
|
11
|
Mediabridge Cat6 (with Velcro strap, PE cross-insulation)
|
Cat6 (24 AWG stranded copper)
|
Solid budget pick with good strain relief
|
|
12
|
Vention Cat6a SSTP
|
Cat6a (shielded, oxygen-free copper)
|
Good if you want shielded but don't need a "pro" brand name
|
If You Just Want a Simple 5-Pack for Around the House
|
#
|
Cable
|
Cat
|
Highlight
|
|---|---|---|---|
|
13
|
CableCreation Cat5e 5-Pack (24 AWG pure copper)
|
Cat5e
|
Honestly, fine for Starlink-speed LAN devices (smart TV, console). Cheap and thick for a 5e
|
|
14
|
Monoprice Cat5e Snagless
|
Cat5e
|
The "just works" baseline; pennies per foot
|
|
15
|
DanYee / DbillionDa Cat7 Flat (if you already own one)
|
Effectively Cat6a performance
|
Not a real standard, but the shielded flat ones do perform — just don't pay a "Cat7 premium"
|
Here Are We Recommended 15 Network Cable:

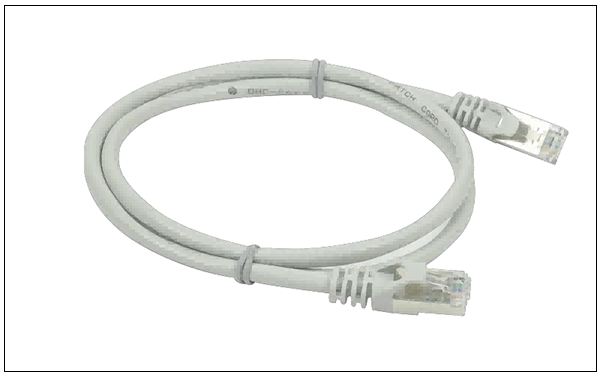

CAT 5e Shielded Patch Cord
- Material: PVC outer cover wire gauge: 26AWG(7*0.16MM)
- Conductor: Pure copper
- Cable type: Total aluminum foil shielding
- Transmission rate: 1000Mbps
- Frequency bandwidth:100MHz

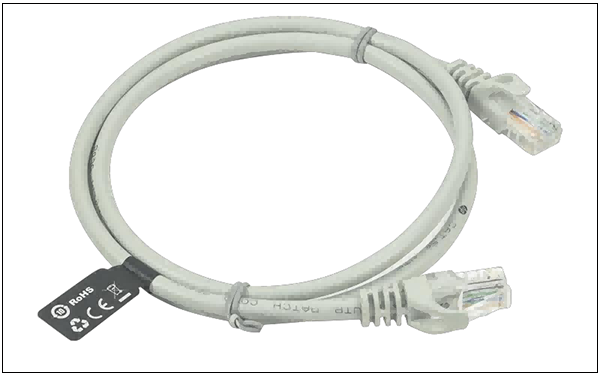

Cat 5e Unshielded Patch cord
- Material: PVC outer cover wire gauge: 26AWG(7*0.16MM)
- Conductor: Pure copper
- Cable type: Unshielded
- Transmission rate: 1000Mbps
- Frequency bandwidth: 100MHz

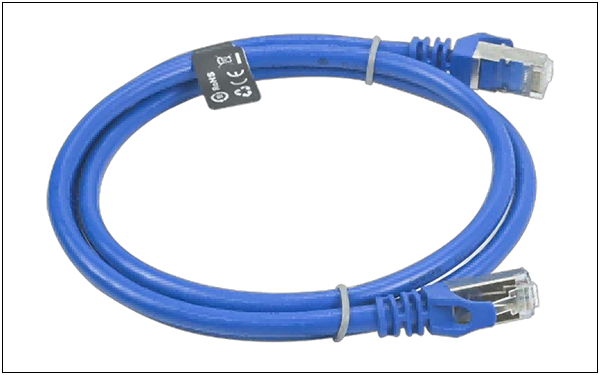

Cat 6 shielded patch cords
- Material: PVC outer cover wire gauge: 26AWG(7*0.16MM)
- Conductor: Pure copper
- Cable type: Total aluminum foil shielding
- Transmission rate: 2500Mbps
- Frequency bandwidth: 250MHz

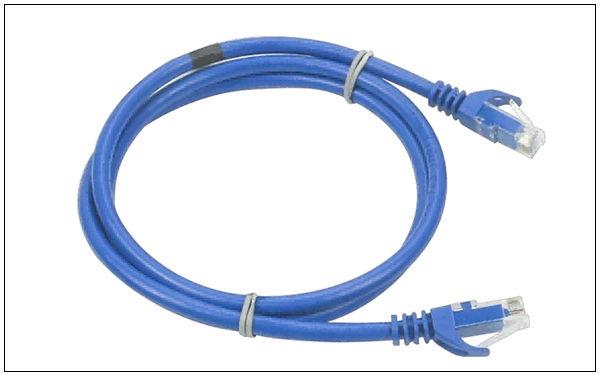

Cat 6 unshielded patch cords
- Material: PVC outer cover wire gauge: 26AWG(7*0.16MM)
- Conductor: Pure copper
- Cable type: Unshielded
- Transmission rate: 2500Mbps
- Frequency bandwidth: 250MHz

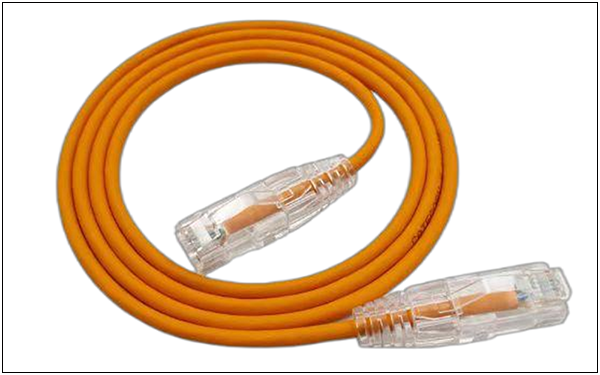

Cat 6A unshielded patch cord
- Material: PVC outer cover wire gauge: 28AWG(7*0.12MM)
- Conductor: Pure copper
- Cable type: Unshielded
- Transmission rate: 10Gbps
- Frequency bandwidth: 1000MHz

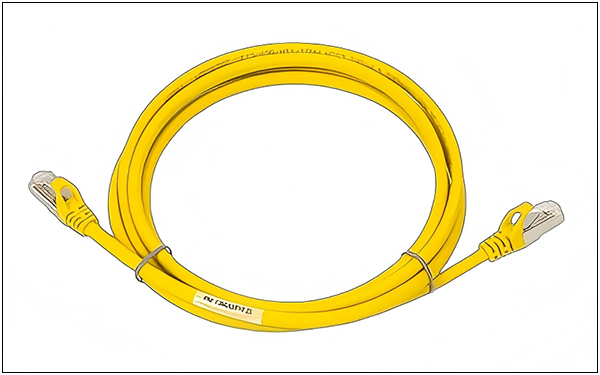

Cat 6A Shielded Patch Cord
- Material: PVC outer cover wire gauge: 26AWG(7*0.16MM)
- Conductor: Pure copper
- Cable type: Total aluminum foil shielding
- Transmission rate: 10Gbps
- Frequency bandwidth: 1000MHz

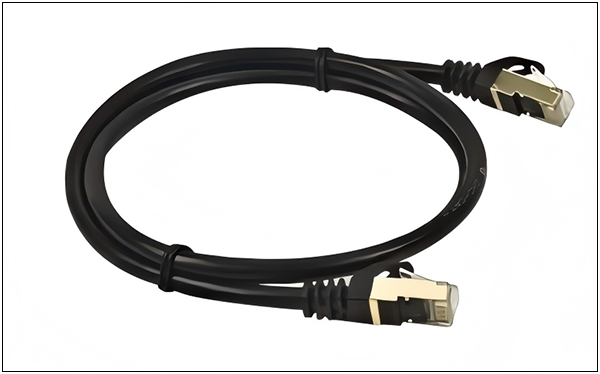

Cat 7 Shielded Patch Cord
- Material: PVC outer cover wire gauge: 26AWG(7*0.16MM)
- Conductor: Pure copper
- Cable type: Double-pair aluminum foil + total aluminum
- Foil shielding
- Transmission rate: 10Gbps
- Frequency bandwidth: 1000MHz

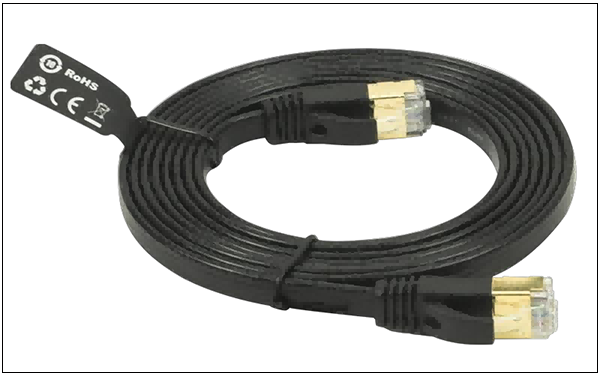

Cat 7 Shielded Flat Jumper Cable
- Material: PVC outer wire gauge: 32AWG(7*0.08MM)
- Conductor: Pure copper
- Cable type: Double-pair aluminum foil + total aluminum
- Foil shielding
- Transmission rate: 10Gbps
- Frequency bandwidth: 1000MHz

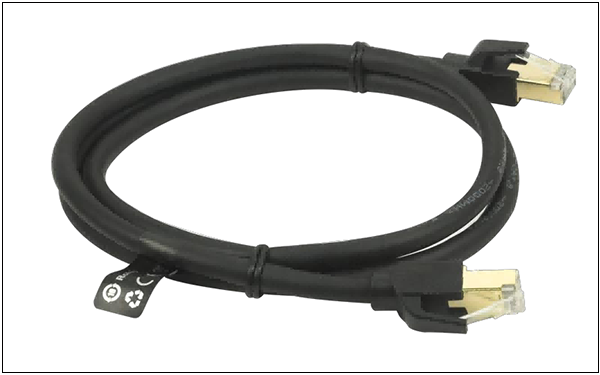

Cat 8 Shielded Patch Cord
- Material: PVC outer cover wire gauge: 26AWG(7*0.16MM)
- Conductor: Pure copper
- Cable type: Double-sided aluminum foil + total
- Aluminum foil shielding
- Transmission rate: 40Gbps
- Frequency bandwidth: 2000MHz

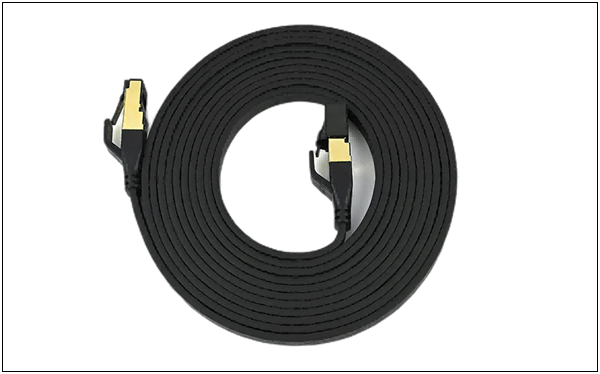

Cat 8 Shielded Flat Jumper Cable
- Material: PVC outer cover wire gauge: 28AWG(7*0.12MM)
- Conductor: Pure copper
- Cable type: Double-sided aluminum foil shielding
- Transmission rate: 40Gbps
- Frequency bandwidth: 2000MHz

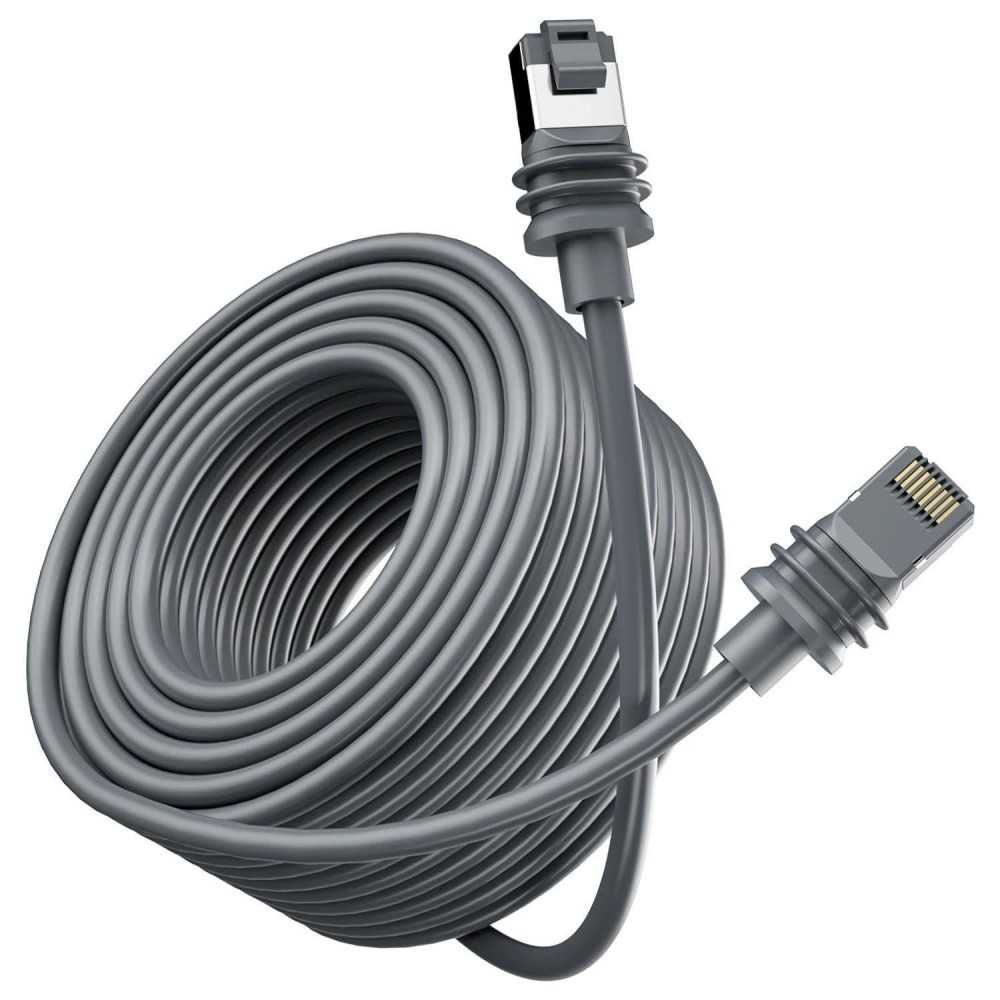

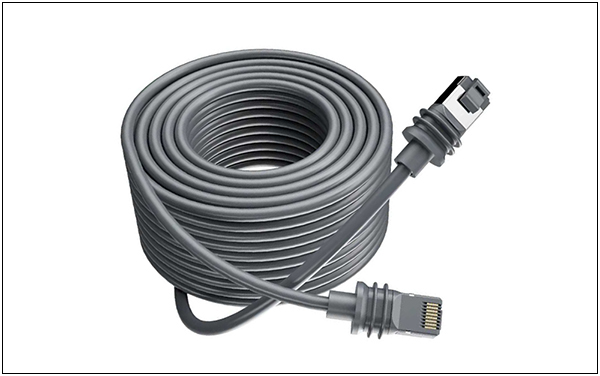

Starlink Gen3 Cable
- Material: PVC Jacket, wire gauge: 26AWG - 24AWG
- Conductor: Pure copper
- Cable type: Mylar + aluminum foil shielding
- Transmission rate: 1000Mbps
- Frequency bandwidth:100MHz

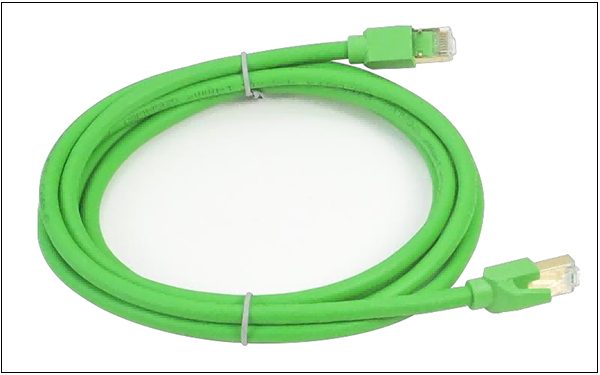

High-flexibility Drag Chain Cable
- Material: Flexible PVC
- Wire gauge: CAT6A SFTP 26#*4P+ aluminum foil + Woven + ground wire +PVC drag chain Jacket
- Connector: RJ45-RJ45
- Drag chain count: 5 million times /10 million times Optional
- Usage: Woodworking machinery, engraving machines, Classification machines, mechanical arms, mechanical hands, etc.

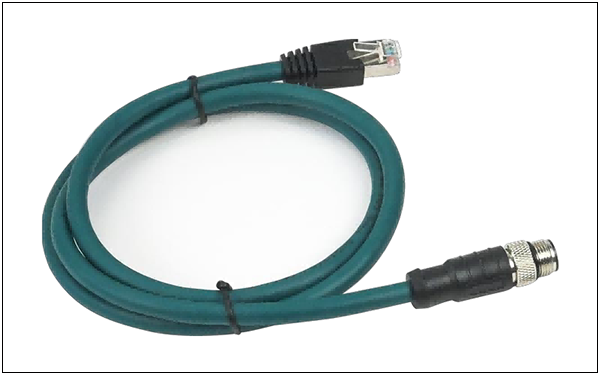

CAT5E SFTP Industrial Network Cable
- Material: PVC Soft Jacket
- Wire Gauge: 26AWG + Aluminum Foil + Braided Wire + Ground Wire + PVC Jacket
- Connectors: M12, 4-core / 8-core / 8-core X-CODE selectable - RJ45
- Waterproof Grade: IP67
- Applications: Mechanical Arm / Industrial Camera / Switch, etc.

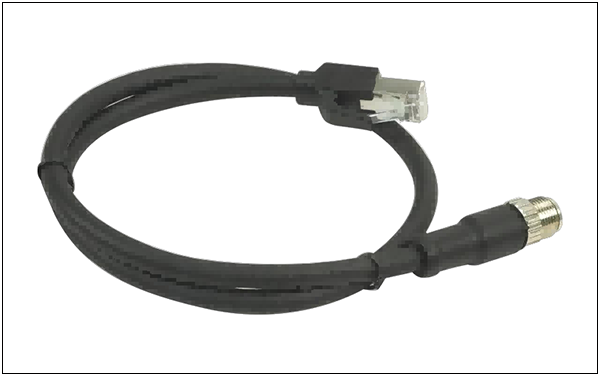

Cat6A SFTP Industrial Network Cable
- Material: PVC soft Jacket wire gauge: 26AWG(7*0.16MM)
- Connector: 8-pin X-type M12 Connector, another end RJ45 connector
- Waterproof rating: IP67
- Application: Mechanical arm/industrial camera/ Switches, etc.

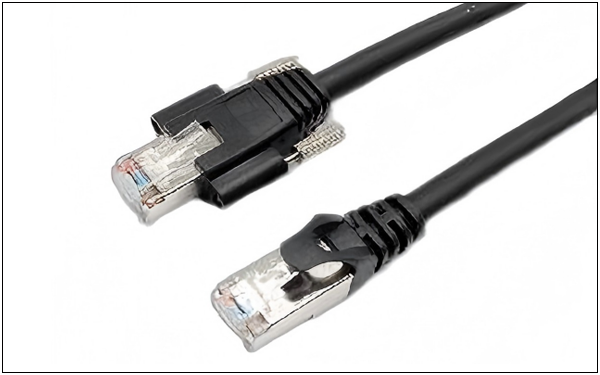

Industrial Camera Cable (with screw)
- Material: PVC Jacket
- Wire gauge: CAT6 SFTP 26AWG*4P + aluminum foil + Metal sleeve+ Ground wire +PVC Jacket
- Connector: Gige interface (RJ45 with screw) to RJ45
- Usage: For industrial cameras, industrial servo systems, automated equipment Systems, and visual system equipment.
Customize Your Network Cable
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
