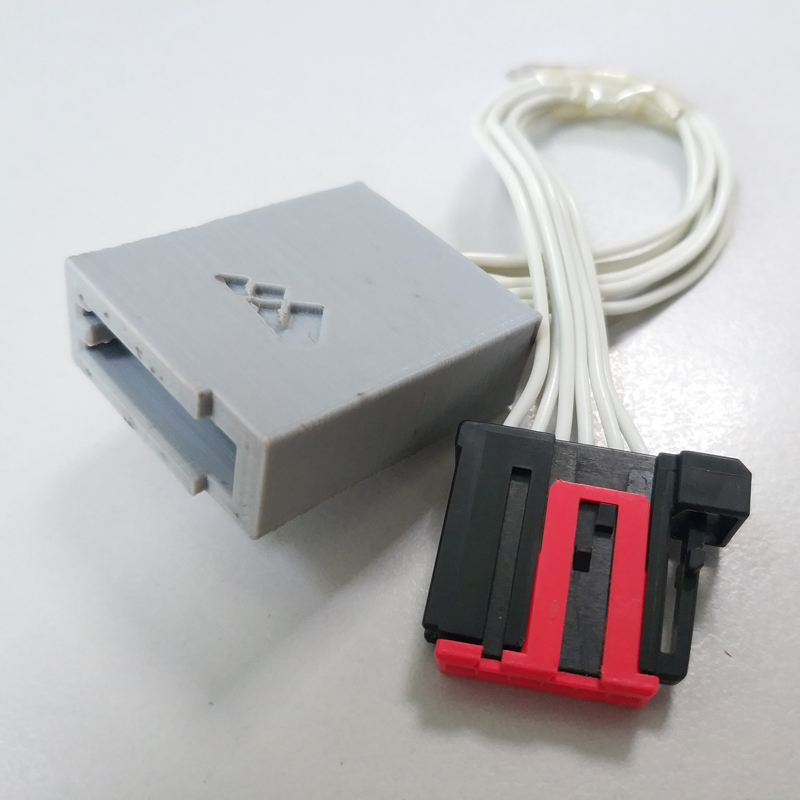

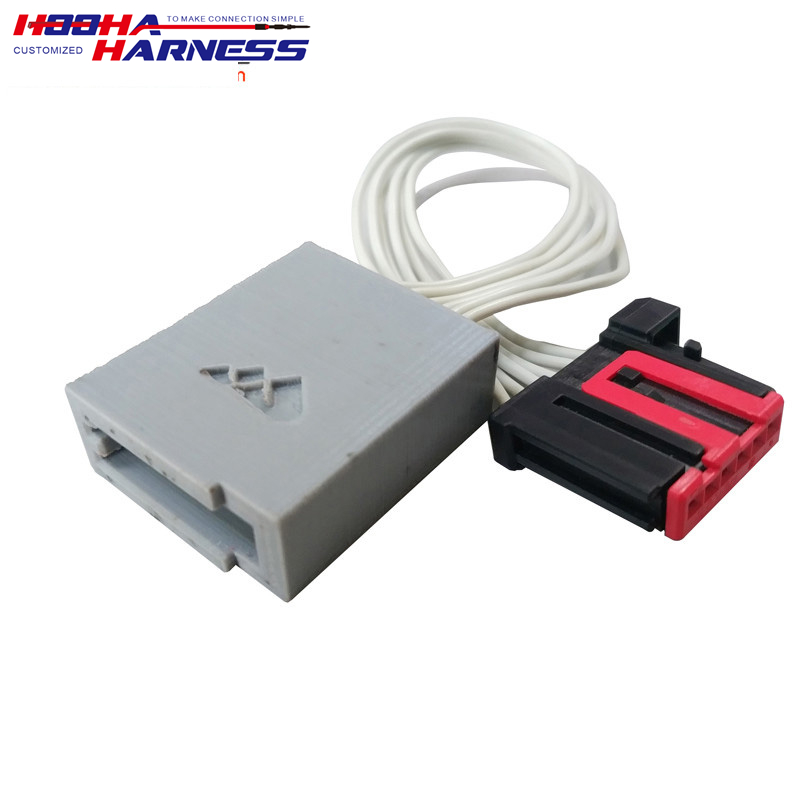

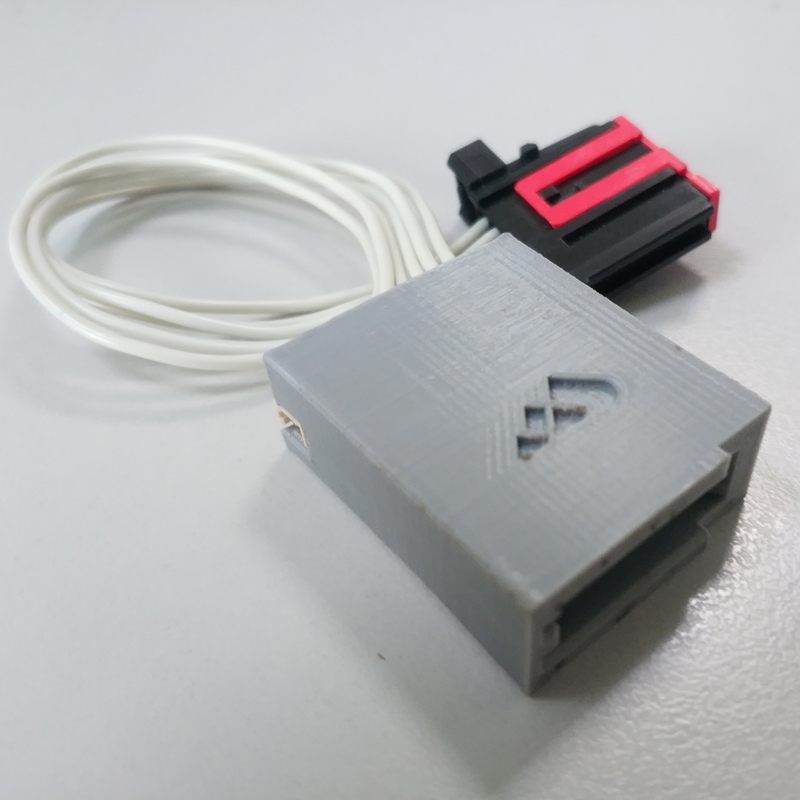

WDASF ASY-C wiring harness
WDASF ASY-C wiring harness

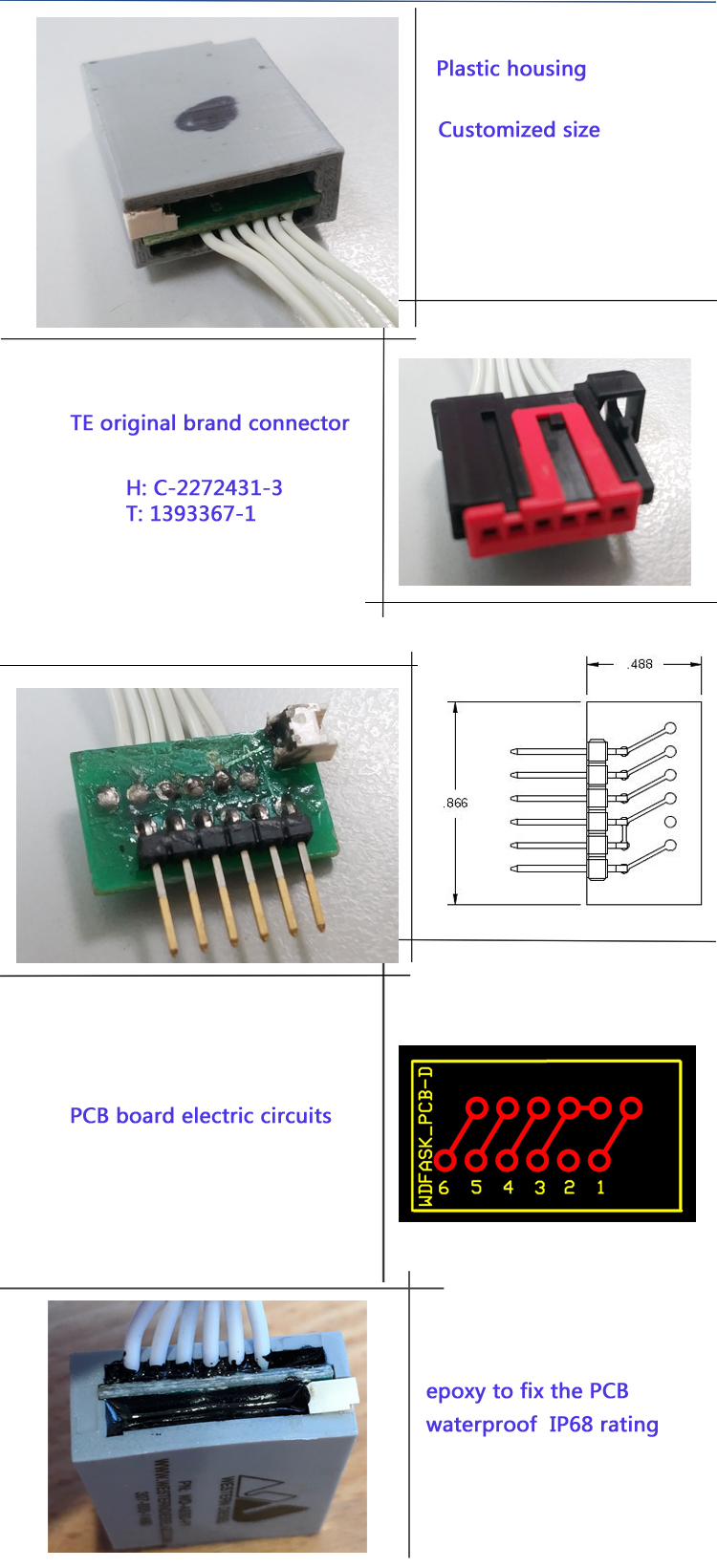

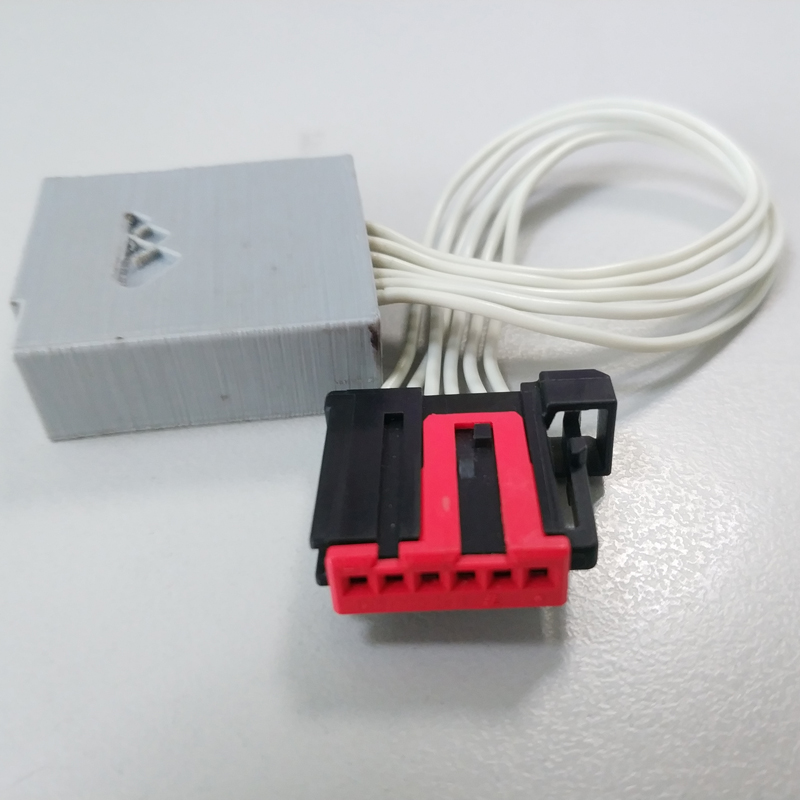

the male side is TE original
female side create mold tools to make it

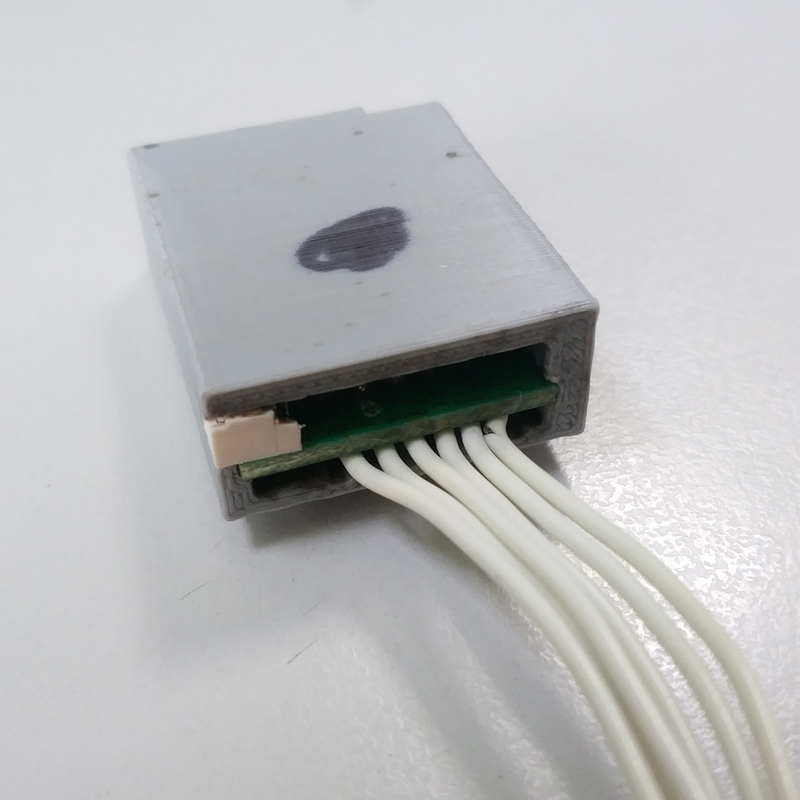

custom PCB board
waterproof to insert female side
WDASF ASY-C wiring harness
| Products name: | WDASF ASY-C wiring harness |
| Classification: | custom wire harness |
| Application: | signal transfer |
| Wire/cable style: | UL1007 |
| Related wire available: | UL1061 |
| Wire/cable gauge: | 24AWG |
| Wire rated voltage: | 300V |
| Wire rated temperature: | 80℃ |
| Wire/cable materials: | PVC |
| Wire/cable length: | 70mm |
| Wire color: | white |
| Accessory: | --- |
| Mold tools: | Self-Owned |
| Connector type: | TE original |
| Connector materials: | PA66 |
| Warranty: | 3-Years |
| Testing way: | continuity test |
| Carton size: | 45*30*25cm |
| Packing way: | customize |
| RoHS compliant: | Yes |
| UL certificate: | Yes |
| TS16949 certificate: | Yes |
| ISO9001 certificate: | Yes |
| Sample Fee: | 5.00USD pet piece |
| Sample lead time: | within 7 days |
| Bulk lead time: | 15~25 days |
| Supply capacity: | 3000pcs per day |
| MOQ: | 500pcs |
| OEM service: | Yes |
| Trade term: | EXW, FOB Shenzhen, EXPRESS |
| Payment term: | TT (30 % deposit ,70% balance), Credit card, Escrow. |
| Shipping way: | Door to Door (UPS/DHL/FedEx/TNT/EMS), By air, By ship |
| Port: | Shenzhen,Guangzhou |
Details:
This is a custom wire harness that has been specifically designed to meet the unique requirements of a valued customer based in the United States. The custom WDASF ASY-C wiring harness boasts exceptional quality and durability, ensuring it will stand up to even the most demanding applications.
The male side of this innovative wiring solution features TE original components, which are renowned for their superior performance and reliability. Meanwhile, on the female side, we have created mold tools that enable us to produce an exact replica of our customer's specifications with ease.
To further enhance its functionality and versatility, we have also incorporated a custom PCB board into this design. This cutting-edge technology ensures seamless communication between all connected devices while providing unparalleled levels of precision and accuracy.
Finally, as waterproofing was identified as a key requirement by our client, we have taken great care to ensure that the female side is fully protected from moisture ingress. This guarantees optimal performance even in challenging environments where exposure to water or other liquids may be unavoidable.
Overall, this custom-designed wire harness represents an outstanding example of our commitment to delivering high-quality solutions tailored precisely to our customers' needs.
How to custom your own wire harness?
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if need(7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
