Custom DC 3.5mm male Plug 1 in 2 BNC male connector cable for HD Camera CCTV DVR system

Custom DC 3.5mm male Plug 1 in 2 BNC male connector cable for HD Camera CCTV DVR system

Product ID : DC251

Product Tags : Audio/ Video cable Computer wire and cable BNC

Product Attributes :

Introducing our top-of-the-line Custom DC 3.5mm male Plug 1 in 2 BNC male connector cable, designed specifically for HD Camera CCTV DVR systems. This high-quality cable is the perfect solution for those seeking a reliable and efficient way to connect their devices.

Crafted with precision and care, this cable boasts exceptional durability and longevity, ensuring that it will withstand even the toughest conditions. The DC 3.5mm male plug provides a secure connection while the two BNC male connectors allow you to easily connect your camera or DVR system without any hassle.

Whether you're looking to upgrade your existing setup or simply need a replacement cable, our Custom DC 3.5mm male Plug 1 in 2 BNC male connector cable is sure to exceed your expectations. So why wait? Order yours today and experience unparalleled performance like never before!

Product Description

Detail images:

Custom DC 3.5mm to Dual BNC CCTV Cable

Designed for professional surveillance systems, our DC 3.5mm to dual BNC cable delivers stable 75Ω impedance video transmission with minimal signal loss (<3dB at 100MHz). Featuring gold-plated contacts and oxygen-free copper conductors, it ensures reliable connectivity for HD cameras up to 1080p resolution with 24/7 operation durability.

Key Features:
• Weather-resistant PVC jacket
• Precision-molded connectors
• EMI-resistant design
• Plug-and-play installation

Technical Specifications

Product ID: DC251

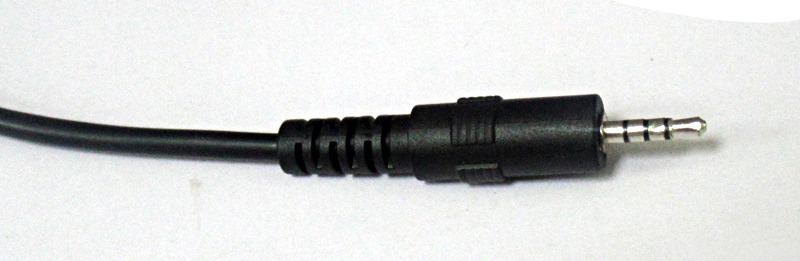

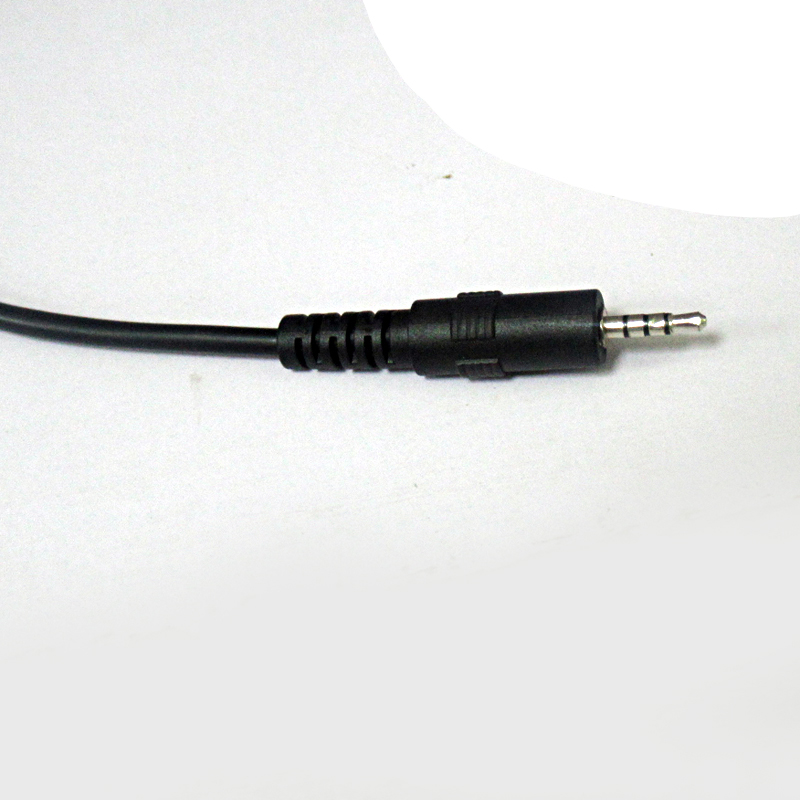

Connector A: 3.5mm Male Plug

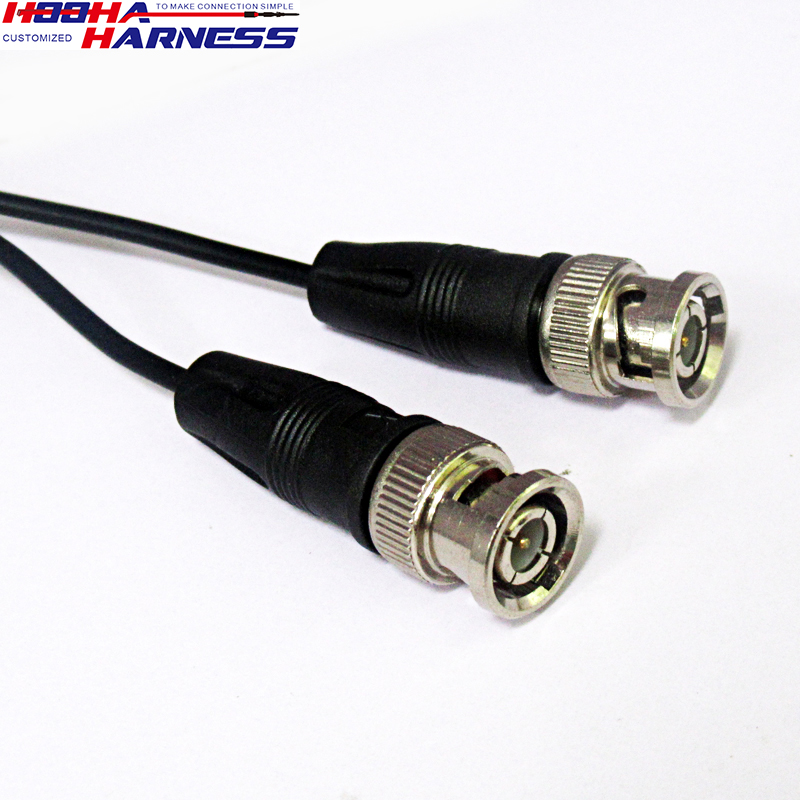

Connector B: 2x BNC Male

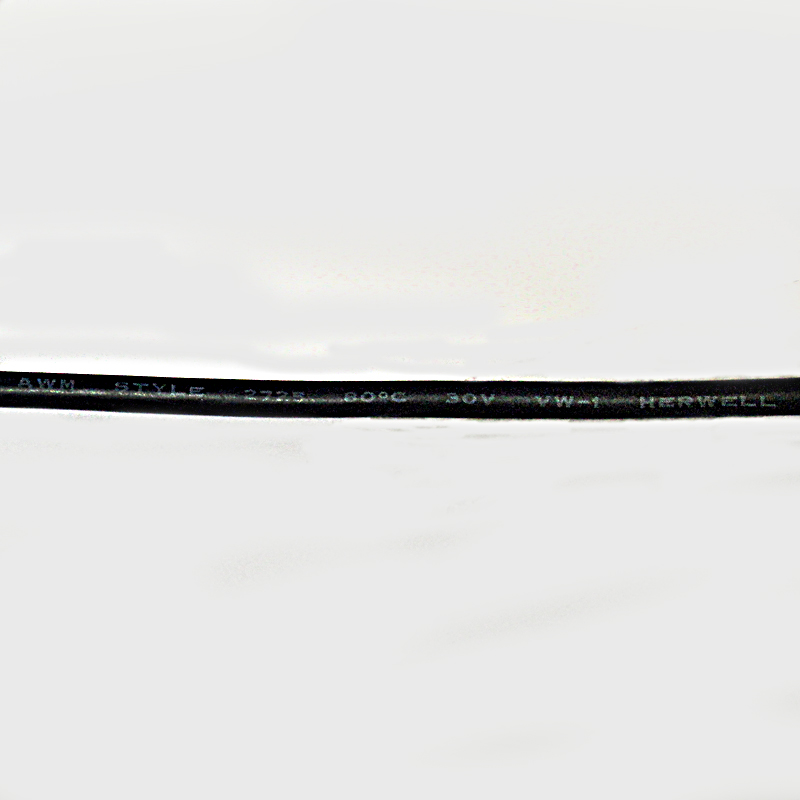

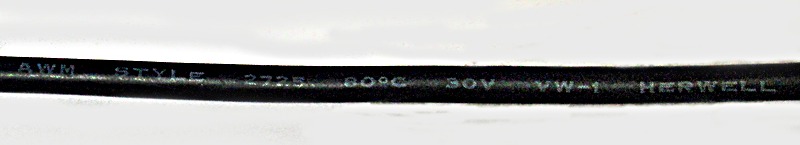

Cable Type: RG59/U equivalent
Impedance: 75Ω ±3Ω
Voltage Rating: 300V AC/DC

Customization Options

Color options: Fully customizable jacket colors
Length variations: Available from 0.5m to 20m
Special configurations: Modified pinouts for unique DVR systems

Recommended Applications

●

CCTV Surveillance Systems

Connecting HD cameras to DVRs for 24/7 security monitoring

●

Retail Security

Point-of-sale monitoring and loss prevention systems

●

Industrial Monitoring

Factory floor surveillance and equipment monitoring

●

Residential Security

Home CCTV installations and smart security systems

Performance Advantages

Superior Signal Quality

75Ω impedance matching ensures minimal signal reflection and maximum power transfer

Durable Construction

UV-resistant PVC jacket withstands outdoor conditions with 50N tensile strength

Secure Connections

BNC bayonet locking mechanism prevents accidental disconnections

Broad Compatibility

Works with major CCTV brands including Hikvision, Dahua, and Swann systems

Installation Guide

Connection Diagram

3.5mm Plug: Connects to DVR power/video output port
BNC Connector 1: Primary video input to camera
BNC Connector 2: Secondary connection or daisy-chaining

Compatibility Note

For optimal performance with 1080p cameras, ensure proper impedance matching and keep cable runs under 100m for minimal signal degradation.

Tested compatible with Hikvision, Dahua, Lorex, and most BNC-standard CCTV equipment

✓

Quality Assurance

Each cable undergoes rigorous continuity testing and signal integrity verification to ensure reliable performance in security applications

How to custom your own wire harness?

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
