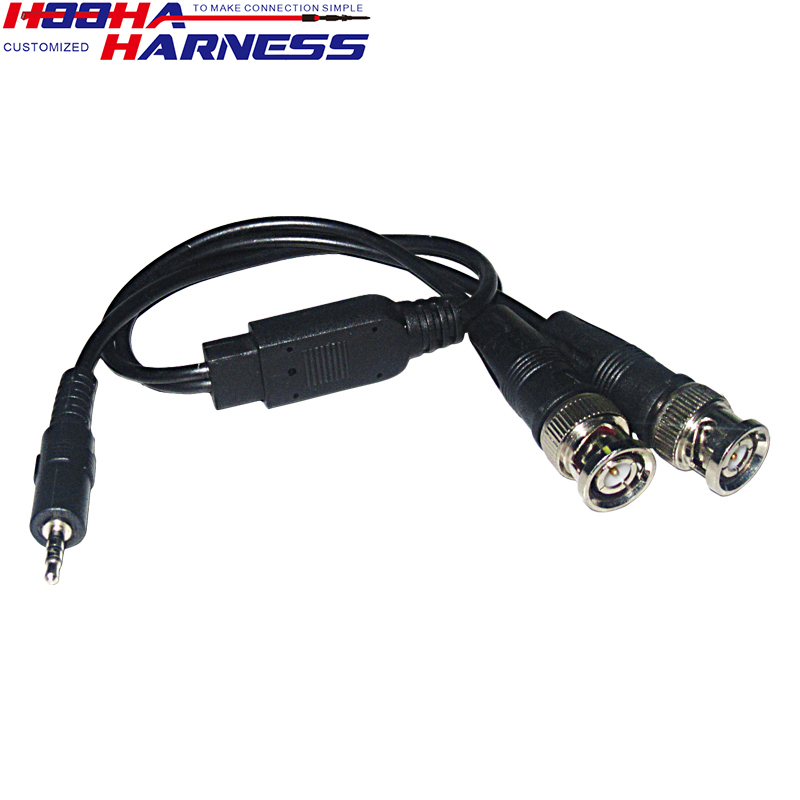

stereo 3.5mm male plug 1 to 2 BNC male plug audio Aux auxiliary cable for speaker MP4, headphone

Introducing our custom stereo DC 3.5mm male plug, designed to provide exceptional audio quality for all your listening needs. With its unique 1 to 2 BNC male plug configuration, this auxiliary cable is the perfect addition to any speaker or MP4 device.

Crafted with precision and care, our custom stereo DC 3.5mm male plug ensures a seamless connection between your audio source and output device. Whether you're using it for headphones or speakers, this cable delivers crystal-clear sound that will elevate your listening experience.

Made from high-quality materials, this auxiliary cable is built to last and withstand daily wear and tear. Its durable construction ensures that you can enjoy uninterrupted music playback without worrying about signal loss or interference.

So why settle for subpar audio quality when you can have the best? Upgrade your setup today with our custom stereo DC 3.5mm male plug - the ultimate solution for all your audio needs!

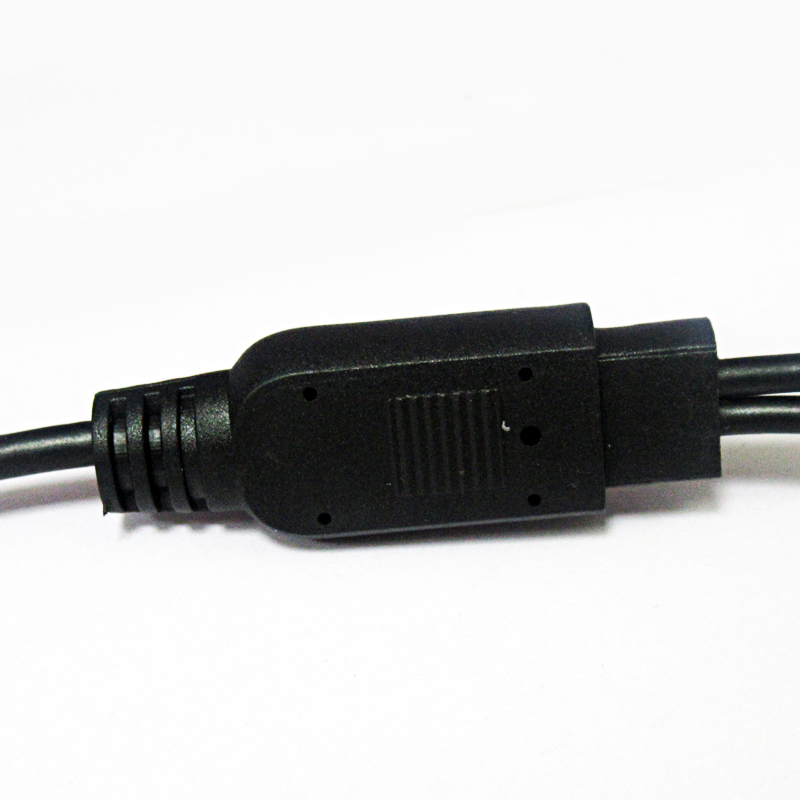

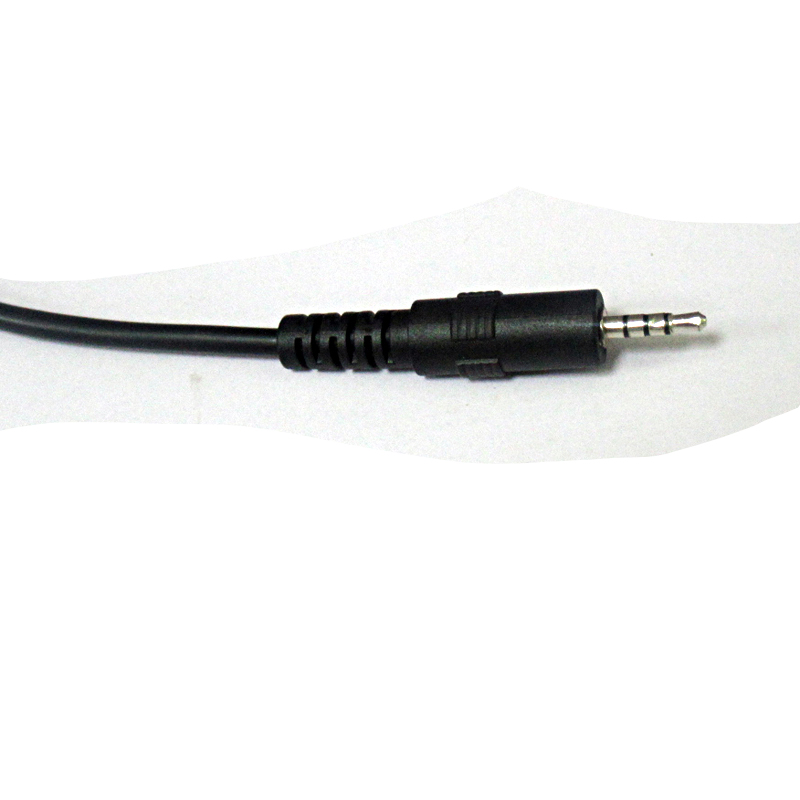

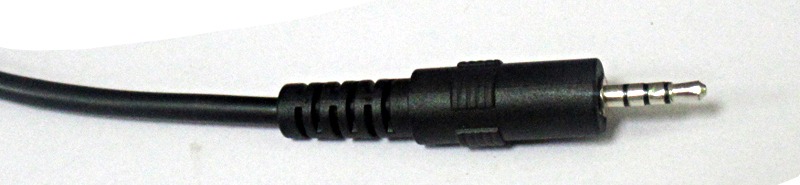

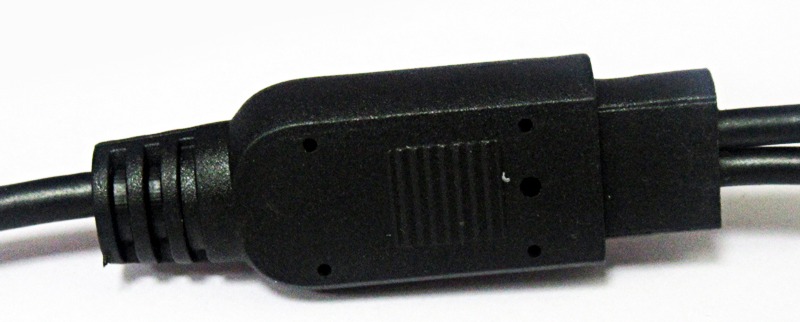

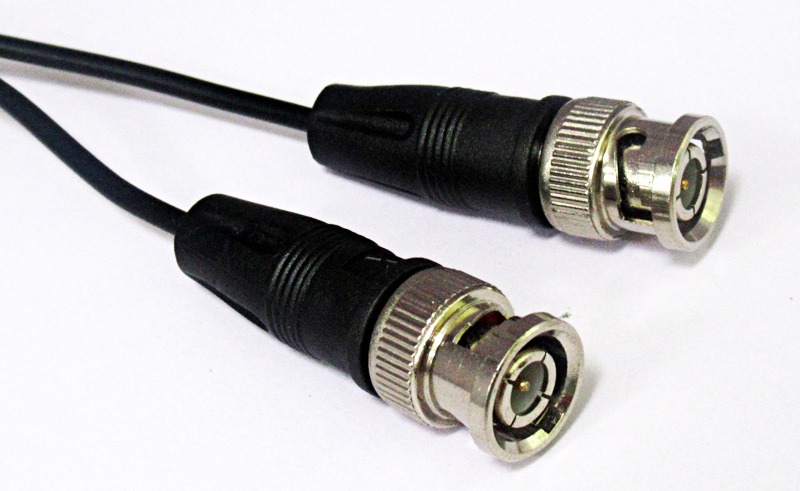

Detail Images:

Dual BNC to 3.5 audio jack cable diagram

Connections:

• BNC 1 Signal: Connect the signal pin from BNC 1 to the Tip of the 3.5mm jack.
• BNC 2 Signal: Connect the signal pin from BNC 2 to the Ring of the 3.5mm jack.
• BNC Shield/Ground: Connect the shield (ground) from both BNC connectors to the Sleeve of the 3.5mm jack.

Explanation:

• Tip (L): This is for the left audio channel (BNC 1).
• Ring (R): This is for the right audio channel (BNC 2).
• Sleeve: This is the common ground, connected to the shields of both BNC connectors.

Dual BNC to 3.5 audio jack cable applications

1. Audio Equipment Connections

• Professional Audio Gear: Used to connect audio equipment that has BNC outputs (often used for timecode or synchronization signals) to devices with a 3.5mm audio input, such as mixers, recorders, or headphones.
• Signal Conversion: In some audio setups, the BNC connectors might be used for digital audio signals (e.g., AES/EBU over coaxial) that need to be converted to analog audio for input into devices with 3.5mm jacks.

2. Testing and Measurement Equipment

• Oscilloscopes and Signal Generators: Dual BNC cables are often used to carry signals from oscilloscopes or signal generators, and the 3.5mm jack allows connection to audio interfaces or other devices for analysis or recording.
• Lab Equipment: In laboratory settings, this type of cable can be used to connect BNC-equipped measurement devices to audio equipment or computer sound cards for further analysis.

3. Broadcast and Video Production

• Timecode Distribution: BNC connectors are commonly used in professional video and audio environments for timecode distribution. A dual BNC to 3.5mm cable could be used to interface with equipment that accepts a 3.5mm input for timecode synchronization.
• Video and Audio Sync: In some broadcast setups, such a cable might be used to synchronize audio with video, ensuring that both signals are perfectly aligned.

4. Amateur Radio and RF Applications

• Signal Monitoring: Amateur radio enthusiasts might use this cable to connect radio equipment with BNC outputs to audio equipment with a 3.5mm input for monitoring or recording RF signals.

5. Custom and DIY Projects

• Custom Audio Setups: In DIY audio projects, these cables might be used to interface different pieces of equipment, especially when adapting professional gear for use with consumer audio devices.
• Signal Adaptation: In various electronics projects, this cable might be used to adapt BNC outputs for input into a device with a 3.5mm jack, such as custom-built audio equipment or experimental setups.

These cables are quite versatile and can be used wherever there’s a need to bridge the gap between BNC connectors and 3.5mm audio jacks, typically in environments involving professional audio, video production, or signal measurement and testing.

How do you customize your audio cable?

Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
