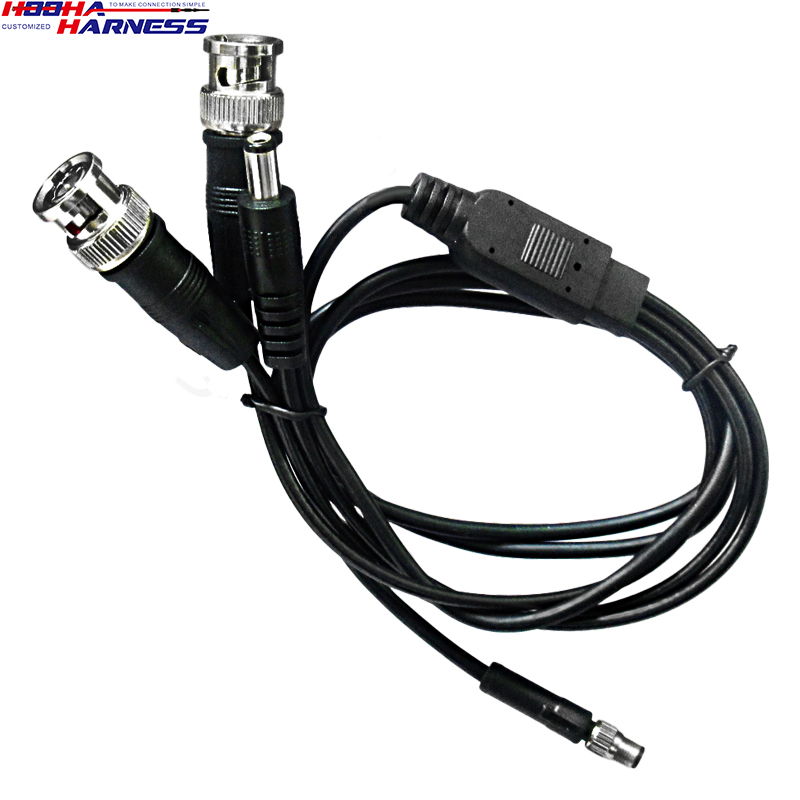

DC 5521 power plug to 2 BNC male connector 1 2pin waterproof male plug split cable

DC 5521 power plug to 2 BNC male connector 1 2pin waterproof male plug split cable

Product ID : BNC 249

Product Tags : BNC

Product Attributes :

This custom DC 5521 power plug to 2 BNC male connector cable is the custom solution for those who need to connect their devices with ease. With its high-quality construction and durable materials, this cable ensures a reliable connection every time.

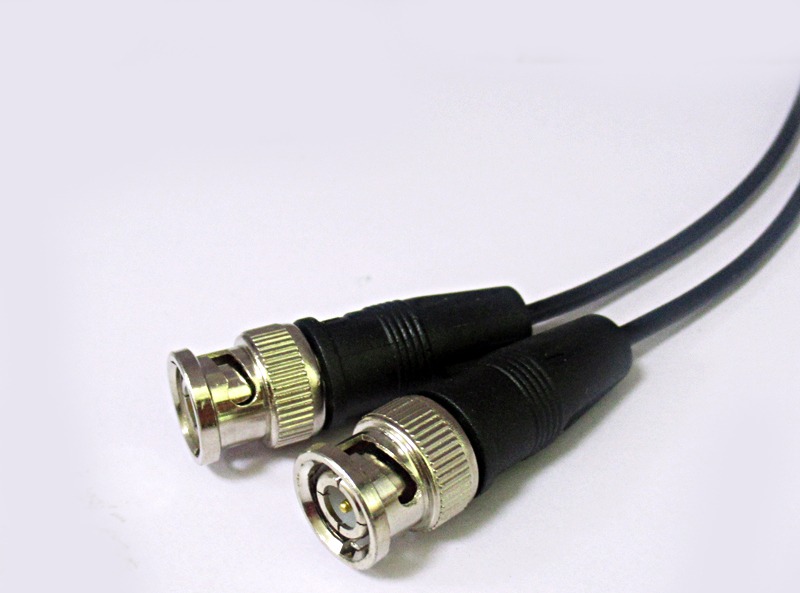

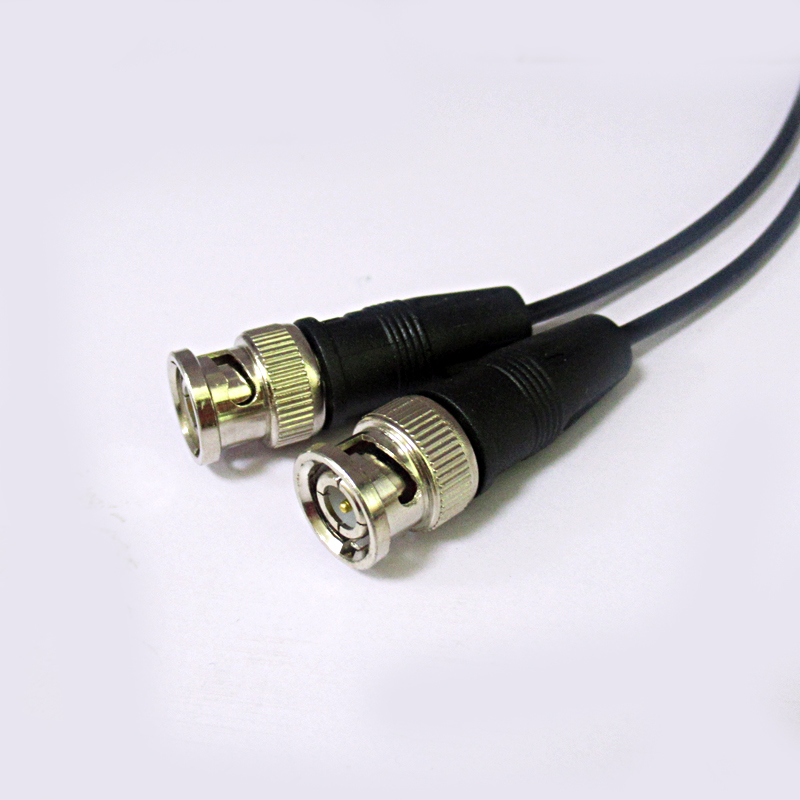

The two BNC male connectors allow you to easily connect your device to other equipment or accessories that use this type of connector. Additionally, the waterproof male plug split cable provides added protection against moisture and other environmental factors.

Whether you're using it in a professional setting or at home, this custom cable is sure to meet all your needs. So why wait? Order yours today and experience the convenience and reliability of this top-of-the-line product!

Product Description

DC 5521 to 2 BNC Male Waterproof Split Cable

Engineered for professional video surveillance and industrial applications, our DC 5521 to dual BNC cable delivers stable 75Ω impedance with <1dB signal loss. Featuring gold-plated BNC connectors and waterproof IP67-rated DC plug, it ensures reliable power and video transmission in harsh environments with 500+ mating cycle durability.

Key Specifications:

• Nickel-plated BNC connectors

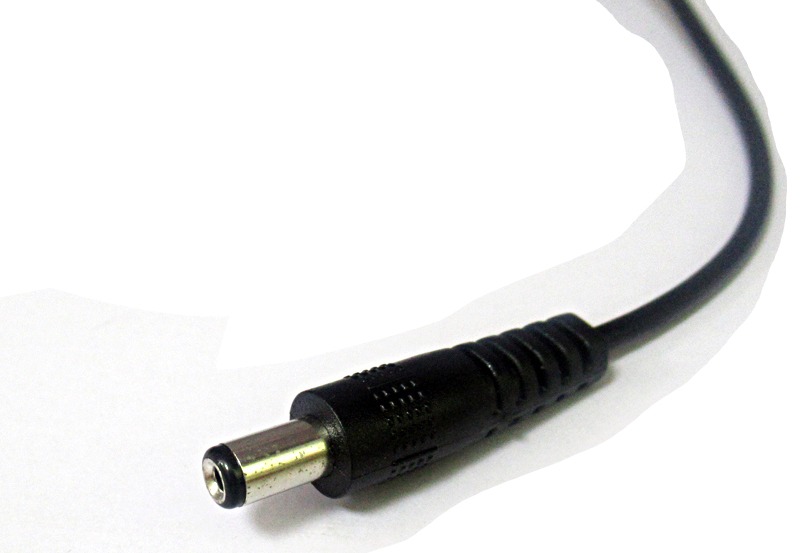

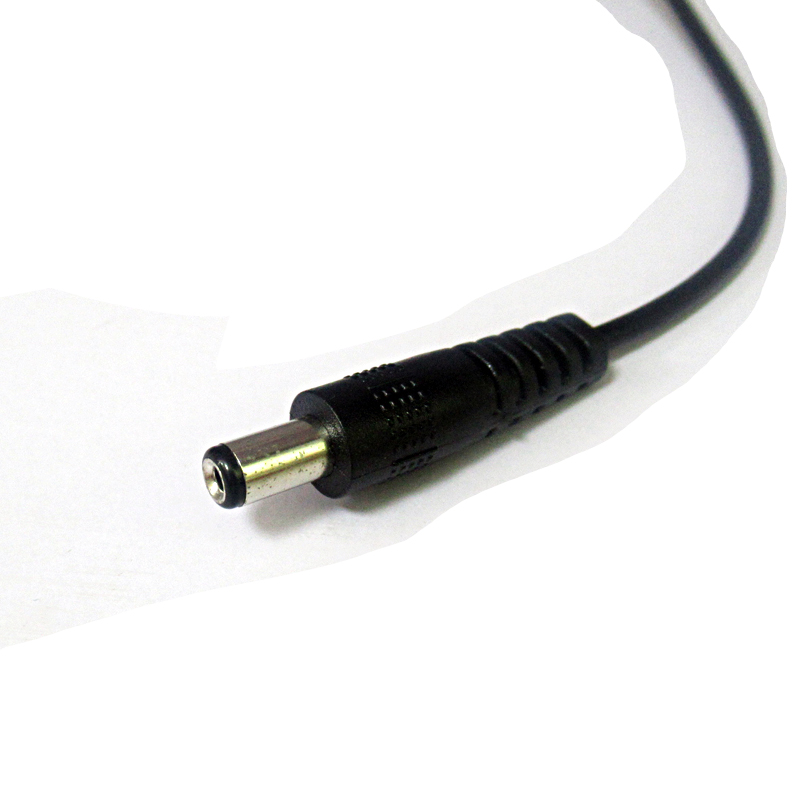

• Waterproof DC 5521 plug

• 18AWG power conductors

• Rugged PVC outer jacket

Technical Specifications

Product ID: BNC 249
Input: DC 5521 male plug (5.5×2.1mm)
Output: 2× BNC male connectors
Impedance: 75Ω matched
Waterproof Rating: IP67 (DC plug)
Cable Material: Heavy-duty PVC

Customization Options

Connector plating: Gold or nickel available
Cable length: Custom lengths from 0.5m to 10m
Special configurations: Modified pinouts for specialized CCTV systems

Professional Applications

●

CCTV Surveillance Systems

Connecting power and video signals from DVRs to analog cameras with BNC inputs

●

Broadcast Equipment

SDI video signal distribution in professional video production environments

●

Industrial Monitoring

Harsh environment video monitoring with waterproof power connections

●

Medical Imaging

Connecting diagnostic equipment with analog video outputs

Performance Advantages

Waterproof Design

IP67-rated DC plug withstands moisture, dust, and harsh environmental conditions

Stable Signal

75Ω impedance matching ensures minimal signal reflection and maximum power transfer

Durable Construction

Heavy-duty PVC jacket withstands 500+ insertion cycles and industrial wear

Versatile Compatibility

Works with most CCTV cameras, DVRs, and analog video equipment brands

Technical Reference

Pin Configuration

DC 5521 Plug: Center pin positive (+), outer sleeve negative (-)
BNC Connector 1: 75Ω video signal transmission
BNC Connector 2: Parallel video output or secondary signal path

Compatibility Note

For optimal performance with Hikvision, Dahua, and other major CCTV brands, ensure proper 75Ω termination at both ends of the video signal chain.

Compatible with most analog video equipment requiring DC power and BNC connections

✓

Quality Assurance

Each cable undergoes rigorous testing for signal integrity, waterproof performance, and mechanical durability to ensure reliable operation in professional installations.

How to custom your own wire harness?

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
