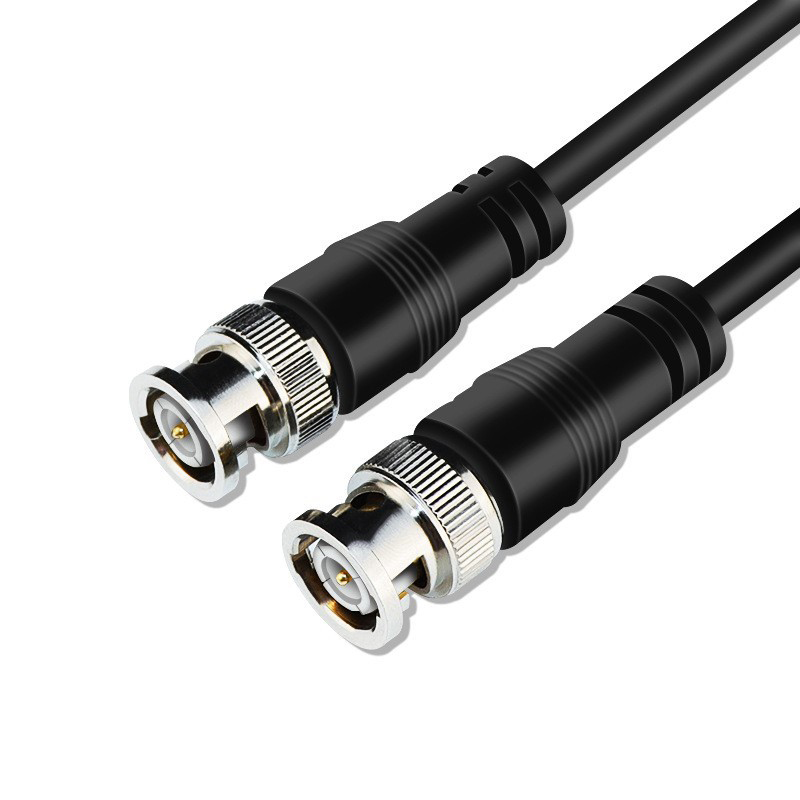

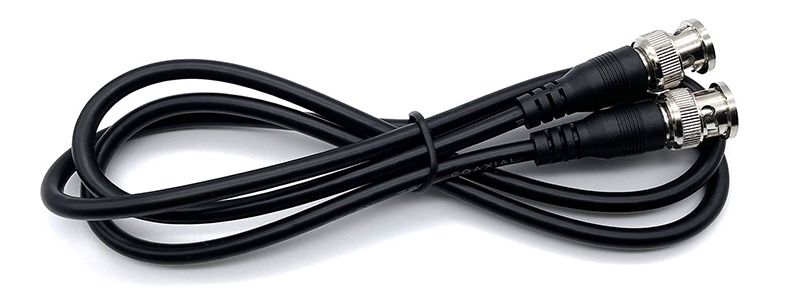

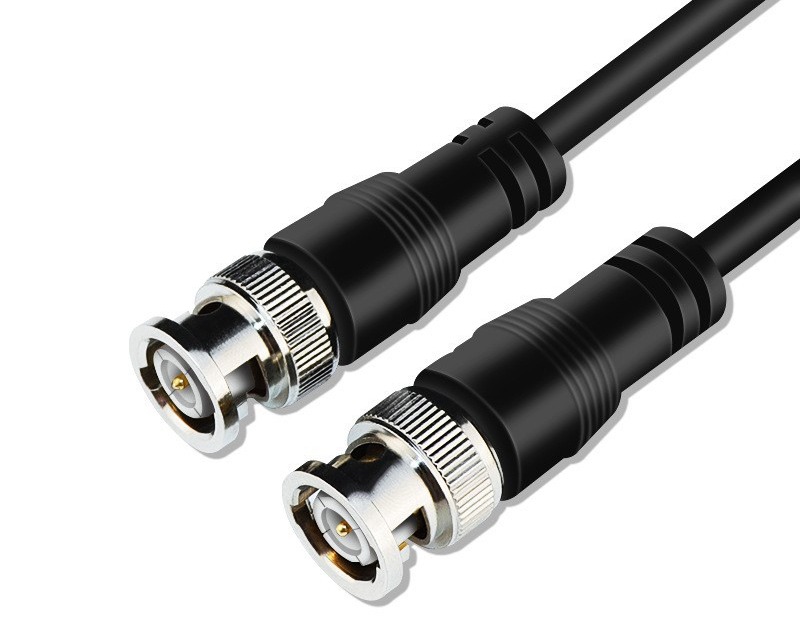

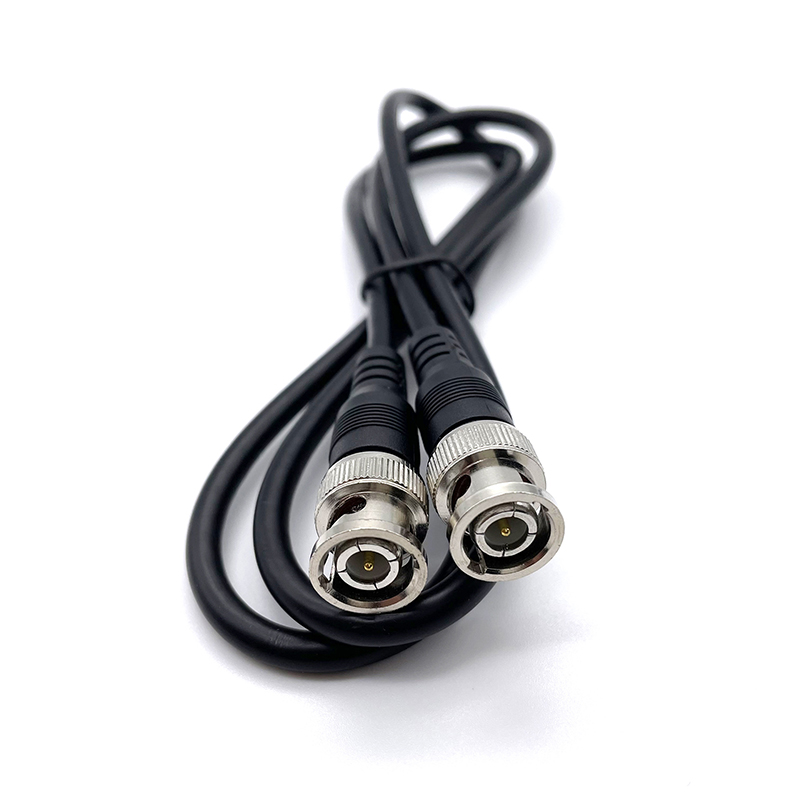

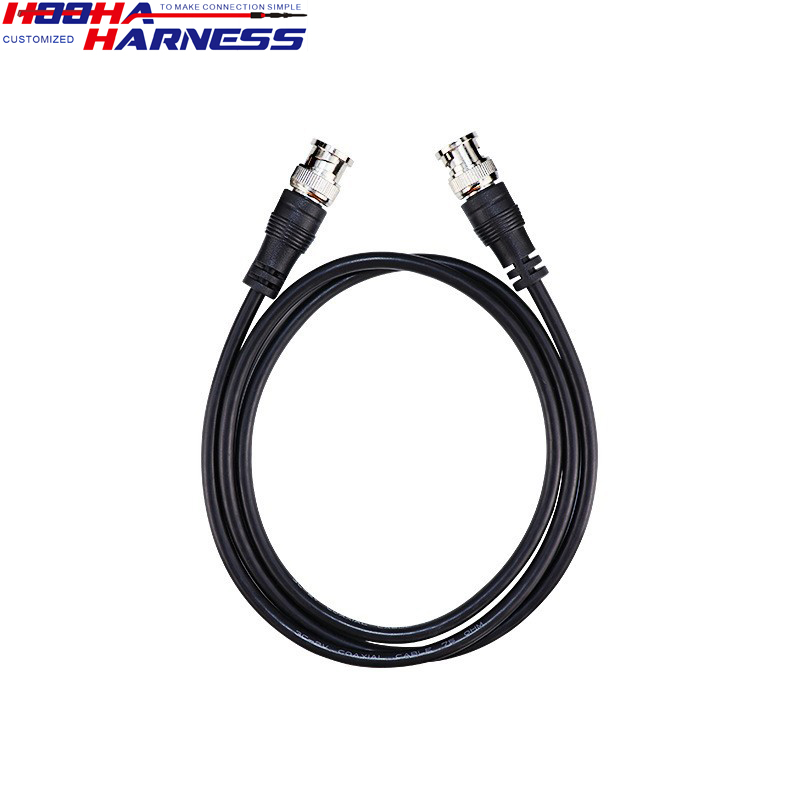

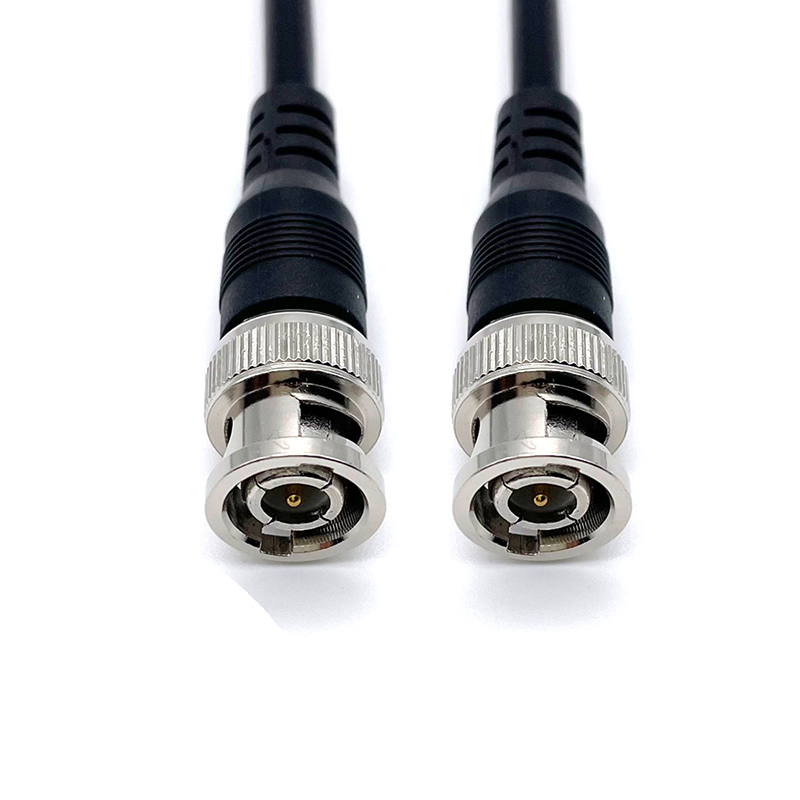

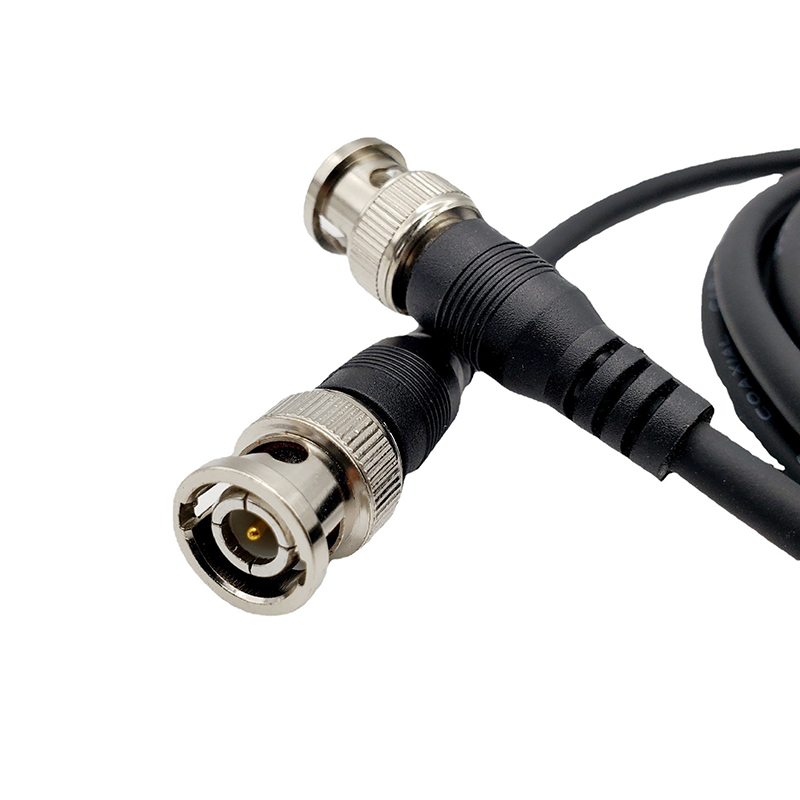

BNC male to male cable 3C-2V / RG59 cable
- Connectors: Male to Male.
- Cable Type: 3C-2V or RG59
- Impedance: Available in 75 ohms (for video) or 50 ohms (for RF and data).
- Signal Type: Carry both analog and digital signals.
- Length: Comes in various lengths, from short to long.
- Shielding: Protects against interference.
- Durability: Built to be tough and withstand physical stress.
- Applications: Used in video systems (like CCTV), RF signal transmission, and test equipment.
- Compatibility: Works with a wide range of devices.
BNC male-to-male cable 3C-2V/RG59 cable
The BNC male-to-male cable is an essential component for any audio or video setup. This high-quality cable is designed to provide a seamless connection between two devices, ensuring that your audio and video signals are transmitted with the utmost clarity and precision.
Crafted from premium materials, this cable features 3C-2V and RG59 cables that deliver superior performance and durability. Whether you're connecting your TV to a sound system or hooking up your computer to a monitor, this versatile cable has got you covered.
So why settle for anything less than the best? Invest in the BNC male-to-male cable today and experience unparalleled quality and reliability in all of your audio/video applications!
BNC to BNC Cable Diagram
| BNC 1 | to | BNC 2 |
| single pin | - | singe pin |
| shield/ground | - | shield/ground |
BNC to BNC Cable Applications
1. Video Transmission:
- CCTV Systems: Used to connect security cameras to DVRs or monitors in surveillance systems.
- Broadcast Equipment: Essential for connecting video equipment in professional broadcasting, including cameras, monitors, and switchers.
- Video Editing: Used in studios for routing video signals between different devices.
2. Radio Frequency (RF) Signal Transmission:
- Telecommunications: Used in telecom infrastructure to connect antennas, transmitters, and receivers.
- Radio Equipment: Commonly used in radio stations for connecting various RF components.
- Test Equipment: Employed in RF testing and measurement devices like spectrum analyzers and signal generators.
3. Data Communication:
- Networking: Used in some legacy network systems and equipment, such as 10BASE2 Ethernet networks.
- Digital Audio: Used in some digital audio interfaces for transmitting audio signals.
4. Test and Measurement:
- Oscilloscopes and Signal Generators: BNC cables connect devices like oscilloscopes, signal generators, and other lab equipment for testing and analyzing electronic signals.
- Laboratory Instruments: Essential in research and development labs for precise signal transmission in experimental setups.
5. Medical Equipment:
- Imaging Devices: Used in medical imaging systems, such as ultrasound and MRI machines, for transmitting high-frequency signals.
- Monitoring Systems: Employed in patient monitoring systems to connect various sensors and displays.
6. Military and Aerospace:
- Communication Systems: Used in secure communication systems for transmitting video and RF signals.
- Avionics: Employed in aircraft systems for reliable data transmission.
7. Consumer Electronics:
- Home Entertainment Systems: Sometimes used in older or specialized home video setups, like connecting VHS players to TVs.
BNC to BNC cables are versatile and widely used in many industries due to their reliability and ability to maintain signal integrity over various distances and environments.
How to customize your BNC cable?
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
