PRODUCT

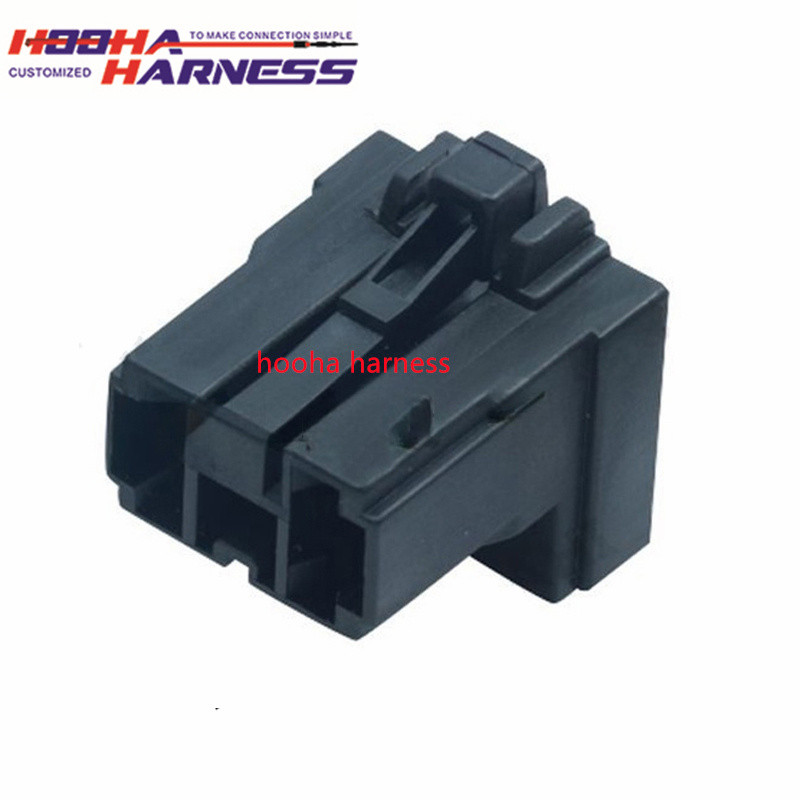

MG610686 KET replacement Chinese equivalent housing plastic automotive connector
Product ID : MG610686
Product Attributes :
MG610686 KET replacement Chinese equivalent housing plastic automotive connector
Product Description
General Feature
- Series: 312 SERIES
- Material Type: PA66
- Dimensions: 18.0*23.0*10.8
Physical Feature
- Sealed: NO
- Color: Natural
- Primary Locking Type: HSG Lance
- Number of Poles: 2
- TPA: YES
- Connector Position Assurance: NO
- Mating Rear Holder: MG630687
- Pitch(mm): 10
- Mating Tab Width(in): .312
Electrical Feature
- Wire Range: 312:AVSS 2.0,AVS 3.0
- Insulation Resistance: DC 500V 100MΩ MIN
- Contact Resistance: 3mΩ MAX
- Terminal Transmits(A): 30
