PRODUCT

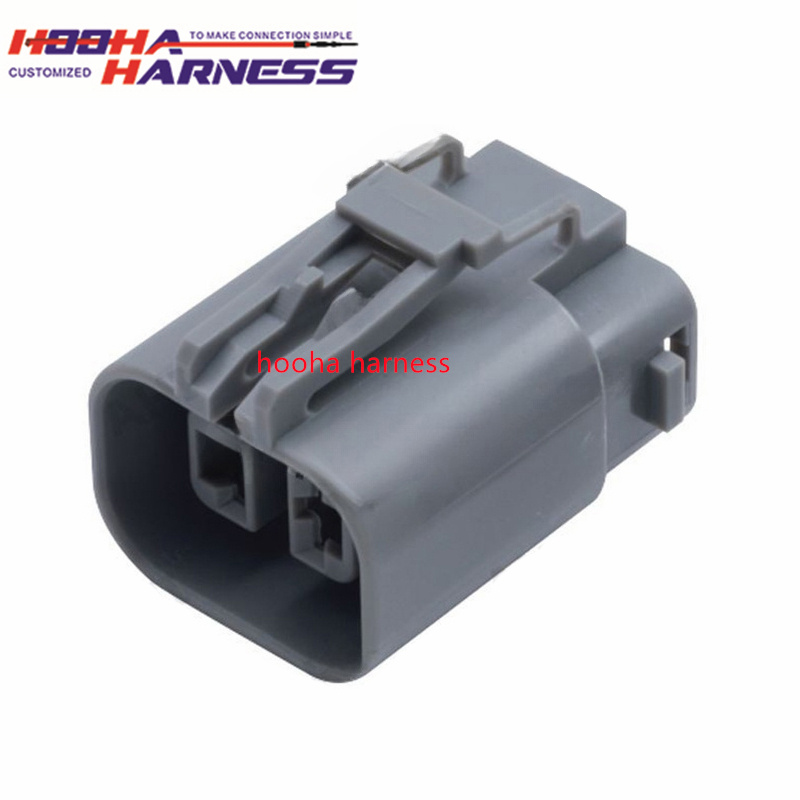

MG640188 KET replacement Chinese equivalent housing plastic automotive connector
Product ID : MG640188
Product Attributes :
MG640188 KET replacement Chinese equivalent housing plastic automotive connector
Product Description
General Feature
- Series: 250 SERIES
- Dimensions: 28.0*37.5*27.6
- Material Type: PA66
Physical Feature
- Sealed: YES
- Color: Gray
- Number of Poles: 2
- TPA: YES
- Mating Rear Holder: MG630537-7
- Mating Clip: MG630521, MG633541-7
- Mating Connector: MG610574-4
- Mating Terminal: ST730411-1, ST730411-3, ST730412-1, ST730412-3
- Pitch(mm): 10
- Mating Tab Width(in): .250
Electrical Feature
- Wire Range: AVSS 0.5~1.25,AVSS 2.0 AVS 3.0~4.0
- Insulation Resistance: DC 500V 100MΩ MIN
- Contact Resistance: 3mΩ MAX (Initial)
- Terminal Transmits(A): 20
