PRODUCT

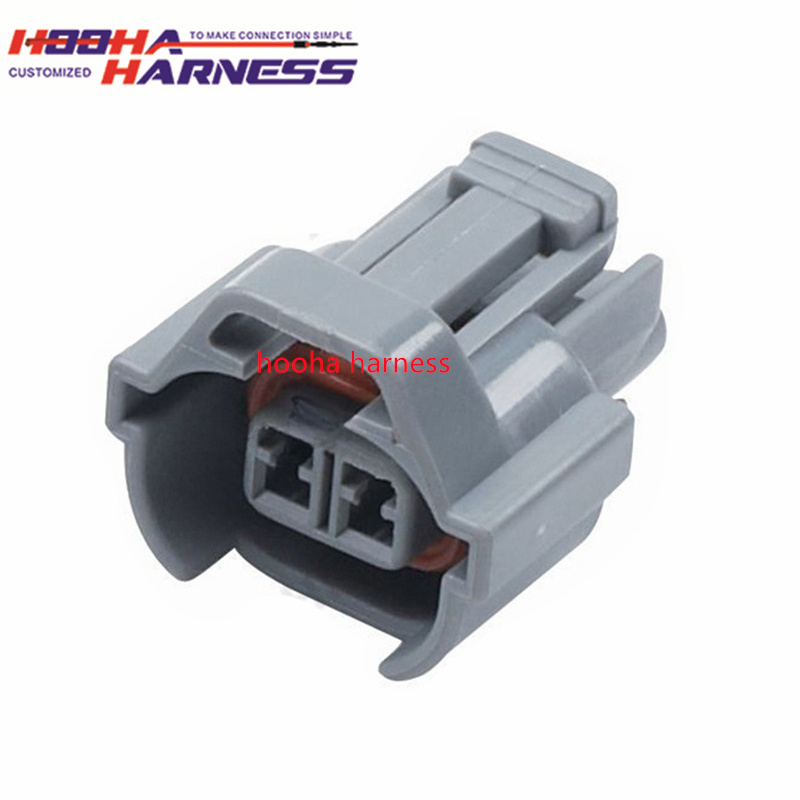

MG640864-5 KET replacement Chinese equivalent housing plastic automotive connector
Product ID : MG640864-5
Product Attributes :
MG640864-5 KET replacement Chinese equivalent housing plastic automotive connector
Product Description
General Feature
- Series: 090 SERIES
- Dimensions: 23.4*21.0*23.0
- Material Type: PBT
Physical Feature
- Sealed: YES
- Color: Black
- Number of Poles: 2
- TPA: NO
- Mating Terminal: ST730502-3, ST730554-3
- Pitch(mm): 6
- Mating Tab Width(in): .090
Electrical Feature
- Wire Range: 090:AVS 0.3, 0.5, CAVS 0.85, AVSS 1.25, AVSS 2.0
- Insulation Resistance: DC 500V 100MΩ MIN
- Contact Resistance: 3mΩ MAX (Initial)
- Terminal Transmits(A): 10
