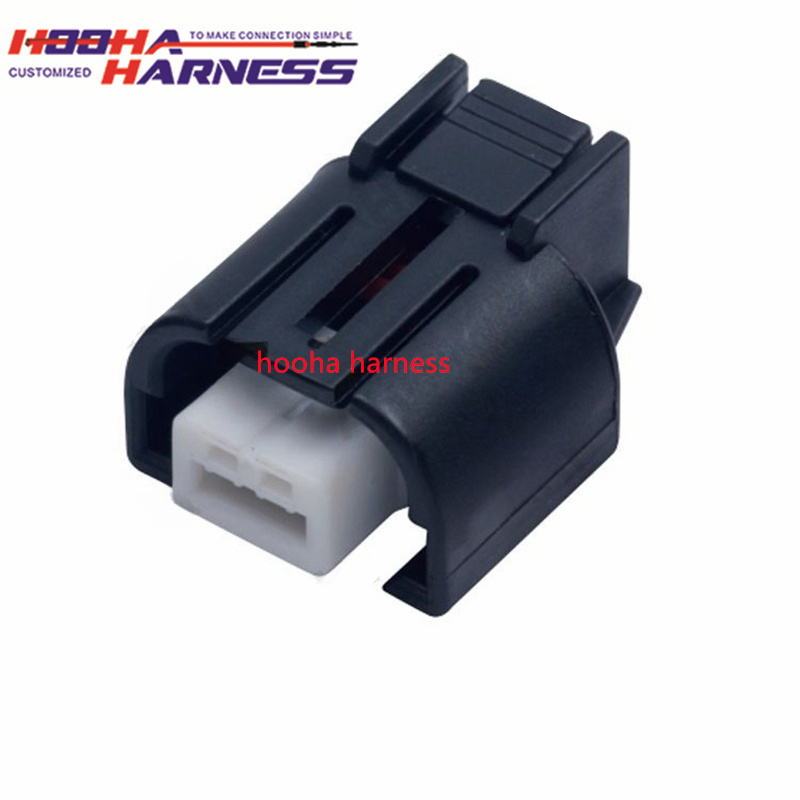

MG644111 KET replacement Chinese equivalent housing plastic automotive connector
Product ID : MG644111
Product Tags :
2pin
Product Attributes :
MG644111 KET replacement Chinese equivalent housing plastic automotive connector
Product Description
General Feature
- Series: 025 SERIES
- Dimensions: 18.8*23.7*15.9
- Material Type: PBT
Physical Feature
- Sealed: YES
- Color: Natural
- Number of Poles: 2
- TPA: YES
- Mating Terminal: ST730961-3, ST730962-3, ST730963-3
- Pitch(mm): 3
- Mating Tab Width(in): .025
Electrical Feature
- Wire Range: CAVS0.85,CAVUS0.85,AESSXF0.5,CAVS0.5,CAVUS0.5,AESSXF0.5,CAVS0.3,CAVUS0.3,AESSXF0.5
- Insulation Resistance: DC 500V 100MΩ MIN
- Contact Resistance: 10mΩ MAX (Initial)
- Terminal Transmits(A): 5
