molex 51021 series connector 1.25mm pitch custom wire harness assembly

Wire Harness Introduction

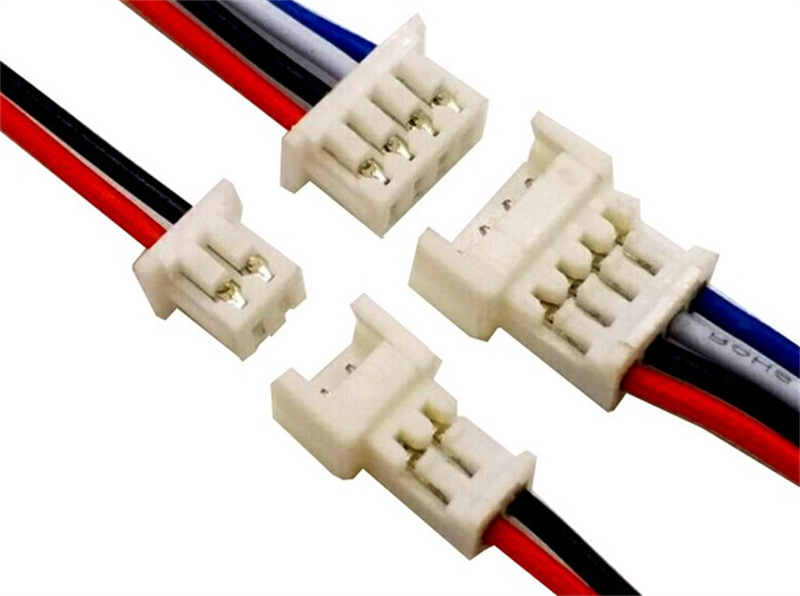

The Molex 51021 series is a top-of-the-line wire-to-board connector that boasts a pitch of 1.25mm, making it an ideal choice for high-density applications where space is at a premium. This versatile connector comes in both male and female versions, allowing you to create custom cable harnesses with ease.

With options ranging from 2-pin to 17-pin configurations, the Molex 51021 series offers unparalleled flexibility when it comes to designing your next project. Whether you're working on a complex electronic system or simply need a reliable connection for your DIY project, these connectors are sure to meet your needs.

Crafted from high-quality materials and engineered for maximum durability, the Molex 51021 series delivers exceptional performance even in harsh environments. So why settle for anything less? Choose the Molex 51021 series today and experience the ultimate in wire-to-board connectivity!

Molex 51021 series connector features

The Molex 51021 series connector is a specific type of connector manufactured by Molex Incorporated. Here are some general features and specifications of the Molex 51021 series connector:

• Compact Size: The Molex 51021 series connector is designed to be compact, making it suitable for applications with limited space.

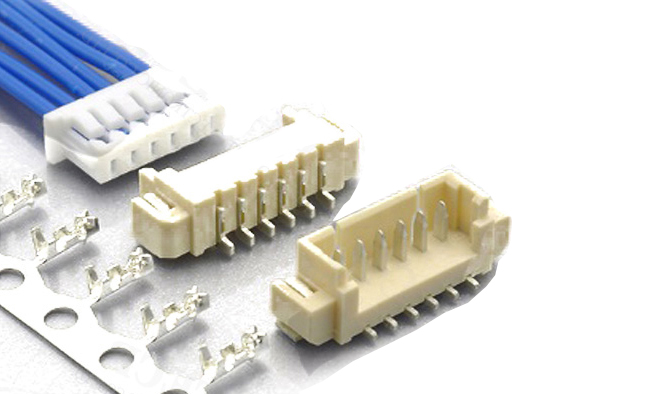

• Wire-to-Board Connection: This connector series is commonly used for wire-to-board connections, allowing you to connect wires to a printed circuit board (PCB) or other electrical components.

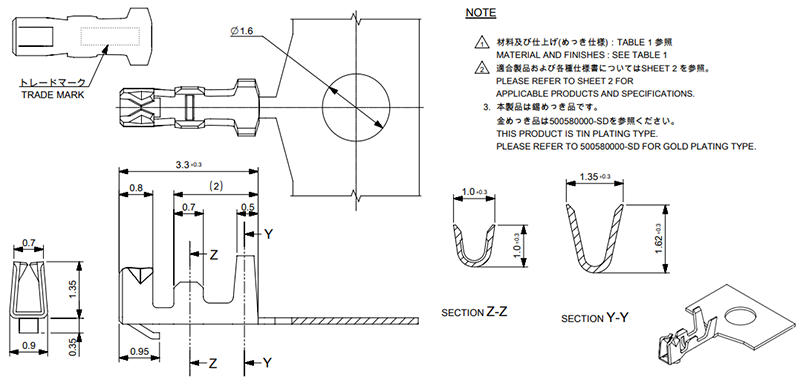

• Crimp Contacts: The Molex 51021 series connector typically utilizes crimp contacts, which are small metal pins that can be crimped onto the end of wires for secure and reliable electrical connections.

• Low Profile: The connector has a low profile design, which helps to minimize the overall height and space required when mounted on a PCB.

• Secure Connection: The connector features a positive lock mechanism to ensure a secure connection and prevent accidental disconnection.

• Multiple Circuits: The Molex 51021 series connector is available in various configurations, offering multiple circuits to accommodate different signal or power requirements. The number of circuits can vary depending on the specific model within the series.

• Current and Voltage Ratings: The current and voltage ratings of the Molex 51021 series connector may vary depending on the specific model and application. It's important to refer to the datasheet or specifications provided by Molex for precise information.

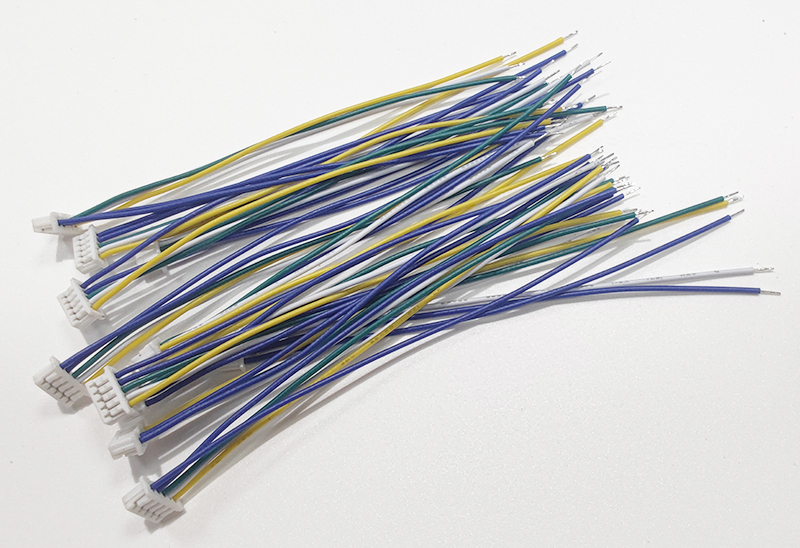

• Molex 51021 wire harness widely application

How to custom your own wire harness?

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
