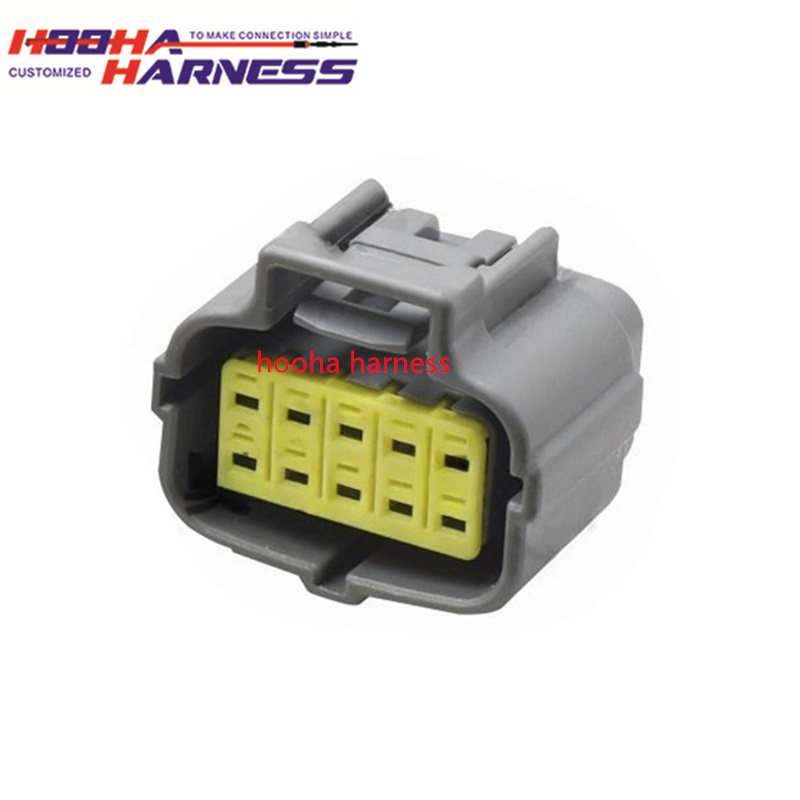

174657-2 TE replacement Chinese equivalent housing plastic automotive connector
Product ID : 174657-2
Product Attributes :
174657-2 TE replacement Chinese equivalent housing plastic automotive connector
Product Description
| Product Attribute | Attribute Value |
|---|---|
| TE Connectivity | |
| Product Category: | Automotive Connectors |
| RoHS: | Yes |
| Housings | |
| 10 Position | |
| 4.8 mm | |
| Receptacle (Female) | |
| Cable Mount / Free Hanging | |
| Crimp | |
| 24 AWG | |
| 16 AWG | |
| Black | |
| Econoseal J | |
| Application: | Wire to Wire |
| Brand: | TE Connectivity / AMP |
| Contact Gender: | Without Pin Contacts |
| Flammability Rating: | UL 94 V-2 |
| Height: | 30.7 mm |
| Housing Material: | Polybutylene Terephthalate (PBT) |
| Length: | 36.5 mm |
| Locking Mechanism: | Integrated in Housing |
| Maximum Operating Temperature: | + 105 C |
| Minimum Operating Temperature: | - 30 C |
| Mounting Angle: | Straight |
| Number of Rows: | 2 Row |
| Product Type: | Automotive Connectors |
| Row Spacing: | 3 mm |
| Voltage Rating: | 12 VDC |
| Width: | 32.7 mm |
| Wire Gauge Range: | 24 AWG to 16 AWG |
| Unit Weight: | 0.363992 oz |
