PRODUCT

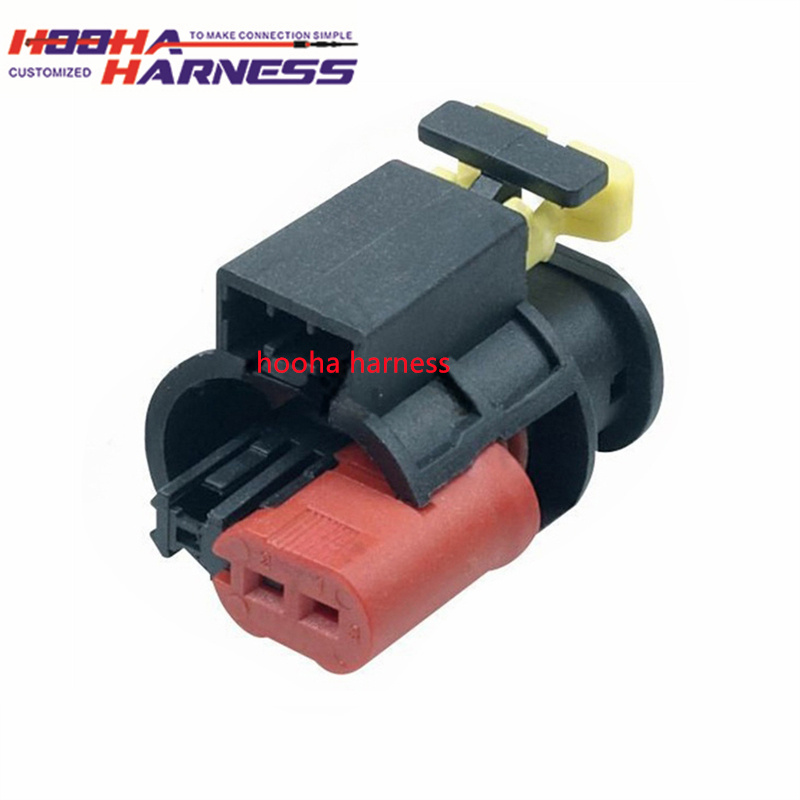

284556-1 TE replacement Chinese equivalent housing plastic automotive connector
Product ID : 284556-1
Product Attributes :
284556-1 TE replacement Chinese equivalent housing plastic automotive connector
Product Description
| Product Attribute | Attribute Value |
|---|---|
| TE Connectivity | |
| Product Category: | Automotive Connectors |
| RoHS: | Yes |
| Connectors | |
| 2 Position | |
| 4 mm | |
| Receptacle (Female) | |
| Cable Mount / Free Hanging | |
| Crimp | |
| 17 AWG | |
| 14 AWG | |
| Black | |
| Application: | Signal |
| Brand: | TE Connectivity |
| Contact Gender: | Without Socket Contacts |
| Contact Type: | Socket |
| Description/Function: | Sensor Flat Contact System, Housing for Female Terminals |
| Height: | 34.9 mm |
| Housing Material: | Polyamide (PA) |
| Ingress Protection: | IP54K |
| Length: | 22.7 mm |
| Lock Mate Feature: | Integrated in Housing |
| Maximum Operating Temperature: | + 140 C |
| Minimum Operating Temperature: | - 40 C |
| Mounting Angle: | Straight |
| Number of Rows: | 1 Row |
| Product Type: | Automotive Connectors |
| Voltage Rating: | 24 VDC |
| Width: | 22.6 mm |
| Wire Gauge Range: | 14 AWG to 17 AWG |
| Unit Weight: | 0.239863 oz |
