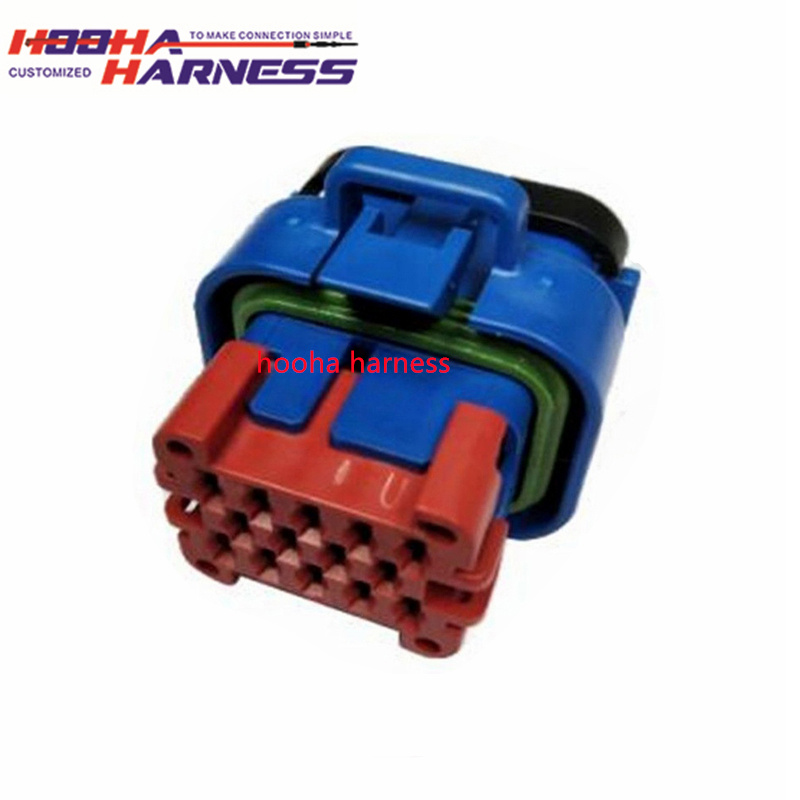

776273-5 TE replacement Chinese equivalent housing plastic automotive connector
Product ID : 776273-5
Product Tags :
14-pin/ pole/ position connector
Product Attributes :
776273-5 TE replacement Chinese equivalent housing plastic automotive connector
Product Description
776273-5 TE replacement Chinese equivalent housing plastic automotive connector
| Product Attribute | Attribute Value |
|---|---|
| TE Connectivity | |
| Product Category: | Automotive Connectors |
| RoHS: | Yes |
| Housings | |
| 14 Position | |
| 4 mm | |
| Receptacle (Female) | |
| Cable Mount / Free Hanging | |
| Crimp | |
| 20 AWG | |
| 16 AWG | |
| Blue | |
| Ampseal Sealed | |
| Application: | Wire to Board/Device |
| Attachment Hole Diameter: | 1.3 mm |
| Brand: | TE Connectivity |
| Contact Gender: | Without Socket Contacts |
| Contact Type: | Socket |
| Current Rating: | 17 A |
| Description/Function: | AMPSEAL, Housing for Female Terminals |
| Flammability Rating: | UL 94 V-0 |
| Height: | 34.6 mm |
| Ingress Protection: | IP67, IP69K |
| Length: | 35.4 mm |
| Lock Mate Feature: | Integrated in Housing |
| Material: | Plastic |
| Maximum Operating Temperature: | + 125 C |
| Minimum Operating Temperature: | - 40 C |
| Mounting Angle: | Straight |
| Number of Rows: | 3 Row |
| Product Type: | Automotive Connectors |
| Row Spacing: | 4 mm |
| Voltage Rating: | 250 VAC |
| Width: | 33.6 mm |
| Wire Gauge Range: | 16 AWG to 20 AWG |
| Unit Weight: | 0.601527 oz |
